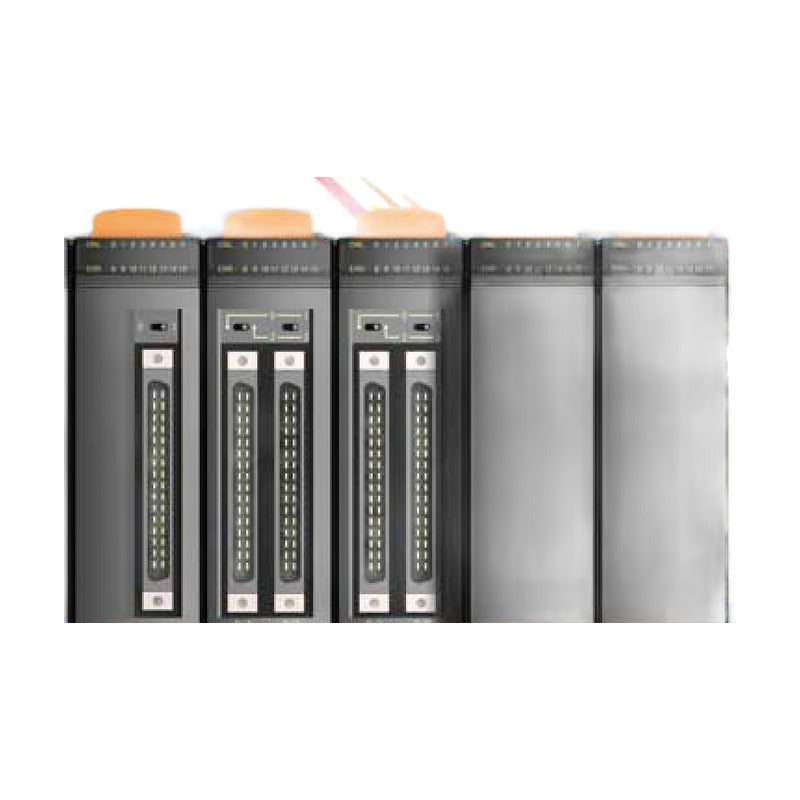

Fuji Electric MICREX-SX SPM I/O & Positioning Modules (NP0)

Digital, analog and positioning modules for the MICREX-SX SPM controller: DC inputs, relay and transistor outputs, mixed I/O, multi-range analog and 2-axis pulse-train positioning / high-speed counter modules.

Key features

DC sink/source inputs, 16 or 32 points
Relay 16-point and transistor sink 32-point outputs
Mixed I/O modules 16/16 and 32/32 points
Multi-range analog input 4ch, output 2ch, I/O 4+2ch
Pulse-train positioning 250 kHz x 2ch and 500 kHz high-speed counter

Specifications

Series	MICREX-SX SPM
Mounting	NP0BS base board
Programming	Expert (D300win) / Standard
Applications	Spinning, wiredrawing, take-up machines
Catalogue no.	22B1-E-0001
Source	Fuji Electric MICREX-SX SPM catalogue (2014), p. 11-15, 27

NP0X1606-W		Type: Digital input \| Specification: DC input, sink/source, 16 points \| Group: Digital
NP0X3206-W		Type: Digital input \| Specification: DC input, sink/source, 32 points \| Group: Digital
NP0Y16R-08		Type: Digital output \| Specification: Relay output, 16 points \| Group: Digital
NP0Y32T09P1		Type: Digital output \| Specification: Transistor sink output, 32 points \| Group: Digital
NP0W3206T		Type: Digital I/O \| Specification: DC source in 16 pts + Tr sink out 16 pts \| Group: Digital
NP0W6406T		Type: Digital I/O \| Specification: DC bidir. in 32 + Tr sink out 32 pts \| Group: Digital
NP0AXH4-MR		Type: Analog input \| Specification: Multi-range input 4ch \| Group: Analog
NP0AYH2-MR		Type: Analog output \| Specification: Multi-range output 2ch \| Group: Analog
NP0AWH6-MR		Type: Analog I/O \| Specification: Multi-range input 4ch, output 2ch \| Group: Analog
NP0F-HP2		Type: Positioning \| Specification: Pulse train output, 250 kHz x 2ch \| Group: Positioning
NP0F-MP2		Type: Positioning \| Specification: Combined: out 250 kHz x2, FB 500 kHz \| Group: Positioning
NP0F-HC2		Type: High-speed counter \| Specification: 500 kHz x 2ch \| Group: Positioning

PLC ModulesFuji Electric

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MICREX-SX SPM I/O & Positioning Modules (NP0)

Brand Fuji Electric·PLC Modules

Available part numbers (12)

NP0X1606-W, NP0X3206-W, NP0Y16R-08, NP0Y32T09P1, NP0W3206T, NP0W6406T, NP0AXH4-MR, NP0AYH2-MR, NP0AWH6-MR, NP0F-HP2 + 2 more — see full table ↓
