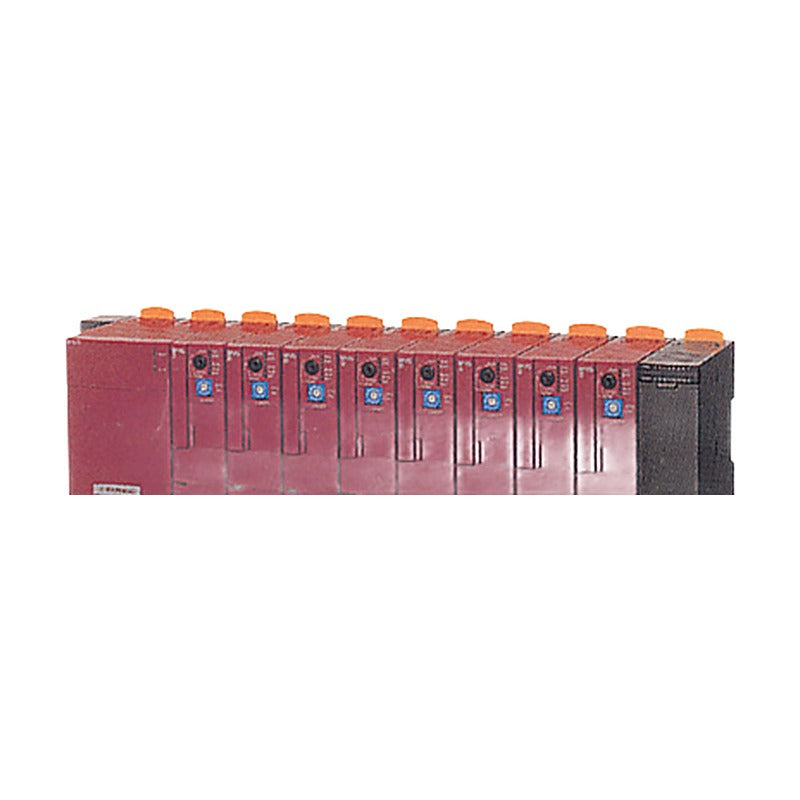

Fuji Electric MICREX-SX SPH System Accessories (Bus Cables, ROM)

Fuji Electric MICREX-SX SPH System Accessories (Bus Cables, ROM)

System accessories for MICREX-SX SPH: SX and E-SX bus expansion cables, T-branch unit, plugs, DIN rail brackets, backup batteries, user ROM cards, I/O connectors, network connectors/terminators and MICREX-F renewal plate sets.

Key features

  • SX bus cables 0.3-25 m; E-SX bus cables 0.3-100 m
  • T-branch unit for free SX bus topology
  • Standard and large-capacity backup batteries
  • User ROM cassette / CF / SD cards per CPU class
  • Renewal plate sets reuse MICREX-F I/O wiring with SX modules

Specifications

Series MICREX-SX SPH
Cable note Other cable lengths available on request
SX bus total length 25 m (up to 100 m with repeater)
ROM media Per CPU class (SPH200 / 300 / 2000 / 3000)
Renewal tools For MICREX-F F250, F120-F150S, F120H/F80H
Source Fuji Electric MICREX-SX SPH catalogue (KR ed.), p. 106, 122-125
NP1C-P3 Category: Bus cable | Item: SX bus expansion cable | Specification: 300 mm
NP1C-P6 Category: Bus cable | Item: SX bus expansion cable | Specification: 600 mm
NP1C-P8 Category: Bus cable | Item: SX bus expansion cable | Specification: 800 mm
NP1C-02 Category: Bus cable | Item: SX bus expansion cable | Specification: 2,000 mm
NP1C-05 Category: Bus cable | Item: SX bus expansion cable | Specification: 5,000 mm
NP1C-10 Category: Bus cable | Item: SX bus expansion cable | Specification: 10,000 mm
NP1C-15 Category: Bus cable | Item: SX bus expansion cable | Specification: 15,000 mm
NP1C-25 Category: Bus cable | Item: SX bus expansion cable | Specification: 25,000 mm
NU1C-P3 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 300 mm
NU1C-P6 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 600 mm
NU1C-P8 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 800 mm
NU1C-02 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 2,000 mm
NU1C-05 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 5,000 mm
NU1C-10 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 10,000 mm
NU1C-15 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 15,000 mm
NU1C-25 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 25,000 mm
NU1C-50 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 50,000 mm
NU1C-A0 Category: Bus cable | Item: E-SX bus expansion cable | Specification: 100,000 mm
NP8B-TB Category: System part | Item: SX bus T-branch unit | Specification: With 1 SX bus plug
NP8B-BP Category: System part | Item: SX bus return plug | Specification: 1 pc
NP8B-ST Category: System part | Item: DIN rail fixing bracket | Specification: 2 pcs
NP8P-BT Category: Battery | Item: Memory backup battery | Specification: Lithium primary battery
NP8P-BT1 Category: Battery | Item: Memory backup battery | Specification: Large-capacity lithium battery
NP8P-BTS Category: Battery | Item: Battery box | Specification: NP8P-BT1 + housing box
NP8P-KY Category: System part | Item: CPU mode key | Specification: Operation mode change key
NP8V-CN Category: System part | Item: I/O connector | Specification: Solder type for connector modules
NP8PMF-16 Category: ROM media | Item: User ROM cassette | Specification: 16 MB, for SPH200
NP8PCF-256 Category: ROM media | Item: User ROM card | Specification: CompactFlash 256 MB, SPH300/SPH2000
NP8PSD-002 Category: ROM media | Item: User ROM card | Specification: SD 2 GB, SPH3000/SPH3000MM
FTC120T Category: Network part | Item: T-link/OPCN-1 connector | Specification: Order code NH5V-TL1CC
FTC120P Category: Network part | Item: P/PE link connector | Specification: Order code NH5V-PL1CC
FRT120A100 Category: Network part | Item: T-link/OPCN-1 terminator | Specification: Order code NH5V-TL1RT
FRT220A75 Category: Network part | Item: P/PE link terminator | Specification: Order code NH5V-PL1RT
NP8REFSS-08 Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 480 mm
NP8REFSS-06 Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 407 mm
NP8REFSS-04 Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 334 mm
NP8REFSS-02 Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 261 mm
PLC ModulesFuji Electric
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MICREX-SX SPH System Accessories (Bus Cables, ROM)

Brand Fuji Electric·PLC Modules

Available part numbers (37)

NP1C-P3, NP1C-P6, NP1C-P8, NP1C-02, NP1C-05, NP1C-10, NP1C-15, NP1C-25, NU1C-P3, NU1C-P6 + 27 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NP1C-P3Category: Bus cable | Item: SX bus expansion cable | Specification: 300 mm
NP1C-P6Category: Bus cable | Item: SX bus expansion cable | Specification: 600 mm
NP1C-P8Category: Bus cable | Item: SX bus expansion cable | Specification: 800 mm
NP1C-02Category: Bus cable | Item: SX bus expansion cable | Specification: 2,000 mm
NP1C-05Category: Bus cable | Item: SX bus expansion cable | Specification: 5,000 mm
NP1C-10Category: Bus cable | Item: SX bus expansion cable | Specification: 10,000 mm
NP1C-15Category: Bus cable | Item: SX bus expansion cable | Specification: 15,000 mm
NP1C-25Category: Bus cable | Item: SX bus expansion cable | Specification: 25,000 mm
NU1C-P3Category: Bus cable | Item: E-SX bus expansion cable | Specification: 300 mm
NU1C-P6Category: Bus cable | Item: E-SX bus expansion cable | Specification: 600 mm
NU1C-P8Category: Bus cable | Item: E-SX bus expansion cable | Specification: 800 mm
NU1C-02Category: Bus cable | Item: E-SX bus expansion cable | Specification: 2,000 mm
NU1C-05Category: Bus cable | Item: E-SX bus expansion cable | Specification: 5,000 mm
NU1C-10Category: Bus cable | Item: E-SX bus expansion cable | Specification: 10,000 mm
NU1C-15Category: Bus cable | Item: E-SX bus expansion cable | Specification: 15,000 mm
NU1C-25Category: Bus cable | Item: E-SX bus expansion cable | Specification: 25,000 mm
NU1C-50Category: Bus cable | Item: E-SX bus expansion cable | Specification: 50,000 mm
NU1C-A0Category: Bus cable | Item: E-SX bus expansion cable | Specification: 100,000 mm
NP8B-TBCategory: System part | Item: SX bus T-branch unit | Specification: With 1 SX bus plug
NP8B-BPCategory: System part | Item: SX bus return plug | Specification: 1 pc
NP8B-STCategory: System part | Item: DIN rail fixing bracket | Specification: 2 pcs
NP8P-BTCategory: Battery | Item: Memory backup battery | Specification: Lithium primary battery
NP8P-BT1Category: Battery | Item: Memory backup battery | Specification: Large-capacity lithium battery
NP8P-BTSCategory: Battery | Item: Battery box | Specification: NP8P-BT1 + housing box
NP8P-KYCategory: System part | Item: CPU mode key | Specification: Operation mode change key
NP8V-CNCategory: System part | Item: I/O connector | Specification: Solder type for connector modules
NP8PMF-16Category: ROM media | Item: User ROM cassette | Specification: 16 MB, for SPH200
NP8PCF-256Category: ROM media | Item: User ROM card | Specification: CompactFlash 256 MB, SPH300/SPH2000
NP8PSD-002Category: ROM media | Item: User ROM card | Specification: SD 2 GB, SPH3000/SPH3000MM
FTC120TCategory: Network part | Item: T-link/OPCN-1 connector | Specification: Order code NH5V-TL1CC
FTC120PCategory: Network part | Item: P/PE link connector | Specification: Order code NH5V-PL1CC
FRT120A100Category: Network part | Item: T-link/OPCN-1 terminator | Specification: Order code NH5V-TL1RT
FRT220A75Category: Network part | Item: P/PE link terminator | Specification: Order code NH5V-PL1RT
NP8REFSS-08Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 480 mm
NP8REFSS-06Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 407 mm
NP8REFSS-04Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 334 mm
NP8REFSS-02Category: Renewal tool | Item: Renewal tool mounting plate set | Specification: Base unit W1 261 mm
