Fuji Electric MONITOUCH HMI Programming & Peripheral Cables

Fuji Electric MONITOUCH HMI Programming & Peripheral Cables

Cables for MONITOUCH V8/V9 and Techno Shot displays: screen transfer to PC, barcode reader, multi-link, temperature controller/inverter connection, USB front-panel extensions and connector converters.

Key features

  • V-CP screen data transfer cable to PC
  • V6 series cables for barcode readers, multi-link and temperature controllers
  • UA-FR / UB-FR bring USB ports to the panel front
  • D9-D25 / D9-D15 adapt older V6/V7 CN1 cables to V8/V9
  • V8H-C connection cable for the V808CH handheld

Specifications

Product family MONITOUCH cables
Compatible V8, V9 series (UA-FR also Techno Shot)
Connector Modular 8-pin, D-sub, USB
Use Programming, peripherals, connector adaptation
Note V6-TMP printed as 3 m type in V9 list
Source Fuji Electric MONITOUCH V9 Series catalogue (KR ed., 2016) / MONITOUCH V8 Series catalogue (KR ed.), p. 9, 13, 15
V-CP Cable type: Screen transfer cable | Connection: MJ 8-pin to PC D-sub9 (F) | Length: 3 m
V6-BCD Cable type: Barcode reader cable | Connection: MJ 8-pin, RS-232C | Length: 3 m
V6-MLT Cable type: Multi-link 2 master cable | Connection: MJ 8-pin, RS-422/485 | Length: 3 m
V6-TMP Cable type: Temp. controller / inverter cable | Connection: MJ 8-pin, RS-232C/485 | Length: 3 m
V6-TMP-3M Cable type: Temp. controller / inverter cable | Connection: MJ 8-pin, RS-232C/485 | Length: 3 m
V6-TMP-5M Cable type: Temp. controller / inverter cable | Connection: MJ 8-pin, RS-232C/485 | Length: 5 m
V6-TMP-10M Cable type: Temp. controller / inverter cable | Connection: MJ 8-pin, RS-232C/485 | Length: 10 m

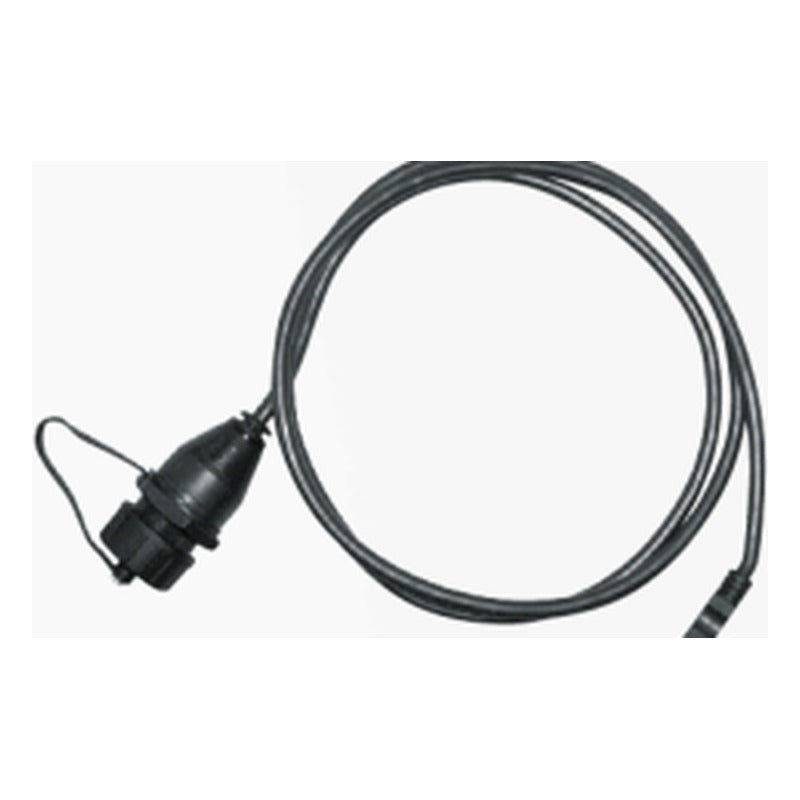

UA-FR Cable type: USB-A panel-front extension | Connection: USB-A (card reader, USB memory) | Length: 1 m
UB-FR Cable type: USB-B panel-front extension | Connection: USB-B (PC, PictBridge printer) | Length: 1 m
MJ-D25 Cable type: MJ2 to D-sub25 conversion | Connection: MJ2 modular to D-sub25 | Length: -
MJ2-PLC Cable type: MJ2 to D-sub25 conversion | Connection: V806/V706, V9071iW MJ2 port | Length: -
D9-D25 Cable type: D-sub9 to D-sub25 conversion | Connection: CN1 D-sub9 to D-sub25 | Length: 0.3 m
D9-D15 Cable type: D-sub9 to D-sub15 conversion | Connection: CN1 D-sub9 to D-sub15 | Length: 0.5 m
V8H-C Cable type: V808CH external cable | Connection: V808CH handheld connection | Length: 3/5/15/20 m (specify)
