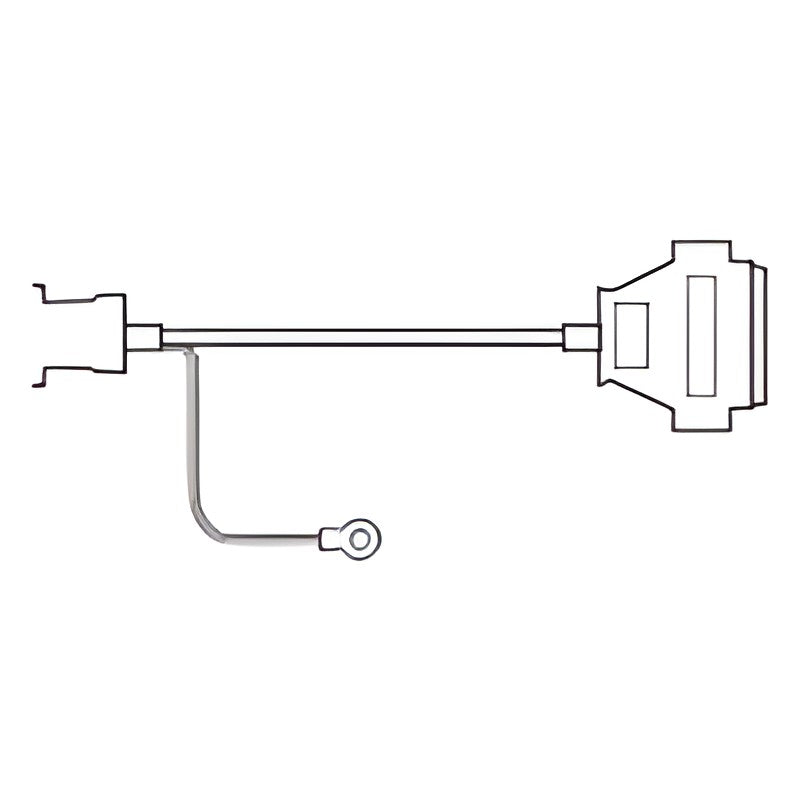

Fuji Electric MONITOUCH HMI PLC Connection Cables

Fuji Electric MONITOUCH HMI PLC Connection Cables

Ready-made cables connecting MONITOUCH V8/V9 displays directly to PLC CPU ports of Mitsubishi A/QnA/Q/FX and Fuji SPH/SPB controllers, in fixed lengths from 2 to 15 m.

Key features

  • D9 cables plug into the HMI CN1 D-sub9 port
  • MJ2 cables for the V806 modular serial port
  • Mitsubishi A/QnA, Q, FX and link-unit versions
  • Fuji MICREX-SX SPH and SPB RS-485 versions
  • Lengths 2, 3, 5, 10, 15 m as printed

Specifications

Product family MONITOUCH PLC cables
Compatible V8 / V9 series (V9071iW, V9060iTD need DUR-00)
HMI side D-sub9 (CN1) or modular MJ2
Cable type Ready-made, fixed length
Use Direct HMI to PLC CPU port connection
Source Fuji Electric MONITOUCH V9 Series catalogue (KR ed., 2016), p. 13, 15
D9-MB-CPUQ-2M PLC side: Mitsubishi A/QnA CPU (D-sub25) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 2 m
D9-MB-CPUQ-3M PLC side: Mitsubishi A/QnA CPU (D-sub25) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 3 m
D9-MB-CPUQ-5M PLC side: Mitsubishi A/QnA CPU (D-sub25) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 5 m
D9-MB-CPUQ-10M PLC side: Mitsubishi A/QnA CPU (D-sub25) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 10 m
D9-MB-CPUQ-15M PLC side: Mitsubishi A/QnA CPU (D-sub25) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 15 m
D9-QCPU2-2M PLC side: Mitsubishi Q series CPU | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 2 m
D9-QCPU2-3M PLC side: Mitsubishi Q series CPU | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 3 m
D9-QCPU2-5M PLC side: Mitsubishi Q series CPU | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 5 m
D9-QCPU2-10M PLC side: Mitsubishi Q series CPU | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 10 m
D9-QCPU2-15M PLC side: Mitsubishi Q series CPU | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 15 m
D9-MI2-09-2M PLC side: Mitsubishi link unit (D-sub9) | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 2 m
D9-MI2-09-3M PLC side: Mitsubishi link unit (D-sub9) | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 3 m
D9-MI2-09-5M PLC side: Mitsubishi link unit (D-sub9) | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 5 m
D9-MI2-09-10M PLC side: Mitsubishi link unit (D-sub9) | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 10 m
D9-MI2-09-15M PLC side: Mitsubishi link unit (D-sub9) | Interface: RS-232C | HMI port: CN1 D-sub9 | Length: 15 m
D9-MI4-FX-2M PLC side: Mitsubishi FX CPU (mini DIN8) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 2 m
D9-MI4-FX-3M PLC side: Mitsubishi FX CPU (mini DIN8) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 3 m
D9-MI4-FX-5M PLC side: Mitsubishi FX CPU (mini DIN8) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 5 m
D9-MI4-FX-10M PLC side: Mitsubishi FX CPU (mini DIN8) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 10 m
D9-MI4-FX-15M PLC side: Mitsubishi FX CPU (mini DIN8) | Interface: RS-422 | HMI port: CN1 D-sub9 | Length: 15 m
D9-FU-SPHCPU-2M PLC side: Fuji MICREX-SX SPH CPU | Interface: RS-485 4-wire | HMI port: CN1 D-sub9 | Length: 2 m
D9-FU-SPHCPU-3M PLC side: Fuji MICREX-SX SPH CPU | Interface: RS-485 4-wire | HMI port: CN1 D-sub9 | Length: 3 m
D9-FU-SPHCPU-5M PLC side: Fuji MICREX-SX SPH CPU | Interface: RS-485 4-wire | HMI port: CN1 D-sub9 | Length: 5 m
D9-FU-SPBCPU-2M PLC side: Fuji MICREX-F SPB CPU | Interface: RS-485 4-wire | HMI port: CN1 D-sub9 | Length: 2 m
D9-FU-SPBCPU-3M PLC side: Fuji MICREX-F SPB CPU | Interface: RS-485 4-wire | HMI port: CN1 D-sub9 | Length: 3 m
D9-FU-SPBCPU-5M PLC side: Fuji MICREX-F SPB CPU | Interface: RS-485 4-wire | HMI port: CN1 D-sub9 | Length: 5 m
V706-ACPU PLC side: Mitsubishi A/QnA CPU | Interface: RS-422 | HMI port: V806 MJ1/MJ2 | Length: 2/3/5 m (specify)
MJ2-MI4FX PLC side: Mitsubishi FX CPU | Interface: RS-422 | HMI port: V806 MJ2 | Length: 2/3/5 m (specify)
MJ2-FU-SPHCPU PLC side: Fuji MICREX-SX SPH CPU | Interface: RS-485 4-wire | HMI port: V806 MJ2 | Length: 2/3/5 m (specify)
MJ2-FU-SPBHCPU PLC side: Fuji MICREX-F SPB CPU | Interface: RS-485 4-wire | HMI port: V806 MJ2 | Length: -
