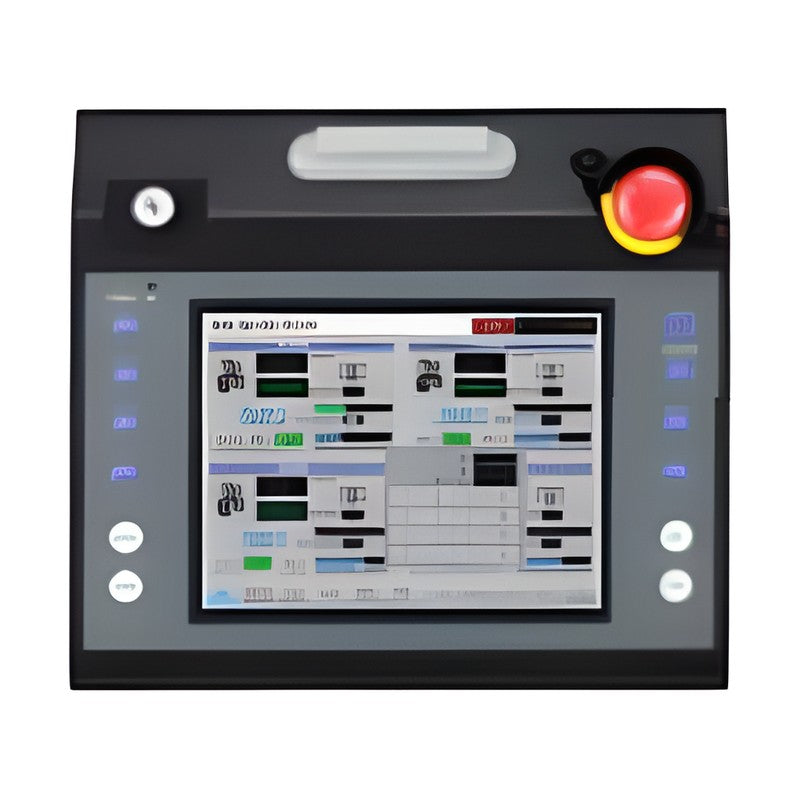

Fuji Electric MONITOUCH V808CH Handheld HMI (7.5 in, VGA)

Fuji Electric MONITOUCH V808CH Handheld HMI (7.5 in, VGA)

Handheld MONITOUCH V8 terminal with 7.5-inch VGA TFT display, emergency stop switch, function keys and enable (deadman) switch; option digit selects key switch and deadman switch version.

Key features

  • 7.5-inch TFT colour LCD, 640 x 480 dots, 65,536 colours
  • 12 membrane function switches (4 with external output)
  • Push-lock emergency stop switch, 2 NC circuits, DC24V 1 A
  • Momentary or 3-position deadman switch
  • Optional key switch, a-contact, 250,000 operations
  • Ethernet on V808iCH, CF card and USB-B interfaces

Specifications

Series MONITOUCH V8 (V808CH)
Display 7.5 in TFT colour, 640 x 480
Power supply DC24V
Serial TB2 RS-232C, TB3 RS-422/485
Emergency stop Push-lock, b contact x2, 1 A DC24V
Mounting accessories V8H-SWG, V6H-WF, V6H-WF1, V8H-WFV, V8H-ST
Cable V8H-C (3, 5, 15, 20 m)
Standards CE (EN61000-6-2/6-4), UL508
Source Fuji Electric MONITOUCH V9 Series catalogue (KR ed., 2016), p. 14-15
V808iCH0 Ethernet: Built-in | Key switch: None | Deadman switch: Momentary | Deadman ext. output: None
V808iCH1 Ethernet: Built-in | Key switch: Yes | Deadman switch: Momentary | Deadman ext. output: None
V808iCH2 Ethernet: Built-in | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808iCH3 Ethernet: Built-in | Key switch: Yes | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808iCH4 Ethernet: Built-in | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 2 contacts
V808CH0 Ethernet: None | Key switch: None | Deadman switch: Momentary | Deadman ext. output: None
V808CH1 Ethernet: None | Key switch: Yes | Deadman switch: Momentary | Deadman ext. output: None
V808CH2 Ethernet: None | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808CH3 Ethernet: None | Key switch: Yes | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808CH4 Ethernet: None | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 2 contacts
HMI Touch PanelsFuji Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MONITOUCH V808CH Handheld HMI (7.5 in, VGA)

Brand Fuji Electric·HMI Touch Panels

Available part numbers (10)

V808iCH0, V808iCH1, V808iCH2, V808iCH3, V808iCH4, V808CH0, V808CH1, V808CH2, V808CH3, V808CH4

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
V808iCH0Ethernet: Built-in | Key switch: None | Deadman switch: Momentary | Deadman ext. output: None
V808iCH1Ethernet: Built-in | Key switch: Yes | Deadman switch: Momentary | Deadman ext. output: None
V808iCH2Ethernet: Built-in | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808iCH3Ethernet: Built-in | Key switch: Yes | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808iCH4Ethernet: Built-in | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 2 contacts
V808CH0Ethernet: None | Key switch: None | Deadman switch: Momentary | Deadman ext. output: None
V808CH1Ethernet: None | Key switch: Yes | Deadman switch: Momentary | Deadman ext. output: None
V808CH2Ethernet: None | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808CH3Ethernet: None | Key switch: Yes | Deadman switch: 3-position | Deadman ext. output: 1 contact
V808CH4Ethernet: None | Key switch: None | Deadman switch: 3-position | Deadman ext. output: 2 contacts
