• Fuji Electric MONITOUCH V810 HMI Touch Panels (10.4 in)
1 1

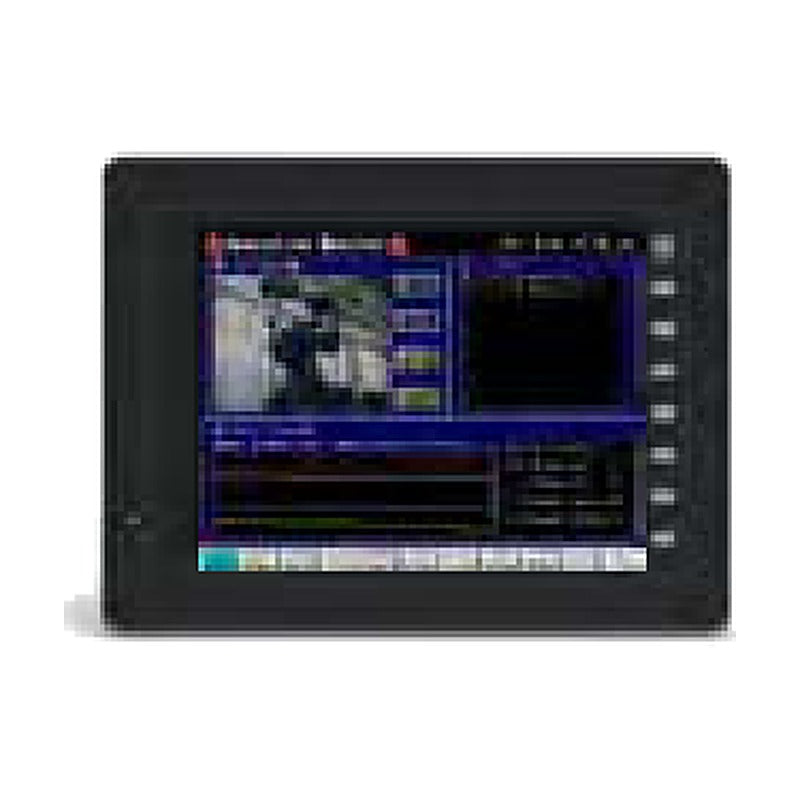

Fuji Electric MONITOUCH V810 HMI Touch Panels (10.4 in)

Fuji Electric MONITOUCH V810 HMI Touch Panels (10.4 in)

10.4-inch MONITOUCH V8 programmable displays in SVGA high-performance (S), VGA high-function (T) and VGA standard (C) versions, with analog or matrix touch switches and AC or DC24V supply.

Key features

  • 65,536-colour TFT LCD
  • S/T models: 12.5 MB FROM, 512 KB SRAM; C models: 4.5 MB FROM, 128 KB SRAM
  • Ethernet 100BASE-TX/10BASE-T built in on 'i' models
  • CF card, USB-A and USB-B interfaces
  • Video / RGB option units on iS and iT models
  • Multi-vendor PLC, temperature controller and inverter connection

Specifications

Series MONITOUCH V8
Screen size 10.4 in TFT colour
Colours 65,536 (32,768 with blink)
Serial ports CN1 D-sub9, MJ1/MJ2 modular 8-pin
USB Type A / Type B (Ver 1.1)
Panel cutout 289 x 216.2 mm
Standards CE (EN61000-6-2/6-4), UL508
Suffix key i = Ethernet, M = matrix touch, D = DC24V
Screen 10.4 in
Source Fuji Electric MONITOUCH V8 Series catalogue (KR ed.) / MONITOUCH V9 Series catalogue (KR ed., 2016), p. 4, 14 (V8); 14-15 (V9 cat.)
V810iS Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V810iSD Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V810S Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V810SD Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V810iT Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V810iTD Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V810iTM Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V810iTMD Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V810T Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V810TD Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V810TM Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V810TMD Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V810iC Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V810iCD Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V810iCM Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V810iCMD Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V810C Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V810CD Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V810CM Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V810CMD Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V810iSN Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V810SN Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V810iTN Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V810TN Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V810iCN Display: TFT VGA 640x480 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V810CN Display: TFT VGA 640x480 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
HMI Touch PanelsFuji Electric
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MONITOUCH V810 HMI Touch Panels (10.4 in)

Brand Fuji Electric·HMI Touch Panels

Available part numbers (26)

V810iS, V810iSD, V810S, V810SD, V810iT, V810iTD, V810iTM, V810iTMD, V810T, V810TD + 16 more — see full table ↓
