GnB Motion System KGB Clean Type Ball Screw Actuator, Parallel Motor (CPL/CPR)

GnB Motion System KGB Clean Type Ball Screw Actuator, Parallel Motor (CPL/CPR)

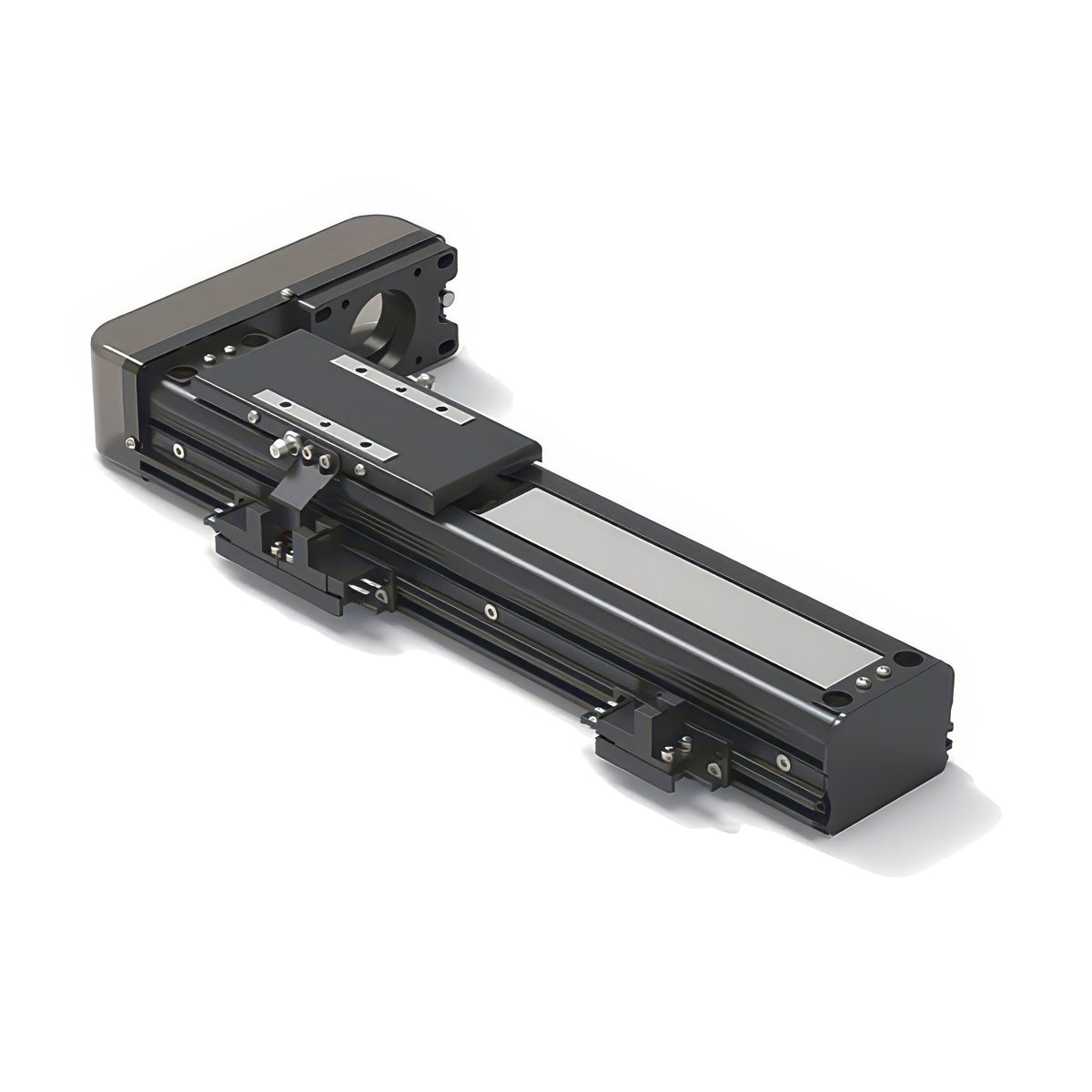

The KGB clean-type actuator with left (CPL) or right (CPR) parallel motor is a covered version of the KGB ball screw actuator for clean environments.

Key features

  • The motor is folded alongside the body to minimize overall length
  • An integrated aluminium base with built-in LM guide gives high rigidity in a compact profile
  • Body widths from 50 to 160 mm are available with rolled or ground ball screws and optional photo sensors

Specifications

Carriers B1 (1) or B2 (2)
Sensors EE-SX674 photo sensors (TL/TR) optional
Screw surface treatment none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB050C-CPL Body width: 50 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB050C-CPR Body width: 50 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-CPL Body width: 60 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-CPR Body width: 60 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-CPL Body width: 90 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-CPR Body width: 90 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-CPL Body width: 120 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-CPR Body width: 120 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-CPL Body width: 160 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-CPR Body width: 160 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
Single-Axis ActuatorsGnB Motion System
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GnB Motion System KGB Clean Type Ball Screw Actuator, Parallel Motor (CPL/CPR)

Brand GnB Motion System·Single-Axis Actuators

Available part numbers (10)

KGB050C-CPL, KGB050C-CPR, KGB060C-CPL, KGB060C-CPR, KGB090C-CPL, KGB090C-CPR, KGB120C-CPL, KGB120C-CPR, KGB160C-CPL, KGB160C-CPR

How to order

Send the GnB Motion System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGB050C-CPLBody width: 50 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB050C-CPRBody width: 50 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-CPLBody width: 60 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-CPRBody width: 60 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-CPLBody width: 90 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-CPRBody width: 90 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-CPLBody width: 120 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-CPRBody width: 120 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-CPLBody width: 160 mm | Shape: CPL = clean type, left parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-CPRBody width: 160 mm | Shape: CPR = clean type, right parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
