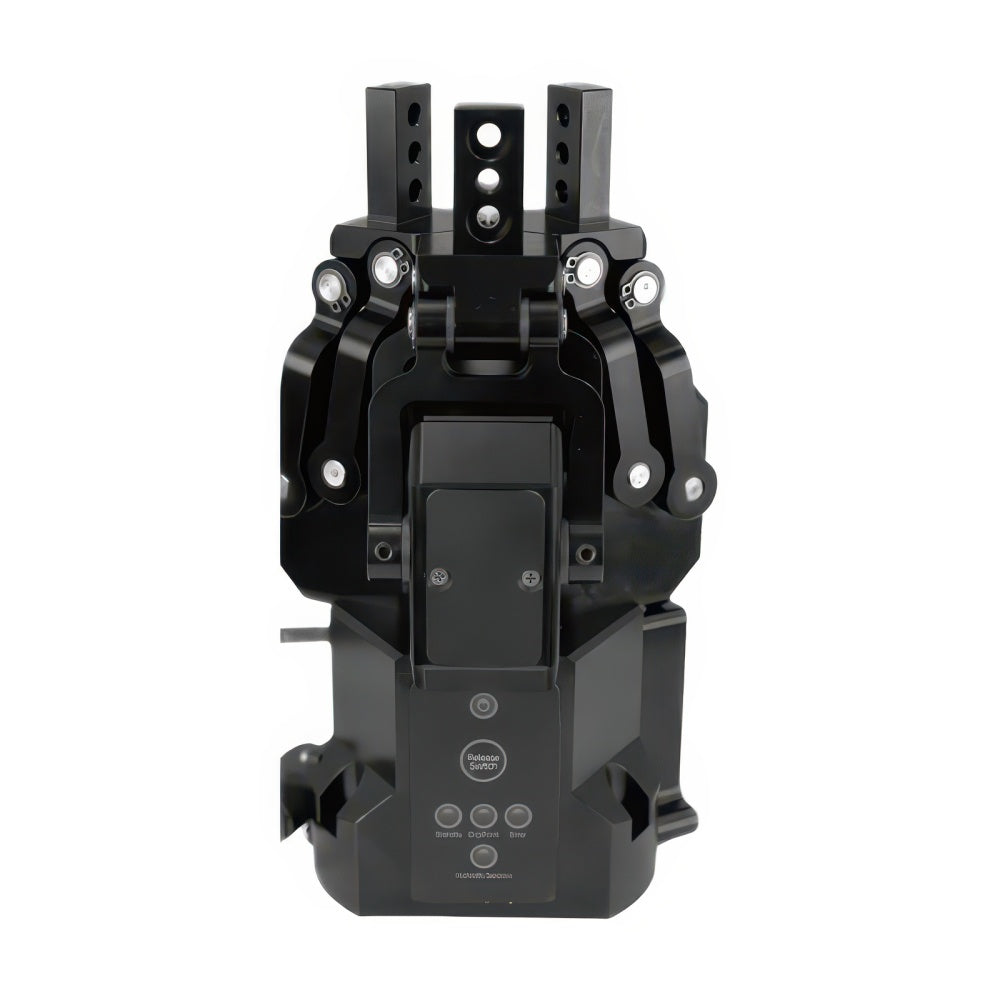

JRT JEGK Electric 3-Jaw Angular Gripper

JRT JEGK Electric 3-Jaw Angular Gripper

Electric 3-jaw angular gripper with long stroke, strong gripping force, built-in motor driver and optional dust/water protection.

Key features

  • Strong gripping force and long stroke; dust and water protection available
  • Grips various workpieces with programmable stroke, force and speed (up to 15 points)
  • Keypad shows current gripper signal status
  • Release switch allows opening/closing in emergencies such as pinching
  • Mechanical self-lock prevents dropping on power loss; manual release possible
  • Built-in motor driver

Specifications

Motor type Stepper motor (closed-loop servo type, DC24V)
Encoder Incremental, line drive type
Rated voltage DC24 V ±10%
Digital I/O 4 inputs / 3 outputs
Self-lock Mechanical self-lock (prevents workpiece drop on power loss)
Jaws 3
IP rating IP55 (option)
Repeat accuracy ±0.1 mm
Motor size □42
Input current Max 2.6 A
JEGK-4276 Stroke: 76 mm | Gripping force: 33 to 110 N | Max. speed: 72 mm/s | Dimensions: 143 x 126 x 177 mm | Weight: 1.5 kg
JEGK-42130 Stroke: 130 mm | Gripping force: 18 to 60 N | Max. speed: 120 mm/s | Dimensions: 190 x 164 x 210 mm | Weight: 1.7 kg
Electric GrippersJRT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JRT JEGK Electric 3-Jaw Angular Gripper

Brand JRT·Electric Grippers

Available part numbers (2)

JEGK-4276, JEGK-42130

How to order

Send the JRT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JEGK-4276Stroke: 76 mm | Gripping force: 33 to 110 N | Max. speed: 72 mm/s | Dimensions: 143 x 126 x 177 mm | Weight: 1.5 kg
JEGK-42130Stroke: 130 mm | Gripping force: 18 to 60 N | Max. speed: 120 mm/s | Dimensions: 190 x 164 x 210 mm | Weight: 1.7 kg
