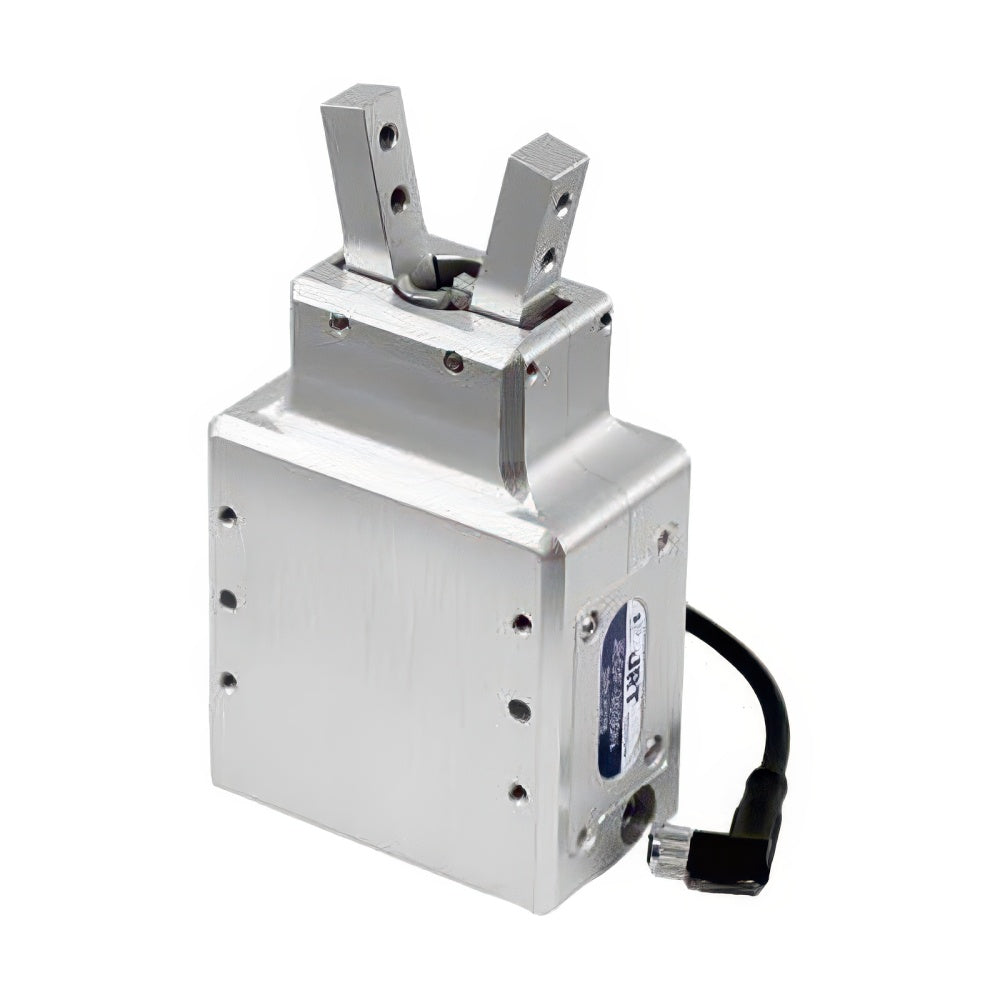

JRT JEGF Electric Angular Gripper

JRT JEGF Electric Angular Gripper

Compact electric angular gripper with built-in motor driver, controllable opening angle and mechanical self-lock.

Key features

  • Opening angle controllable from 9° to 34°
  • Grips a wide variety of workpieces
  • Keypad shows current gripper signal status; release switch allows opening/closing in emergencies such as pinching
  • Mechanical self-lock prevents dropping on power loss
  • Built-in motor driver
  • Easy setup and simulation via GUI on a Windows tablet or laptop

Specifications

Motor type Stepper motor (closed-loop servo type, DC24V)
Encoder Incremental, line drive type, 1,000 CPR (x4)
Rated voltage DC24 V ±10%
Digital I/O 4 inputs / 3 outputs
Self-lock Mechanical self-lock (prevents workpiece drop on power loss)
Communication RS-485 (half duplex), GUI only
Operating temperature -10 to 50 °C
Operating humidity 90 %RH or less (no condensation)
JEGF-3530 Opening angle (both sides): 9° to 34° | Gripping force: 20 to 120 N | Recommended max. workpiece weight: 1 kg | Max. jaw length: 100 mm | Opening/closing time: 0.32 s | Repeat accuracy: ±0.05 mm | Weight: 0.9 kg | Motor size: □35 | Input current: Max 1.5 A
Electric GrippersJRT
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JRT JEGF Electric Angular Gripper

Brand JRT·Electric Grippers

Available part numbers (1)

JEGF-3530

How to order

Send the JRT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JEGF-3530Opening angle (both sides): 9° to 34° | Gripping force: 20 to 120 N | Recommended max. workpiece weight: 1 kg | Max. jaw length: 100 mm | Opening/closing time: 0.32 s | Repeat accuracy: ±0.05 mm | Weight: 0.9 kg | Motor size: □35 | Input current: Max 1.5 A
