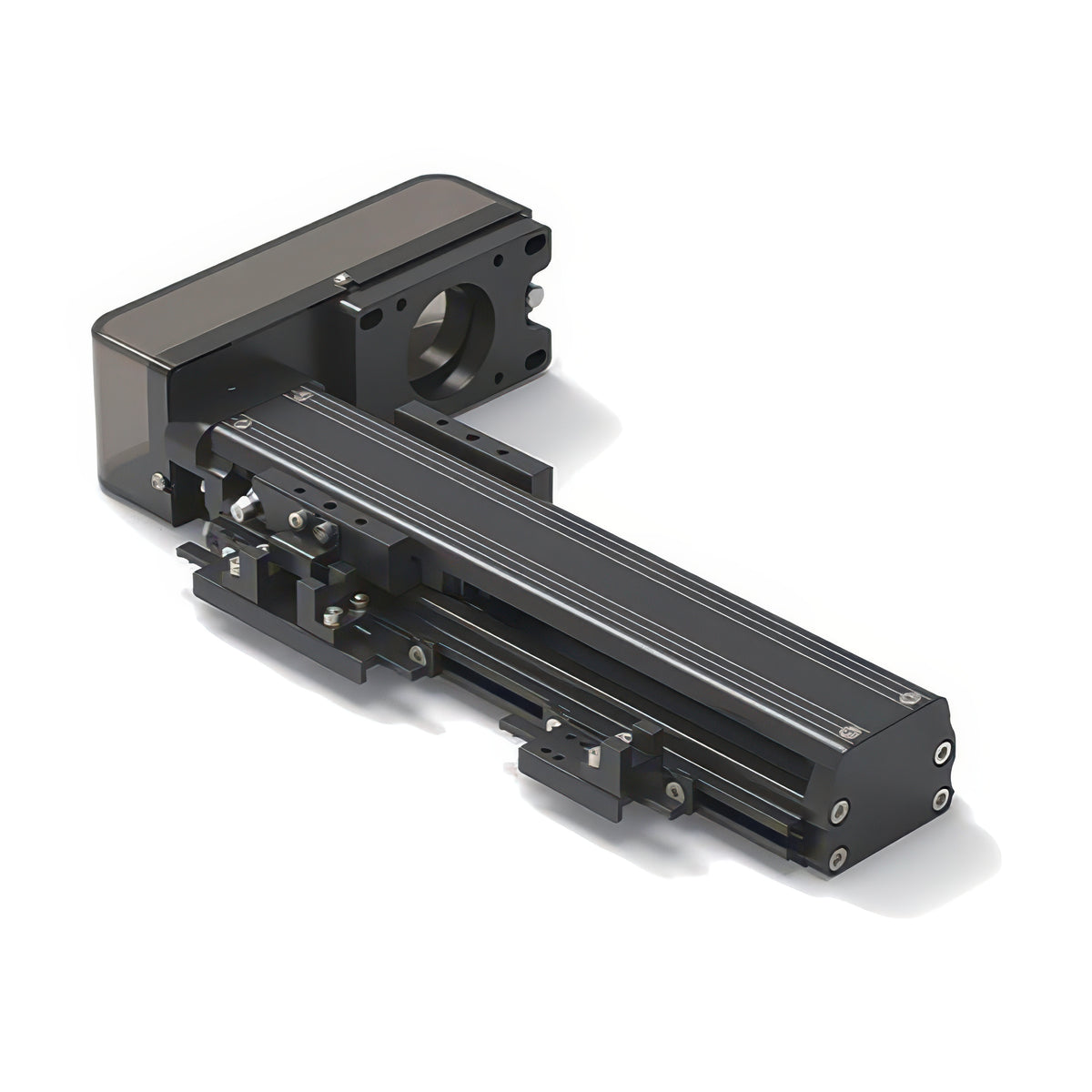

GnB Motion System KGB Open Type Ball Screw Actuator, Parallel Motor (PL/PR)

GnB Motion System KGB Open Type Ball Screw Actuator, Parallel Motor (PL/PR)

The KGB open-type actuator with left (PL) or right (PR) parallel motor folds the motor alongside the body for the shortest overall length.

Key features

  • The integrated aluminium base and slider form a compact, rigid structure with an LM guide built into the base
  • A grease nipple on the slider allows easy lubrication from outside
  • Body widths from 40 to 160 mm are available with rolled or ground ball screws
  • One or two carriers and photo sensors can be specified

Specifications

Carriers B1 (1) or B2 (2)
Sensors EE-SX674 photo sensors (TL/TR) optional
Screw surface treatment none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB040C-PL Body width: 40 mm | Shape: PL = open type, left parallel motor | Ball screw: 8 mm dia, leads 02/05 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250 mm | Max speed: 100/250 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB040C-PR Body width: 40 mm | Shape: PR = open type, right parallel motor | Ball screw: 8 mm dia, leads 02/05 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250 mm | Max speed: 100/250 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB050C-PL Body width: 50 mm | Shape: PL = open type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB050C-PR Body width: 50 mm | Shape: PR = open type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-PL Body width: 60 mm | Shape: PL = open type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-PR Body width: 60 mm | Shape: PR = open type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-PL Body width: 90 mm | Shape: PL = open type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-PR Body width: 90 mm | Shape: PR = open type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-PL Body width: 120 mm | Shape: PL = open type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-PR Body width: 120 mm | Shape: PR = open type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-PL Body width: 160 mm | Shape: PL = open type, left parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-PR Body width: 160 mm | Shape: PR = open type, right parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
Single-Axis ActuatorsGnB Motion System
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GnB Motion System KGB Open Type Ball Screw Actuator, Parallel Motor (PL/PR)

Brand GnB Motion System·Single-Axis Actuators

Available part numbers (12)

KGB040C-PL, KGB040C-PR, KGB050C-PL, KGB050C-PR, KGB060C-PL, KGB060C-PR, KGB090C-PL, KGB090C-PR, KGB120C-PL, KGB120C-PR + 2 more — see full table ↓

How to order

Send the GnB Motion System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGB040C-PLBody width: 40 mm | Shape: PL = open type, left parallel motor | Ball screw: 8 mm dia, leads 02/05 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250 mm | Max speed: 100/250 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB040C-PRBody width: 40 mm | Shape: PR = open type, right parallel motor | Ball screw: 8 mm dia, leads 02/05 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250 mm | Max speed: 100/250 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB050C-PLBody width: 50 mm | Shape: PL = open type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB050C-PRBody width: 50 mm | Shape: PR = open type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-PLBody width: 60 mm | Shape: PL = open type, left parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB060C-PRBody width: 60 mm | Shape: PR = open type, right parallel motor | Ball screw: 12 mm dia, leads 05/10 mm (R rolled or G ground) | Standard strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800 mm | Max speed: 250/500 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-PLBody width: 90 mm | Shape: PL = open type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB090C-PRBody width: 90 mm | Shape: PR = open type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1000 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-PLBody width: 120 mm | Shape: PL = open type, left parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB120C-PRBody width: 120 mm | Shape: PR = open type, right parallel motor | Ball screw: 15 mm dia, leads 05/10/20 mm (R rolled or G ground) | Standard strokes: 50-1200 (50-step to 300, then 100-step) mm | Max speed: 250/500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-PLBody width: 160 mm | Shape: PL = open type, left parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
KGB160C-PRBody width: 160 mm | Shape: PR = open type, right parallel motor | Ball screw: 20 mm dia, leads 10/20 mm (R rolled or G ground) | Standard strokes: 50-1400 (50-step to 300, then 100-step) mm | Max speed: 500/1000 mm/s by lead | Carriers: B1 (1) or B2 (2) | Sensors: EE-SX674 photo sensors (TL/TR) optional | Screw surface treatment: none, R1 shaft Raydent, R2 shaft + nut Raydent
