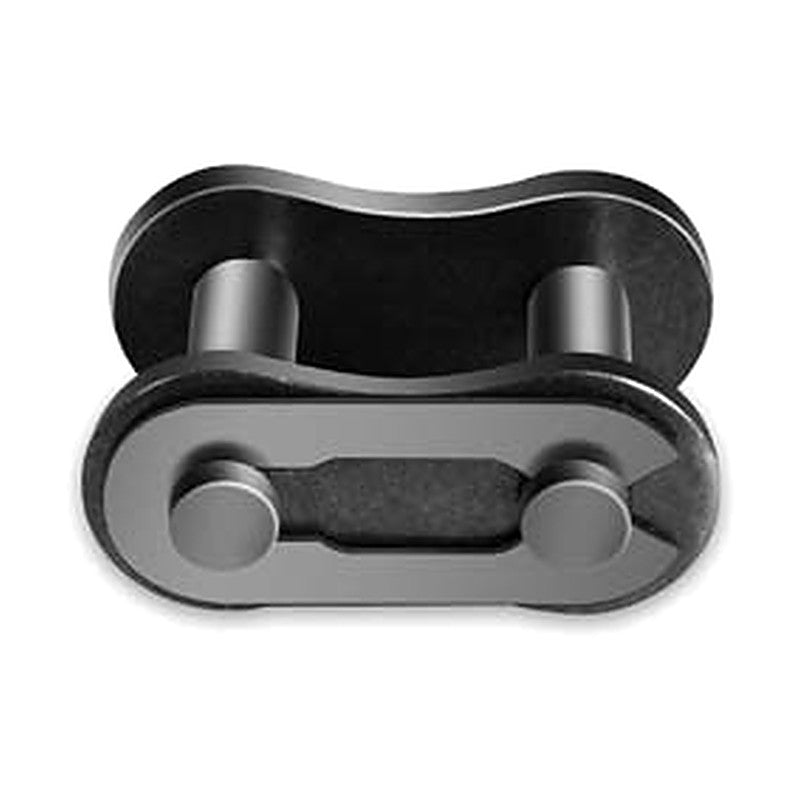

Hankuk Chain ANSI Standard Connecting Link (C/L)

Hankuk Chain ANSI Standard Connecting Link (C/L)

Connecting (joint) links for ANSI standard roller chain, spring clip type for HC25 to HC60 and cotter pin type for HC80 to HC240.

Key features

  • Spring clip type (HC25-HC60)
  • Cotter pin type (HC80-HC240)
HC25 C/L Pin Type: Spring clip | Pitch P (mm): 6.35 | Roller Link Width W (mm): 4.84 | Pin Dia. d (mm): 2.31 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Plate Thickness T (mm): 0.75 | Plate Height h (mm): 5.2 | Transverse Pitch C (mm): 6.4
HC35 C/L Pin Type: Spring clip | Pitch P (mm): 9.525 | Roller Link Width W (mm): 7.52 | Pin Dia. d (mm): 3.59 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Plate Thickness T (mm): 1.25 | Plate Height h (mm): 7.8 | Transverse Pitch C (mm): 10.1
HC41 C/L Pin Type: Spring clip | Pitch P (mm): 12.70 | Roller Link Width W (mm): 9.15 | Pin Dia. d (mm): 3.59 | Pin L1 (mm): 6.70 | Pin L2 (mm): 7.80 | Plate Thickness T (mm): 1.25 | Plate Height h (mm): 8.1
HC40 C/L Pin Type: Spring clip | Pitch P (mm): 12.70 | Roller Link Width W (mm): 11.23 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Plate Thickness T (mm): 1.5 | Plate Height h (mm): 10.4 | Transverse Pitch C (mm): 14.4
HC50 C/L Pin Type: Spring clip | Pitch P (mm): 15.875 | Roller Link Width W (mm): 13.90 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Plate Thickness T (mm): 2.0 | Plate Height h (mm): 13.0 | Transverse Pitch C (mm): 18.1
HC60 C/L Pin Type: Spring clip | Pitch P (mm): 19.05 | Roller Link Width W (mm): 17.81 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Plate Thickness T (mm): 2.4 | Plate Height h (mm): 15.6 | Transverse Pitch C (mm): 22.8
HC80 C/L Pin Type: Cotter pin | Pitch P (mm): 25.40 | Roller Link Width W (mm): 22.66 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Plate Thickness T (mm): 3.2 | Plate Height h (mm): 20.8 | Transverse Pitch C (mm): 29.3
HC100 C/L Pin Type: Cotter pin | Pitch P (mm): 31.75 | Roller Link Width W (mm): 27.51 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Plate Thickness T (mm): 4.0 | Plate Height h (mm): 26.0 | Transverse Pitch C (mm): 35.8
HC120 C/L Pin Type: Cotter pin | Pitch P (mm): 38.10 | Roller Link Width W (mm): 35.51 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Plate Thickness T (mm): 4.8 | Plate Height h (mm): 31.2 | Transverse Pitch C (mm): 45.4
HC140 C/L Pin Type: Cotter pin | Pitch P (mm): 44.45 | Roller Link Width W (mm): 37.24 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.10 | Pin L2 (mm): 31.65 | Plate Thickness T (mm): 5.6 | Plate Height h (mm): 36.4 | Transverse Pitch C (mm): 48.9
HC160 C/L Pin Type: Cotter pin | Pitch P (mm): 50.80 | Roller Link Width W (mm): 45.27 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.10 | Pin L2 (mm): 37.25 | Plate Thickness T (mm): 6.3 | Plate Height h (mm): 41.6 | Transverse Pitch C (mm): 58.5
HC180 C/L Pin Type: Cotter pin | Pitch P (mm): 57.15 | Roller Link Width W (mm): 50.94 | Pin Dia. d (mm): 17.46 | Pin L1 (mm): 36.20 | Pin L2 (mm): 43.30 | Plate Thickness T (mm): 7.2 | Plate Height h (mm): 46.07 | Transverse Pitch C (mm): 65.8
HC200 C/L Pin Type: Cotter pin | Pitch P (mm): 63.50 | Roller Link Width W (mm): 59.94 | Pin Dia. d (mm): 19.85 | Pin L1 (mm): 39.35 | Pin L2 (mm): 47.20 | Plate Thickness T (mm): 7.9 | Plate Height h (mm): 52.0 | Transverse Pitch C (mm): 71.6
HC240 C/L Pin Type: Cotter pin | Pitch P (mm): 76.20 | Roller Link Width W (mm): 67.87 | Pin Dia. d (mm): 23.81 | Pin L1 (mm): 48.15 | Pin L2 (mm): 55.70 | Plate Thickness T (mm): 9.5 | Plate Height h (mm): 62.4 | Transverse Pitch C (mm): 87.8
Chain AccessoriesHankuk Chain
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain ANSI Standard Connecting Link (C/L)

Brand Hankuk Chain·Chain Accessories

Available part numbers (14)

HC25 C/L, HC35 C/L, HC41 C/L, HC40 C/L, HC50 C/L, HC60 C/L, HC80 C/L, HC100 C/L, HC120 C/L, HC140 C/L + 4 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC25 C/LPin Type: Spring clip | Pitch P (mm): 6.35 | Roller Link Width W (mm): 4.84 | Pin Dia. d (mm): 2.31 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Plate Thickness T (mm): 0.75 | Plate Height h (mm): 5.2 | Transverse Pitch C (mm): 6.4
HC35 C/LPin Type: Spring clip | Pitch P (mm): 9.525 | Roller Link Width W (mm): 7.52 | Pin Dia. d (mm): 3.59 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Plate Thickness T (mm): 1.25 | Plate Height h (mm): 7.8 | Transverse Pitch C (mm): 10.1
HC41 C/LPin Type: Spring clip | Pitch P (mm): 12.70 | Roller Link Width W (mm): 9.15 | Pin Dia. d (mm): 3.59 | Pin L1 (mm): 6.70 | Pin L2 (mm): 7.80 | Plate Thickness T (mm): 1.25 | Plate Height h (mm): 8.1
HC40 C/LPin Type: Spring clip | Pitch P (mm): 12.70 | Roller Link Width W (mm): 11.23 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Plate Thickness T (mm): 1.5 | Plate Height h (mm): 10.4 | Transverse Pitch C (mm): 14.4
HC50 C/LPin Type: Spring clip | Pitch P (mm): 15.875 | Roller Link Width W (mm): 13.90 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Plate Thickness T (mm): 2.0 | Plate Height h (mm): 13.0 | Transverse Pitch C (mm): 18.1
HC60 C/LPin Type: Spring clip | Pitch P (mm): 19.05 | Roller Link Width W (mm): 17.81 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Plate Thickness T (mm): 2.4 | Plate Height h (mm): 15.6 | Transverse Pitch C (mm): 22.8
HC80 C/LPin Type: Cotter pin | Pitch P (mm): 25.40 | Roller Link Width W (mm): 22.66 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Plate Thickness T (mm): 3.2 | Plate Height h (mm): 20.8 | Transverse Pitch C (mm): 29.3
HC100 C/LPin Type: Cotter pin | Pitch P (mm): 31.75 | Roller Link Width W (mm): 27.51 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Plate Thickness T (mm): 4.0 | Plate Height h (mm): 26.0 | Transverse Pitch C (mm): 35.8
HC120 C/LPin Type: Cotter pin | Pitch P (mm): 38.10 | Roller Link Width W (mm): 35.51 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Plate Thickness T (mm): 4.8 | Plate Height h (mm): 31.2 | Transverse Pitch C (mm): 45.4
HC140 C/LPin Type: Cotter pin | Pitch P (mm): 44.45 | Roller Link Width W (mm): 37.24 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.10 | Pin L2 (mm): 31.65 | Plate Thickness T (mm): 5.6 | Plate Height h (mm): 36.4 | Transverse Pitch C (mm): 48.9
HC160 C/LPin Type: Cotter pin | Pitch P (mm): 50.80 | Roller Link Width W (mm): 45.27 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.10 | Pin L2 (mm): 37.25 | Plate Thickness T (mm): 6.3 | Plate Height h (mm): 41.6 | Transverse Pitch C (mm): 58.5
HC180 C/LPin Type: Cotter pin | Pitch P (mm): 57.15 | Roller Link Width W (mm): 50.94 | Pin Dia. d (mm): 17.46 | Pin L1 (mm): 36.20 | Pin L2 (mm): 43.30 | Plate Thickness T (mm): 7.2 | Plate Height h (mm): 46.07 | Transverse Pitch C (mm): 65.8
HC200 C/LPin Type: Cotter pin | Pitch P (mm): 63.50 | Roller Link Width W (mm): 59.94 | Pin Dia. d (mm): 19.85 | Pin L1 (mm): 39.35 | Pin L2 (mm): 47.20 | Plate Thickness T (mm): 7.9 | Plate Height h (mm): 52.0 | Transverse Pitch C (mm): 71.6
HC240 C/LPin Type: Cotter pin | Pitch P (mm): 76.20 | Roller Link Width W (mm): 67.87 | Pin Dia. d (mm): 23.81 | Pin L1 (mm): 48.15 | Pin L2 (mm): 55.70 | Plate Thickness T (mm): 9.5 | Plate Height h (mm): 62.4 | Transverse Pitch C (mm): 87.8
