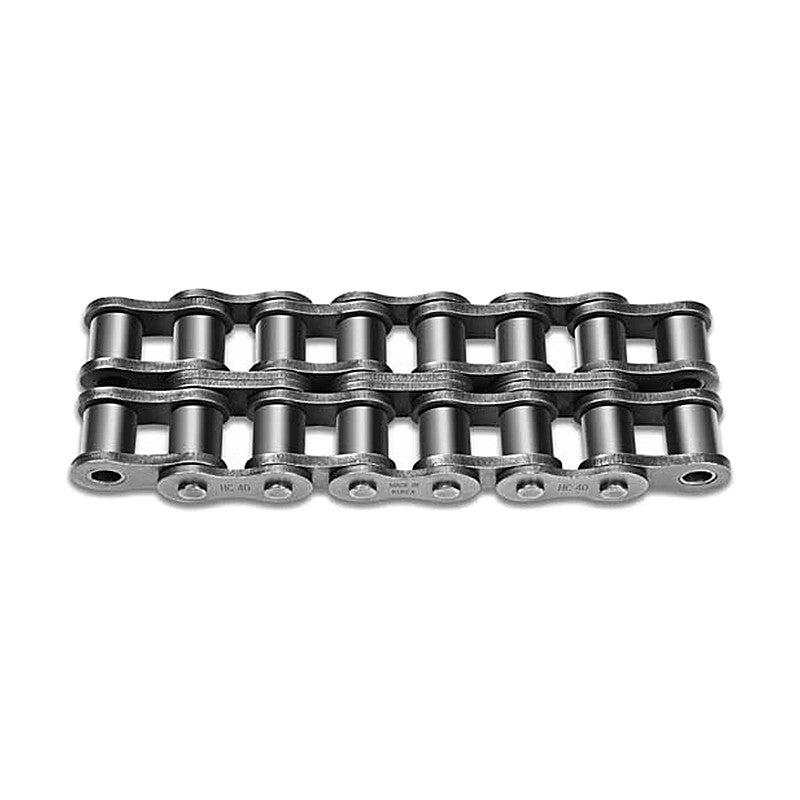

Hankuk Chain ANSI Standard Roller Chain, Multiple Strand

Hankuk Chain ANSI Standard Roller Chain, Multiple Strand

Double and triple strand roller chain to ANSI standard dimensions; 4, 5 and 6 strand chains are also available.

Key features

  • Double and triple strand
  • 4, 5 and 6 strands available
  • Multiple strand factor applied to maximum allowable tension
HC25-2 Pitch P (mm): 6.35 | Roller Link Width W (mm): 3.18 | Roller Dia. Dr (mm): 32.80 | Pin Dia. d (mm): 2.31 | Pin Length L1+L2 (mm): 14.85 | Pin L1 (mm): 7.02 | Pin L2 (mm): 7.83 | Plate Thickness T (mm): 0.75 | Plate Height H (mm): 6.0 | Plate Height h (mm): 5.2 | Transverse Pitch C (mm): 6.4 | Min. Tensile Strength kN (kgf): 7.4 (760) | Max. Allowable Tension kN (kgf): 1.08 (110)
HC35-2 Pitch P (mm): 9.525 | Roller Link Width W (mm): 4.78 | Roller Dia. Dr (mm): 5.08 | Pin Dia. d (mm): 3.59 | Pin Length L1+L2 (mm): 23.20 | Pin L1 (mm): 10.95 | Pin L2 (mm): 12.25 | Plate Thickness T (mm): 1.25 | Plate Height H (mm): 9.0 | Plate Height h (mm): 7.8 | Transverse Pitch C (mm): 10.1 | Min. Tensile Strength kN (kgf): 17.6 (1800) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC40-2 Pitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 31.85 | Pin L1 (mm): 15.40 | Pin L2 (mm): 16.45 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Transverse Pitch C (mm): 14.4 | Min. Tensile Strength kN (kgf): 31.4 (3,200) | Max. Allowable Tension kN (kgf): 6.18 (630)
HC50-2 Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 40.25 | Pin L1 (mm): 19.35 | Pin L2 (mm): 20.90 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Transverse Pitch C (mm): 18.1 | Min. Tensile Strength kN (kgf): 49.0 (5,000) | Max. Allowable Tension kN (kgf): 10.7 (1,100)
HC60-2 Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 50.10 | Pin L1 (mm): 24.15 | Pin L2 (mm): 25.95 | Plate Thickness T (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Transverse Pitch C (mm): 22.8 | Min. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 15 (1,530)
HC80-2 Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 65.40 | Pin L1 (mm): 30.90 | Pin L2 (mm): 34.50 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Transverse Pitch C (mm): 29.3 | Min. Tensile Strength kN (kgf): 122.6 (12,500) | Max. Allowable Tension kN (kgf): 25 (2,550)
HC100-2 Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 79.20 | Pin L1 (mm): 37.70 | Pin L2 (mm): 41.50 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Transverse Pitch C (mm): 35.8 | Min. Tensile Strength kN (kgf): 191.2 (19,500) | Max. Allowable Tension kN (kgf): 38.3 (3,910)
HC120-2 Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 99.40 | Pin L1 (mm): 47.60 | Pin L2 (mm): 51.80 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Transverse Pitch C (mm): 45.4 | Min. Tensile Strength kN (kgf): 274.5 (28,000) | Max. Allowable Tension kN (kgf): 51.7 (5,270)
HC140-2 Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 107.75 | Pin L1 (mm): 51.65 | Pin L2 (mm): 56.10 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 42.2 | Plate Height h (mm): 36.4 | Transverse Pitch C (mm): 48.9 | Min. Tensile Strength kN (kgf): 372.6 (38,000) | Max. Allowable Tension kN (kgf): 68.4 (6,970)
HC160-2 Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 127.60 | Pin L1 (mm): 61.10 | Pin L2 (mm): 66.50 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Plate Height h (mm): 41.6 | Transverse Pitch C (mm): 58.5 | Min. Tensile Strength kN (kgf): 490.3 (50,000) | Max. Allowable Tension kN (kgf): 90 (9,180)
HC180-2 Pitch P (mm): 57.15 | Roller Link Width W (mm): 35.72 | Roller Dia. Dr (mm): 35.71 | Pin Dia. d (mm): 17.46 | Pin Length L1+L2 (mm): 145.40 | Pin L1 (mm): 69.10 | Pin L2 (mm): 76.30 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 54.2 | Plate Height h (mm): 46.7 | Transverse Pitch C (mm): 65.8 | Min. Tensile Strength kN (kgf): 617.8 (63,000) | Max. Allowable Tension kN (kgf): 103 (10,540)
HC200-2 Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.69 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 157.90 | Pin L1 (mm): 74.90 | Pin L2 (mm): 83.00 | Plate Thickness T (mm): 7.9 | Plate Height H (mm): 60.3 | Plate Height h (mm): 52.0 | Transverse Pitch C (mm): 71.6 | Min. Tensile Strength kN (kgf): 764.9 (78,000) | Max. Allowable Tension kN (kgf): 122 (12,410)
HC240-2 Pitch P (mm): 76.20 | Roller Link Width W (mm): 47.63 | Roller Dia. Dr (mm): 47.63 | Pin Dia. d (mm): 23.81 | Pin Length L1+L2 (mm): 191.40 | Pin L1 (mm): 91.80 | Pin L2 (mm): 99.60 | Plate Thickness T (mm): 9.5 | Plate Height H (mm): 72.4 | Plate Height h (mm): 62.4 | Transverse Pitch C (mm): 87.8 | Min. Tensile Strength kN (kgf): 1102.2 (112,400) | Max. Allowable Tension kN (kgf): 168 (17,170)
HC25-3 Pitch P (mm): 6.35 | Roller Link Width W (mm): 3.18 | Roller Dia. Dr (mm): 3.28 | Pin Dia. d (mm): 2.31 | Pin Length L1+L2 (mm): 21.25 | Pin L1 (mm): 10.22 | Pin L2 (mm): 11.03 | Plate Thickness T (mm): 0.75 | Plate Height H (mm): 6.0 | Plate Height h (mm): 5.2 | Transverse Pitch C (mm): 6.4 | Min. Tensile Strength kN (kgf): 11.1 (1,140) | Max. Allowable Tension kN (kgf): 1.57 (160)
HC35-3 Pitch P (mm): 9.525 | Roller Link Width W (mm): 4.78 | Roller Dia. Dr (mm): 5.08 | Pin Dia. d (mm): 3.59 | Pin Length L1+L2 (mm): 83.30 | Pin L1 (mm): 16.00 | Pin L2 (mm): 17.30 | Plate Thickness T (mm): 1.25 | Plate Height H (mm): 9.0 | Plate Height h (mm): 7.8 | Transverse Pitch C (mm): 10.1 | Min. Tensile Strength kN (kgf): 26.4 (2,700) | Max. Allowable Tension kN (kgf): 5.39 (550)
HC40-3 Pitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 46.25 | Pin L1 (mm): 22.60 | Pin L2 (mm): 23.65 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Transverse Pitch C (mm): 14.4 | Min. Tensile Strength kN (kgf): 47.0 (4,800) | Max. Allowable Tension kN (kgf): 9.12 (930)
HC50-3 Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 58.35 | Pin L1 (mm): 28.40 | Pin L2 (mm): 29.95 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Transverse Pitch C (mm): 18.1 | Min. Tensile Strength kN (kgf): 73.5 (7,500) | Max. Allowable Tension kN (kgf): 16 (1,630)
HC60-3 Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 72.90 | Pin L1 (mm): 35.55 | Pin L2 (mm): 37.35 | Plate Thickness T (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Transverse Pitch C (mm): 22.8 | Min. Tensile Strength kN (kgf): 102.9 (10,500) | Max. Allowable Tension kN (kgf): 22.1 (2,250)
HC80-3 Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 94.70 | Pin L1 (mm): 45.55 | Pin L2 (mm): 49.15 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Transverse Pitch C (mm): 29.3 | Min. Tensile Strength kN (kgf): 183.8 (18,750) | Max. Allowable Tension kN (kgf): 36.8 (3,750)
HC100-3 Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 115.00 | Pin L1 (mm): 55.60 | Pin L2 (mm): 59.40 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Transverse Pitch C (mm): 35.8 | Min. Tensile Strength kN (kgf): 286.8 (29,250) | Max. Allowable Tension kN (kgf): 56.4 (5,760)
HC120-3 Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 144.80 | Pin L1 (mm): 70.30 | Pin L2 (mm): 74.50 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Transverse Pitch C (mm): 45.4 | Min. Tensile Strength kN (kgf): 411.8 (42,000) | Max. Allowable Tension kN (kgf): 76 (7,750)
HC140-3 Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 156.65 | Pin L1 (mm): 76.05 | Pin L2 (mm): 80.60 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 42.2 | Plate Height h (mm): 36.4 | Transverse Pitch C (mm): 48.9 | Min. Tensile Strength kN (kgf): 559 (57,000) | Max. Allowable Tension kN (kgf): 101 (10,250)
HC160-3 Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 186.10 | Pin L1 (mm): 90.35 | Pin L2 (mm): 97.57 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Plate Height h (mm): 41.6 | Transverse Pitch C (mm): 58.5 | Min. Tensile Strength kN (kgf): 735.5 (75,000) | Max. Allowable Tension kN (kgf): 132 (13,500)
HC180-3 Pitch P (mm): 57.15 | Roller Link Width W (mm): 35.72 | Roller Dia. Dr (mm): 35.71 | Pin Dia. d (mm): 17.46 | Pin Length L1+L2 (mm): 211.24 | Pin L1 (mm): 102.07 | Pin L2 (mm): 109.17 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 54.2 | Plate Height h (mm): 46.7 | Transverse Pitch C (mm): 65.8 | Min. Tensile Strength kN (kgf): 926.7 (94,500) | Max. Allowable Tension kN (kgf): 152 (15,500)
HC200-3 Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.69 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 229.50 | Pin L1 (mm): 110.70 | Pin L2 (mm): 118.80 | Plate Thickness T (mm): 7.9 | Plate Height H (mm): 60.3 | Plate Height h (mm): 52.0 | Transverse Pitch C (mm): 71.6 | Min. Tensile Strength kN (kgf): 1147.3 (117,000) | Max. Allowable Tension kN (kgf): 179 (18,250)
HC240-3 Pitch P (mm): 76.20 | Roller Link Width W (mm): 47.63 | Roller Dia. Dr (mm): 47.63 | Pin Dia. d (mm): 23.81 | Pin Length L1+L2 (mm): 279.20 | Pin L1 (mm): 135.70 | Pin L2 (mm): 143.50 | Plate Thickness T (mm): 9.5 | Plate Height H (mm): 72.4 | Plate Height h (mm): 62.4 | Transverse Pitch C (mm): 87.8 | Min. Tensile Strength kN (kgf): 1653.4 (168,600) | Max. Allowable Tension kN (kgf): 248 (25,250)
