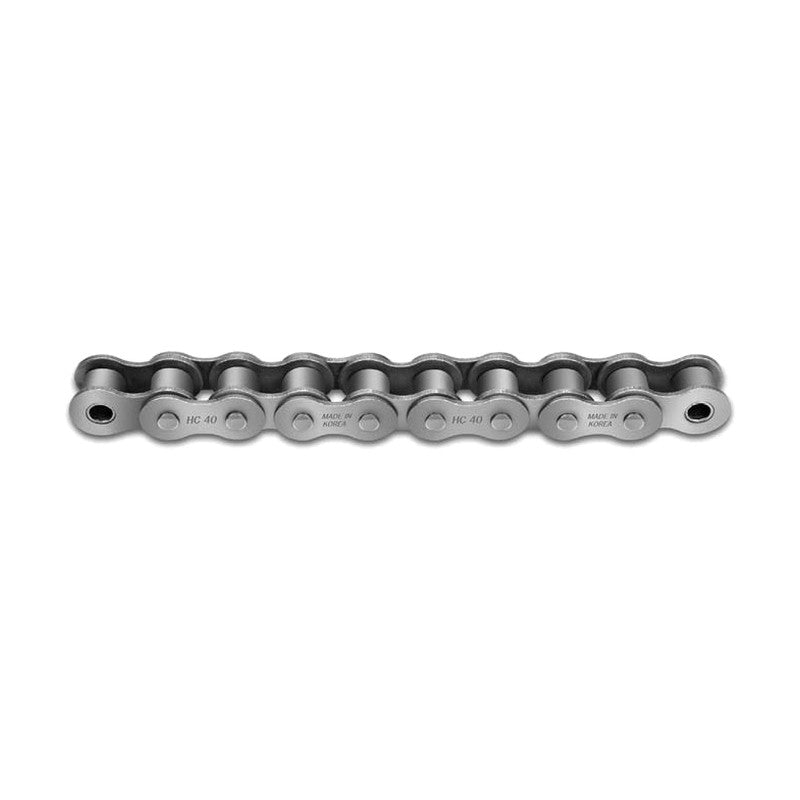

Hankuk Chain ANSI Standard Roller Chain, Single Strand

Hankuk Chain ANSI Standard Roller Chain, Single Strand

Standard roller chain in conformity with KS (Korea Standard) and ANSI (American National Standard Institute) standards.

Key features

  • Conforms to KS and ANSI standards
  • Riveted pin and cotter pin types
  • Pitch 6.35 to 76.20 mm
  • Fatigue strength equals maximum allowable tension
HC25 Pitch P (mm): 6.35 | Roller Link Width W (mm): 3.18 | Roller Dia. Dr (mm): 3.30 | Pin Dia. d (mm): 2.31 | Pin Length L1+L2 (mm): 8.45 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Plate Thickness T (mm): 0.8 | Plate Height H (mm): 6.0 | Plate Height h (mm): 5.2 | Min. Tensile Strength kN (kgf): 3.7 (380) | Max. Allowable Tension kN (kgf): 0.64 (65) | Approx. Weight (kg/m): 0.14
HC35 Pitch P (mm): 9.525 | Roller Link Width W (mm): 4.78 | Roller Dia. Dr (mm): 5.09 | Pin Dia. d (mm): 3.59 | Pin Length L1+L2 (mm): 13.10 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Plate Thickness T (mm): 1.3 | Plate Height H (mm): 9.0 | Plate Height h (mm): 7.8 | Min. Tensile Strength kN (kgf): 8.8 (900) | Max. Allowable Tension kN (kgf): 2.16 (220) | Approx. Weight (kg/m): 0.33
HC40 Pitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 17.45 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370) | Approx. Weight (kg/m): 0.66
HC50 Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.15 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650) | Approx. Weight (kg/m): 1.20
HC60 Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.30 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Plate Thickness T (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900) | Approx. Weight (kg/m): 1.65
HC80 Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.15 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500) | Approx. Weight (kg/m): 2.80
HC100 Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.50 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300) | Approx. Weight (kg/m): 4.30
HC120 Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 54.25 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100) | Approx. Weight (kg/m): 6.00
HC140 Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 58.75 | Pin L1 (mm): 27.10 | Pin L2 (mm): 31.65 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 42.2 | Plate Height h (mm): 36.4 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 7.60
HC160 Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 69.35 | Pin L1 (mm): 32.10 | Pin L2 (mm): 37.25 | Plate Thickness T (mm): 6.4 | Plate Height H (mm): 48.2 | Plate Height h (mm): 41.6 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400) | Approx. Weight (kg/m): 10.20
HC180 Pitch P (mm): 57.15 | Roller Link Width W (mm): 35.72 | Roller Dia. Dr (mm): 35.71 | Pin Dia. d (mm): 17.46 | Pin Length L1+L2 (mm): 79.50 | Pin L1 (mm): 36.20 | Pin L2 (mm): 43.30 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 54.2 | Plate Height h (mm): 46.7 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200) | Approx. Weight (kg/m): 13.50
HC200 Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.69 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 86.55 | Pin L1 (mm): 39.35 | Pin L2 (mm): 47.20 | Plate Thickness T (mm): 8.0 | Plate Height H (mm): 60.3 | Plate Height h (mm): 52.0 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300) | Approx. Weight (kg/m): 17.10
HC240 Pitch P (mm): 76.20 | Roller Link Width W (mm): 47.63 | Roller Dia. Dr (mm): 47.63 | Pin Dia. d (mm): 23.81 | Pin Length L1+L2 (mm): 103.85 | Pin L1 (mm): 48.15 | Pin L2 (mm): 55.70 | Plate Thickness T (mm): 9.5 | Plate Height H (mm): 72.4 | Plate Height h (mm): 62.4 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100) | Approx. Weight (kg/m): 24.50
Roller ChainsHankuk Chain
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain ANSI Standard Roller Chain, Single Strand

Brand Hankuk Chain·Roller Chains

Available part numbers (13)

HC25, HC35, HC40, HC50, HC60, HC80, HC100, HC120, HC140, HC160 + 3 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC25Pitch P (mm): 6.35 | Roller Link Width W (mm): 3.18 | Roller Dia. Dr (mm): 3.30 | Pin Dia. d (mm): 2.31 | Pin Length L1+L2 (mm): 8.45 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Plate Thickness T (mm): 0.8 | Plate Height H (mm): 6.0 | Plate Height h (mm): 5.2 | Min. Tensile Strength kN (kgf): 3.7 (380) | Max. Allowable Tension kN (kgf): 0.64 (65) | Approx. Weight (kg/m): 0.14
HC35Pitch P (mm): 9.525 | Roller Link Width W (mm): 4.78 | Roller Dia. Dr (mm): 5.09 | Pin Dia. d (mm): 3.59 | Pin Length L1+L2 (mm): 13.10 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Plate Thickness T (mm): 1.3 | Plate Height H (mm): 9.0 | Plate Height h (mm): 7.8 | Min. Tensile Strength kN (kgf): 8.8 (900) | Max. Allowable Tension kN (kgf): 2.16 (220) | Approx. Weight (kg/m): 0.33
HC40Pitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 17.45 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370) | Approx. Weight (kg/m): 0.66
HC50Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.15 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650) | Approx. Weight (kg/m): 1.20
HC60Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.30 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Plate Thickness T (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900) | Approx. Weight (kg/m): 1.65
HC80Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.15 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500) | Approx. Weight (kg/m): 2.80
HC100Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.50 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300) | Approx. Weight (kg/m): 4.30
HC120Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 54.25 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100) | Approx. Weight (kg/m): 6.00
HC140Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 58.75 | Pin L1 (mm): 27.10 | Pin L2 (mm): 31.65 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 42.2 | Plate Height h (mm): 36.4 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 7.60
HC160Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 69.35 | Pin L1 (mm): 32.10 | Pin L2 (mm): 37.25 | Plate Thickness T (mm): 6.4 | Plate Height H (mm): 48.2 | Plate Height h (mm): 41.6 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400) | Approx. Weight (kg/m): 10.20
HC180Pitch P (mm): 57.15 | Roller Link Width W (mm): 35.72 | Roller Dia. Dr (mm): 35.71 | Pin Dia. d (mm): 17.46 | Pin Length L1+L2 (mm): 79.50 | Pin L1 (mm): 36.20 | Pin L2 (mm): 43.30 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 54.2 | Plate Height h (mm): 46.7 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200) | Approx. Weight (kg/m): 13.50
HC200Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.69 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 86.55 | Pin L1 (mm): 39.35 | Pin L2 (mm): 47.20 | Plate Thickness T (mm): 8.0 | Plate Height H (mm): 60.3 | Plate Height h (mm): 52.0 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300) | Approx. Weight (kg/m): 17.10
HC240Pitch P (mm): 76.20 | Roller Link Width W (mm): 47.63 | Roller Dia. Dr (mm): 47.63 | Pin Dia. d (mm): 23.81 | Pin Length L1+L2 (mm): 103.85 | Pin L1 (mm): 48.15 | Pin L2 (mm): 55.70 | Plate Thickness T (mm): 9.5 | Plate Height H (mm): 72.4 | Plate Height h (mm): 62.4 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100) | Approx. Weight (kg/m): 24.50
