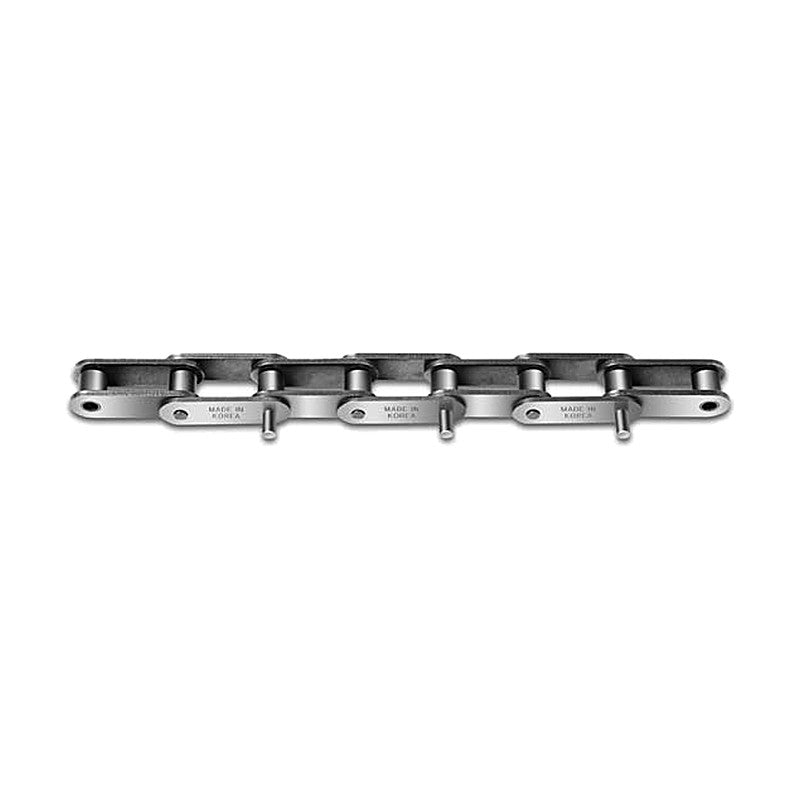

Hankuk Chain Attachment Chain, Double Pitch Long Pin (LP) and G1 Attachment

Hankuk Chain Attachment Chain, Double Pitch Long Pin (LP) and G1 Attachment

Double pitch conveyor chain with extended long pins (2L/LP, 1L/LP) or G1 attachments, for S roller and R roller types.

Key features

  • Long pin every link or every other link
  • G1 attachment
  • Careful sprocket selection needed for R roller type
HC2040 LP Roller Type: S (small roller) | Pitch P (mm): 25.40 | Extended Pin L3 (mm): 9.50 | Extended Pin L4 (mm): 16.70 | Additional Weight per Pin (kg): 0.0008
HC2040 G1 Roller Type: S (small roller) | Pitch P (mm): 25.40 | G1 Attachment G (mm): 4.1
HC2042 LP Roller Type: R (large roller) | Pitch P (mm): 25.40 | Extended Pin L3 (mm): 9.50 | Extended Pin L4 (mm): 16.70 | Additional Weight per Pin (kg): 0.0008
HC2042 G1 Roller Type: R (large roller) | Pitch P (mm): 25.40 | G1 Attachment G (mm): 4.1
HC2050 LP Roller Type: S (small roller) | Pitch P (mm): 31.75 | Extended Pin L3 (mm): 11.90 | Extended Pin L4 (mm): 21.10 | Additional Weight per Pin (kg): 0.0017
HC2050 G1 Roller Type: S (small roller) | Pitch P (mm): 31.75 | G1 Attachment G (mm): 5.1
HC2052 LP Roller Type: R (large roller) | Pitch P (mm): 31.75 | Extended Pin L3 (mm): 11.90 | Extended Pin L4 (mm): 21.10 | Additional Weight per Pin (kg): 0.0017
HC2052 G1 Roller Type: R (large roller) | Pitch P (mm): 31.75 | G1 Attachment G (mm): 5.1
HC2060 LP Roller Type: S (small roller) | Pitch P (mm): 38.10 | Extended Pin L3 (mm): 14.30 | Extended Pin L4 (mm): 27.65 | Additional Weight per Pin (kg): 0.0030
HC2060 G1 Roller Type: S (small roller) | Pitch P (mm): 38.10 | G1 Attachment G (mm): 6.1
HC2062 LP Roller Type: R (large roller) | Pitch P (mm): 38.10 | Extended Pin L3 (mm): 14.30 | Extended Pin L4 (mm): 27.65 | Additional Weight per Pin (kg): 0.0030
HC2062 G1 Roller Type: R (large roller) | Pitch P (mm): 38.10 | G1 Attachment G (mm): 6.1
HC2080 LP Roller Type: S (small roller) | Pitch P (mm): 50.80 | Extended Pin L3 (mm): 19.10 | Extended Pin L4 (mm): 35.80 | Additional Weight per Pin (kg): 0.0070
HC2080 G1 Roller Type: S (small roller) | Pitch P (mm): 50.80 | G1 Attachment G (mm): 8.1
HC2082 LP Roller Type: R (large roller) | Pitch P (mm): 50.80 | Extended Pin L3 (mm): 19.10 | Extended Pin L4 (mm): 35.80 | Additional Weight per Pin (kg): 0.0070
HC2082 G1 Roller Type: R (large roller) | Pitch P (mm): 50.80 | G1 Attachment G (mm): 8.1
HC2100 LP Roller Type: S (small roller) | Pitch P (mm): 63.50 | Extended Pin L3 (mm): 23.80 | Extended Pin L4 (mm): 43.70 | Additional Weight per Pin (kg): 0.0120
HC2100 G1 Roller Type: S (small roller) | Pitch P (mm): 63.50 | G1 Attachment G (mm): 10.1
HC2102 LP Roller Type: R (large roller) | Pitch P (mm): 63.50 | Extended Pin L3 (mm): 23.80 | Extended Pin L4 (mm): 43.70 | Additional Weight per Pin (kg): 0.0120
HC2102 G1 Roller Type: R (large roller) | Pitch P (mm): 63.50 | G1 Attachment G (mm): 10.1
Conveyor ChainsHankuk Chain
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Attachment Chain, Double Pitch Long Pin (LP) and G1 Attachment

Brand Hankuk Chain·Conveyor Chains

Available part numbers (20)

HC2040 LP, HC2040 G1, HC2042 LP, HC2042 G1, HC2050 LP, HC2050 G1, HC2052 LP, HC2052 G1, HC2060 LP, HC2060 G1 + 10 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC2040 LPRoller Type: S (small roller) | Pitch P (mm): 25.40 | Extended Pin L3 (mm): 9.50 | Extended Pin L4 (mm): 16.70 | Additional Weight per Pin (kg): 0.0008
HC2040 G1Roller Type: S (small roller) | Pitch P (mm): 25.40 | G1 Attachment G (mm): 4.1
HC2042 LPRoller Type: R (large roller) | Pitch P (mm): 25.40 | Extended Pin L3 (mm): 9.50 | Extended Pin L4 (mm): 16.70 | Additional Weight per Pin (kg): 0.0008
HC2042 G1Roller Type: R (large roller) | Pitch P (mm): 25.40 | G1 Attachment G (mm): 4.1
HC2050 LPRoller Type: S (small roller) | Pitch P (mm): 31.75 | Extended Pin L3 (mm): 11.90 | Extended Pin L4 (mm): 21.10 | Additional Weight per Pin (kg): 0.0017
HC2050 G1Roller Type: S (small roller) | Pitch P (mm): 31.75 | G1 Attachment G (mm): 5.1
HC2052 LPRoller Type: R (large roller) | Pitch P (mm): 31.75 | Extended Pin L3 (mm): 11.90 | Extended Pin L4 (mm): 21.10 | Additional Weight per Pin (kg): 0.0017
HC2052 G1Roller Type: R (large roller) | Pitch P (mm): 31.75 | G1 Attachment G (mm): 5.1
HC2060 LPRoller Type: S (small roller) | Pitch P (mm): 38.10 | Extended Pin L3 (mm): 14.30 | Extended Pin L4 (mm): 27.65 | Additional Weight per Pin (kg): 0.0030
HC2060 G1Roller Type: S (small roller) | Pitch P (mm): 38.10 | G1 Attachment G (mm): 6.1
HC2062 LPRoller Type: R (large roller) | Pitch P (mm): 38.10 | Extended Pin L3 (mm): 14.30 | Extended Pin L4 (mm): 27.65 | Additional Weight per Pin (kg): 0.0030
HC2062 G1Roller Type: R (large roller) | Pitch P (mm): 38.10 | G1 Attachment G (mm): 6.1
HC2080 LPRoller Type: S (small roller) | Pitch P (mm): 50.80 | Extended Pin L3 (mm): 19.10 | Extended Pin L4 (mm): 35.80 | Additional Weight per Pin (kg): 0.0070
HC2080 G1Roller Type: S (small roller) | Pitch P (mm): 50.80 | G1 Attachment G (mm): 8.1
HC2082 LPRoller Type: R (large roller) | Pitch P (mm): 50.80 | Extended Pin L3 (mm): 19.10 | Extended Pin L4 (mm): 35.80 | Additional Weight per Pin (kg): 0.0070
HC2082 G1Roller Type: R (large roller) | Pitch P (mm): 50.80 | G1 Attachment G (mm): 8.1
HC2100 LPRoller Type: S (small roller) | Pitch P (mm): 63.50 | Extended Pin L3 (mm): 23.80 | Extended Pin L4 (mm): 43.70 | Additional Weight per Pin (kg): 0.0120
HC2100 G1Roller Type: S (small roller) | Pitch P (mm): 63.50 | G1 Attachment G (mm): 10.1
HC2102 LPRoller Type: R (large roller) | Pitch P (mm): 63.50 | Extended Pin L3 (mm): 23.80 | Extended Pin L4 (mm): 43.70 | Additional Weight per Pin (kg): 0.0120
HC2102 G1Roller Type: R (large roller) | Pitch P (mm): 63.50 | G1 Attachment G (mm): 10.1
