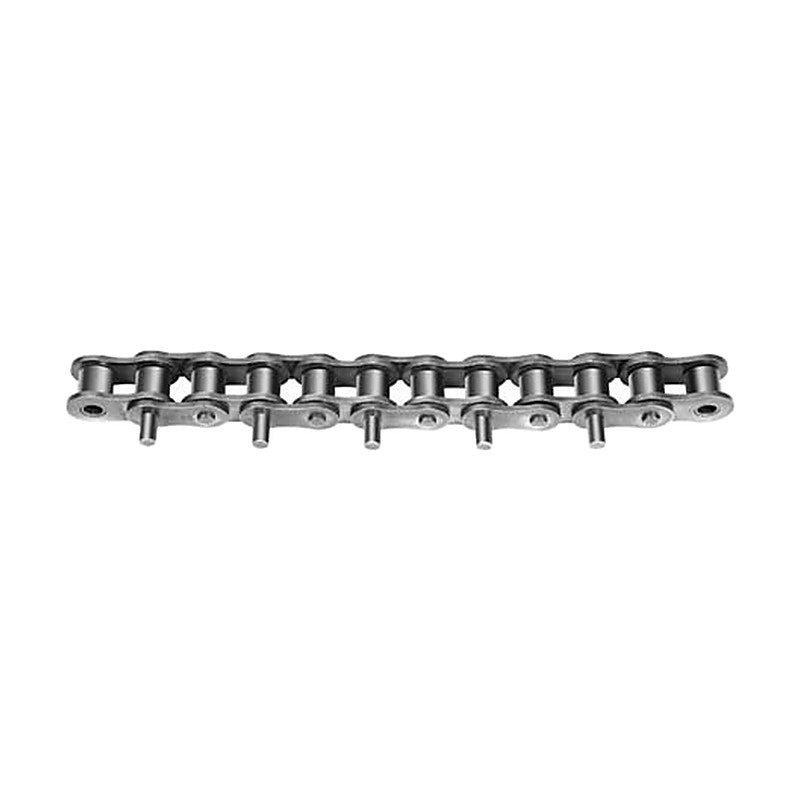

Hankuk Chain Attachment Chain, Long Pin Type (LP)

Hankuk Chain Attachment Chain, Long Pin Type (LP)

Standard pitch roller chain with extended (long) pins, available with long pins every link (2L/LP) or every other link (1L/LP).

Key features

  • Extended pins for mounting attachments
  • 2L/LP and 1L/LP arrangements
HC40 LP Pitch P (mm): 12.7 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Extended Pin L3 (mm): 9.50 | Extended Pin L4 (mm): 16.70 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 1.50 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370) | Approx. Weight (kg/m): 0.66 | Additional Weight per Pin (kg): 0.0008
HC50 LP Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Extended Pin L3 (mm): 11.90 | Extended Pin L4 (mm): 21.10 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.00 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650) | Approx. Weight (kg/m): 1.20 | Additional Weight per Pin (kg): 0.0017
HC60 LP Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Extended Pin L3 (mm): 14.30 | Extended Pin L4 (mm): 25.85 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 2.40 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900) | Approx. Weight (kg/m): 1.65 | Additional Weight per Pin (kg): 0.003
HC80 LP Pitch P (mm): 25.4 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Extended Pin L3 (mm): 19.10 | Extended Pin L4 (mm): 33.75 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 3.20 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500) | Approx. Weight (kg/m): 2.80 | Additional Weight per Pin (kg): 0.007
HC100 LP Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Extended Pin L3 (mm): 23.80 | Extended Pin L4 (mm): 41.70 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.00 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300) | Approx. Weight (kg/m): 4.30 | Additional Weight per Pin (kg): 0.012
HC120 LP Pitch P (mm): 38.1 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Extended Pin L3 (mm): 28.60 | Extended Pin L4 (mm): 51.30 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 4.80 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100) | Approx. Weight (kg/m): 6.00 | Additional Weight per Pin (kg): 0.020
HC140 LP Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.10 | Extended Pin L3 (mm): 33.30 | Extended Pin L4 (mm): 57.75 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 5.60 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 7.60 | Additional Weight per Pin (kg): 0.030
HC160 LP Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.10 | Extended Pin L3 (mm): 38.10 | Extended Pin L4 (mm): 67.35 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 6.40 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400) | Approx. Weight (kg/m): 10.20 | Additional Weight per Pin (kg): 0.044
Conveyor ChainsHankuk Chain
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Attachment Chain, Long Pin Type (LP)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (8)

HC40 LP, HC50 LP, HC60 LP, HC80 LP, HC100 LP, HC120 LP, HC140 LP, HC160 LP

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC40 LPPitch P (mm): 12.7 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Extended Pin L3 (mm): 9.50 | Extended Pin L4 (mm): 16.70 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 1.50 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370) | Approx. Weight (kg/m): 0.66 | Additional Weight per Pin (kg): 0.0008
HC50 LPPitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Extended Pin L3 (mm): 11.90 | Extended Pin L4 (mm): 21.10 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.00 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650) | Approx. Weight (kg/m): 1.20 | Additional Weight per Pin (kg): 0.0017
HC60 LPPitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Extended Pin L3 (mm): 14.30 | Extended Pin L4 (mm): 25.85 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 2.40 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900) | Approx. Weight (kg/m): 1.65 | Additional Weight per Pin (kg): 0.003
HC80 LPPitch P (mm): 25.4 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Extended Pin L3 (mm): 19.10 | Extended Pin L4 (mm): 33.75 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 3.20 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500) | Approx. Weight (kg/m): 2.80 | Additional Weight per Pin (kg): 0.007
HC100 LPPitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Extended Pin L3 (mm): 23.80 | Extended Pin L4 (mm): 41.70 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.00 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300) | Approx. Weight (kg/m): 4.30 | Additional Weight per Pin (kg): 0.012
HC120 LPPitch P (mm): 38.1 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Extended Pin L3 (mm): 28.60 | Extended Pin L4 (mm): 51.30 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 4.80 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100) | Approx. Weight (kg/m): 6.00 | Additional Weight per Pin (kg): 0.020
HC140 LPPitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.10 | Extended Pin L3 (mm): 33.30 | Extended Pin L4 (mm): 57.75 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 5.60 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 7.60 | Additional Weight per Pin (kg): 0.030
HC160 LPPitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.10 | Extended Pin L3 (mm): 38.10 | Extended Pin L4 (mm): 67.35 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 6.40 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400) | Approx. Weight (kg/m): 10.20 | Additional Weight per Pin (kg): 0.044
