• Hankuk Chain Attachment Chain, Standard Type (A-1, SA-1, K-1, SK-1)
1 1

Hankuk Chain Attachment Chain, Standard Type (A-1, SA-1, K-1, SK-1)

Hankuk Chain Attachment Chain, Standard Type (A-1, SA-1, K-1, SK-1)

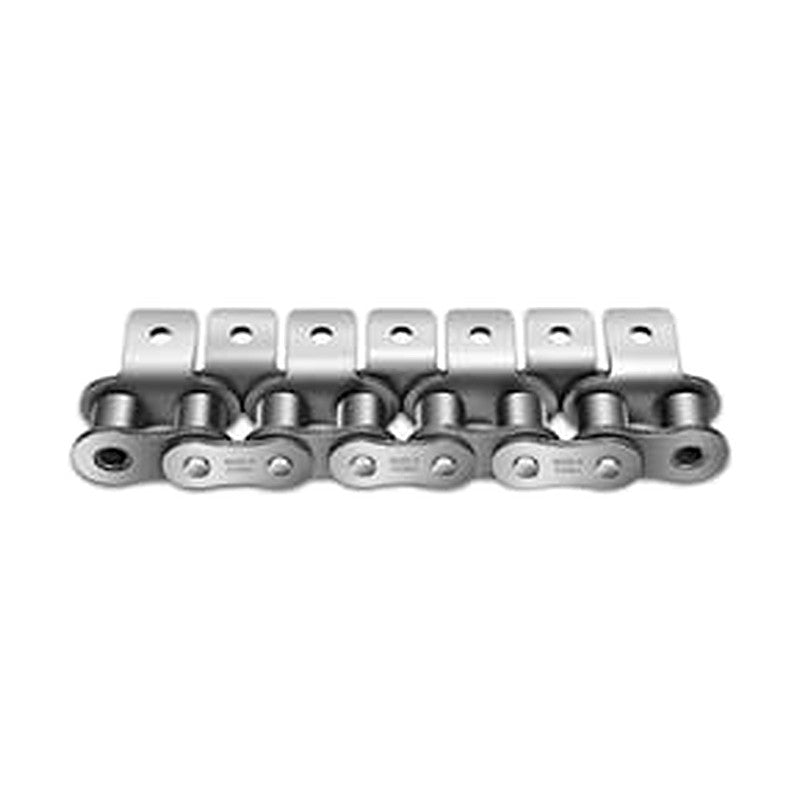

Standard pitch roller chain fitted with heat-treated A-1, SA-1, K-1 and SK-1 attachments for multi-purpose conveyor systems.

Key features

  • Heat-treated chain parts and attachments
  • A-1, SA-1 (one-hole bent) and K-1, SK-1 (two-side) attachments
  • Base chain dimensions as ANSI standard roller chain
HC40 A-1 Attachment: A-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.002 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC40 SA-1 Attachment: SA-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.002 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC40 K-1 Attachment: K-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.004 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC40 SK-1 Attachment: SK-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.004 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC50 A-1 Attachment: A-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.003 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC50 SA-1 Attachment: SA-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.003 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC50 K-1 Attachment: K-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.006 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC50 SK-1 Attachment: SK-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.006 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC60 A-1 Attachment: A-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.007 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC60 SA-1 Attachment: SA-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.007 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC60 K-1 Attachment: K-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.014 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC60 SK-1 Attachment: SK-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.014 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC80 A-1 Attachment: A-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.013 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC80 SA-1 Attachment: SA-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.013 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC80 K-1 Attachment: K-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC80 SK-1 Attachment: SK-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC100 A-1 Attachment: A-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC100 SA-1 Attachment: SA-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC100 K-1 Attachment: K-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.052 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC100 SK-1 Attachment: SK-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.052 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC120 A-1 Attachment: A-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.044 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC120 SA-1 Attachment: SA-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.044 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC120 K-1 Attachment: K-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.088 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC120 SK-1 Attachment: SK-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.088 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC140 A-1 Attachment: A-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.071 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC140 SA-1 Attachment: SA-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.071 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC140 K-1 Attachment: K-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.142 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC140 SK-1 Attachment: SK-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.142 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC160 A-1 Attachment: A-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.097 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC160 SA-1 Attachment: SA-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.097 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC160 K-1 Attachment: K-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.194 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC160 SK-1 Attachment: SK-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.194 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC180 A-1 Attachment: A-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.15 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC180 SA-1 Attachment: SA-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.15 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC180 K-1 Attachment: K-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.3 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC180 SK-1 Attachment: SK-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.3 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC200 A-1 Attachment: A-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.178 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC200 SA-1 Attachment: SA-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.178 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC200 K-1 Attachment: K-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.356 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC200 SK-1 Attachment: SK-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.356 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC240 A-1 Attachment: A-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.2765 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
HC240 SA-1 Attachment: SA-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.2765 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
HC240 K-1 Attachment: K-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.553 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
HC240 SK-1 Attachment: SK-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.553 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
Conveyor ChainsHankuk Chain
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Attachment Chain, Standard Type (A-1, SA-1, K-1, SK-1)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (44)

HC40 A-1, HC40 SA-1, HC40 K-1, HC40 SK-1, HC50 A-1, HC50 SA-1, HC50 K-1, HC50 SK-1, HC60 A-1, HC60 SA-1 + 34 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC40 A-1Attachment: A-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.002 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC40 SA-1Attachment: SA-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.002 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC40 K-1Attachment: K-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.004 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC40 SK-1Attachment: SK-1 | Pitch P (mm): 12.7 | C (mm): 12.70 | C1 (mm): 12.70 | N (mm): 9.50 | O (mm): 3.60 | S (mm): 8.00 | X (mm): 17.80 | Xs (mm): 17.40 | Additional Weight per Attachment (kg): 0.004 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370)
HC50 A-1Attachment: A-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.003 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC50 SA-1Attachment: SA-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.003 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC50 K-1Attachment: K-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.006 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC50 SK-1Attachment: SK-1 | Pitch P (mm): 15.875 | C (mm): 15.90 | C1 (mm): 15.90 | N (mm): 12.70 | O (mm): 5.20 | S (mm): 10.30 | X (mm): 23.40 | Xs (mm): 23.05 | Additional Weight per Attachment (kg): 0.006 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650)
HC60 A-1Attachment: A-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.007 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC60 SA-1Attachment: SA-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.007 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC60 K-1Attachment: K-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.014 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC60 SK-1Attachment: SK-1 | Pitch P (mm): 19.05 | C (mm): 19.05 | C1 (mm): 18.30 | N (mm): 15.90 | O (mm): 5.20 | S (mm): 11.90 | X (mm): 28.20 | Xs (mm): 26.85 | Additional Weight per Attachment (kg): 0.014 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900)
HC80 A-1Attachment: A-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.013 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC80 SA-1Attachment: SA-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.013 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC80 K-1Attachment: K-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC80 SK-1Attachment: SK-1 | Pitch P (mm): 25.4 | C (mm): 25.40 | C1 (mm): 24.60 | N (mm): 19.10 | O (mm): 6.80 | S (mm): 15.90 | X (mm): 36.60 | Xs (mm): 35.45 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500)
HC100 A-1Attachment: A-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC100 SA-1Attachment: SA-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.026 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC100 K-1Attachment: K-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.052 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC100 SK-1Attachment: SK-1 | Pitch P (mm): 31.75 | C (mm): 31.75 | C1 (mm): 31.80 | N (mm): 25.40 | O (mm): 8.70 | S (mm): 19.80 | X (mm): 44.90 | Xs (mm): 44.00 | Additional Weight per Attachment (kg): 0.052 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300)
HC120 A-1Attachment: A-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.044 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC120 SA-1Attachment: SA-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.044 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC120 K-1Attachment: K-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.088 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC120 SK-1Attachment: SK-1 | Pitch P (mm): 38.1 | C (mm): 38.10 | C1 (mm): 36.50 | N (mm): 28.60 | O (mm): 10.30 | S (mm): 23.00 | X (mm): 55.80 | Xs (mm): 52.85 | Additional Weight per Attachment (kg): 0.088 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100)
HC140 A-1Attachment: A-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.071 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC140 SA-1Attachment: SA-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.071 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC140 K-1Attachment: K-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.142 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC140 SK-1Attachment: SK-1 | Pitch P (mm): 44.45 | C (mm): 44.50 | C1 (mm): 44.50 | N (mm): 34.90 | O (mm): 11.90 | S (mm): 28.60 | X (mm): 63.10 | Xs (mm): 63.50 | Additional Weight per Attachment (kg): 0.142 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100)
HC160 A-1Attachment: A-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.097 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC160 SA-1Attachment: SA-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.097 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC160 K-1Attachment: K-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.194 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC160 SK-1Attachment: SK-1 | Pitch P (mm): 50.8 | C (mm): 50.80 | C1 (mm): 50.80 | N (mm): 38.10 | O (mm): 14.30 | S (mm): 31.80 | X (mm): 71.70 | Xs (mm): 70.10 | Additional Weight per Attachment (kg): 0.194 | Min. Tensile Strength kN (kgf): 245.1 (25,000) | Max. Allowable Tension kN (kgf): 53 (5,400)
HC180 A-1Attachment: A-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.15 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC180 SA-1Attachment: SA-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.15 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC180 K-1Attachment: K-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.3 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC180 SK-1Attachment: SK-1 | Pitch P (mm): 57.15 | C (mm): 57.15 | N (mm): 42.90 | O (mm): 16.00 | S (mm): 36.20 | X (mm): 87.90 | Additional Weight per Attachment (kg): 0.3 | Min. Tensile Strength kN (kgf): 308.9 (31,500) | Max. Allowable Tension kN (kgf): 60.8 (6,200)
HC200 A-1Attachment: A-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.178 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC200 SA-1Attachment: SA-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.178 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC200 K-1Attachment: K-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.356 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC200 SK-1Attachment: SK-1 | Pitch P (mm): 63.5 | C (mm): 63.50 | N (mm): 47.60 | O (mm): 16.30 | S (mm): 42.90 | X (mm): 90.00 | Additional Weight per Attachment (kg): 0.356 | Min. Tensile Strength kN (kgf): 382.4 (39,000) | Max. Allowable Tension kN (kgf): 71.6 (7,300)
HC240 A-1Attachment: A-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.2765 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
HC240 SA-1Attachment: SA-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.2765 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
HC240 K-1Attachment: K-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.553 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
HC240 SK-1Attachment: SK-1 | Pitch P (mm): 76.2 | C (mm): 76.20 | N (mm): 57.20 | O (mm): 21.00 | S (mm): 47.70 | X (mm): 99.00 | Additional Weight per Attachment (kg): 0.553 | Min. Tensile Strength kN (kgf): 551.1 (56,200) | Max. Allowable Tension kN (kgf): 99 (10,100)
