• Hankuk Chain Attachment Chain, Wide Attachment Type (WA, WSA, WK, WSK)
1 1

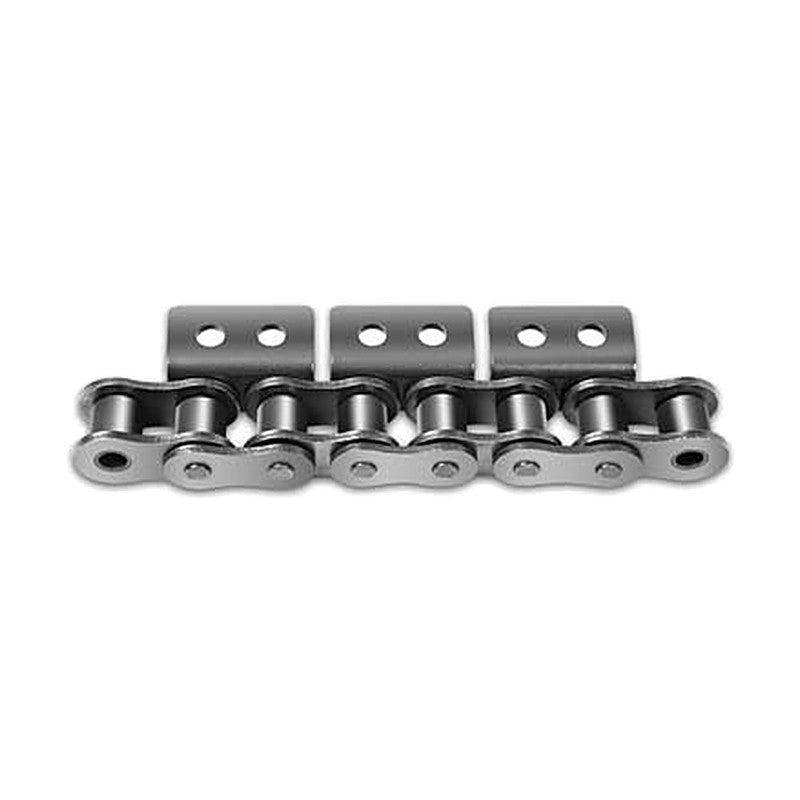

Hankuk Chain Attachment Chain, Wide Attachment Type (WA, WSA, WK, WSK)

Hankuk Chain Attachment Chain, Wide Attachment Type (WA, WSA, WK, WSK)

Standard pitch roller chain with wide attachments for conveying large struts and metal pieces; available as -1 (one hole) and -2 (two holes) versions.

Key features

  • Wide attachments for large struts and metal pieces
  • WA, WSA, WK and WSK types, each in -1 and -2 hole versions
  • Attachment hole diameter changeable on demand
HC40 WA Attachment: WA | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.004
HC40 WSA Attachment: WSA | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.004
HC40 WK Attachment: WK | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.007
HC40 WSK Attachment: WSK | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.007
HC50 WA Attachment: WA | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.008
HC50 WSA Attachment: WSA | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.008
HC50 WK Attachment: WK | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.015
HC50 WSK Attachment: WSK | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.015
HC60 WA Attachment: WA | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.013
HC60 WSA Attachment: WSA | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.013
HC60 WK Attachment: WK | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.026
HC60 WSK Attachment: WSK | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.026
HC80 WA Attachment: WA | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.030
HC80 WSA Attachment: WSA | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.030
HC80 WK Attachment: WK | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.060
HC80 WSK Attachment: WSK | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.060
HC100 WA Attachment: WA | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.060
HC100 WSA Attachment: WSA | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.060
HC100 WK Attachment: WK | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.120
HC100 WSK Attachment: WSK | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.120
HC120 WA Attachment: WA | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.086
HC120 WSA Attachment: WSA | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.086
HC120 WK Attachment: WK | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.172
HC120 WSK Attachment: WSK | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.172
HC140 WA Attachment: WA | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.140
HC140 WSA Attachment: WSA | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.140
HC140 WK Attachment: WK | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.280
HC140 WSK Attachment: WSK | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.280
HC160 WA Attachment: WA | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.210
HC160 WSA Attachment: WSA | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.210
HC160 WK Attachment: WK | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.420
HC160 WSK Attachment: WSK | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.420
HC200 WA Attachment: WA | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.420
HC200 WSA Attachment: WSA | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.420
HC200 WK Attachment: WK | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.840
HC200 WSK Attachment: WSK | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.840
Conveyor ChainsHankuk Chain
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Attachment Chain, Wide Attachment Type (WA, WSA, WK, WSK)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (36)

HC40 WA, HC40 WSA, HC40 WK, HC40 WSK, HC50 WA, HC50 WSA, HC50 WK, HC50 WSK, HC60 WA, HC60 WSA + 26 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC40 WAAttachment: WA | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.004
HC40 WSAAttachment: WSA | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.004
HC40 WKAttachment: WK | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.007
HC40 WSKAttachment: WSK | Pitch P (mm): 12.7 | WN (mm): 24.60 | WP (mm): 9.50 | O (mm): 4.50 | C (mm): 8.00 | X (mm): 12.70 | Y (mm): 17.80 | S (mm): 12.70 | Z (mm): 17.40 | Additional Weight per Attachment (kg): 0.007
HC50 WAAttachment: WA | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.008
HC50 WSAAttachment: WSA | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.008
HC50 WKAttachment: WK | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.015
HC50 WSKAttachment: WSK | Pitch P (mm): 15.875 | WN (mm): 28.66 | WP (mm): 11.90 | O (mm): 5.50 | C (mm): 10.30 | X (mm): 15.90 | Y (mm): 23.40 | S (mm): 15.90 | Z (mm): 23.10 | Additional Weight per Attachment (kg): 0.015
HC60 WAAttachment: WA | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.013
HC60 WSAAttachment: WSA | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.013
HC60 WKAttachment: WK | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.026
HC60 WSKAttachment: WSK | Pitch P (mm): 19.05 | WN (mm): 34.43 | WP (mm): 14.30 | O (mm): 6.60 | C (mm): 11.90 | X (mm): 19.05 | Y (mm): 28.20 | S (mm): 18.25 | Z (mm): 26.30 | Additional Weight per Attachment (kg): 0.026
HC80 WAAttachment: WA | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.030
HC80 WSAAttachment: WSA | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.030
HC80 WKAttachment: WK | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.060
HC80 WSKAttachment: WSK | Pitch P (mm): 25.4 | WN (mm): 45.95 | WP (mm): 19.10 | O (mm): 9.00 | C (mm): 15.90 | X (mm): 25.40 | Y (mm): 36.60 | S (mm): 24.60 | Z (mm): 34.20 | Additional Weight per Attachment (kg): 0.060
HC100 WAAttachment: WA | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.060
HC100 WSAAttachment: WSA | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.060
HC100 WKAttachment: WK | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.120
HC100 WSKAttachment: WSK | Pitch P (mm): 31.75 | WN (mm): 61.58 | WP (mm): 28.60 | O (mm): 11.00 | C (mm): 19.85 | X (mm): 31.75 | Y (mm): 44.90 | S (mm): 31.75 | Z (mm): 44.00 | Additional Weight per Attachment (kg): 0.120
HC120 WAAttachment: WA | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.086
HC120 WSAAttachment: WSA | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.086
HC120 WKAttachment: WK | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.172
HC120 WSKAttachment: WSK | Pitch P (mm): 38.1 | WN (mm): 68.60 | WP (mm): 34.50 | O (mm): 9.00 | C (mm): 23.00 | X (mm): 38.10 | Y (mm): 55.80 | S (mm): 36.50 | Z (mm): 52.85 | Additional Weight per Attachment (kg): 0.172
HC140 WAAttachment: WA | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.140
HC140 WSAAttachment: WSA | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.140
HC140 WKAttachment: WK | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.280
HC140 WSKAttachment: WSK | Pitch P (mm): 44.45 | WN (mm): 80.40 | WP (mm): 35.00 | O (mm): 11.00 | C (mm): 28.60 | X (mm): 44.50 | Y (mm): 63.10 | S (mm): 44.50 | Z (mm): 63.50 | Additional Weight per Attachment (kg): 0.280
HC160 WAAttachment: WA | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.210
HC160 WSAAttachment: WSA | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.210
HC160 WKAttachment: WK | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.420
HC160 WSKAttachment: WSK | Pitch P (mm): 50.8 | WN (mm): 98.80 | WP (mm): 35.00 | O (mm): 14.30 | C (mm): 31.80 | X (mm): 50.80 | Y (mm): 71.70 | S (mm): 50.80 | Z (mm): 70.10 | Additional Weight per Attachment (kg): 0.420
HC200 WAAttachment: WA | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.420
HC200 WSAAttachment: WSA | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.420
HC200 WKAttachment: WK | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.840
HC200 WSKAttachment: WSK | Pitch P (mm): 63.5 | WN (mm): 123.60 | WP (mm): 38.10 | O (mm): 15.00 | C (mm): 42.90 | X (mm): 63.50 | Y (mm): 90.00 | Additional Weight per Attachment (kg): 0.840
