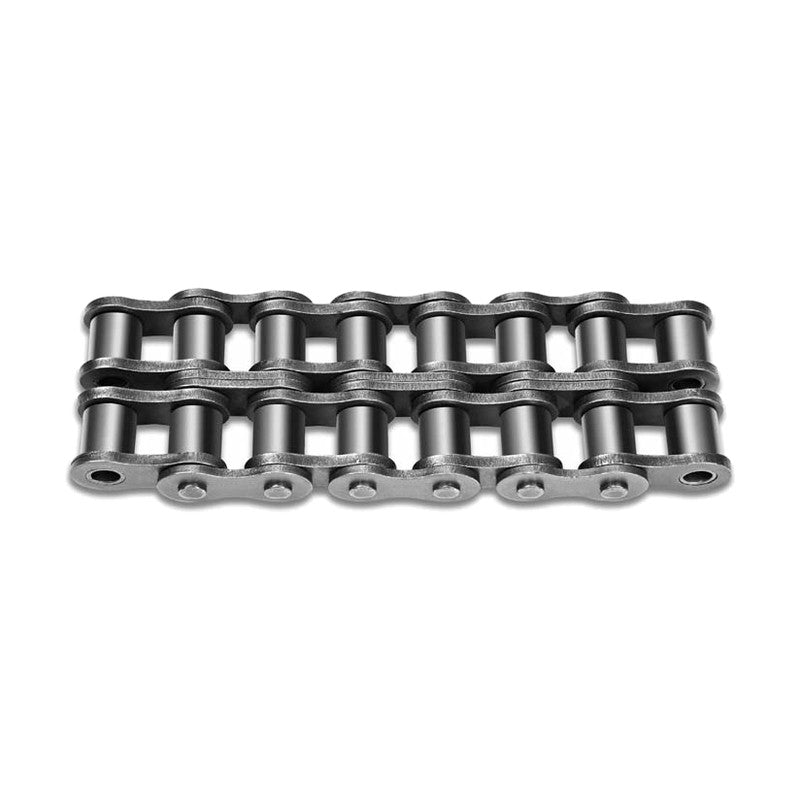

Hankuk Chain BS Standard Roller Chain, Double Strand

Hankuk Chain BS Standard Roller Chain, Double Strand

Double strand roller chain to BS (British Standard) dimensions.

Key features

  • BS (ISO 606 B series) dimensions
  • Double strand
HC06B-2 Pitch P (mm): 9.525 | Roller Link Width W min (mm): 5.72 | Roller Dia. R max (mm): 6.35 | Pin Dia. d max (mm): 3.28 | Pin Length L1+L2 (mm): 23.80 | Outer Plate Thickness T (mm): 1.3 | Inner Plate Thickness t (mm): 1.3 | Outer Plate Height H (mm): 8.26 | Inner Plate Height h (mm): 8.26 | Transverse Pitch C (mm): 10.24 | Min. Tensile Strength kN (kgf): 16.9 (1,730) | Approx. Weight (kg/m): 0.78
HC08B-2 Pitch P (mm): 12.7 | Roller Link Width W min (mm): 7.75 | Roller Dia. R max (mm): 8.51 | Pin Dia. d max (mm): 4.45 | Pin Length L1+L2 (mm): 31.90 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 11.81 | Inner Plate Height h (mm): 10.92 | Transverse Pitch C (mm): 13.92 | Min. Tensile Strength kN (kgf): 31.2 (3,180) | Approx. Weight (kg/m): 1.35
HC10B-2 Pitch P (mm): 15.875 | Roller Link Width W min (mm): 9.65 | Roller Dia. R max (mm): 10.16 | Pin Dia. d max (mm): 5.08 | Pin Length L1+L2 (mm): 37.10 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 14.73 | Inner Plate Height h (mm): 13.72 | Transverse Pitch C (mm): 16.59 | Min. Tensile Strength kN (kgf): 44.5 (4,540) | Approx. Weight (kg/m): 1.35
HC12B-2 Pitch P (mm): 19.05 | Roller Link Width W min (mm): 11.68 | Roller Dia. R max (mm): 12.07 | Pin Dia. d max (mm): 5.72 | Pin Length L1+L2 (mm): 43.00 | Outer Plate Thickness T (mm): 1.8 | Inner Plate Thickness t (mm): 1.8 | Outer Plate Height H (mm): 16.13 | Inner Plate Height h (mm): 16.13 | Transverse Pitch C (mm): 19.46 | Min. Tensile Strength kN (kgf): 57.8 (5,900) | Approx. Weight (kg/m): 2.50
HC16B-2 Pitch P (mm): 25.4 | Roller Link Width W min (mm): 17.02 | Roller Dia. R max (mm): 15.88 | Pin Dia. d max (mm): 8.28 | Pin Length L1+L2 (mm): 70.80 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 3.0 | Outer Plate Height H (mm): 21.08 | Inner Plate Height h (mm): 21.08 | Transverse Pitch C (mm): 31.88 | Min. Tensile Strength kN (kgf): 84.5 (8,620) | Approx. Weight (kg/m): 5.40
HC20B-2 Pitch P (mm): 31.75 | Roller Link Width W min (mm): 19.56 | Roller Dia. R max (mm): 19.05 | Pin Dia. d max (mm): 10.19 | Pin Length L1+L2 (mm): 81.80 | Outer Plate Thickness T (mm): 4.5 | Inner Plate Thickness t (mm): 3.5 | Outer Plate Height H (mm): 26.42 | Inner Plate Height h (mm): 26.42 | Transverse Pitch C (mm): 36.45 | Min. Tensile Strength kN (kgf): 129 (13,160) | Approx. Weight (kg/m): 7.20
HC24B-2 Pitch P (mm): 38.1 | Roller Link Width W min (mm): 25.4 | Roller Dia. R max (mm): 25.4 | Pin Dia. d max (mm): 14.63 | Pin Length L1+L2 (mm): 107.60 | Outer Plate Thickness T (mm): 6.0 | Inner Plate Thickness t (mm): 5.0 | Outer Plate Height H (mm): 33.4 | Inner Plate Height h (mm): 33.4 | Transverse Pitch C (mm): 48.36 | Min. Tensile Strength kN (kgf): 195.7 (19,960) | Approx. Weight (kg/m): 13.50
HC28B-2 Pitch P (mm): 44.45 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 27.94 | Pin Dia. d max (mm): 15.9 | Pin Length L1+L2 (mm): 130.00 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 37.08 | Inner Plate Height h (mm): 37.08 | Transverse Pitch C (mm): 59.56 | Min. Tensile Strength kN (kgf): 258.1 (26,320) | Approx. Weight (kg/m): 16.60
HC32B-2 Pitch P (mm): 50.8 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 29.21 | Pin Dia. d max (mm): 17.81 | Pin Length L1+L2 (mm): 130.60 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 42.29 | Inner Plate Height h (mm): 42.29 | Transverse Pitch C (mm): 58.55 | Min. Tensile Strength kN (kgf): 338.1 (34,480) | Approx. Weight (kg/m): 21.0
HC40B-2 Pitch P (mm): 63.5 | Roller Link Width W min (mm): 38.1 | Roller Dia. R max (mm): 39.37 | Pin Dia. d max (mm): 22.89 | Pin Length L1+L2 (mm): 166.30 | Outer Plate Thickness T (mm): 8.0 | Inner Plate Thickness t (mm): 8.0 | Outer Plate Height H (mm): 52.96 | Inner Plate Height h (mm): 52.96 | Transverse Pitch C (mm): 72.29 | Min. Tensile Strength kN (kgf): 525 (53,540) | Approx. Weight (kg/m): 32.0
HC48B-2 Pitch P (mm): 76.2 | Roller Link Width W min (mm): 45.72 | Roller Dia. R max (mm): 48.26 | Pin Dia. d max (mm): 29.24 | Pin Length L1+L2 (mm): 211.30 | Outer Plate Thickness T (mm): 12.0 | Inner Plate Thickness t (mm): 10.0 | Outer Plate Height H (mm): 63.88 | Inner Plate Height h (mm): 63.88 | Transverse Pitch C (mm): 91.21 | Min. Tensile Strength kN (kgf): 800.7 (81,650) | Approx. Weight (kg/m): 50.0
HC56B-2 Pitch P (mm): 88.9 | Roller Link Width W min (mm): 53.34 | Roller Dia. R max (mm): 53.98 | Pin Dia. d max (mm): 34.32 | Pin Length L1+L2 (mm): 243.60 | Outer Plate Thickness T (mm): 13.0 | Inner Plate Thickness t (mm): 12.0 | Outer Plate Height H (mm): 77.85 | Inner Plate Height h (mm): 77.85 | Transverse Pitch C (mm): 106.60 | Min. Tensile Strength kN (kgf): 1085.4 (110,680) | Approx. Weight (kg/m): 70.0
HC64B-2 Pitch P (mm): 101.6 | Roller Link Width W min (mm): 60.96 | Roller Dia. R max (mm): 63.5 | Pin Dia. d max (mm): 39.4 | Pin Length L1+L2 (mm): 274.90 | Outer Plate Thickness T (mm): 14.0 | Inner Plate Thickness t (mm): 13.0 | Outer Plate Height H (mm): 90.17 | Inner Plate Height h (mm): 90.17 | Transverse Pitch C (mm): 119.89 | Min. Tensile Strength kN (kgf): 1423.4 (145,150) | Approx. Weight (kg/m): 120.0
HC72B-2 Pitch P (mm): 114.3 | Roller Link Width W min (mm): 68.58 | Roller Dia. R max (mm): 72.39 | Pin Dia. d max (mm): 44.48 | Pin Length L1+L2 (mm): 309.30 | Outer Plate Thickness T (mm): 17.0 | Inner Plate Thickness t (mm): 15.0 | Outer Plate Height H (mm): 103.63 | Inner Plate Height h (mm): 103.63 | Transverse Pitch C (mm): 136.27 | Min. Tensile Strength kN (kgf): 1797.1 (183,260) | Approx. Weight (kg/m): 160.0
Roller ChainsHankuk Chain
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain BS Standard Roller Chain, Double Strand

Brand Hankuk Chain·Roller Chains

Available part numbers (14)

HC06B-2, HC08B-2, HC10B-2, HC12B-2, HC16B-2, HC20B-2, HC24B-2, HC28B-2, HC32B-2, HC40B-2 + 4 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC06B-2Pitch P (mm): 9.525 | Roller Link Width W min (mm): 5.72 | Roller Dia. R max (mm): 6.35 | Pin Dia. d max (mm): 3.28 | Pin Length L1+L2 (mm): 23.80 | Outer Plate Thickness T (mm): 1.3 | Inner Plate Thickness t (mm): 1.3 | Outer Plate Height H (mm): 8.26 | Inner Plate Height h (mm): 8.26 | Transverse Pitch C (mm): 10.24 | Min. Tensile Strength kN (kgf): 16.9 (1,730) | Approx. Weight (kg/m): 0.78
HC08B-2Pitch P (mm): 12.7 | Roller Link Width W min (mm): 7.75 | Roller Dia. R max (mm): 8.51 | Pin Dia. d max (mm): 4.45 | Pin Length L1+L2 (mm): 31.90 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 11.81 | Inner Plate Height h (mm): 10.92 | Transverse Pitch C (mm): 13.92 | Min. Tensile Strength kN (kgf): 31.2 (3,180) | Approx. Weight (kg/m): 1.35
HC10B-2Pitch P (mm): 15.875 | Roller Link Width W min (mm): 9.65 | Roller Dia. R max (mm): 10.16 | Pin Dia. d max (mm): 5.08 | Pin Length L1+L2 (mm): 37.10 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 14.73 | Inner Plate Height h (mm): 13.72 | Transverse Pitch C (mm): 16.59 | Min. Tensile Strength kN (kgf): 44.5 (4,540) | Approx. Weight (kg/m): 1.35
HC12B-2Pitch P (mm): 19.05 | Roller Link Width W min (mm): 11.68 | Roller Dia. R max (mm): 12.07 | Pin Dia. d max (mm): 5.72 | Pin Length L1+L2 (mm): 43.00 | Outer Plate Thickness T (mm): 1.8 | Inner Plate Thickness t (mm): 1.8 | Outer Plate Height H (mm): 16.13 | Inner Plate Height h (mm): 16.13 | Transverse Pitch C (mm): 19.46 | Min. Tensile Strength kN (kgf): 57.8 (5,900) | Approx. Weight (kg/m): 2.50
HC16B-2Pitch P (mm): 25.4 | Roller Link Width W min (mm): 17.02 | Roller Dia. R max (mm): 15.88 | Pin Dia. d max (mm): 8.28 | Pin Length L1+L2 (mm): 70.80 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 3.0 | Outer Plate Height H (mm): 21.08 | Inner Plate Height h (mm): 21.08 | Transverse Pitch C (mm): 31.88 | Min. Tensile Strength kN (kgf): 84.5 (8,620) | Approx. Weight (kg/m): 5.40
HC20B-2Pitch P (mm): 31.75 | Roller Link Width W min (mm): 19.56 | Roller Dia. R max (mm): 19.05 | Pin Dia. d max (mm): 10.19 | Pin Length L1+L2 (mm): 81.80 | Outer Plate Thickness T (mm): 4.5 | Inner Plate Thickness t (mm): 3.5 | Outer Plate Height H (mm): 26.42 | Inner Plate Height h (mm): 26.42 | Transverse Pitch C (mm): 36.45 | Min. Tensile Strength kN (kgf): 129 (13,160) | Approx. Weight (kg/m): 7.20
HC24B-2Pitch P (mm): 38.1 | Roller Link Width W min (mm): 25.4 | Roller Dia. R max (mm): 25.4 | Pin Dia. d max (mm): 14.63 | Pin Length L1+L2 (mm): 107.60 | Outer Plate Thickness T (mm): 6.0 | Inner Plate Thickness t (mm): 5.0 | Outer Plate Height H (mm): 33.4 | Inner Plate Height h (mm): 33.4 | Transverse Pitch C (mm): 48.36 | Min. Tensile Strength kN (kgf): 195.7 (19,960) | Approx. Weight (kg/m): 13.50
HC28B-2Pitch P (mm): 44.45 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 27.94 | Pin Dia. d max (mm): 15.9 | Pin Length L1+L2 (mm): 130.00 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 37.08 | Inner Plate Height h (mm): 37.08 | Transverse Pitch C (mm): 59.56 | Min. Tensile Strength kN (kgf): 258.1 (26,320) | Approx. Weight (kg/m): 16.60
HC32B-2Pitch P (mm): 50.8 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 29.21 | Pin Dia. d max (mm): 17.81 | Pin Length L1+L2 (mm): 130.60 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 42.29 | Inner Plate Height h (mm): 42.29 | Transverse Pitch C (mm): 58.55 | Min. Tensile Strength kN (kgf): 338.1 (34,480) | Approx. Weight (kg/m): 21.0
HC40B-2Pitch P (mm): 63.5 | Roller Link Width W min (mm): 38.1 | Roller Dia. R max (mm): 39.37 | Pin Dia. d max (mm): 22.89 | Pin Length L1+L2 (mm): 166.30 | Outer Plate Thickness T (mm): 8.0 | Inner Plate Thickness t (mm): 8.0 | Outer Plate Height H (mm): 52.96 | Inner Plate Height h (mm): 52.96 | Transverse Pitch C (mm): 72.29 | Min. Tensile Strength kN (kgf): 525 (53,540) | Approx. Weight (kg/m): 32.0
HC48B-2Pitch P (mm): 76.2 | Roller Link Width W min (mm): 45.72 | Roller Dia. R max (mm): 48.26 | Pin Dia. d max (mm): 29.24 | Pin Length L1+L2 (mm): 211.30 | Outer Plate Thickness T (mm): 12.0 | Inner Plate Thickness t (mm): 10.0 | Outer Plate Height H (mm): 63.88 | Inner Plate Height h (mm): 63.88 | Transverse Pitch C (mm): 91.21 | Min. Tensile Strength kN (kgf): 800.7 (81,650) | Approx. Weight (kg/m): 50.0
HC56B-2Pitch P (mm): 88.9 | Roller Link Width W min (mm): 53.34 | Roller Dia. R max (mm): 53.98 | Pin Dia. d max (mm): 34.32 | Pin Length L1+L2 (mm): 243.60 | Outer Plate Thickness T (mm): 13.0 | Inner Plate Thickness t (mm): 12.0 | Outer Plate Height H (mm): 77.85 | Inner Plate Height h (mm): 77.85 | Transverse Pitch C (mm): 106.60 | Min. Tensile Strength kN (kgf): 1085.4 (110,680) | Approx. Weight (kg/m): 70.0
HC64B-2Pitch P (mm): 101.6 | Roller Link Width W min (mm): 60.96 | Roller Dia. R max (mm): 63.5 | Pin Dia. d max (mm): 39.4 | Pin Length L1+L2 (mm): 274.90 | Outer Plate Thickness T (mm): 14.0 | Inner Plate Thickness t (mm): 13.0 | Outer Plate Height H (mm): 90.17 | Inner Plate Height h (mm): 90.17 | Transverse Pitch C (mm): 119.89 | Min. Tensile Strength kN (kgf): 1423.4 (145,150) | Approx. Weight (kg/m): 120.0
HC72B-2Pitch P (mm): 114.3 | Roller Link Width W min (mm): 68.58 | Roller Dia. R max (mm): 72.39 | Pin Dia. d max (mm): 44.48 | Pin Length L1+L2 (mm): 309.30 | Outer Plate Thickness T (mm): 17.0 | Inner Plate Thickness t (mm): 15.0 | Outer Plate Height H (mm): 103.63 | Inner Plate Height h (mm): 103.63 | Transverse Pitch C (mm): 136.27 | Min. Tensile Strength kN (kgf): 1797.1 (183,260) | Approx. Weight (kg/m): 160.0
