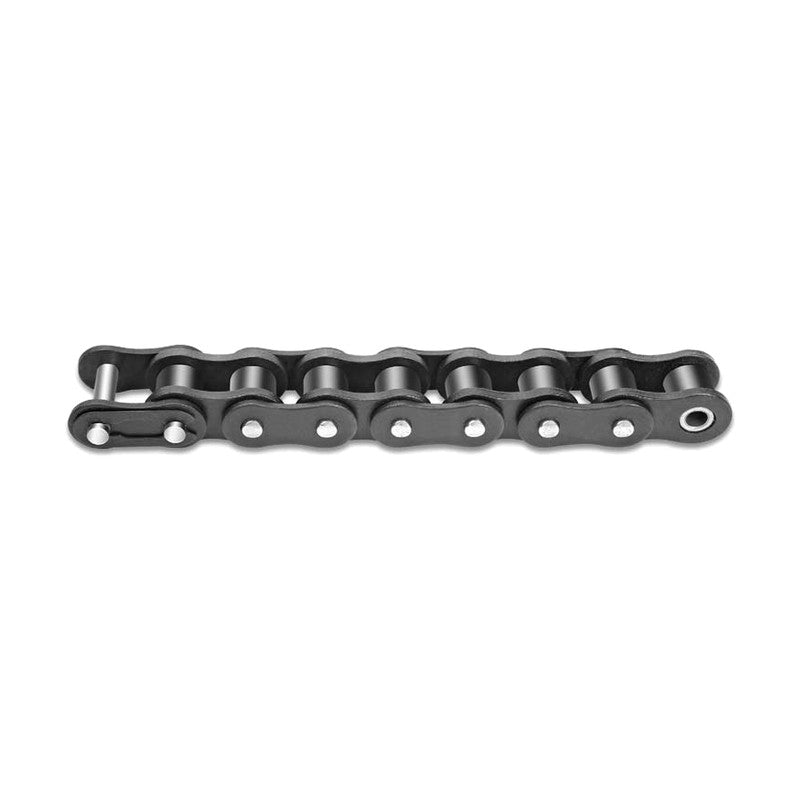

Hankuk Chain BS Standard Roller Chain, Single Strand

Hankuk Chain BS Standard Roller Chain, Single Strand

Single strand roller chain to BS (British Standard) dimensions.

Key features

  • BS (ISO 606 B series) dimensions
  • Pitch 9.525 to 114.3 mm
HC06B Pitch P (mm): 9.525 | Roller Link Width W min (mm): 5.72 | Roller Dia. R max (mm): 6.35 | Pin Dia. d max (mm): 3.28 | Pin L1 (mm): 6.7 | Pin L2 (mm): 10.1 | Pin Length L1+L2 (mm): 16.8 | Outer Plate Thickness T (mm): 1.3 | Inner Plate Thickness t (mm): 1.3 | Outer Plate Height H (mm): 8.26 | Inner Plate Height h (mm): 8.26 | Min. Tensile Strength kN (kgf): 8.92 (910) | Approx. Weight (kg/m): 0.41
HC08B Pitch P (mm): 12.7 | Roller Link Width W min (mm): 7.75 | Roller Dia. R max (mm): 8.51 | Pin Dia. d max (mm): 4.45 | Pin L1 (mm): 8.5 | Pin L2 (mm): 9.5 | Pin Length L1+L2 (mm): 18.0 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 11.81 | Inner Plate Height h (mm): 10.92 | Min. Tensile Strength kN (kgf): 17.8 (1,820) | Approx. Weight (kg/m): 0.7
HC10B Pitch P (mm): 15.875 | Roller Link Width W min (mm): 9.65 | Roller Dia. R max (mm): 10.16 | Pin Dia. d max (mm): 5.08 | Pin L1 (mm): 9.8 | Pin L2 (mm): 10.7 | Pin Length L1+L2 (mm): 20.5 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 14.73 | Inner Plate Height h (mm): 13.72 | Min. Tensile Strength kN (kgf): 22.2 (2,270) | Approx. Weight (kg/m): 0.95
HC12B Pitch P (mm): 19.05 | Roller Link Width W min (mm): 11.68 | Roller Dia. R max (mm): 12.07 | Pin Dia. d max (mm): 5.72 | Pin L1 (mm): 11.35 | Pin L2 (mm): 12.15 | Pin Length L1+L2 (mm): 23.5 | Outer Plate Thickness T (mm): 1.8 | Inner Plate Thickness t (mm): 1.8 | Outer Plate Height H (mm): 16.13 | Inner Plate Height h (mm): 16.13 | Min. Tensile Strength kN (kgf): 28.9 (2,950) | Approx. Weight (kg/m): 1.25
HC16B Pitch P (mm): 25.4 | Roller Link Width W min (mm): 17.02 | Roller Dia. R max (mm): 15.88 | Pin Dia. d max (mm): 8.28 | Pin L1 (mm): 18.05 | Pin L2 (mm): 20.85 | Pin Length L1+L2 (mm): 38.9 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 3.0 | Outer Plate Height H (mm): 21.08 | Inner Plate Height h (mm): 21.08 | Min. Tensile Strength kN (kgf): 42.2 (4,310) | Approx. Weight (kg/m): 2.7
HC20B Pitch P (mm): 31.75 | Roller Link Width W min (mm): 19.56 | Roller Dia. R max (mm): 19.05 | Pin Dia. d max (mm): 10.19 | Pin L1 (mm): 21.1 | Pin L2 (mm): 24.2 | Pin Length L1+L2 (mm): 45.3 | Outer Plate Thickness T (mm): 4.5 | Inner Plate Thickness t (mm): 3.5 | Outer Plate Height H (mm): 26.42 | Inner Plate Height h (mm): 26.42 | Min. Tensile Strength kN (kgf): 64.5 (6,580) | Approx. Weight (kg/m): 3.6
HC24B Pitch P (mm): 38.1 | Roller Link Width W min (mm): 25.4 | Roller Dia. R max (mm): 25.4 | Pin Dia. d max (mm): 14.63 | Pin L1 (mm): 27.4 | Pin L2 (mm): 31.8 | Pin Length L1+L2 (mm): 60.2 | Outer Plate Thickness T (mm): 6.0 | Inner Plate Thickness t (mm): 5.0 | Outer Plate Height H (mm): 33.4 | Inner Plate Height h (mm): 33.4 | Min. Tensile Strength kN (kgf): 97.8 (9,980) | Approx. Weight (kg/m): 6.7
HC28B Pitch P (mm): 44.45 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 27.94 | Pin Dia. d max (mm): 15.9 | Pin L1 (mm): 33.0 | Pin L2 (mm): 37.4 | Pin Length L1+L2 (mm): 70.4 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 37.08 | Inner Plate Height h (mm): 37.08 | Min. Tensile Strength kN (kgf): 129 (13,160) | Approx. Weight (kg/m): 8.3
HC32B Pitch P (mm): 50.8 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 29.21 | Pin Dia. d max (mm): 17.81 | Pin L1 (mm): 33.0 | Pin L2 (mm): 39.0 | Pin Length L1+L2 (mm): 72.0 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 42.29 | Inner Plate Height h (mm): 42.29 | Min. Tensile Strength kN (kgf): 169 (17,240) | Approx. Weight (kg/m): 10.5
HC40B Pitch P (mm): 63.5 | Roller Link Width W min (mm): 38.1 | Roller Dia. R max (mm): 39.37 | Pin Dia. d max (mm): 22.89 | Pin L1 (mm): 35.35 | Pin L2 (mm): 58.65 | Pin Length L1+L2 (mm): 9.40 | Outer Plate Thickness T (mm): 8.0 | Inner Plate Thickness t (mm): 8.0 | Outer Plate Height H (mm): 52.96 | Inner Plate Height h (mm): 52.96 | Min. Tensile Strength kN (kgf): 262.5 (26,770) | Approx. Weight (kg/m): 16.0
HC48B Pitch P (mm): 76.2 | Roller Link Width W min (mm): 45.72 | Roller Dia. R max (mm): 48.26 | Pin Dia. d max (mm): 29.24 | Pin L1 (mm): 50.3 | Pin L2 (mm): 69.7 | Pin Length L1+L2 (mm): 120.0 | Outer Plate Thickness T (mm): 12.0 | Inner Plate Thickness t (mm): 10.0 | Outer Plate Height H (mm): 63.88 | Inner Plate Height h (mm): 63.88 | Min. Tensile Strength kN (kgf): 400.4 (40,830) | Approx. Weight (kg/m): 25.0
HC56B Pitch P (mm): 88.9 | Roller Link Width W min (mm): 53.34 | Roller Dia. R max (mm): 53.98 | Pin Dia. d max (mm): 34.32 | Pin L1 (mm): 58.5 | Pin L2 (mm): 78.5 | Pin Length L1+L2 (mm): 137.0 | Outer Plate Thickness T (mm): 13.0 | Inner Plate Thickness t (mm): 12.0 | Outer Plate Height H (mm): 77.85 | Inner Plate Height h (mm): 77.85 | Min. Tensile Strength kN (kgf): 542.7 (55,340) | Approx. Weight (kg/m): 35.0
HC64B Pitch P (mm): 101.6 | Roller Link Width W min (mm): 60.96 | Roller Dia. R max (mm): 63.5 | Pin Dia. d max (mm): 39.4 | Pin L1 (mm): 65.7 | Pin L2 (mm): 89.3 | Pin Length L1+L2 (mm): 150.0 | Outer Plate Thickness T (mm): 14.0 | Inner Plate Thickness t (mm): 13.0 | Outer Plate Height H (mm): 90.17 | Inner Plate Height h (mm): 90.17 | Min. Tensile Strength kN (kgf): 1095.2 (111,680) | Approx. Weight (kg/m): 70.0
HC72B Pitch P (mm): 114.3 | Roller Link Width W min (mm): 68.58 | Roller Dia. R max (mm): 72.39 | Pin Dia. d max (mm): 44.48 | Pin L1 (mm): 74.35 | Pin L2 (mm): 98.65 | Pin Length L1+L2 (mm): 173.0 | Outer Plate Thickness T (mm): 17.0 | Inner Plate Thickness t (mm): 15.0 | Outer Plate Height H (mm): 103.63 | Inner Plate Height h (mm): 103.63 | Min. Tensile Strength kN (kgf): 1600 (163,160) | Approx. Weight (kg/m): 105.0
Roller ChainsHankuk Chain
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain BS Standard Roller Chain, Single Strand

Brand Hankuk Chain·Roller Chains

Available part numbers (14)

HC06B, HC08B, HC10B, HC12B, HC16B, HC20B, HC24B, HC28B, HC32B, HC40B + 4 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC06BPitch P (mm): 9.525 | Roller Link Width W min (mm): 5.72 | Roller Dia. R max (mm): 6.35 | Pin Dia. d max (mm): 3.28 | Pin L1 (mm): 6.7 | Pin L2 (mm): 10.1 | Pin Length L1+L2 (mm): 16.8 | Outer Plate Thickness T (mm): 1.3 | Inner Plate Thickness t (mm): 1.3 | Outer Plate Height H (mm): 8.26 | Inner Plate Height h (mm): 8.26 | Min. Tensile Strength kN (kgf): 8.92 (910) | Approx. Weight (kg/m): 0.41
HC08BPitch P (mm): 12.7 | Roller Link Width W min (mm): 7.75 | Roller Dia. R max (mm): 8.51 | Pin Dia. d max (mm): 4.45 | Pin L1 (mm): 8.5 | Pin L2 (mm): 9.5 | Pin Length L1+L2 (mm): 18.0 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 11.81 | Inner Plate Height h (mm): 10.92 | Min. Tensile Strength kN (kgf): 17.8 (1,820) | Approx. Weight (kg/m): 0.7
HC10BPitch P (mm): 15.875 | Roller Link Width W min (mm): 9.65 | Roller Dia. R max (mm): 10.16 | Pin Dia. d max (mm): 5.08 | Pin L1 (mm): 9.8 | Pin L2 (mm): 10.7 | Pin Length L1+L2 (mm): 20.5 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Outer Plate Height H (mm): 14.73 | Inner Plate Height h (mm): 13.72 | Min. Tensile Strength kN (kgf): 22.2 (2,270) | Approx. Weight (kg/m): 0.95
HC12BPitch P (mm): 19.05 | Roller Link Width W min (mm): 11.68 | Roller Dia. R max (mm): 12.07 | Pin Dia. d max (mm): 5.72 | Pin L1 (mm): 11.35 | Pin L2 (mm): 12.15 | Pin Length L1+L2 (mm): 23.5 | Outer Plate Thickness T (mm): 1.8 | Inner Plate Thickness t (mm): 1.8 | Outer Plate Height H (mm): 16.13 | Inner Plate Height h (mm): 16.13 | Min. Tensile Strength kN (kgf): 28.9 (2,950) | Approx. Weight (kg/m): 1.25
HC16BPitch P (mm): 25.4 | Roller Link Width W min (mm): 17.02 | Roller Dia. R max (mm): 15.88 | Pin Dia. d max (mm): 8.28 | Pin L1 (mm): 18.05 | Pin L2 (mm): 20.85 | Pin Length L1+L2 (mm): 38.9 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 3.0 | Outer Plate Height H (mm): 21.08 | Inner Plate Height h (mm): 21.08 | Min. Tensile Strength kN (kgf): 42.2 (4,310) | Approx. Weight (kg/m): 2.7
HC20BPitch P (mm): 31.75 | Roller Link Width W min (mm): 19.56 | Roller Dia. R max (mm): 19.05 | Pin Dia. d max (mm): 10.19 | Pin L1 (mm): 21.1 | Pin L2 (mm): 24.2 | Pin Length L1+L2 (mm): 45.3 | Outer Plate Thickness T (mm): 4.5 | Inner Plate Thickness t (mm): 3.5 | Outer Plate Height H (mm): 26.42 | Inner Plate Height h (mm): 26.42 | Min. Tensile Strength kN (kgf): 64.5 (6,580) | Approx. Weight (kg/m): 3.6
HC24BPitch P (mm): 38.1 | Roller Link Width W min (mm): 25.4 | Roller Dia. R max (mm): 25.4 | Pin Dia. d max (mm): 14.63 | Pin L1 (mm): 27.4 | Pin L2 (mm): 31.8 | Pin Length L1+L2 (mm): 60.2 | Outer Plate Thickness T (mm): 6.0 | Inner Plate Thickness t (mm): 5.0 | Outer Plate Height H (mm): 33.4 | Inner Plate Height h (mm): 33.4 | Min. Tensile Strength kN (kgf): 97.8 (9,980) | Approx. Weight (kg/m): 6.7
HC28BPitch P (mm): 44.45 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 27.94 | Pin Dia. d max (mm): 15.9 | Pin L1 (mm): 33.0 | Pin L2 (mm): 37.4 | Pin Length L1+L2 (mm): 70.4 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 37.08 | Inner Plate Height h (mm): 37.08 | Min. Tensile Strength kN (kgf): 129 (13,160) | Approx. Weight (kg/m): 8.3
HC32BPitch P (mm): 50.8 | Roller Link Width W min (mm): 30.99 | Roller Dia. R max (mm): 29.21 | Pin Dia. d max (mm): 17.81 | Pin L1 (mm): 33.0 | Pin L2 (mm): 39.0 | Pin Length L1+L2 (mm): 72.0 | Outer Plate Thickness T (mm): 7.0 | Inner Plate Thickness t (mm): 6.0 | Outer Plate Height H (mm): 42.29 | Inner Plate Height h (mm): 42.29 | Min. Tensile Strength kN (kgf): 169 (17,240) | Approx. Weight (kg/m): 10.5
HC40BPitch P (mm): 63.5 | Roller Link Width W min (mm): 38.1 | Roller Dia. R max (mm): 39.37 | Pin Dia. d max (mm): 22.89 | Pin L1 (mm): 35.35 | Pin L2 (mm): 58.65 | Pin Length L1+L2 (mm): 9.40 | Outer Plate Thickness T (mm): 8.0 | Inner Plate Thickness t (mm): 8.0 | Outer Plate Height H (mm): 52.96 | Inner Plate Height h (mm): 52.96 | Min. Tensile Strength kN (kgf): 262.5 (26,770) | Approx. Weight (kg/m): 16.0
HC48BPitch P (mm): 76.2 | Roller Link Width W min (mm): 45.72 | Roller Dia. R max (mm): 48.26 | Pin Dia. d max (mm): 29.24 | Pin L1 (mm): 50.3 | Pin L2 (mm): 69.7 | Pin Length L1+L2 (mm): 120.0 | Outer Plate Thickness T (mm): 12.0 | Inner Plate Thickness t (mm): 10.0 | Outer Plate Height H (mm): 63.88 | Inner Plate Height h (mm): 63.88 | Min. Tensile Strength kN (kgf): 400.4 (40,830) | Approx. Weight (kg/m): 25.0
HC56BPitch P (mm): 88.9 | Roller Link Width W min (mm): 53.34 | Roller Dia. R max (mm): 53.98 | Pin Dia. d max (mm): 34.32 | Pin L1 (mm): 58.5 | Pin L2 (mm): 78.5 | Pin Length L1+L2 (mm): 137.0 | Outer Plate Thickness T (mm): 13.0 | Inner Plate Thickness t (mm): 12.0 | Outer Plate Height H (mm): 77.85 | Inner Plate Height h (mm): 77.85 | Min. Tensile Strength kN (kgf): 542.7 (55,340) | Approx. Weight (kg/m): 35.0
HC64BPitch P (mm): 101.6 | Roller Link Width W min (mm): 60.96 | Roller Dia. R max (mm): 63.5 | Pin Dia. d max (mm): 39.4 | Pin L1 (mm): 65.7 | Pin L2 (mm): 89.3 | Pin Length L1+L2 (mm): 150.0 | Outer Plate Thickness T (mm): 14.0 | Inner Plate Thickness t (mm): 13.0 | Outer Plate Height H (mm): 90.17 | Inner Plate Height h (mm): 90.17 | Min. Tensile Strength kN (kgf): 1095.2 (111,680) | Approx. Weight (kg/m): 70.0
HC72BPitch P (mm): 114.3 | Roller Link Width W min (mm): 68.58 | Roller Dia. R max (mm): 72.39 | Pin Dia. d max (mm): 44.48 | Pin L1 (mm): 74.35 | Pin L2 (mm): 98.65 | Pin Length L1+L2 (mm): 173.0 | Outer Plate Thickness T (mm): 17.0 | Inner Plate Thickness t (mm): 15.0 | Outer Plate Height H (mm): 103.63 | Inner Plate Height h (mm): 103.63 | Min. Tensile Strength kN (kgf): 1600 (163,160) | Approx. Weight (kg/m): 105.0
