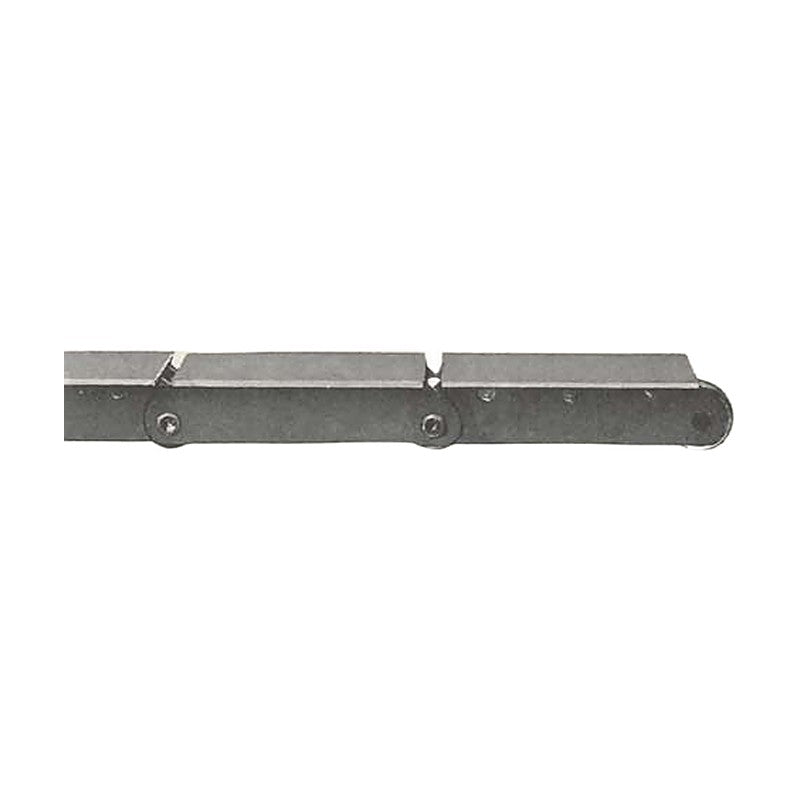

Hankuk Chain Coil Conveying Conveyor Chain

Hankuk Chain Coil Conveying Conveyor Chain

Conveyor chain for conveying steel coils, with grease nipples for automatic lubrication.

Key features

  • For steel coil conveying
  • Grease nipple for auto lubrication
  • Allowable roller load based on rail tensile strength 41 kg/mm2
CT60300 Pitch P (mm): 300 | Roller Dia. R (mm): 125 | Roller Contact Width E (mm): 60 | Roller Link Width W (mm): 65 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 171 | Pin Dia. D (mm): 28 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 165 | Approx. Weight (kg/m): 90 | Max. Allowable Tension kN (kgf): 83.3 (8,500) | Allowable Load on Roller kN (kgf/EA): 29 (3,000) | Avg. Tensile Strength kN (kgf): 588 (60,000)
CT60400 Pitch P (mm): 400 | Roller Dia. R (mm): 125 | Roller Contact Width E (mm): 60 | Roller Link Width W (mm): 65 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 171 | Pin Dia. D (mm): 28 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 165 | Approx. Weight (kg/m): 82 | Max. Allowable Tension kN (kgf): 83.3 (8,500) | Allowable Load on Roller kN (kgf/EA): 29 (3,000) | Avg. Tensile Strength kN (kgf): 588 (60,000)
CT60500 Pitch P (mm): 500 | Roller Dia. R (mm): 125 | Roller Contact Width E (mm): 60 | Roller Link Width W (mm): 65 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 171 | Pin Dia. D (mm): 28 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 165 | Approx. Weight (kg/m): 78 | Max. Allowable Tension kN (kgf): 83.3 (8,500) | Allowable Load on Roller kN (kgf/EA): 29 (3,000) | Avg. Tensile Strength kN (kgf): 588 (60,000)
CT90300 Pitch P (mm): 300 | Roller Dia. R (mm): 135 | Roller Contact Width E (mm): 65 | Roller Link Width W (mm): 79 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 182.5 | Pin Dia. D (mm): 30 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 179 | Approx. Weight (kg/m): 99 | Max. Allowable Tension kN (kgf): 125.5 (12,800) | Allowable Load on Roller kN (kgf/EA): 35.3 (3,600) | Avg. Tensile Strength kN (kgf): 882 (90,000)
CT90400 Pitch P (mm): 400 | Roller Dia. R (mm): 135 | Roller Contact Width E (mm): 65 | Roller Link Width W (mm): 79 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 182.5 | Pin Dia. D (mm): 30 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 179 | Approx. Weight (kg/m): 91 | Max. Allowable Tension kN (kgf): 125.5 (12,800) | Allowable Load on Roller kN (kgf/EA): 35.3 (3,600) | Avg. Tensile Strength kN (kgf): 882 (90,000)
CT90500 Pitch P (mm): 500 | Roller Dia. R (mm): 135 | Roller Contact Width E (mm): 65 | Roller Link Width W (mm): 79 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 182.5 | Pin Dia. D (mm): 30 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 179 | Approx. Weight (kg/m): 87 | Max. Allowable Tension kN (kgf): 125.5 (12,800) | Allowable Load on Roller kN (kgf/EA): 35.3 (3,600) | Avg. Tensile Strength kN (kgf): 882 (90,000)
CT130300 Pitch P (mm): 300 | Roller Dia. R (mm): 150 | Roller Contact Width E (mm): 70 | Roller Link Width W (mm): 84 | Plate Thickness T (mm): 16 | Chain Height H (mm): 195 | Pin Dia. D (mm): 38 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 198 | Approx. Weight (kg/m): 123 | Max. Allowable Tension kN (kgf): 181.4 (18,500) | Allowable Load on Roller kN (kgf/EA): 42.1 (4,300) | Avg. Tensile Strength kN (kgf): 1274 (130,000)
CT130400 Pitch P (mm): 400 | Roller Dia. R (mm): 150 | Roller Contact Width E (mm): 70 | Roller Link Width W (mm): 84 | Plate Thickness T (mm): 16 | Chain Height H (mm): 195 | Pin Dia. D (mm): 38 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 198 | Approx. Weight (kg/m): 112 | Max. Allowable Tension kN (kgf): 181.4 (18,500) | Allowable Load on Roller kN (kgf/EA): 42.1 (4,300) | Avg. Tensile Strength kN (kgf): 1274 (130,000)
CT130500 Pitch P (mm): 500 | Roller Dia. R (mm): 150 | Roller Contact Width E (mm): 70 | Roller Link Width W (mm): 84 | Plate Thickness T (mm): 16 | Chain Height H (mm): 195 | Pin Dia. D (mm): 38 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 198 | Approx. Weight (kg/m): 105 | Max. Allowable Tension kN (kgf): 181.4 (18,500) | Allowable Load on Roller kN (kgf/EA): 42.1 (4,300) | Avg. Tensile Strength kN (kgf): 1274 (130,000)
CT160400 Pitch P (mm): 400 | Roller Dia. R (mm): 175 | Roller Contact Width E (mm): 80 | Roller Link Width W (mm): 91 | Plate Thickness T (mm): 16 | Chain Height H (mm): 227 | Pin Dia. D (mm): 41 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 205 | Approx. Weight (kg/m): 135 | Max. Allowable Tension kN (kgf): 223.6 (22,800) | Allowable Load on Roller kN (kgf/EA): 55.9 (5,700) | Avg. Tensile Strength kN (kgf): 1569 (160,000)
CT160500 Pitch P (mm): 500 | Roller Dia. R (mm): 175 | Roller Contact Width E (mm): 80 | Roller Link Width W (mm): 91 | Plate Thickness T (mm): 16 | Chain Height H (mm): 227 | Pin Dia. D (mm): 41 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 205 | Approx. Weight (kg/m): 126 | Max. Allowable Tension kN (kgf): 223.6 (22,800) | Allowable Load on Roller kN (kgf/EA): 55.9 (5,700) | Avg. Tensile Strength kN (kgf): 1569 (160,000)
CT160600 Pitch P (mm): 600 | Roller Dia. R (mm): 175 | Roller Contact Width E (mm): 80 | Roller Link Width W (mm): 91 | Plate Thickness T (mm): 16 | Chain Height H (mm): 227 | Pin Dia. D (mm): 41 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 205 | Approx. Weight (kg/m): 118 | Max. Allowable Tension kN (kgf): 223.6 (22,800) | Allowable Load on Roller kN (kgf/EA): 55.9 (5,700) | Avg. Tensile Strength kN (kgf): 1569 (160,000)
CT200600 Pitch P (mm): 600 | Roller Dia. R (mm): 180 | Roller Contact Width E (mm): 90 | Roller Link Width W (mm): 102.6 | Plate Thickness T (mm): 19 | Chain Height H (mm): 225 | Pin Dia. D (mm): 45 | Pin Head Dia. D1 (mm): 50 | Pin Length L1+L2 (mm): 229 | Approx. Weight (kg/m): 141 | Max. Allowable Tension kN (kgf): 279 (28,500) | Allowable Load on Roller kN (kgf/EA): 64.7 (6,600) | Avg. Tensile Strength kN (kgf): 1961 (200,000)
Conveyor ChainsHankuk Chain
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Coil Conveying Conveyor Chain

Brand Hankuk Chain·Conveyor Chains

Available part numbers (13)

CT60300, CT60400, CT60500, CT90300, CT90400, CT90500, CT130300, CT130400, CT130500, CT160400 + 3 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CT60300Pitch P (mm): 300 | Roller Dia. R (mm): 125 | Roller Contact Width E (mm): 60 | Roller Link Width W (mm): 65 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 171 | Pin Dia. D (mm): 28 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 165 | Approx. Weight (kg/m): 90 | Max. Allowable Tension kN (kgf): 83.3 (8,500) | Allowable Load on Roller kN (kgf/EA): 29 (3,000) | Avg. Tensile Strength kN (kgf): 588 (60,000)
CT60400Pitch P (mm): 400 | Roller Dia. R (mm): 125 | Roller Contact Width E (mm): 60 | Roller Link Width W (mm): 65 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 171 | Pin Dia. D (mm): 28 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 165 | Approx. Weight (kg/m): 82 | Max. Allowable Tension kN (kgf): 83.3 (8,500) | Allowable Load on Roller kN (kgf/EA): 29 (3,000) | Avg. Tensile Strength kN (kgf): 588 (60,000)
CT60500Pitch P (mm): 500 | Roller Dia. R (mm): 125 | Roller Contact Width E (mm): 60 | Roller Link Width W (mm): 65 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 171 | Pin Dia. D (mm): 28 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 165 | Approx. Weight (kg/m): 78 | Max. Allowable Tension kN (kgf): 83.3 (8,500) | Allowable Load on Roller kN (kgf/EA): 29 (3,000) | Avg. Tensile Strength kN (kgf): 588 (60,000)
CT90300Pitch P (mm): 300 | Roller Dia. R (mm): 135 | Roller Contact Width E (mm): 65 | Roller Link Width W (mm): 79 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 182.5 | Pin Dia. D (mm): 30 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 179 | Approx. Weight (kg/m): 99 | Max. Allowable Tension kN (kgf): 125.5 (12,800) | Allowable Load on Roller kN (kgf/EA): 35.3 (3,600) | Avg. Tensile Strength kN (kgf): 882 (90,000)
CT90400Pitch P (mm): 400 | Roller Dia. R (mm): 135 | Roller Contact Width E (mm): 65 | Roller Link Width W (mm): 79 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 182.5 | Pin Dia. D (mm): 30 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 179 | Approx. Weight (kg/m): 91 | Max. Allowable Tension kN (kgf): 125.5 (12,800) | Allowable Load on Roller kN (kgf/EA): 35.3 (3,600) | Avg. Tensile Strength kN (kgf): 882 (90,000)
CT90500Pitch P (mm): 500 | Roller Dia. R (mm): 135 | Roller Contact Width E (mm): 65 | Roller Link Width W (mm): 79 | Plate Thickness T (mm): 12.7 | Chain Height H (mm): 182.5 | Pin Dia. D (mm): 30 | Pin Head Dia. D1 (mm): 36 | Pin Length L1+L2 (mm): 179 | Approx. Weight (kg/m): 87 | Max. Allowable Tension kN (kgf): 125.5 (12,800) | Allowable Load on Roller kN (kgf/EA): 35.3 (3,600) | Avg. Tensile Strength kN (kgf): 882 (90,000)
CT130300Pitch P (mm): 300 | Roller Dia. R (mm): 150 | Roller Contact Width E (mm): 70 | Roller Link Width W (mm): 84 | Plate Thickness T (mm): 16 | Chain Height H (mm): 195 | Pin Dia. D (mm): 38 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 198 | Approx. Weight (kg/m): 123 | Max. Allowable Tension kN (kgf): 181.4 (18,500) | Allowable Load on Roller kN (kgf/EA): 42.1 (4,300) | Avg. Tensile Strength kN (kgf): 1274 (130,000)
CT130400Pitch P (mm): 400 | Roller Dia. R (mm): 150 | Roller Contact Width E (mm): 70 | Roller Link Width W (mm): 84 | Plate Thickness T (mm): 16 | Chain Height H (mm): 195 | Pin Dia. D (mm): 38 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 198 | Approx. Weight (kg/m): 112 | Max. Allowable Tension kN (kgf): 181.4 (18,500) | Allowable Load on Roller kN (kgf/EA): 42.1 (4,300) | Avg. Tensile Strength kN (kgf): 1274 (130,000)
CT130500Pitch P (mm): 500 | Roller Dia. R (mm): 150 | Roller Contact Width E (mm): 70 | Roller Link Width W (mm): 84 | Plate Thickness T (mm): 16 | Chain Height H (mm): 195 | Pin Dia. D (mm): 38 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 198 | Approx. Weight (kg/m): 105 | Max. Allowable Tension kN (kgf): 181.4 (18,500) | Allowable Load on Roller kN (kgf/EA): 42.1 (4,300) | Avg. Tensile Strength kN (kgf): 1274 (130,000)
CT160400Pitch P (mm): 400 | Roller Dia. R (mm): 175 | Roller Contact Width E (mm): 80 | Roller Link Width W (mm): 91 | Plate Thickness T (mm): 16 | Chain Height H (mm): 227 | Pin Dia. D (mm): 41 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 205 | Approx. Weight (kg/m): 135 | Max. Allowable Tension kN (kgf): 223.6 (22,800) | Allowable Load on Roller kN (kgf/EA): 55.9 (5,700) | Avg. Tensile Strength kN (kgf): 1569 (160,000)
CT160500Pitch P (mm): 500 | Roller Dia. R (mm): 175 | Roller Contact Width E (mm): 80 | Roller Link Width W (mm): 91 | Plate Thickness T (mm): 16 | Chain Height H (mm): 227 | Pin Dia. D (mm): 41 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 205 | Approx. Weight (kg/m): 126 | Max. Allowable Tension kN (kgf): 223.6 (22,800) | Allowable Load on Roller kN (kgf/EA): 55.9 (5,700) | Avg. Tensile Strength kN (kgf): 1569 (160,000)
CT160600Pitch P (mm): 600 | Roller Dia. R (mm): 175 | Roller Contact Width E (mm): 80 | Roller Link Width W (mm): 91 | Plate Thickness T (mm): 16 | Chain Height H (mm): 227 | Pin Dia. D (mm): 41 | Pin Head Dia. D1 (mm): 46 | Pin Length L1+L2 (mm): 205 | Approx. Weight (kg/m): 118 | Max. Allowable Tension kN (kgf): 223.6 (22,800) | Allowable Load on Roller kN (kgf/EA): 55.9 (5,700) | Avg. Tensile Strength kN (kgf): 1569 (160,000)
CT200600Pitch P (mm): 600 | Roller Dia. R (mm): 180 | Roller Contact Width E (mm): 90 | Roller Link Width W (mm): 102.6 | Plate Thickness T (mm): 19 | Chain Height H (mm): 225 | Pin Dia. D (mm): 45 | Pin Head Dia. D1 (mm): 50 | Pin Length L1+L2 (mm): 229 | Approx. Weight (kg/m): 141 | Max. Allowable Tension kN (kgf): 279 (28,500) | Allowable Load on Roller kN (kgf/EA): 64.7 (6,600) | Avg. Tensile Strength kN (kgf): 1961 (200,000)
