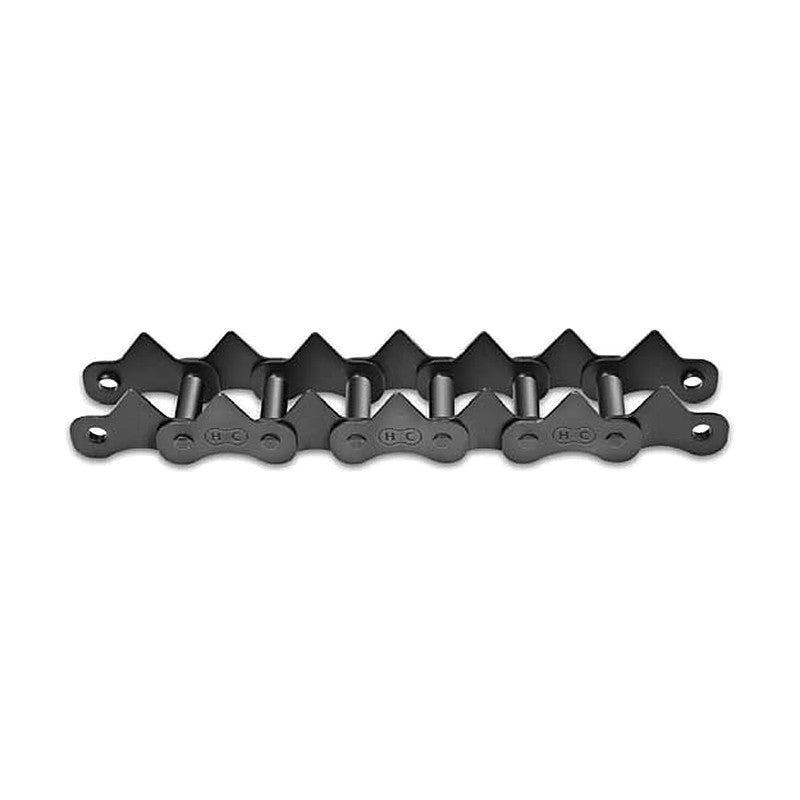

Hankuk Chain Combine Chain

Hankuk Chain Combine Chain

Combine chain for conveying rice straw in combines, with specially processed link plates for strong durability.

Key features

  • Specially processed link plates
  • Strong durability
  • Special chains available on demand
HC3322 Pitch P (mm): 33.0 | Roller Dia. R (mm): 10.1 | Roller Link Width W (mm): 22.0 | Pin Dia. d (mm): 7.1 | Pin L1 (mm): 32.6 | Pin L2 (mm): 30.3 | Outer Plate Thickness T (mm): 2.0 (1.5) / 2.0 (1.6) | Inner Plate Thickness t (mm): 1.5 | Attachment Height H1 (mm): 10 / 15 | Attachment Height H2 (mm): 10 | Attachment Height H3 (mm): 10 / 13 | Avg. Tensile Strength kN (kgf): 19.6 (2,000)
HC3330 Pitch P (mm): 33.0 | Roller Dia. R (mm): 12.7 / 10.1 | Roller Link Width W (mm): 30.0 | Pin Dia. d (mm): 7.1 | Pin L1 (mm): 40.6 | Pin L2 (mm): 43.6 | Outer Plate Thickness T (mm): 2.0 (1.6) | Inner Plate Thickness t (mm): 1.5 | Attachment Height H1 (mm): 10 / 20 | Attachment Height H2 (mm): 10 | Attachment Height H3 (mm): 13 | Avg. Tensile Strength kN (kgf): 19.6 (2,000)
HC3358 Pitch P (mm): 33.0 | Roller Dia. R (mm): 10.1 / 12.7 | Roller Link Width W (mm): 58.0 | Pin Dia. d (mm): 7.1 | Pin L1 (mm): 31.95 / 68.6 | Pin L2 (mm): 31.95 / 72.3 | Outer Plate Thickness T (mm): 2.0 (1.6) | Inner Plate Thickness t (mm): 1.5 | Attachment Height H1 (mm): 10 / 15 | Attachment Height H2 (mm): 18 / 15 | Attachment Height H3 (mm): 10 / 13 | Avg. Tensile Strength kN (kgf): 19.6 (2,000)
Roller ChainsHankuk Chain
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Combine Chain

Brand Hankuk Chain·Roller Chains

Available part numbers (3)

HC3322, HC3330, HC3358

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC3322Pitch P (mm): 33.0 | Roller Dia. R (mm): 10.1 | Roller Link Width W (mm): 22.0 | Pin Dia. d (mm): 7.1 | Pin L1 (mm): 32.6 | Pin L2 (mm): 30.3 | Outer Plate Thickness T (mm): 2.0 (1.5) / 2.0 (1.6) | Inner Plate Thickness t (mm): 1.5 | Attachment Height H1 (mm): 10 / 15 | Attachment Height H2 (mm): 10 | Attachment Height H3 (mm): 10 / 13 | Avg. Tensile Strength kN (kgf): 19.6 (2,000)
HC3330Pitch P (mm): 33.0 | Roller Dia. R (mm): 12.7 / 10.1 | Roller Link Width W (mm): 30.0 | Pin Dia. d (mm): 7.1 | Pin L1 (mm): 40.6 | Pin L2 (mm): 43.6 | Outer Plate Thickness T (mm): 2.0 (1.6) | Inner Plate Thickness t (mm): 1.5 | Attachment Height H1 (mm): 10 / 20 | Attachment Height H2 (mm): 10 | Attachment Height H3 (mm): 13 | Avg. Tensile Strength kN (kgf): 19.6 (2,000)
HC3358Pitch P (mm): 33.0 | Roller Dia. R (mm): 10.1 / 12.7 | Roller Link Width W (mm): 58.0 | Pin Dia. d (mm): 7.1 | Pin L1 (mm): 31.95 / 68.6 | Pin L2 (mm): 31.95 / 72.3 | Outer Plate Thickness T (mm): 2.0 (1.6) | Inner Plate Thickness t (mm): 1.5 | Attachment Height H1 (mm): 10 / 15 | Attachment Height H2 (mm): 18 / 15 | Attachment Height H3 (mm): 10 / 13 | Avg. Tensile Strength kN (kgf): 19.6 (2,000)
