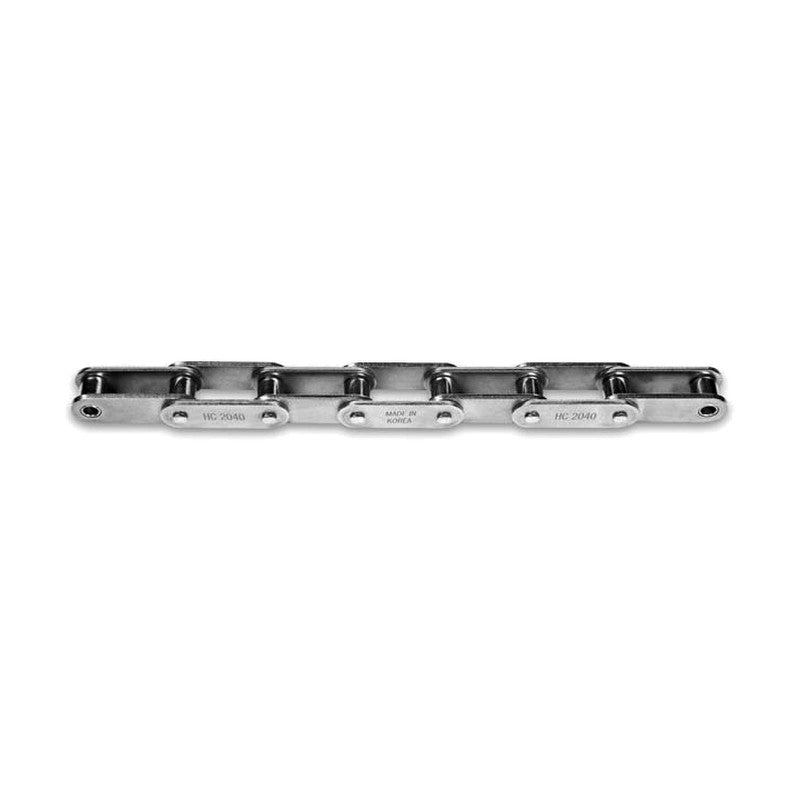

Hankuk Chain Double Pitch Roller Chain for Conveyor

Hankuk Chain Double Pitch Roller Chain for Conveyor

Double pitch conveyor roller chain with straight link plates, supplied with S type (small roller) or R type (large roller).

Key features

  • S type (small roller) and R type (large roller)
  • Straight link plates for conveyor use
  • Accepts a variety of attachments
HC2040 Roller Type: S (small roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.90 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Max. Allowable Tension kN (kgf): 2.65 (270) | Approx. Weight (kg/m): 0.51
HC2042 Roller Type: R (large roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.90 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Max. Allowable Tension kN (kgf): 2.65 (270) | Approx. Weight (kg/m): 0.87
HC2050 Roller Type: S (small roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Max. Allowable Tension kN (kgf): 4.31 (440) | Approx. Weight (kg/m): 0.84
HC2052 Roller Type: R (large roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Max. Allowable Tension kN (kgf): 4.31 (440) | Approx. Weight (kg/m): 1.30
HC2060 Roller Type: S (small roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 30.65 | Pin L1 (mm): 14.55 | Pin L2 (mm): 16.10 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Max. Allowable Tension kN (kgf): 6.28 (640) | Approx. Weight (kg/m): 1.51
HC2062 Roller Type: R (large roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 30.65 | Pin L1 (mm): 14.55 | Pin L2 (mm): 16.10 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Max. Allowable Tension kN (kgf): 6.28 (640) | Approx. Weight (kg/m): 2.19
HC2080 Roller Type: S (small roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 40.20 | Pin L1 (mm): 18.30 | Pin L2 (mm): 21.90 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 24.1 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 10.7 (1,090) | Approx. Weight (kg/m): 2.66
HC2082 Roller Type: R (large roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 40.20 | Pin L1 (mm): 18.30 | Pin L2 (mm): 21.90 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 24.1 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 10.7 (1,090) | Approx. Weight (kg/m): 3.68
HC2100 Roller Type: S (small roller) | Pitch P (mm): 63.5 | Roller Link Width W (mm): 19.05 | Roller Dia. (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.40 | Pin L1 (mm): 21.80 | Pin L2 (mm): 25.60 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 30.1 | Avg. Tensile Strength kN (kgf): 108 (11,000) | Max. Allowable Tension kN (kgf): 17.1 (1,740) | Approx. Weight (kg/m): 3.99
HC2102 Roller Type: R (large roller) | Pitch P (mm): 63.5 | Roller Link Width W (mm): 19.05 | Roller Dia. (mm): 39.69 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.40 | Pin L1 (mm): 21.80 | Pin L2 (mm): 25.60 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 30.1 | Avg. Tensile Strength kN (kgf): 108 (11,000) | Max. Allowable Tension kN (kgf): 17.1 (1,740) | Approx. Weight (kg/m): 6.30
HC2120 Roller Type: S (small roller) | Pitch P (mm): 76.2 | Roller Link Width W (mm): 25.40 | Roller Dia. (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 58.20 | Pin L1 (mm): 27.00 | Pin L2 (mm): 31.20 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 36.2 | Avg. Tensile Strength kN (kgf): 151 (15,400) | Max. Allowable Tension kN (kgf): 23.9 (2,440) | Approx. Weight (kg/m): 5.35
HC2122 Roller Type: R (large roller) | Pitch P (mm): 76.2 | Roller Link Width W (mm): 25.40 | Roller Dia. (mm): 44.45 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 58.20 | Pin L1 (mm): 27.00 | Pin L2 (mm): 31.20 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 36.2 | Avg. Tensile Strength kN (kgf): 151 (15,400) | Max. Allowable Tension kN (kgf): 23.9 (2,440) | Approx. Weight (kg/m): 8.60
HC2160 Roller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.75 | Roller Dia. (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 72.50 | Pin L1 (mm): 33.55 | Pin L2 (mm): 38.95 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 42.2 | Avg. Tensile Strength kN (kgf): 258 (26,300) | Max. Allowable Tension kN (kgf): 40.9 (4,170) | Approx. Weight (kg/m): 9.42
HC2162 Roller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.75 | Roller Dia. (mm): 57.15 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 72.50 | Pin L1 (mm): 33.55 | Pin L2 (mm): 38.95 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 42.2 | Avg. Tensile Strength kN (kgf): 258 (26,300) | Max. Allowable Tension kN (kgf): 40.9 (4,170) | Approx. Weight (kg/m): 11.79
Conveyor ChainsHankuk Chain
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Double Pitch Roller Chain for Conveyor

Brand Hankuk Chain·Conveyor Chains

Available part numbers (14)

HC2040, HC2042, HC2050, HC2052, HC2060, HC2062, HC2080, HC2082, HC2100, HC2102 + 4 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC2040Roller Type: S (small roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.90 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Max. Allowable Tension kN (kgf): 2.65 (270) | Approx. Weight (kg/m): 0.51
HC2042Roller Type: R (large roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.90 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Max. Allowable Tension kN (kgf): 2.65 (270) | Approx. Weight (kg/m): 0.87
HC2050Roller Type: S (small roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Max. Allowable Tension kN (kgf): 4.31 (440) | Approx. Weight (kg/m): 0.84
HC2052Roller Type: R (large roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Max. Allowable Tension kN (kgf): 4.31 (440) | Approx. Weight (kg/m): 1.30
HC2060Roller Type: S (small roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 30.65 | Pin L1 (mm): 14.55 | Pin L2 (mm): 16.10 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Max. Allowable Tension kN (kgf): 6.28 (640) | Approx. Weight (kg/m): 1.51
HC2062Roller Type: R (large roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 30.65 | Pin L1 (mm): 14.55 | Pin L2 (mm): 16.10 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Max. Allowable Tension kN (kgf): 6.28 (640) | Approx. Weight (kg/m): 2.19
HC2080Roller Type: S (small roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 40.20 | Pin L1 (mm): 18.30 | Pin L2 (mm): 21.90 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 24.1 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 10.7 (1,090) | Approx. Weight (kg/m): 2.66
HC2082Roller Type: R (large roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 40.20 | Pin L1 (mm): 18.30 | Pin L2 (mm): 21.90 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 24.1 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 10.7 (1,090) | Approx. Weight (kg/m): 3.68
HC2100Roller Type: S (small roller) | Pitch P (mm): 63.5 | Roller Link Width W (mm): 19.05 | Roller Dia. (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.40 | Pin L1 (mm): 21.80 | Pin L2 (mm): 25.60 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 30.1 | Avg. Tensile Strength kN (kgf): 108 (11,000) | Max. Allowable Tension kN (kgf): 17.1 (1,740) | Approx. Weight (kg/m): 3.99
HC2102Roller Type: R (large roller) | Pitch P (mm): 63.5 | Roller Link Width W (mm): 19.05 | Roller Dia. (mm): 39.69 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.40 | Pin L1 (mm): 21.80 | Pin L2 (mm): 25.60 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 30.1 | Avg. Tensile Strength kN (kgf): 108 (11,000) | Max. Allowable Tension kN (kgf): 17.1 (1,740) | Approx. Weight (kg/m): 6.30
HC2120Roller Type: S (small roller) | Pitch P (mm): 76.2 | Roller Link Width W (mm): 25.40 | Roller Dia. (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 58.20 | Pin L1 (mm): 27.00 | Pin L2 (mm): 31.20 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 36.2 | Avg. Tensile Strength kN (kgf): 151 (15,400) | Max. Allowable Tension kN (kgf): 23.9 (2,440) | Approx. Weight (kg/m): 5.35
HC2122Roller Type: R (large roller) | Pitch P (mm): 76.2 | Roller Link Width W (mm): 25.40 | Roller Dia. (mm): 44.45 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 58.20 | Pin L1 (mm): 27.00 | Pin L2 (mm): 31.20 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 36.2 | Avg. Tensile Strength kN (kgf): 151 (15,400) | Max. Allowable Tension kN (kgf): 23.9 (2,440) | Approx. Weight (kg/m): 8.60
HC2160Roller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.75 | Roller Dia. (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 72.50 | Pin L1 (mm): 33.55 | Pin L2 (mm): 38.95 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 42.2 | Avg. Tensile Strength kN (kgf): 258 (26,300) | Max. Allowable Tension kN (kgf): 40.9 (4,170) | Approx. Weight (kg/m): 9.42
HC2162Roller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.75 | Roller Dia. (mm): 57.15 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 72.50 | Pin L1 (mm): 33.55 | Pin L2 (mm): 38.95 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 42.2 | Avg. Tensile Strength kN (kgf): 258 (26,300) | Max. Allowable Tension kN (kgf): 40.9 (4,170) | Approx. Weight (kg/m): 11.79
