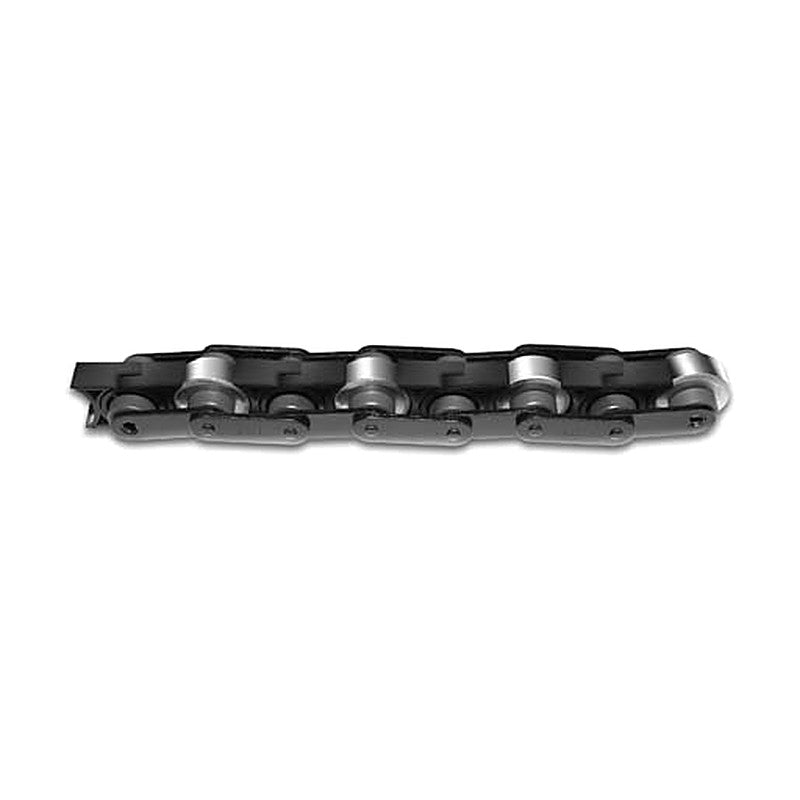

Hankuk Chain Double Plus Chain / Single Plus Chain (Free Flow Chain)

Hankuk Chain Double Plus Chain / Single Plus Chain (Free Flow Chain)

Free flow accumulation chain with large and small rollers; the single plus type conveys at chain speed and the double plus type conveys at up to 2.5 times chain speed.

Key features

  • Conveying and accumulating in the same conveyor line
  • Same frame and sprocket compatibility
  • Low center of gravity compared with top roller chain
  • Solid lubricant coating on pin and bush
  • Hard chrome plating on large inner roller
  • Plastic roller (RP/VRP) and steel roller (CR/VR) versions; snap cover (SC) option
HC2040RP Type: Single plus, plastic roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 45 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1
HC2040VRP Type: Double plus, plastic roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 45 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1
HC2040CR Type: Single plus, steel roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1.8
HC2040VR Type: Double plus, steel roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1.8
HC2040CR-SC Type: Single plus, steel roller with snap cover | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 240 | Approx. Weight (kg/m): 2.5
HC2040VR-SC Type: Double plus, steel roller with snap cover | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 240 | Approx. Weight (kg/m): 2.5
HC2050RP Type: Single plus, plastic roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 70 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 1.5
HC2050VRP Type: Double plus, plastic roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 70 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 1.5
HC2050CR Type: Single plus, steel roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 2.7
HC2050VR Type: Double plus, steel roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 2.7
HC2050CR-SC Type: Single plus, steel roller with snap cover | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 320 | Approx. Weight (kg/m): 3.7
HC2050VR-SC Type: Double plus, steel roller with snap cover | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 320 | Approx. Weight (kg/m): 3.7
HC2060RP Type: Single plus, plastic roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 105 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 2.2
HC2060VRP Type: Double plus, plastic roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 105 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 2.2
HC2060CR Type: Single plus, steel roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 4.4
HC2060VR Type: Double plus, steel roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 4.4
HC2060CR-SC Type: Single plus, steel roller with snap cover | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 400 | Approx. Weight (kg/m): 5.6
HC2060VR-SC Type: Double plus, steel roller with snap cover | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 400 | Approx. Weight (kg/m): 5.6
HC2080RP Type: Single plus, plastic roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 270 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 3.9
HC2080VRP Type: Double plus, plastic roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 270 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 3.9
HC2080CR Type: Single plus, steel roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 7.3
HC2080VR Type: Double plus, steel roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 7.3
HC2080CR-SC Type: Single plus, steel roller with snap cover | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 600 | Approx. Weight (kg/m): 10.2
HC2080VR-SC Type: Double plus, steel roller with snap cover | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 600 | Approx. Weight (kg/m): 10.2
Conveyor ChainsHankuk Chain
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Double Plus Chain / Single Plus Chain (Free Flow Chain)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (24)

HC2040RP, HC2040VRP, HC2040CR, HC2040VR, HC2040CR-SC, HC2040VR-SC, HC2050RP, HC2050VRP, HC2050CR, HC2050VR + 14 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC2040RPType: Single plus, plastic roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 45 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1
HC2040VRPType: Double plus, plastic roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 45 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1
HC2040CRType: Single plus, steel roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1.8
HC2040VRType: Double plus, steel roller | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 120 | Approx. Weight (kg/m): 1.8
HC2040CR-SCType: Single plus, steel roller with snap cover | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 240 | Approx. Weight (kg/m): 2.5
HC2040VR-SCType: Double plus, steel roller with snap cover | Pitch P (mm): 25.4 | Small Roller Dia. R (mm): 15.88 | Large Roller Dia. R1 (mm): 24.6 | Width W1 (mm): 10.3 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.7 | Pin L2 (mm): 17.5 | Plate Thickness T (mm): 2.0 (1.5) | Plate Height H (mm): 12.0 | Max. Allowable Tension (kgf): 160 | Allowable Roller Load, 2 strands (kgf/m): 240 | Approx. Weight (kg/m): 2.5
HC2050RPType: Single plus, plastic roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 70 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 1.5
HC2050VRPType: Double plus, plastic roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 70 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 1.5
HC2050CRType: Single plus, steel roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 2.7
HC2050VRType: Double plus, steel roller | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 160 | Approx. Weight (kg/m): 2.7
HC2050CR-SCType: Single plus, steel roller with snap cover | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 320 | Approx. Weight (kg/m): 3.7
HC2050VR-SCType: Double plus, steel roller with snap cover | Pitch P (mm): 31.75 | Small Roller Dia. R (mm): 19.05 | Large Roller Dia. R1 (mm): 30.6 | Width W1 (mm): 13.0 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.5 | Pin L2 (mm): 21.3 | Plate Thickness T (mm): 2.4 (2.0) | Plate Height H (mm): 15.0 | Max. Allowable Tension (kgf): 250 | Allowable Roller Load, 2 strands (kgf/m): 320 | Approx. Weight (kg/m): 3.7
HC2060RPType: Single plus, plastic roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 105 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 2.2
HC2060VRPType: Double plus, plastic roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 105 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 2.2
HC2060CRType: Single plus, steel roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 4.4
HC2060VRType: Double plus, steel roller | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 200 | Approx. Weight (kg/m): 4.4
HC2060CR-SCType: Single plus, steel roller with snap cover | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 400 | Approx. Weight (kg/m): 5.6
HC2060VR-SCType: Double plus, steel roller with snap cover | Pitch P (mm): 38.1 | Small Roller Dia. R (mm): 22.2 | Large Roller Dia. R1 (mm): 36.0 | Width W1 (mm): 15.0 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 24.2 | Pin L2 (mm): 26.2 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Max. Allowable Tension (kgf): 380 | Allowable Roller Load, 2 strands (kgf/m): 400 | Approx. Weight (kg/m): 5.6
HC2080RPType: Single plus, plastic roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 270 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 3.9
HC2080VRPType: Double plus, plastic roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 270 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 3.9
HC2080CRType: Single plus, steel roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 7.3
HC2080VRType: Double plus, steel roller | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 300 | Approx. Weight (kg/m): 7.3
HC2080CR-SCType: Single plus, steel roller with snap cover | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 600 | Approx. Weight (kg/m): 10.2
HC2080VR-SCType: Double plus, steel roller with snap cover | Pitch P (mm): 50.8 | Small Roller Dia. R (mm): 28.6 | Large Roller Dia. R1 (mm): 48.0 | Width W1 (mm): 20.0 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 35.6 | Pin L2 (mm): 38.8 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 23.0 | Max. Allowable Tension (kgf): 540 | Allowable Roller Load, 2 strands (kgf/m): 600 | Approx. Weight (kg/m): 10.2
