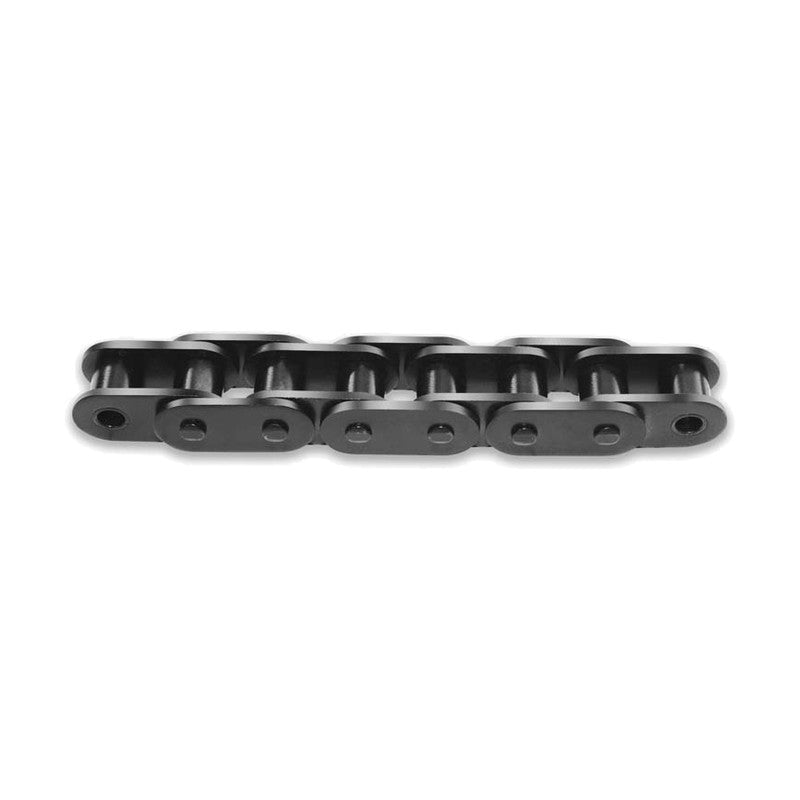

Hankuk Chain Flat Plate Chain

Hankuk Chain Flat Plate Chain

Roller chain with flat (straight) link plates giving enhanced fatigue strength.

Key features

  • Flat link plates
  • Enhanced fatigue strength
HC40FP Pitch P (mm): 12.70 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 7.95 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Plate Height H (mm): 12.00 | Plate Thickness T (mm): 1.50 | Min. Tensile Strength kN (kgf): 16.7 (1,700) | Approx. Weight (kg/m): 0.77
HC50FP Pitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Plate Height H (mm): 15.00 | Plate Thickness T (mm): 2.00 | Min. Tensile Strength kN (kgf): 27.5 (2,800) | Approx. Weight (kg/m): 1.20
HC60FP Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 12.70 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Plate Height H (mm): 18.10 | Plate Thickness T (mm): 2.40 | Min. Tensile Strength kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 1.60
HC80FP Pitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Plate Height H (mm): 24.10 | Plate Thickness T (mm): 3.20 | Min. Tensile Strength kN (kgf): 68.6 (7,000) | Approx. Weight (kg/m): 2.74
HC100FP Pitch P (mm): 31.75 | Roller Dia. Dr (mm): 19.05 | Roller Link Width W (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Plate Height H (mm): 30.10 | Plate Thickness T (mm): 4.00 | Min. Tensile Strength kN (kgf): 108 (11,000) | Approx. Weight (kg/m): 4.08
HC120FP Pitch P (mm): 38.10 | Roller Dia. Dr (mm): 22.23 | Roller Link Width W (mm): 25.40 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Plate Height H (mm): 36.20 | Plate Thickness T (mm): 4.80 | Min. Tensile Strength kN (kgf): 151 (15,400) | Approx. Weight (kg/m): 5.98
HC140FP Pitch P (mm): 44.45 | Roller Dia. Dr (mm): 25.40 | Roller Link Width W (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.10 | Pin L2 (mm): 31.65 | Plate Height H (mm): 42.20 | Plate Thickness T (mm): 5.60 | Min. Tensile Strength kN (kgf): 204 (20,800) | Approx. Weight (kg/m): 7.70
HC160FP Pitch P (mm): 50.80 | Roller Dia. Dr (mm): 28.58 | Roller Link Width W (mm): 31.75 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.10 | Pin L2 (mm): 37.25 | Plate Height H (mm): 48.20 | Plate Thickness T (mm): 6.30 | Min. Tensile Strength kN (kgf): 258 (26,300) | Approx. Weight (kg/m): 10.23
HC180FP Pitch P (mm): 57.15 | Roller Dia. Dr (mm): 35.71 | Roller Link Width W (mm): 36.00 | Pin Dia. d (mm): 17.46 | Pin L1 (mm): 36.20 | Pin L2 (mm): 43.30 | Plate Height H (mm): 54.20 | Plate Thickness T (mm): 7.20 | Min. Tensile Strength kN (kgf): 331.5 (33,800) | Approx. Weight (kg/m): 13.50
HC200FP Pitch P (mm): 63.50 | Roller Dia. Dr (mm): 39.69 | Roller Link Width W (mm): 38.10 | Pin Dia. d (mm): 19.85 | Pin L1 (mm): 39.35 | Pin L2 (mm): 47.20 | Plate Height H (mm): 60.30 | Plate Thickness T (mm): 8.00 | Min. Tensile Strength kN (kgf): 426.6 (43,500) | Approx. Weight (kg/m): 17.33
HC240FP Pitch P (mm): 76.20 | Roller Dia. Dr (mm): 47.63 | Roller Link Width W (mm): 47.63 | Pin Dia. d (mm): 23.81 | Pin L1 (mm): 48.15 | Pin L2 (mm): 55.70 | Plate Height H (mm): 72.40 | Plate Thickness T (mm): 9.50 | Min. Tensile Strength kN (kgf): 637.4 (65,000) | Approx. Weight (kg/m): 25.60
HC320FP Pitch P (mm): 101.60 | Roller Dia. Dr (mm): 63.50 | Roller Link Width W (mm): 63.65 | Pin Dia. d (mm): 31.75 | Pin L1 (mm): 63.80 | Pin L2 (mm): 77.60 | Plate Height H (mm): 92.00 | Plate Thickness T (mm): 12.70 | Min. Tensile Strength kN (kgf): 1078.7 (110,000) | Approx. Weight (kg/m): 47.60
HC400FP Pitch P (mm): 127.00 | Roller Dia. Dr (mm): 79.38 | Roller Link Width W (mm): 679.30 | Pin Dia. d (mm): 39.68 | Pin L1 (mm): 79.65 | Pin L2 (mm): 92.65 | Plate Height H (mm): 120.00 | Plate Thickness T (mm): 16.00 | Min. Tensile Strength kN (kgf): 1814.2 (185,000) | Approx. Weight (kg/m): 83.90
Roller ChainsHankuk Chain
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Flat Plate Chain

Brand Hankuk Chain·Roller Chains

Available part numbers (13)

HC40FP, HC50FP, HC60FP, HC80FP, HC100FP, HC120FP, HC140FP, HC160FP, HC180FP, HC200FP + 3 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC40FPPitch P (mm): 12.70 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 7.95 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Plate Height H (mm): 12.00 | Plate Thickness T (mm): 1.50 | Min. Tensile Strength kN (kgf): 16.7 (1,700) | Approx. Weight (kg/m): 0.77
HC50FPPitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Plate Height H (mm): 15.00 | Plate Thickness T (mm): 2.00 | Min. Tensile Strength kN (kgf): 27.5 (2,800) | Approx. Weight (kg/m): 1.20
HC60FPPitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 12.70 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Plate Height H (mm): 18.10 | Plate Thickness T (mm): 2.40 | Min. Tensile Strength kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 1.60
HC80FPPitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Plate Height H (mm): 24.10 | Plate Thickness T (mm): 3.20 | Min. Tensile Strength kN (kgf): 68.6 (7,000) | Approx. Weight (kg/m): 2.74
HC100FPPitch P (mm): 31.75 | Roller Dia. Dr (mm): 19.05 | Roller Link Width W (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Plate Height H (mm): 30.10 | Plate Thickness T (mm): 4.00 | Min. Tensile Strength kN (kgf): 108 (11,000) | Approx. Weight (kg/m): 4.08
HC120FPPitch P (mm): 38.10 | Roller Dia. Dr (mm): 22.23 | Roller Link Width W (mm): 25.40 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Plate Height H (mm): 36.20 | Plate Thickness T (mm): 4.80 | Min. Tensile Strength kN (kgf): 151 (15,400) | Approx. Weight (kg/m): 5.98
HC140FPPitch P (mm): 44.45 | Roller Dia. Dr (mm): 25.40 | Roller Link Width W (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.10 | Pin L2 (mm): 31.65 | Plate Height H (mm): 42.20 | Plate Thickness T (mm): 5.60 | Min. Tensile Strength kN (kgf): 204 (20,800) | Approx. Weight (kg/m): 7.70
HC160FPPitch P (mm): 50.80 | Roller Dia. Dr (mm): 28.58 | Roller Link Width W (mm): 31.75 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.10 | Pin L2 (mm): 37.25 | Plate Height H (mm): 48.20 | Plate Thickness T (mm): 6.30 | Min. Tensile Strength kN (kgf): 258 (26,300) | Approx. Weight (kg/m): 10.23
HC180FPPitch P (mm): 57.15 | Roller Dia. Dr (mm): 35.71 | Roller Link Width W (mm): 36.00 | Pin Dia. d (mm): 17.46 | Pin L1 (mm): 36.20 | Pin L2 (mm): 43.30 | Plate Height H (mm): 54.20 | Plate Thickness T (mm): 7.20 | Min. Tensile Strength kN (kgf): 331.5 (33,800) | Approx. Weight (kg/m): 13.50
HC200FPPitch P (mm): 63.50 | Roller Dia. Dr (mm): 39.69 | Roller Link Width W (mm): 38.10 | Pin Dia. d (mm): 19.85 | Pin L1 (mm): 39.35 | Pin L2 (mm): 47.20 | Plate Height H (mm): 60.30 | Plate Thickness T (mm): 8.00 | Min. Tensile Strength kN (kgf): 426.6 (43,500) | Approx. Weight (kg/m): 17.33
HC240FPPitch P (mm): 76.20 | Roller Dia. Dr (mm): 47.63 | Roller Link Width W (mm): 47.63 | Pin Dia. d (mm): 23.81 | Pin L1 (mm): 48.15 | Pin L2 (mm): 55.70 | Plate Height H (mm): 72.40 | Plate Thickness T (mm): 9.50 | Min. Tensile Strength kN (kgf): 637.4 (65,000) | Approx. Weight (kg/m): 25.60
HC320FPPitch P (mm): 101.60 | Roller Dia. Dr (mm): 63.50 | Roller Link Width W (mm): 63.65 | Pin Dia. d (mm): 31.75 | Pin L1 (mm): 63.80 | Pin L2 (mm): 77.60 | Plate Height H (mm): 92.00 | Plate Thickness T (mm): 12.70 | Min. Tensile Strength kN (kgf): 1078.7 (110,000) | Approx. Weight (kg/m): 47.60
HC400FPPitch P (mm): 127.00 | Roller Dia. Dr (mm): 79.38 | Roller Link Width W (mm): 679.30 | Pin Dia. d (mm): 39.68 | Pin L1 (mm): 79.65 | Pin L2 (mm): 92.65 | Plate Height H (mm): 120.00 | Plate Thickness T (mm): 16.00 | Min. Tensile Strength kN (kgf): 1814.2 (185,000) | Approx. Weight (kg/m): 83.90
