• Hankuk Chain Agricultural Machinery Chain
1 1

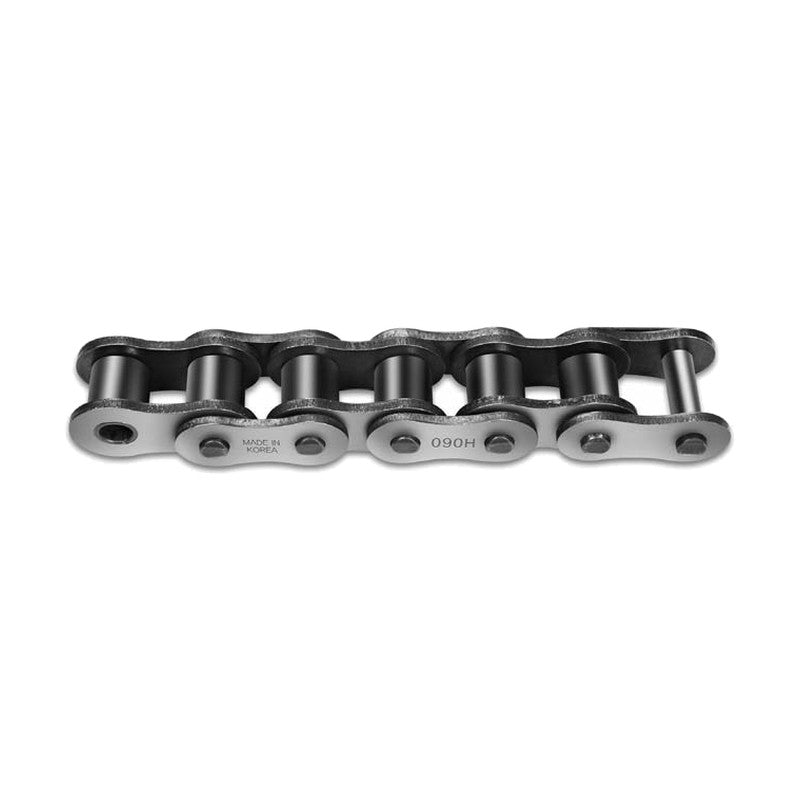

Hankuk Chain Agricultural Machinery Chain

Hankuk Chain Agricultural Machinery Chain

Roller chain for agricultural machinery such as cultivators, tractors, binders, rice planters and combines, designed for strength against shock, fatigue and abrasion.

Key features

  • For cultivators, tractors, binders, rice planters and combines
  • High shock, fatigue and abrasion resistance
HC415S Pitch P (mm): 12.7 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 4.76 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 6.6 | Pin L2 (mm): 8.0 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Avg. Tensile Strength kN (kgf): 16.87 (1,720)
HC420 Pitch P (mm): 12.7 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 6.35 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 7.43 | Pin L2 (mm): 8.8 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Avg. Tensile Strength kN (kgf): 16.87 (1,720)
HC50H Pitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.3 | Pin L2 (mm): 12.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Outer Plate Thickness T (mm): 2.0 | Inner Plate Thickness t (mm): 2.0 | Avg. Tensile Strength kN (kgf): 31.4 (3,200)
HC50HH Pitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 11.05 | Pin L2 (mm): 12.6 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.0 | Avg. Tensile Strength kN (kgf): 33.3 (3,400)
HC60H Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 9.60 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.6 | Pin L2 (mm): 14.4 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.4 | Avg. Tensile Strength kN (kgf): 44.1 (4,500)
HC60HH Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 12.70 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 14.2 | Pin L2 (mm): 16.2 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 3.2 | Inner Plate Thickness t (mm): 3.2 | Avg. Tensile Strength kN (kgf): 49 (5,000)
HC61HH Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.65 | Pin L2 (mm): 14.5 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 3.2 | Inner Plate Thickness t (mm): 3.2 | Avg. Tensile Strength kN (kgf): 49 (5,000)
HC61-2 Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 20.85 | Pin L2 (mm): 22.7 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.4 | Transverse Pitch C (mm): 19.6 | Avg. Tensile Strength kN (kgf): 75.1 (7,660)
HC60SH Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 14.28 | Roller Link Width W (mm): 13.35 | Pin Dia. d (mm): 7.10 | Pin L1 (mm): 15.1 | Pin L2 (mm): 17.5 | Plate Height H (mm): 17.90 | Plate Height h (mm): 18.10 | Outer Plate Thickness T (mm): 3.5 | Inner Plate Thickness t (mm): 3.2 | Avg. Tensile Strength kN (kgf): 58.3 (6,000)
HC80HH Pitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 17.7 | Pin L2 (mm): 21.0 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 4.0 | Avg. Tensile Strength kN (kgf): 88.25 (9,000) | Remarks: Rated 15HP
HC80SHT Pitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 10.01 | Pin L1 (mm): 21.0 | Pin L2 (mm): 25.0 | Plate Height H (mm): 26.9 | Plate Height h (mm): 26.9 | Outer Plate Thickness T (mm): 5.6 | Inner Plate Thickness t (mm): 4.8 | Avg. Tensile Strength kN (kgf): 122.6 (12,500) | Remarks: Rated 22HP
HC90SHT Pitch P (mm): 28.575 | Roller Dia. Dr (mm): 21.3 | Roller Link Width W (mm): 17.46 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 23.5 | Pin L2 (mm): 27.5 | Plate Height H (mm): 30.6 | Plate Height h (mm): 30.6 | Outer Plate Thickness T (mm): 6.3 | Inner Plate Thickness t (mm): 5.6 | Avg. Tensile Strength kN (kgf): 137.3 (14,000) | Remarks: Rated 32HP
HC100SHT Pitch P (mm): 31.75 | Roller Dia. Dr (mm): 23.65 | Roller Link Width W (mm): 19.05 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.05 | Pin L2 (mm): 31.8 | Plate Height H (mm): 33.2 | Plate Height h (mm): 33.2 | Outer Plate Thickness T (mm): 8.0 | Inner Plate Thickness t (mm): 6.3 | Avg. Tensile Strength kN (kgf): 171.6 (17,500) | Remarks: Rated 50HP
Roller ChainsHankuk Chain
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Agricultural Machinery Chain

Brand Hankuk Chain·Roller Chains

Available part numbers (13)

HC415S, HC420, HC50H, HC50HH, HC60H, HC60HH, HC61HH, HC61-2, HC60SH, HC80HH + 3 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC415SPitch P (mm): 12.7 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 4.76 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 6.6 | Pin L2 (mm): 8.0 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Avg. Tensile Strength kN (kgf): 16.87 (1,720)
HC420Pitch P (mm): 12.7 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 6.35 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 7.43 | Pin L2 (mm): 8.8 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Outer Plate Thickness T (mm): 1.5 | Inner Plate Thickness t (mm): 1.5 | Avg. Tensile Strength kN (kgf): 16.87 (1,720)
HC50HPitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.3 | Pin L2 (mm): 12.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Outer Plate Thickness T (mm): 2.0 | Inner Plate Thickness t (mm): 2.0 | Avg. Tensile Strength kN (kgf): 31.4 (3,200)
HC50HHPitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 11.05 | Pin L2 (mm): 12.6 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.0 | Avg. Tensile Strength kN (kgf): 33.3 (3,400)
HC60HPitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 9.60 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.6 | Pin L2 (mm): 14.4 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.4 | Avg. Tensile Strength kN (kgf): 44.1 (4,500)
HC60HHPitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 12.70 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 14.2 | Pin L2 (mm): 16.2 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 3.2 | Inner Plate Thickness t (mm): 3.2 | Avg. Tensile Strength kN (kgf): 49 (5,000)
HC61HHPitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.65 | Pin L2 (mm): 14.5 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 3.2 | Inner Plate Thickness t (mm): 3.2 | Avg. Tensile Strength kN (kgf): 49 (5,000)
HC61-2Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 20.85 | Pin L2 (mm): 22.7 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.4 | Transverse Pitch C (mm): 19.6 | Avg. Tensile Strength kN (kgf): 75.1 (7,660)
HC60SHPitch P (mm): 19.05 | Roller Dia. Dr (mm): 14.28 | Roller Link Width W (mm): 13.35 | Pin Dia. d (mm): 7.10 | Pin L1 (mm): 15.1 | Pin L2 (mm): 17.5 | Plate Height H (mm): 17.90 | Plate Height h (mm): 18.10 | Outer Plate Thickness T (mm): 3.5 | Inner Plate Thickness t (mm): 3.2 | Avg. Tensile Strength kN (kgf): 58.3 (6,000)
HC80HHPitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 17.7 | Pin L2 (mm): 21.0 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 4.0 | Avg. Tensile Strength kN (kgf): 88.25 (9,000) | Remarks: Rated 15HP
HC80SHTPitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 10.01 | Pin L1 (mm): 21.0 | Pin L2 (mm): 25.0 | Plate Height H (mm): 26.9 | Plate Height h (mm): 26.9 | Outer Plate Thickness T (mm): 5.6 | Inner Plate Thickness t (mm): 4.8 | Avg. Tensile Strength kN (kgf): 122.6 (12,500) | Remarks: Rated 22HP
HC90SHTPitch P (mm): 28.575 | Roller Dia. Dr (mm): 21.3 | Roller Link Width W (mm): 17.46 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 23.5 | Pin L2 (mm): 27.5 | Plate Height H (mm): 30.6 | Plate Height h (mm): 30.6 | Outer Plate Thickness T (mm): 6.3 | Inner Plate Thickness t (mm): 5.6 | Avg. Tensile Strength kN (kgf): 137.3 (14,000) | Remarks: Rated 32HP
HC100SHTPitch P (mm): 31.75 | Roller Dia. Dr (mm): 23.65 | Roller Link Width W (mm): 19.05 | Pin Dia. d (mm): 12.71 | Pin L1 (mm): 27.05 | Pin L2 (mm): 31.8 | Plate Height H (mm): 33.2 | Plate Height h (mm): 33.2 | Outer Plate Thickness T (mm): 8.0 | Inner Plate Thickness t (mm): 6.3 | Avg. Tensile Strength kN (kgf): 171.6 (17,500) | Remarks: Rated 50HP
