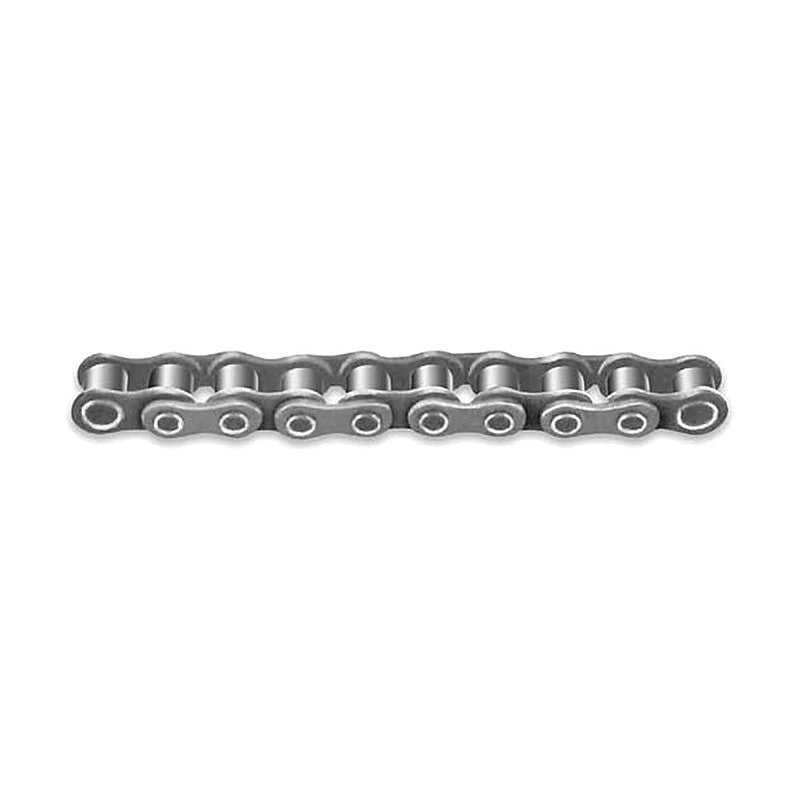

Hankuk Chain Hollow Pin Chain

Hankuk Chain Hollow Pin Chain

Hollow pin roller chain whose hollow pins allow various attachments to be fitted; roller and link width are the same as standard and double pitch chains so standard sprockets can be used.

Key features

  • Hollow pins for fitting attachments
  • Standard roller chain and double pitch types
  • Uses standard sprockets
  • Special types available on demand
HC40HP Pitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 5.68 | Pin Inner Dia. do min (mm): 4.00 | Pin L1 (mm): 8.00 | Pin L2 (mm): 9.50 | L3 (mm): 17.50 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Avg. Tensile Strength kN (kgf): 10.8 (1,100) | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 0.51
HC50HP Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 7.22 | Pin Inner Dia. do min (mm): 5.12 | Pin L1 (mm): 10.05 | Pin L2 (mm): 11.65 | L3 (mm): 21.70 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Avg. Tensile Strength kN (kgf): 19.6 (2,000) | Max. Allowable Tension kN (kgf): 3.14 (320) | Approx. Weight (kg/m): 0.86
HC60HP Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 8.38 | Pin Inner Dia. do min (mm): 5.99 | Pin L1 (mm): 12.55 | Pin L2 (mm): 14.25 | L3 (mm): 26.80 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Avg. Tensile Strength kN (kgf): 26.5 (2,700) | Max. Allowable Tension kN (kgf): 4.22 (430) | Approx. Weight (kg/m): 1.24
HC80HP Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 11.375 | Pin Inner Dia. do min (mm): 8.02 | Pin L1 (mm): 16.25 | Pin L2 (mm): 17.80 | L3 (mm): 34.05 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 24.10 | Avg. Tensile Strength kN (kgf): 48.1 (4,900) | Max. Allowable Tension kN (kgf): 7.65 (780) | Approx. Weight (kg/m): 2.32
HC2040HP Roller Type: S (small roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 5.68 | Pin Inner Dia. do min (mm): 4.00 | Pin L1 (mm): 8.00 | Pin L2 (mm): 9.50 | L3 (mm): 17.50 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Avg. Tensile Strength kN (kgf): 10.8 (1,100) | Max. Allowable Tension kN (kgf): 1.77 (180)
HC2042HP Roller Type: R (large roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 5.68 | Pin Inner Dia. do min (mm): 4.00 | Pin L1 (mm): 8.00 | Pin L2 (mm): 9.50 | L3 (mm): 17.50 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Avg. Tensile Strength kN (kgf): 10.8 (1,100) | Max. Allowable Tension kN (kgf): 1.77 (180)
HC2050HP Roller Type: S (small roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 7.22 | Pin Inner Dia. do min (mm): 5.12 | Pin L1 (mm): 10.05 | Pin L2 (mm): 11.65 | L3 (mm): 21.70 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Avg. Tensile Strength kN (kgf): 19.6 (2,000) | Max. Allowable Tension kN (kgf): 3.14 (320)
HC2052HP Roller Type: R (large roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 7.22 | Pin Inner Dia. do min (mm): 5.12 | Pin L1 (mm): 10.05 | Pin L2 (mm): 11.65 | L3 (mm): 21.70 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Avg. Tensile Strength kN (kgf): 19.6 (2,000) | Max. Allowable Tension kN (kgf): 3.14 (320)
HC2060HP Roller Type: S (small roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 8.38 | Pin Inner Dia. do min (mm): 5.99 | Pin L1 (mm): 14.35 | Pin L2 (mm): 16.05 | L3 (mm): 30.40 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Avg. Tensile Strength kN (kgf): 26.5 (2,700) | Max. Allowable Tension kN (kgf): 4.22 (430)
HC2062HP Roller Type: R (large roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 8.38 | Pin Inner Dia. do min (mm): 5.99 | Pin L1 (mm): 14.35 | Pin L2 (mm): 16.05 | L3 (mm): 30.40 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Avg. Tensile Strength kN (kgf): 26.5 (2,700) | Max. Allowable Tension kN (kgf): 4.22 (430)
HC2080HP Roller Type: S (small roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 11.38 | Pin Inner Dia. do min (mm): 8.02 | Pin L1 (mm): 18.20 | Pin L2 (mm): 19.25 | L3 (mm): 37.45 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Avg. Tensile Strength kN (kgf): 48.1 (4,900) | Max. Allowable Tension kN (kgf): 7.65 (780)
HC2082HP Roller Type: R (large roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 11.38 | Pin Inner Dia. do min (mm): 8.02 | Pin L1 (mm): 18.20 | Pin L2 (mm): 19.25 | L3 (mm): 37.45 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Avg. Tensile Strength kN (kgf): 48.1 (4,900) | Max. Allowable Tension kN (kgf): 7.65 (780)
Conveyor ChainsHankuk Chain
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Hollow Pin Chain

Brand Hankuk Chain·Conveyor Chains

Available part numbers (12)

HC40HP, HC50HP, HC60HP, HC80HP, HC2040HP, HC2042HP, HC2050HP, HC2052HP, HC2060HP, HC2062HP + 2 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC40HPPitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 5.68 | Pin Inner Dia. do min (mm): 4.00 | Pin L1 (mm): 8.00 | Pin L2 (mm): 9.50 | L3 (mm): 17.50 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Avg. Tensile Strength kN (kgf): 10.8 (1,100) | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 0.51
HC50HPPitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 7.22 | Pin Inner Dia. do min (mm): 5.12 | Pin L1 (mm): 10.05 | Pin L2 (mm): 11.65 | L3 (mm): 21.70 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Avg. Tensile Strength kN (kgf): 19.6 (2,000) | Max. Allowable Tension kN (kgf): 3.14 (320) | Approx. Weight (kg/m): 0.86
HC60HPPitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 8.38 | Pin Inner Dia. do min (mm): 5.99 | Pin L1 (mm): 12.55 | Pin L2 (mm): 14.25 | L3 (mm): 26.80 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Avg. Tensile Strength kN (kgf): 26.5 (2,700) | Max. Allowable Tension kN (kgf): 4.22 (430) | Approx. Weight (kg/m): 1.24
HC80HPPitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 11.375 | Pin Inner Dia. do min (mm): 8.02 | Pin L1 (mm): 16.25 | Pin L2 (mm): 17.80 | L3 (mm): 34.05 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 24.10 | Avg. Tensile Strength kN (kgf): 48.1 (4,900) | Max. Allowable Tension kN (kgf): 7.65 (780) | Approx. Weight (kg/m): 2.32
HC2040HPRoller Type: S (small roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 5.68 | Pin Inner Dia. do min (mm): 4.00 | Pin L1 (mm): 8.00 | Pin L2 (mm): 9.50 | L3 (mm): 17.50 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Avg. Tensile Strength kN (kgf): 10.8 (1,100) | Max. Allowable Tension kN (kgf): 1.77 (180)
HC2042HPRoller Type: R (large roller) | Pitch P (mm): 25.4 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 5.68 | Pin Inner Dia. do min (mm): 4.00 | Pin L1 (mm): 8.00 | Pin L2 (mm): 9.50 | L3 (mm): 17.50 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Avg. Tensile Strength kN (kgf): 10.8 (1,100) | Max. Allowable Tension kN (kgf): 1.77 (180)
HC2050HPRoller Type: S (small roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 7.22 | Pin Inner Dia. do min (mm): 5.12 | Pin L1 (mm): 10.05 | Pin L2 (mm): 11.65 | L3 (mm): 21.70 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Avg. Tensile Strength kN (kgf): 19.6 (2,000) | Max. Allowable Tension kN (kgf): 3.14 (320)
HC2052HPRoller Type: R (large roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 7.22 | Pin Inner Dia. do min (mm): 5.12 | Pin L1 (mm): 10.05 | Pin L2 (mm): 11.65 | L3 (mm): 21.70 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Avg. Tensile Strength kN (kgf): 19.6 (2,000) | Max. Allowable Tension kN (kgf): 3.14 (320)
HC2060HPRoller Type: S (small roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 8.38 | Pin Inner Dia. do min (mm): 5.99 | Pin L1 (mm): 14.35 | Pin L2 (mm): 16.05 | L3 (mm): 30.40 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Avg. Tensile Strength kN (kgf): 26.5 (2,700) | Max. Allowable Tension kN (kgf): 4.22 (430)
HC2062HPRoller Type: R (large roller) | Pitch P (mm): 38.1 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 8.38 | Pin Inner Dia. do min (mm): 5.99 | Pin L1 (mm): 14.35 | Pin L2 (mm): 16.05 | L3 (mm): 30.40 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Avg. Tensile Strength kN (kgf): 26.5 (2,700) | Max. Allowable Tension kN (kgf): 4.22 (430)
HC2080HPRoller Type: S (small roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 11.38 | Pin Inner Dia. do min (mm): 8.02 | Pin L1 (mm): 18.20 | Pin L2 (mm): 19.25 | L3 (mm): 37.45 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Avg. Tensile Strength kN (kgf): 48.1 (4,900) | Max. Allowable Tension kN (kgf): 7.65 (780)
HC2082HPRoller Type: R (large roller) | Pitch P (mm): 50.8 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 11.38 | Pin Inner Dia. do min (mm): 8.02 | Pin L1 (mm): 18.20 | Pin L2 (mm): 19.25 | L3 (mm): 37.45 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Avg. Tensile Strength kN (kgf): 48.1 (4,900) | Max. Allowable Tension kN (kgf): 7.65 (780)
