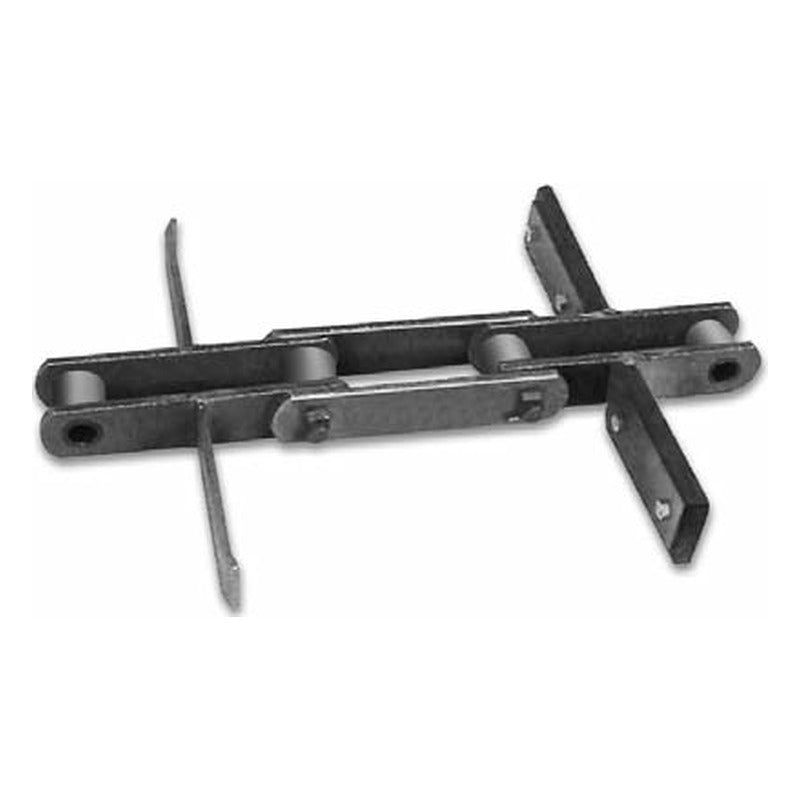

Hankuk Chain Inclined Flow Conveyor Chain (LC Type)

Hankuk Chain Inclined Flow Conveyor Chain (LC Type)

Inclined flow conveyor chain with U and U2 type wing attachments for conveying powdered material on inclines.

Key features

  • For inclined flow conveyors
  • U and U2 attachments
  • Normal and strong grades
RF450W-M LC160 Pitch P (mm): 101.6 | Roller Dia. R (mm): 25.4 | Roller Link Width W (mm): 27 | Plate Height H (mm): 31.8 | Plate Thickness T (mm): 6.3 | Wing Width 2X (mm): 145 | U Att. Height S (mm): 110 | U2 Att. Height S (mm): 110 | Avg. Tensile Strength Normal kN (kgf): 108 (11,000) | Avg. Tensile Strength Strong kN (kgf): 142 (14,500)
RF10125W-M LC240 Pitch P (mm): 125 | Roller Dia. R (mm): 31.8 | Roller Link Width W (mm): 30 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Wing Width 2X (mm): 225 | U Att. Height S (mm): 140 | U2 Att. Height S (mm): 140 | Avg. Tensile Strength Normal kN (kgf): 113 (11,500) | Avg. Tensile Strength Strong kN (kgf): 226 (23,000)
RF6205M LC320 Pitch P (mm): 152.4 | Roller Dia. R (mm): 38.1 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Wing Width 2X (mm): 300 | U Att. Height S (mm): 175 | U2 Att. Height S (mm): 175 | Avg. Tensile Strength Normal kN (kgf): 186 (19,000) | Avg. Tensile Strength Strong kN (kgf): 279 (28,500)
RF17200-M LC410 Pitch P (mm): 200 | Roller Dia. R (mm): 44.5 | Roller Link Width W (mm): 51.4 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Wing Width 2X (mm): 390 | U Att. Height S (mm): 220 | U2 Att. Height S (mm): 220 | Avg. Tensile Strength Normal kN (kgf): 245 (25,000) | Avg. Tensile Strength Strong kN (kgf): 387 (39,500)
RF26200-M LC410 Pitch P (mm): 200 | Roller Dia. R (mm): 50.8 | Roller Link Width W (mm): 57.2 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Wing Width 2X (mm): 390 | U Att. Height S (mm): 220 | U2 Att. Height S (mm): 220 | Avg. Tensile Strength Normal kN (kgf): 314 (32,000) | Avg. Tensile Strength Strong kN (kgf): 520 (53,000)
RF26200-N LC410 Pitch P (mm): 200 | Roller Dia. R (mm): 50.8 | Roller Link Width W (mm): 57.2 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5
RF36300-M LC500 Pitch P (mm): 300 | Roller Dia. R (mm): 57.2 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Wing Width 2X (mm): 480 | U Att. Height S (mm): 260 | U2 Att. Height S (mm): 260 | Avg. Tensile Strength Normal kN (kgf): 476 (48,500)
RF36300-N LC600 Pitch P (mm): 300 | Roller Dia. R (mm): 57.2 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Wing Width 2X (mm): 480 | U Att. Height S (mm): 260 | U2 Att. Height S (mm): 260 | Avg. Tensile Strength Strong kN (kgf): 868 (88,500)
Flow Conveyor ChainsHankuk Chain
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Inclined Flow Conveyor Chain (LC Type)

Brand Hankuk Chain·Flow Conveyor Chains

Available part numbers (8)

RF450W-M LC160, RF10125W-M LC240, RF6205M LC320, RF17200-M LC410, RF26200-M LC410, RF26200-N LC410, RF36300-M LC500, RF36300-N LC600

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF450W-M LC160Pitch P (mm): 101.6 | Roller Dia. R (mm): 25.4 | Roller Link Width W (mm): 27 | Plate Height H (mm): 31.8 | Plate Thickness T (mm): 6.3 | Wing Width 2X (mm): 145 | U Att. Height S (mm): 110 | U2 Att. Height S (mm): 110 | Avg. Tensile Strength Normal kN (kgf): 108 (11,000) | Avg. Tensile Strength Strong kN (kgf): 142 (14,500)
RF10125W-M LC240Pitch P (mm): 125 | Roller Dia. R (mm): 31.8 | Roller Link Width W (mm): 30 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Wing Width 2X (mm): 225 | U Att. Height S (mm): 140 | U2 Att. Height S (mm): 140 | Avg. Tensile Strength Normal kN (kgf): 113 (11,500) | Avg. Tensile Strength Strong kN (kgf): 226 (23,000)
RF6205M LC320Pitch P (mm): 152.4 | Roller Dia. R (mm): 38.1 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Wing Width 2X (mm): 300 | U Att. Height S (mm): 175 | U2 Att. Height S (mm): 175 | Avg. Tensile Strength Normal kN (kgf): 186 (19,000) | Avg. Tensile Strength Strong kN (kgf): 279 (28,500)
RF17200-M LC410Pitch P (mm): 200 | Roller Dia. R (mm): 44.5 | Roller Link Width W (mm): 51.4 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Wing Width 2X (mm): 390 | U Att. Height S (mm): 220 | U2 Att. Height S (mm): 220 | Avg. Tensile Strength Normal kN (kgf): 245 (25,000) | Avg. Tensile Strength Strong kN (kgf): 387 (39,500)
RF26200-M LC410Pitch P (mm): 200 | Roller Dia. R (mm): 50.8 | Roller Link Width W (mm): 57.2 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Wing Width 2X (mm): 390 | U Att. Height S (mm): 220 | U2 Att. Height S (mm): 220 | Avg. Tensile Strength Normal kN (kgf): 314 (32,000) | Avg. Tensile Strength Strong kN (kgf): 520 (53,000)
RF26200-N LC410Pitch P (mm): 200 | Roller Dia. R (mm): 50.8 | Roller Link Width W (mm): 57.2 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5
RF36300-M LC500Pitch P (mm): 300 | Roller Dia. R (mm): 57.2 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Wing Width 2X (mm): 480 | U Att. Height S (mm): 260 | U2 Att. Height S (mm): 260 | Avg. Tensile Strength Normal kN (kgf): 476 (48,500)
RF36300-N LC600Pitch P (mm): 300 | Roller Dia. R (mm): 57.2 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Wing Width 2X (mm): 480 | U Att. Height S (mm): 260 | U2 Att. Height S (mm): 260 | Avg. Tensile Strength Strong kN (kgf): 868 (88,500)
