Hankuk Chain Leaf Chain, AL Type (Light Loading)

Hankuk Chain Leaf Chain, AL Type (Light Loading)

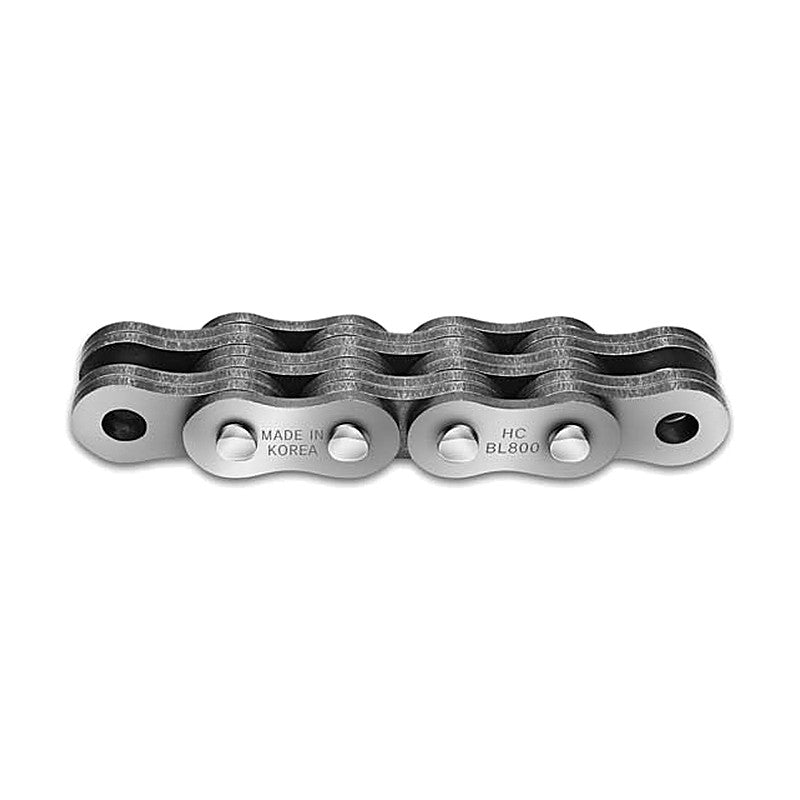

AL (light loading) type leaf chain to ANSI standard, composed of link plates and pins for lifting, lowering and parallel motion transmission.

Key features

  • ANSI standard leaf chain
  • Compact compared with wire rope or roller chain
  • Plate lacings 2x2, 4x4, 6x6
AL422 Pitch P (mm): 12.70 | Lacing: 2x2 | Plate Height H (mm): 10.4 | Plate Thickness T (mm): 1.5 | Outer Pin Dia. D (mm): 4.02 | Inner Pin Dia. d (mm): 3.97 | Pin Length L (mm): 8.40 | Min. Tensile Strength kN (kgf): 16.7 (1,700) | Approx. Weight (kg/m): 0.38
AL444 Pitch P (mm): 12.70 | Lacing: 4x4 | Plate Height H (mm): 10.4 | Plate Thickness T (mm): 1.5 | Outer Pin Dia. D (mm): 4.02 | Inner Pin Dia. d (mm): 3.97 | Pin Length L (mm): 14.85 | Min. Tensile Strength kN (kgf): 33.3 (3,400) | Approx. Weight (kg/m): 0.74
AL466 Pitch P (mm): 12.70 | Lacing: 6x6 | Plate Height H (mm): 10.4 | Plate Thickness T (mm): 1.5 | Outer Pin Dia. D (mm): 4.02 | Inner Pin Dia. d (mm): 3.97 | Pin Length L (mm): 21.30 | Min. Tensile Strength kN (kgf): 50.0 (5,100) | Approx. Weight (kg/m): 1.10
AL522 Pitch P (mm): 15.875 | Lacing: 2x2 | Plate Height H (mm): 13.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 10.85 | Min. Tensile Strength kN (kgf): 27.5 (2,800) | Approx. Weight (kg/m): 0.62
AL544 Pitch P (mm): 15.875 | Lacing: 4x4 | Plate Height H (mm): 13.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 19.35 | Min. Tensile Strength kN (kgf): 54.9 (5,600) | Approx. Weight (kg/m): 1.22
AL566 Pitch P (mm): 15.875 | Lacing: 6x6 | Plate Height H (mm): 13.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 27.80 | Min. Tensile Strength kN (kgf): 82.4 (8,400) | Approx. Weight (kg/m): 1.81
AL622 Pitch P (mm): 19.05 | Lacing: 2x2 | Plate Height H (mm): 15.6 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 12.65 | Min. Tensile Strength kN (kgf): 38.2 (3,900) | Approx. Weight (kg/m): 0.87
AL644 Pitch P (mm): 19.05 | Lacing: 4x4 | Plate Height H (mm): 15.6 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 22.55 | Min. Tensile Strength kN (kgf): 76.5 (7,800) | Approx. Weight (kg/m): 1.71
AL666 Pitch P (mm): 19.05 | Lacing: 6x6 | Plate Height H (mm): 15.6 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 32.45 | Min. Tensile Strength kN (kgf): 114.7 (11,700) | Approx. Weight (kg/m): 2.54
AL822 Pitch P (mm): 25.40 | Lacing: 2x2 | Plate Height H (mm): 20.8 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 16.35 | Min. Tensile Strength kN (kgf): 64.7 (6,600) | Approx. Weight (kg/m): 1.51
AL844 Pitch P (mm): 25.40 | Lacing: 4x4 | Plate Height H (mm): 20.8 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 29.80 | Min. Tensile Strength kN (kgf): 129.4 (13,200) | Approx. Weight (kg/m): 2.98
AL866 Pitch P (mm): 25.40 | Lacing: 6x6 | Plate Height H (mm): 20.8 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 43.20 | Min. Tensile Strength kN (kgf): 194.2 (19,800) | Approx. Weight (kg/m): 4.44
AL1022 Pitch P (mm): 31.75 | Lacing: 2x2 | Plate Height H (mm): 26.0 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.54 | Pin Length L (mm): 20.05 | Min. Tensile Strength kN (kgf): 98.1 (10,000) | Approx. Weight (kg/m): 2.69
AL1044 Pitch P (mm): 31.75 | Lacing: 4x4 | Plate Height H (mm): 26.0 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.54 | Pin Length L (mm): 36.70 | Min. Tensile Strength kN (kgf): 196.1 (20,000) | Approx. Weight (kg/m): 5.31
AL1066 Pitch P (mm): 31.75 | Lacing: 6x6 | Plate Height H (mm): 26.0 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.54 | Pin Length L (mm): 53.30 | Min. Tensile Strength kN (kgf): 294.2 (30,000) | Approx. Weight (kg/m): 7.93
AL1222 Pitch P (mm): 38.10 | Lacing: 2x2 | Plate Height H (mm): 31.2 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 24.20 | Min. Tensile Strength kN (kgf): 141.2 (14,400) | Approx. Weight (kg/m): 3.57
AL1244 Pitch P (mm): 38.10 | Lacing: 4x4 | Plate Height H (mm): 31.2 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 44.00 | Min. Tensile Strength kN (kgf): 282.4 (28,800) | Approx. Weight (kg/m): 7.07
AL1266 Pitch P (mm): 38.10 | Lacing: 6x6 | Plate Height H (mm): 31.2 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 63.85 | Min. Tensile Strength kN (kgf): 423.6 (43,200) | Approx. Weight (kg/m): 10.56
AL1444 Pitch P (mm): 44.45 | Lacing: 4x4 | Plate Height H (mm): 36.4 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 51.30 | Min. Tensile Strength kN (kgf): 372.7 (38,000) | Approx. Weight (kg/m): 10.34
AL1466 Pitch P (mm): 44.45 | Lacing: 6x6 | Plate Height H (mm): 36.4 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 74.55 | Min. Tensile Strength kN (kgf): 559.0 (57,000) | Approx. Weight (kg/m): 15.16
AL1644 Pitch P (mm): 50.80 | Lacing: 4x4 | Plate Height H (mm): 41.6 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 58.05 | Min. Tensile Strength kN (kgf): 470.7 (48,000) | Approx. Weight (kg/m): 12.98
AL1666 Pitch P (mm): 50.80 | Lacing: 6x6 | Plate Height H (mm): 41.6 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 84.45 | Min. Tensile Strength kN (kgf): 706.1 (72,000) | Approx. Weight (kg/m): 19.41
