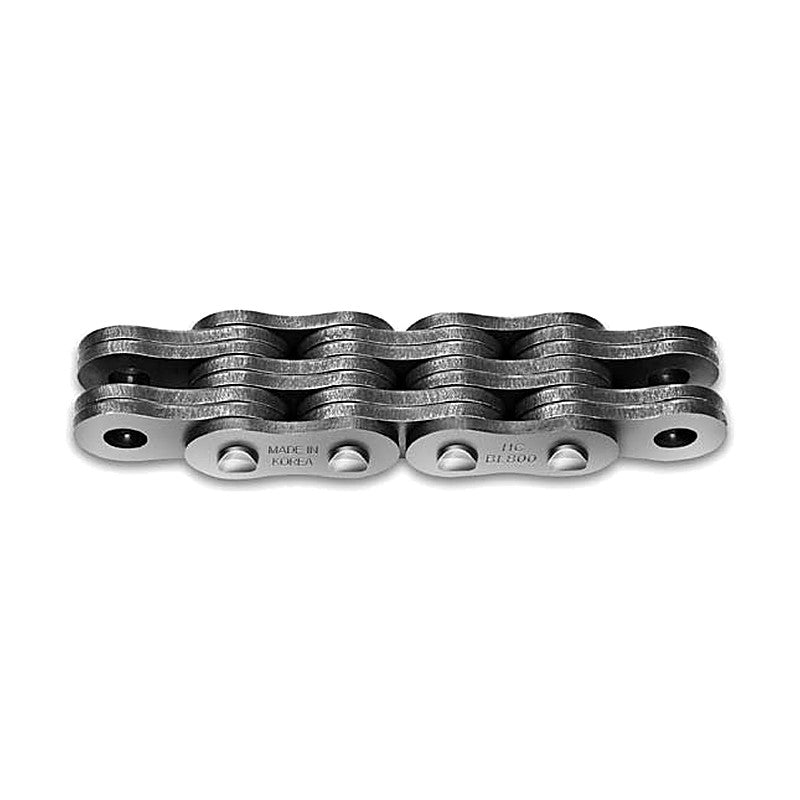

Hankuk Chain Leaf Chain, BL Type (Heavy Loading)

Hankuk Chain Leaf Chain, BL Type (Heavy Loading)

BL (heavy loading) type leaf chain to ANSI standard for lifting, lowering and parallel motion transmission, recommended where abrasion from shock loading must be considered.

Key features

  • ANSI standard leaf chain
  • Heavy loading type
  • Plate lacings 2x2 to 6x6
BL422 Pitch P (mm): 12.70 | Lacing: 2x2 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 10.85 | Min. Tensile Strength kN (kgf): 23.5 (2,400) | Approx. Weight (kg/m): 0.68
BL423 Pitch P (mm): 12.70 | Lacing: 2x3 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 12.95 | Min. Tensile Strength kN (kgf): 23.5 (2,400) | Approx. Weight (kg/m): 0.84
BL434 Pitch P (mm): 12.70 | Lacing: 3x4 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 17.20 | Min. Tensile Strength kN (kgf): 35.3 (3,600) | Approx. Weight (kg/m): 1.13
BL444 Pitch P (mm): 12.70 | Lacing: 4x4 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 19.40 | Min. Tensile Strength kN (kgf): 47.1 (4,800) | Approx. Weight (kg/m): 1.28
BL446 Pitch P (mm): 12.70 | Lacing: 4x6 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 23.60 | Min. Tensile Strength kN (kgf): 47.1 (4,800) | Approx. Weight (kg/m): 1.65
BL466 Pitch P (mm): 12.70 | Lacing: 6x6 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 27.80 | Min. Tensile Strength kN (kgf): 69.6 (7,100) | Approx. Weight (kg/m): 1.96
BL522 Pitch P (mm): 15.875 | Lacing: 2x2 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 12.65 | Min. Tensile Strength kN (kgf): 39.2 (4,000) | Approx. Weight (kg/m): 1.07
BL523 Pitch P (mm): 15.875 | Lacing: 2x3 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 15.10 | Min. Tensile Strength kN (kgf): 39.2 (4,000) | Approx. Weight (kg/m): 1.27
BL534 Pitch P (mm): 15.875 | Lacing: 3x4 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 20.10 | Min. Tensile Strength kN (kgf): 58.8 (6,000) | Approx. Weight (kg/m): 1.69
BL544 Pitch P (mm): 15.875 | Lacing: 4x4 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 22.55 | Min. Tensile Strength kN (kgf): 78.5 (8,000) | Approx. Weight (kg/m): 1.89
BL546 Pitch P (mm): 15.875 | Lacing: 4x6 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 27.50 | Min. Tensile Strength kN (kgf): 78.5 (8,000) | Approx. Weight (kg/m): 2.40
BL566 Pitch P (mm): 15.875 | Lacing: 6x6 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 32.45 | Min. Tensile Strength kN (kgf): 117.7 (12,000) | Approx. Weight (kg/m): 2.80
BL622 Pitch P (mm): 19.05 | Lacing: 2x2 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 16.40 | Min. Tensile Strength kN (kgf): 63.7 (6,500) | Approx. Weight (kg/m): 1.68
BL623 Pitch P (mm): 19.05 | Lacing: 2x3 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 19.75 | Min. Tensile Strength kN (kgf): 63.7 (6,500) | Approx. Weight (kg/m): 2.04
BL634 Pitch P (mm): 19.05 | Lacing: 3x4 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 26.45 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Approx. Weight (kg/m): 2.83
BL644 Pitch P (mm): 19.05 | Lacing: 4x4 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 29.80 | Min. Tensile Strength kN (kgf): 127.5 (13,000) | Approx. Weight (kg/m): 3.18
BL646 Pitch P (mm): 19.05 | Lacing: 4x6 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 36.50 | Min. Tensile Strength kN (kgf): 12.75 (13,000) | Approx. Weight (kg/m): 4.01
BL666 Pitch P (mm): 19.05 | Lacing: 6x6 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 43.20 | Min. Tensile Strength kN (kgf): 191.2 (19,500) | Approx. Weight (kg/m): 4.73
BL822 Pitch P (mm): 25.40 | Lacing: 2x2 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 20.15 | Min. Tensile Strength kN (kgf): 103.0 (10,500) | Approx. Weight (kg/m): 2.59
BL823 Pitch P (mm): 25.40 | Lacing: 2x3 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 24.20 | Min. Tensile Strength kN (kgf): 103.0 (10,500) | Approx. Weight (kg/m): 3.20
BL834 Pitch P (mm): 25.40 | Lacing: 3x4 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 32.55 | Min. Tensile Strength kN (kgf): 154.9 (15,800) | Approx. Weight (kg/m): 4.44
BL844 Pitch P (mm): 25.40 | Lacing: 4x4 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 36.90 | Min. Tensile Strength kN (kgf): 190.2 (19,400) | Approx. Weight (kg/m): 5.04
BL846 Pitch P (mm): 25.40 | Lacing: 4x6 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 45.00 | Min. Tensile Strength kN (kgf): 190.2 (19,400) | Approx. Weight (kg/m): 6.32
BL866 Pitch P (mm): 25.40 | Lacing: 6x6 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 53.30 | Min. Tensile Strength kN (kgf): 286.4 (29,200) | Approx. Weight (kg/m): 7.54
BL1022 Pitch P (mm): 31.75 | Lacing: 2x2 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 24.00 | Min. Tensile Strength kN (kgf): 141.2 (14,400) | Approx. Weight (kg/m): 3.76
BL1023 Pitch P (mm): 31.75 | Lacing: 2x3 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 28.90 | Min. Tensile Strength kN (kgf): 141.2 (14,400) | Approx. Weight (kg/m): 4.69
BL1034 Pitch P (mm): 31.75 | Lacing: 3x4 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 38.85 | Min. Tensile Strength kN (kgf): 215.7 (22,000) | Approx. Weight (kg/m): 6.55
BL1044 Pitch P (mm): 31.75 | Lacing: 4x4 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 43.40 | Min. Tensile Strength kN (kgf): 282.4 (28,800) | Approx. Weight (kg/m): 7.48
BL1046 Pitch P (mm): 31.75 | Lacing: 4x6 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 53.70 | Min. Tensile Strength kN (kgf): 282.4 (28,800) | Approx. Weight (kg/m): 9.29
BL1066 Pitch P (mm): 31.75 | Lacing: 6x6 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 63.85 | Min. Tensile Strength kN (kgf): 423.6 (43,200) | Approx. Weight (kg/m): 11.16
BL1222 Pitch P (mm): 38.10 | Lacing: 2x2 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 28.05 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Approx. Weight (kg/m): 4.83
BL1223 Pitch P (mm): 38.10 | Lacing: 2x3 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 33.90 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Approx. Weight (kg/m): 6.54
BL1234 Pitch P (mm): 38.10 | Lacing: 3x4 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 45.50 | Min. Tensile Strength kN (kgf): 299.1 (30,500) | Approx. Weight (kg/m): 9.10
BL1244 Pitch P (mm): 38.10 | Lacing: 4x4 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 51.30 | Min. Tensile Strength kN (kgf): 372.7 (38,000) | Approx. Weight (kg/m): 10.39
BL1246 Pitch P (mm): 38.10 | Lacing: 4x6 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 62.95 | Min. Tensile Strength kN (kgf): 372.7 (38,000) | Approx. Weight (kg/m): 12.01
BL1266 Pitch P (mm): 38.10 | Lacing: 6x6 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 74.55 | Min. Tensile Strength kN (kgf): 559.0 (57,000) | Approx. Weight (kg/m): 14.58
BL1422 Pitch P (mm): 44.45 | Lacing: 2x2 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 31.60 | Min. Tensile Strength kN (kgf): 235.4 (24,000) | Approx. Weight (kg/m): 7.31
BL1423 Pitch P (mm): 44.45 | Lacing: 2x3 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 38.20 | Min. Tensile Strength kN (kgf): 235.4 (24,000) | Approx. Weight (kg/m): 9.06
BL1434 Pitch P (mm): 44.45 | Lacing: 3x4 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 51.40 | Min. Tensile Strength kN (kgf): 387.4 (39,500) | Approx. Weight (kg/m): 11.32
BL1444 Pitch P (mm): 44.45 | Lacing: 4x4 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 58.05 | Min. Tensile Strength kN (kgf): 470.7 (48,000) | Approx. Weight (kg/m): 12.96
BL1446 Pitch P (mm): 44.45 | Lacing: 4x6 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 71.25 | Min. Tensile Strength kN (kgf): 470.7 (48,000) | Approx. Weight (kg/m): 18.00
BL1466 Pitch P (mm): 44.45 | Lacing: 6x6 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 84.45 | Min. Tensile Strength kN (kgf): 706.1 (72,000) | Approx. Weight (kg/m): 22.51
BL1622 Pitch P (mm): 50.80 | Lacing: 2x2 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 35.60 | Min. Tensile Strength kN (kgf): 353.0 (36,000) | Approx. Weight (kg/m): 9.84
BL1623 Pitch P (mm): 50.80 | Lacing: 2x3 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 43.25 | Min. Tensile Strength kN (kgf): 353.0 (36,000) | Approx. Weight (kg/m): 12.16
BL1634 Pitch P (mm): 50.80 | Lacing: 3x4 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 58.40 | Min. Tensile Strength kN (kgf): 554.1 (56,500) | Approx. Weight (kg/m): 16.95
BL1644 Pitch P (mm): 50.80 | Lacing: 4x4 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 65.85 | Min. Tensile Strength kN (kgf): 706.1 (72,000) | Approx. Weight (kg/m): 18.97
BL1646 Pitch P (mm): 50.80 | Lacing: 4x6 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 81.05 | Min. Tensile Strength kN (kgf): 706.1 (72,000) | Approx. Weight (kg/m): 24.09
BL1666 Pitch P (mm): 50.80 | Lacing: 6x6 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 96.15 | Min. Tensile Strength kN (kgf): 1,060.1 (108,100) | Approx. Weight (kg/m): 28.73
BL2022 Pitch P (mm): 63.50 | Lacing: 2x2 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 47.95 | Min. Tensile Strength kN (kgf): 530.5 (54,100) | Approx. Weight (kg/m): 14.43
BL2023 Pitch P (mm): 63.50 | Lacing: 2x3 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 57.90 | Min. Tensile Strength kN (kgf): 530.5 (54,100) | Approx. Weight (kg/m): 17.95
BL2034 Pitch P (mm): 63.50 | Lacing: 3x4 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 77.80 | Min. Tensile Strength kN (kgf): 795.3 (81,100) | Approx. Weight (kg/m): 24.95
BL2044 Pitch P (mm): 63.50 | Lacing: 4x4 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 87.80 | Min. Tensile Strength kN (kgf): 1,061.1 (108,200) | Approx. Weight (kg/m): 28.45
BL2046 Pitch P (mm): 63.50 | Lacing: 4x6 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 107.70 | Min. Tensile Strength kN (kgf): 1,061.1 (108,200) | Approx. Weight (kg/m): 35.44
BL2066 Pitch P (mm): 63.50 | Lacing: 6x6 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 127.60 | Min. Tensile Strength kN (kgf): 1,591.6 (162,300) | Approx. Weight (kg/m): 42.01
Drive ChainsHankuk Chain
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Leaf Chain, BL Type (Heavy Loading)

Brand Hankuk Chain·Drive Chains

Available part numbers (54)

BL422, BL423, BL434, BL444, BL446, BL466, BL522, BL523, BL534, BL544 + 44 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BL422Pitch P (mm): 12.70 | Lacing: 2x2 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 10.85 | Min. Tensile Strength kN (kgf): 23.5 (2,400) | Approx. Weight (kg/m): 0.68
BL423Pitch P (mm): 12.70 | Lacing: 2x3 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 12.95 | Min. Tensile Strength kN (kgf): 23.5 (2,400) | Approx. Weight (kg/m): 0.84
BL434Pitch P (mm): 12.70 | Lacing: 3x4 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 17.20 | Min. Tensile Strength kN (kgf): 35.3 (3,600) | Approx. Weight (kg/m): 1.13
BL444Pitch P (mm): 12.70 | Lacing: 4x4 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 19.40 | Min. Tensile Strength kN (kgf): 47.1 (4,800) | Approx. Weight (kg/m): 1.28
BL446Pitch P (mm): 12.70 | Lacing: 4x6 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 23.60 | Min. Tensile Strength kN (kgf): 47.1 (4,800) | Approx. Weight (kg/m): 1.65
BL466Pitch P (mm): 12.70 | Lacing: 6x6 | Plate Height H (mm): 12.0 | Plate Thickness T (mm): 2.0 | Outer Pin Dia. D (mm): 5.13 | Inner Pin Dia. d (mm): 5.09 | Pin Length L (mm): 27.80 | Min. Tensile Strength kN (kgf): 69.6 (7,100) | Approx. Weight (kg/m): 1.96
BL522Pitch P (mm): 15.875 | Lacing: 2x2 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 12.65 | Min. Tensile Strength kN (kgf): 39.2 (4,000) | Approx. Weight (kg/m): 1.07
BL523Pitch P (mm): 15.875 | Lacing: 2x3 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 15.10 | Min. Tensile Strength kN (kgf): 39.2 (4,000) | Approx. Weight (kg/m): 1.27
BL534Pitch P (mm): 15.875 | Lacing: 3x4 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 20.10 | Min. Tensile Strength kN (kgf): 58.8 (6,000) | Approx. Weight (kg/m): 1.69
BL544Pitch P (mm): 15.875 | Lacing: 4x4 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 22.55 | Min. Tensile Strength kN (kgf): 78.5 (8,000) | Approx. Weight (kg/m): 1.89
BL546Pitch P (mm): 15.875 | Lacing: 4x6 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 27.50 | Min. Tensile Strength kN (kgf): 78.5 (8,000) | Approx. Weight (kg/m): 2.40
BL566Pitch P (mm): 15.875 | Lacing: 6x6 | Plate Height H (mm): 15.0 | Plate Thickness T (mm): 2.4 | Outer Pin Dia. D (mm): 6.00 | Inner Pin Dia. d (mm): 5.95 | Pin Length L (mm): 32.45 | Min. Tensile Strength kN (kgf): 117.7 (12,000) | Approx. Weight (kg/m): 2.80
BL622Pitch P (mm): 19.05 | Lacing: 2x2 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 16.40 | Min. Tensile Strength kN (kgf): 63.7 (6,500) | Approx. Weight (kg/m): 1.68
BL623Pitch P (mm): 19.05 | Lacing: 2x3 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 19.75 | Min. Tensile Strength kN (kgf): 63.7 (6,500) | Approx. Weight (kg/m): 2.04
BL634Pitch P (mm): 19.05 | Lacing: 3x4 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 26.45 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Approx. Weight (kg/m): 2.83
BL644Pitch P (mm): 19.05 | Lacing: 4x4 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 29.80 | Min. Tensile Strength kN (kgf): 127.5 (13,000) | Approx. Weight (kg/m): 3.18
BL646Pitch P (mm): 19.05 | Lacing: 4x6 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 36.50 | Min. Tensile Strength kN (kgf): 12.75 (13,000) | Approx. Weight (kg/m): 4.01
BL666Pitch P (mm): 19.05 | Lacing: 6x6 | Plate Height H (mm): 18.1 | Plate Thickness T (mm): 3.2 | Outer Pin Dia. D (mm): 7.97 | Inner Pin Dia. d (mm): 7.94 | Pin Length L (mm): 43.20 | Min. Tensile Strength kN (kgf): 191.2 (19,500) | Approx. Weight (kg/m): 4.73
BL822Pitch P (mm): 25.40 | Lacing: 2x2 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 20.15 | Min. Tensile Strength kN (kgf): 103.0 (10,500) | Approx. Weight (kg/m): 2.59
BL823Pitch P (mm): 25.40 | Lacing: 2x3 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 24.20 | Min. Tensile Strength kN (kgf): 103.0 (10,500) | Approx. Weight (kg/m): 3.20
BL834Pitch P (mm): 25.40 | Lacing: 3x4 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 32.55 | Min. Tensile Strength kN (kgf): 154.9 (15,800) | Approx. Weight (kg/m): 4.44
BL844Pitch P (mm): 25.40 | Lacing: 4x4 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 36.90 | Min. Tensile Strength kN (kgf): 190.2 (19,400) | Approx. Weight (kg/m): 5.04
BL846Pitch P (mm): 25.40 | Lacing: 4x6 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 45.00 | Min. Tensile Strength kN (kgf): 190.2 (19,400) | Approx. Weight (kg/m): 6.32
BL866Pitch P (mm): 25.40 | Lacing: 6x6 | Plate Height H (mm): 24.1 | Plate Thickness T (mm): 4.0 | Outer Pin Dia. D (mm): 9.57 | Inner Pin Dia. d (mm): 9.55 | Pin Length L (mm): 53.30 | Min. Tensile Strength kN (kgf): 286.4 (29,200) | Approx. Weight (kg/m): 7.54
BL1022Pitch P (mm): 31.75 | Lacing: 2x2 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 24.00 | Min. Tensile Strength kN (kgf): 141.2 (14,400) | Approx. Weight (kg/m): 3.76
BL1023Pitch P (mm): 31.75 | Lacing: 2x3 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 28.90 | Min. Tensile Strength kN (kgf): 141.2 (14,400) | Approx. Weight (kg/m): 4.69
BL1034Pitch P (mm): 31.75 | Lacing: 3x4 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 38.85 | Min. Tensile Strength kN (kgf): 215.7 (22,000) | Approx. Weight (kg/m): 6.55
BL1044Pitch P (mm): 31.75 | Lacing: 4x4 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 43.40 | Min. Tensile Strength kN (kgf): 282.4 (28,800) | Approx. Weight (kg/m): 7.48
BL1046Pitch P (mm): 31.75 | Lacing: 4x6 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 53.70 | Min. Tensile Strength kN (kgf): 282.4 (28,800) | Approx. Weight (kg/m): 9.29
BL1066Pitch P (mm): 31.75 | Lacing: 6x6 | Plate Height H (mm): 30.1 | Plate Thickness T (mm): 4.8 | Outer Pin Dia. D (mm): 11.14 | Inner Pin Dia. d (mm): 11.11 | Pin Length L (mm): 63.85 | Min. Tensile Strength kN (kgf): 423.6 (43,200) | Approx. Weight (kg/m): 11.16
BL1222Pitch P (mm): 38.10 | Lacing: 2x2 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 28.05 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Approx. Weight (kg/m): 4.83
BL1223Pitch P (mm): 38.10 | Lacing: 2x3 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 33.90 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Approx. Weight (kg/m): 6.54
BL1234Pitch P (mm): 38.10 | Lacing: 3x4 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 45.50 | Min. Tensile Strength kN (kgf): 299.1 (30,500) | Approx. Weight (kg/m): 9.10
BL1244Pitch P (mm): 38.10 | Lacing: 4x4 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 51.30 | Min. Tensile Strength kN (kgf): 372.7 (38,000) | Approx. Weight (kg/m): 10.39
BL1246Pitch P (mm): 38.10 | Lacing: 4x6 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 62.95 | Min. Tensile Strength kN (kgf): 372.7 (38,000) | Approx. Weight (kg/m): 12.01
BL1266Pitch P (mm): 38.10 | Lacing: 6x6 | Plate Height H (mm): 36.2 | Plate Thickness T (mm): 5.6 | Outer Pin Dia. D (mm): 12.74 | Inner Pin Dia. d (mm): 12.71 | Pin Length L (mm): 74.55 | Min. Tensile Strength kN (kgf): 559.0 (57,000) | Approx. Weight (kg/m): 14.58
BL1422Pitch P (mm): 44.45 | Lacing: 2x2 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 31.60 | Min. Tensile Strength kN (kgf): 235.4 (24,000) | Approx. Weight (kg/m): 7.31
BL1423Pitch P (mm): 44.45 | Lacing: 2x3 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 38.20 | Min. Tensile Strength kN (kgf): 235.4 (24,000) | Approx. Weight (kg/m): 9.06
BL1434Pitch P (mm): 44.45 | Lacing: 3x4 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 51.40 | Min. Tensile Strength kN (kgf): 387.4 (39,500) | Approx. Weight (kg/m): 11.32
BL1444Pitch P (mm): 44.45 | Lacing: 4x4 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 58.05 | Min. Tensile Strength kN (kgf): 470.7 (48,000) | Approx. Weight (kg/m): 12.96
BL1446Pitch P (mm): 44.45 | Lacing: 4x6 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 71.25 | Min. Tensile Strength kN (kgf): 470.7 (48,000) | Approx. Weight (kg/m): 18.00
BL1466Pitch P (mm): 44.45 | Lacing: 6x6 | Plate Height H (mm): 42.2 | Plate Thickness T (mm): 6.3 | Outer Pin Dia. D (mm): 14.32 | Inner Pin Dia. d (mm): 14.29 | Pin Length L (mm): 84.45 | Min. Tensile Strength kN (kgf): 706.1 (72,000) | Approx. Weight (kg/m): 22.51
BL1622Pitch P (mm): 50.80 | Lacing: 2x2 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 35.60 | Min. Tensile Strength kN (kgf): 353.0 (36,000) | Approx. Weight (kg/m): 9.84
BL1623Pitch P (mm): 50.80 | Lacing: 2x3 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 43.25 | Min. Tensile Strength kN (kgf): 353.0 (36,000) | Approx. Weight (kg/m): 12.16
BL1634Pitch P (mm): 50.80 | Lacing: 3x4 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 58.40 | Min. Tensile Strength kN (kgf): 554.1 (56,500) | Approx. Weight (kg/m): 16.95
BL1644Pitch P (mm): 50.80 | Lacing: 4x4 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 65.85 | Min. Tensile Strength kN (kgf): 706.1 (72,000) | Approx. Weight (kg/m): 18.97
BL1646Pitch P (mm): 50.80 | Lacing: 4x6 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 81.05 | Min. Tensile Strength kN (kgf): 706.1 (72,000) | Approx. Weight (kg/m): 24.09
BL1666Pitch P (mm): 50.80 | Lacing: 6x6 | Plate Height H (mm): 48.2 | Plate Thickness T (mm): 7.2 | Outer Pin Dia. D (mm): 17.49 | Inner Pin Dia. d (mm): 17.46 | Pin Length L (mm): 96.15 | Min. Tensile Strength kN (kgf): 1,060.1 (108,100) | Approx. Weight (kg/m): 28.73
BL2022Pitch P (mm): 63.50 | Lacing: 2x2 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 47.95 | Min. Tensile Strength kN (kgf): 530.5 (54,100) | Approx. Weight (kg/m): 14.43
BL2023Pitch P (mm): 63.50 | Lacing: 2x3 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 57.90 | Min. Tensile Strength kN (kgf): 530.5 (54,100) | Approx. Weight (kg/m): 17.95
BL2034Pitch P (mm): 63.50 | Lacing: 3x4 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 77.80 | Min. Tensile Strength kN (kgf): 795.3 (81,100) | Approx. Weight (kg/m): 24.95
BL2044Pitch P (mm): 63.50 | Lacing: 4x4 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 87.80 | Min. Tensile Strength kN (kgf): 1,061.1 (108,200) | Approx. Weight (kg/m): 28.45
BL2046Pitch P (mm): 63.50 | Lacing: 4x6 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 107.70 | Min. Tensile Strength kN (kgf): 1,061.1 (108,200) | Approx. Weight (kg/m): 35.44
BL2066Pitch P (mm): 63.50 | Lacing: 6x6 | Plate Height H (mm): 60.3 | Plate Thickness T (mm): 9.5 | Outer Pin Dia. D (mm): 23.84 | Inner Pin Dia. d (mm): 23.73 | Pin Length L (mm): 127.60 | Min. Tensile Strength kN (kgf): 1,591.6 (162,300) | Approx. Weight (kg/m): 42.01

Need a different model, or a part not listed here? Send us your parts list →
