Hankuk Chain Light Trolley Conveyor Chain

Hankuk Chain Light Trolley Conveyor Chain

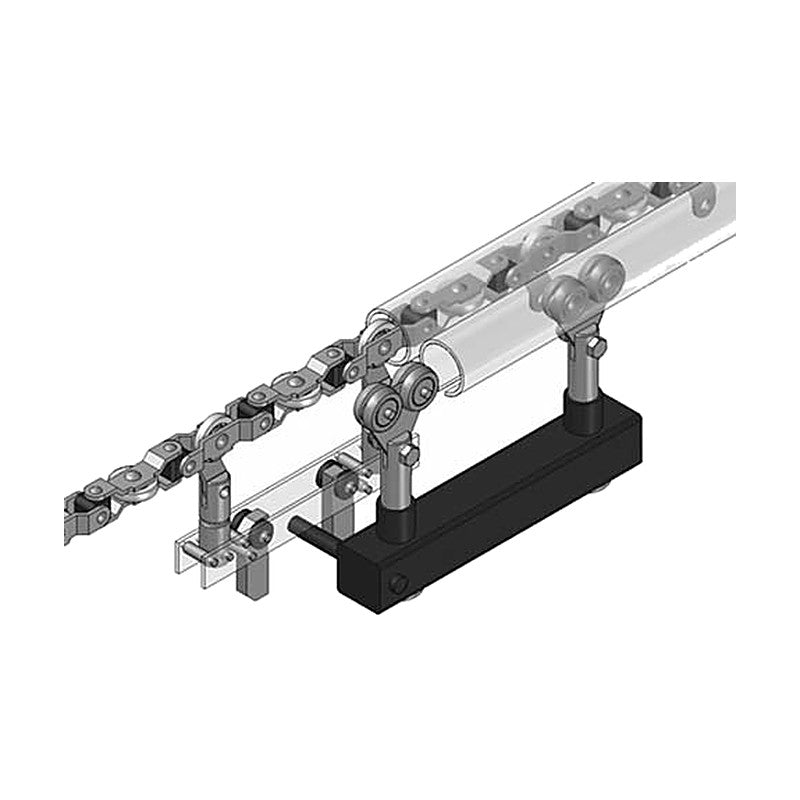

Overhead trolley conveyor chain for conveying light and medium weight objects.

Key features

  • For light and medium loads
  • Gear drive (L-3) or caterpillar drive (L-5)
L-3 Allowable Tensile Strength kN (kgf): 2.3 (230) | Breakage Strength kN (kgf): 29.4 (3000) | Weight (kg/m): 2.2 | Hanger Pitch (mm): 151.1 | Max. Load, Single Hanger (kg): 15 | Max. Load, Y/U Hanger (kg): 30 | Standard Speed (m/min): 0.1-6.0 | Drive Unit: Gear drive
L-5 Allowable Tensile Strength kN (kgf): 5.9 (600) | Breakage Strength kN (kgf): 49 (5000) | Weight (kg/m): 5.5 | Hanger Pitch (mm): 200 | Max. Load, Single Hanger (kg): 30 | Max. Load, Y/U Hanger (kg): 60 | Standard Speed (m/min): 0.5-10 | Drive Unit: Caterpillar drive
Conveyor ChainsHankuk Chain
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Light Trolley Conveyor Chain

Brand Hankuk Chain·Conveyor Chains

Available part numbers (2)

L-3, L-5

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
L-3Allowable Tensile Strength kN (kgf): 2.3 (230) | Breakage Strength kN (kgf): 29.4 (3000) | Weight (kg/m): 2.2 | Hanger Pitch (mm): 151.1 | Max. Load, Single Hanger (kg): 15 | Max. Load, Y/U Hanger (kg): 30 | Standard Speed (m/min): 0.1-6.0 | Drive Unit: Gear drive
L-5Allowable Tensile Strength kN (kgf): 5.9 (600) | Breakage Strength kN (kgf): 49 (5000) | Weight (kg/m): 5.5 | Hanger Pitch (mm): 200 | Max. Load, Single Hanger (kg): 30 | Max. Load, Y/U Hanger (kg): 60 | Standard Speed (m/min): 0.5-10 | Drive Unit: Caterpillar drive
