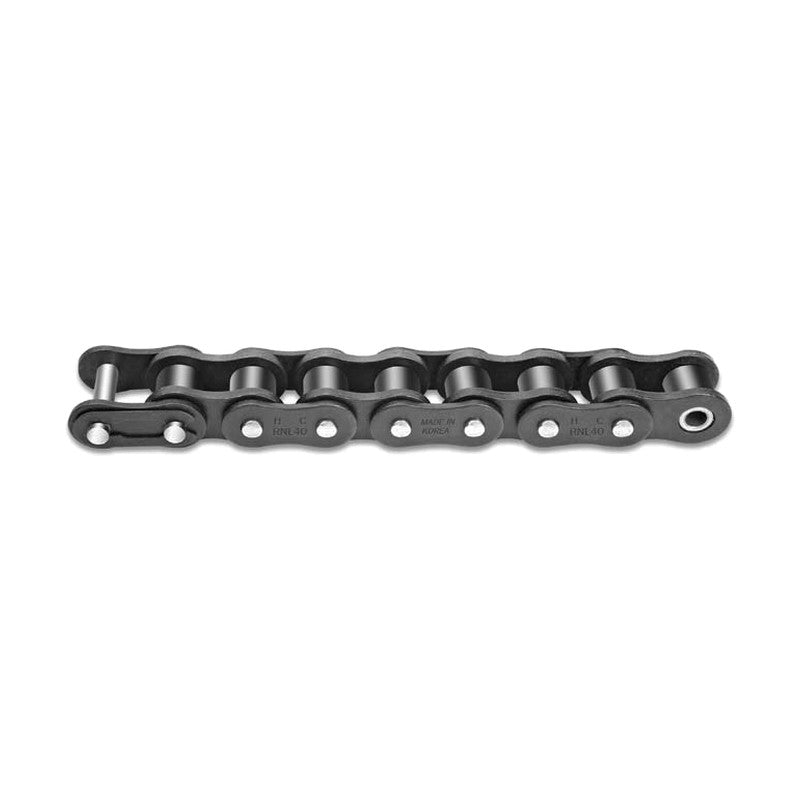

Hankuk Chain Lubrication-Free Roller Chain

Hankuk Chain Lubrication-Free Roller Chain

Lubrication-free roller chain with oil-impregnated sintered bushings that provides long chain life without lubrication.

Key features

  • Sintered bushings, no lubrication required
  • Special surface treatment of plates and plated pins for corrosion and abrasion resistance
  • About 14 times the life of standard chain (RNL120/140: about 5 times)
  • Pin longer than standard chain - check interference before use
  • Applicable temperature -10 to 60 C
  • Plated version available
RNL40 Pitch P (mm): 12.7 | Roller Link Width W (mm): 7.55 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.65 | Pin Length L1+L2 (mm): 19.28 | Outer Plate Thickness T (mm): 2.0 | Inner Plate Thickness t (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370) | Approx. Weight (kg/m): 0.70
RNL50 Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.26 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 23.30 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650) | Approx. Weight (kg/m): 1.11
RNL60 Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.28 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 29.50 | Outer Plate Thickness T (mm): 3.2 | Inner Plate Thickness t (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900) | Approx. Weight (kg/m): 1.72
RNL80 Pitch P (mm): 25.4 | Roller Link Width W (mm): 15.48 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 37.50 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500) | Approx. Weight (kg/m): 2.77
RNL100 Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 44.60 | Outer Plate Thickness T (mm): 4.8 | Inner Plate Thickness t (mm): 4.0 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300) | Approx. Weight (kg/m): 4.30
RNL120 Pitch P (mm): 38.1 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 55.80 | Outer Plate Thickness T (mm): 5.6 | Inner Plate Thickness t (mm): 4.8 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100) | Approx. Weight (kg/m): 6.40
RNL140 Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 59.90 | Outer Plate Thickness T (mm): 6.4 | Inner Plate Thickness t (mm): 5.6 | Plate Height H (mm): 42.2 | Plate Height h (mm): 36.4 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 8.10
Roller ChainsHankuk Chain
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Lubrication-Free Roller Chain

Brand Hankuk Chain·Roller Chains

Available part numbers (7)

RNL40, RNL50, RNL60, RNL80, RNL100, RNL120, RNL140

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RNL40Pitch P (mm): 12.7 | Roller Link Width W (mm): 7.55 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.65 | Pin Length L1+L2 (mm): 19.28 | Outer Plate Thickness T (mm): 2.0 | Inner Plate Thickness t (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.63 (370) | Approx. Weight (kg/m): 0.70
RNL50Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.26 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 23.30 | Outer Plate Thickness T (mm): 2.4 | Inner Plate Thickness t (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 6.37 (650) | Approx. Weight (kg/m): 1.11
RNL60Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.28 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 29.50 | Outer Plate Thickness T (mm): 3.2 | Inner Plate Thickness t (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 8.83 (900) | Approx. Weight (kg/m): 1.72
RNL80Pitch P (mm): 25.4 | Roller Link Width W (mm): 15.48 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 37.50 | Outer Plate Thickness T (mm): 4.0 | Inner Plate Thickness t (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 14.7 (1,500) | Approx. Weight (kg/m): 2.77
RNL100Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 44.60 | Outer Plate Thickness T (mm): 4.8 | Inner Plate Thickness t (mm): 4.0 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 22.6 (2,300) | Approx. Weight (kg/m): 4.30
RNL120Pitch P (mm): 38.1 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 55.80 | Outer Plate Thickness T (mm): 5.6 | Inner Plate Thickness t (mm): 4.8 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 30.4 (3,100) | Approx. Weight (kg/m): 6.40
RNL140Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 59.90 | Outer Plate Thickness T (mm): 6.4 | Inner Plate Thickness t (mm): 5.6 | Plate Height H (mm): 42.2 | Plate Height h (mm): 36.4 | Min. Tensile Strength kN (kgf): 186.3 (19,000) | Max. Allowable Tension kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 8.10
