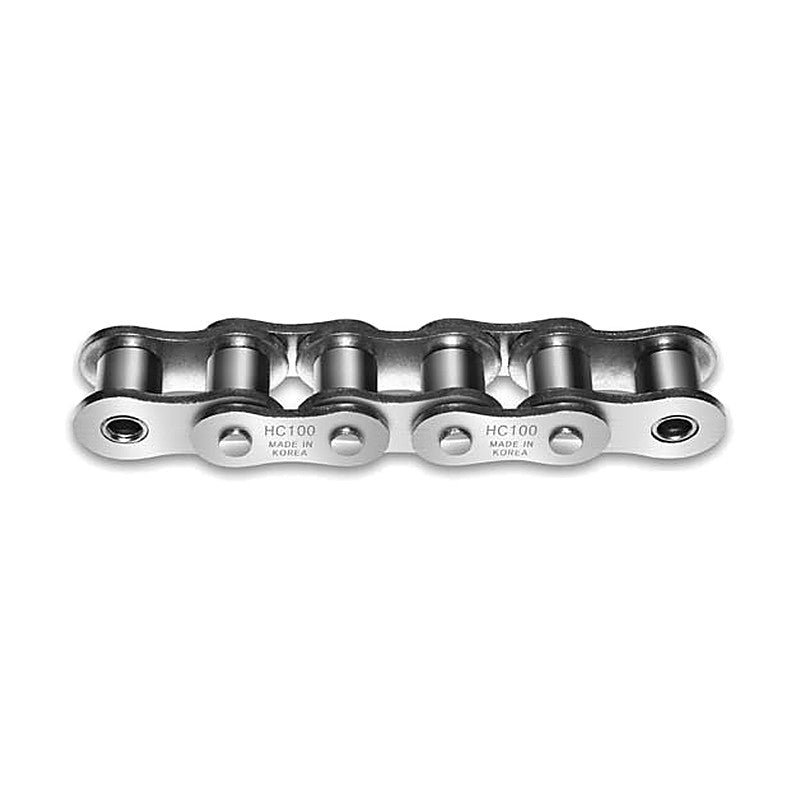

Hankuk Chain Nickel Plated Chain

Hankuk Chain Nickel Plated Chain

Nickel plated standard and double pitch chains with the same strength and abrasion resistance as standard chains, for clean environments and general corrosion protection.

Key features

  • Nickel plating on HC standard chains
  • Same strength and wear resistance as standard chain
  • For office, textile, food and printing machines
  • Protects against rain, wind and water
  • Use stainless chain for strong corrosive environments
HC25NP Pitch P (mm): 6.35 | Roller Dia. Dr (mm): 3.30 | Roller Link Width W (mm): 3.18 | Pin Dia. d (mm): 2.31 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Pin Length L1+L2 (mm): 8.45 | Plate Thickness T (mm): 0.80 | Plate Height H (mm): 6.0 | Plate Height h (mm): 5.2 | Min. Tensile Strength kN (kgf): 3.7 (380) | Max. Allowable Tension kN (kgf): 0.64 (65) | Approx. Weight (kg/m): 0.14
HC35NP Pitch P (mm): 9.525 | Roller Dia. Dr (mm): 5.09 | Roller Link Width W (mm): 4.78 | Pin Dia. d (mm): 3.59 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Pin Length L1+L2 (mm): 13.10 | Plate Thickness T (mm): 1.30 | Plate Height H (mm): 9.0 | Plate Height h (mm): 7.8 | Min. Tensile Strength kN (kgf): 8.8 (900) | Max. Allowable Tension kN (kgf): 1.86 (190) | Approx. Weight (kg/m): 0.33
HC40NP Pitch P (mm): 12.70 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 7.95 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Pin Length L1+L2 (mm): 17.45 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.04 (310) | Approx. Weight (kg/m): 0.66
HC50NP Pitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Pin Length L1+L2 (mm): 22.15 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 5.39 (550) | Approx. Weight (kg/m): 1.20
HC60NP Pitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 12.70 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Pin Length L1+L2 (mm): 27.30 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 7.26 (740) | Approx. Weight (kg/m): 1.65
HC80NP Pitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Pin Length L1+L2 (mm): 36.15 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 12.7 (1,300) | Approx. Weight (kg/m): 2.80
HC100NP Pitch P (mm): 31.75 | Roller Dia. Dr (mm): 19.05 | Roller Link Width W (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Pin Length L1+L2 (mm): 43.50 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 19.1 (1,950) | Approx. Weight (kg/m): 4.30
HC120NP Pitch P (mm): 38.10 | Roller Dia. Dr (mm): 22.23 | Roller Link Width W (mm): 25.40 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Pin Length L1+L2 (mm): 54.25 | Plate Thickness T (mm): 4.80 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 25.5 (2,600) | Approx. Weight (kg/m): 6.00
HC2040NP Pitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. S Roller (mm): 7.94 | Roller Dia. R Roller (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Max. Allowable Tension kN (kgf): 2.2525 (230) | Weight S Roller (kg/m): 0.51 | Weight R Roller (kg/m): 0.87
HC2050NP Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. S Roller (mm): 10.16 | Roller Dia. R Roller (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Max. Allowable Tension kN (kgf): 3.6635 (370) | Weight S Roller (kg/m): 0.84 | Weight R Roller (kg/m): 1.30
HC2060NP Pitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. S Roller (mm): 11.91 | Roller Dia. R Roller (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 30.65 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Max. Allowable Tension kN (kgf): 5.338 (540) | Weight S Roller (kg/m): 1.51 | Weight R Roller (kg/m): 2.19
HC2080NP Pitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. S Roller (mm): 15.88 | Roller Dia. R Roller (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 40.20 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 24.1 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 9.095 (920) | Weight S Roller (kg/m): 2.66 | Weight R Roller (kg/m): 3.68
HC2100NP Pitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. S Roller (mm): 19.05 | Roller Dia. R Roller (mm): 39.69 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.40 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 30.1 | Avg. Tensile Strength kN (kgf): 108 (11,000) | Max. Allowable Tension kN (kgf): 14.535 (1,470) | Weight S Roller (kg/m): 3.99 | Weight R Roller (kg/m): 6.30
HC2120NP Pitch P (mm): 76.20 | Roller Link Width W (mm): 25.40 | Roller Dia. S Roller (mm): 22.23 | Roller Dia. R Roller (mm): 44.45 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 58.20 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 36.2 | Avg. Tensile Strength kN (kgf): 151 (15,400) | Max. Allowable Tension kN (kgf): 20.315 (2,070) | Weight S Roller (kg/m): 5.35 | Weight R Roller (kg/m): 8.60
HC2160NP Pitch P (mm): 101.60 | Roller Link Width W (mm): 31.75 | Roller Dia. S Roller (mm): 28.58 | Roller Dia. R Roller (mm): 57.15 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 72.50 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 42.2 | Avg. Tensile Strength kN (kgf): 258 (26,300) | Max. Allowable Tension kN (kgf): 34.765 (3,540) | Weight S Roller (kg/m): 9.42 | Weight R Roller (kg/m): 11.79
Roller ChainsHankuk Chain
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Nickel Plated Chain

Brand Hankuk Chain·Roller Chains

Available part numbers (15)

HC25NP, HC35NP, HC40NP, HC50NP, HC60NP, HC80NP, HC100NP, HC120NP, HC2040NP, HC2050NP + 5 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC25NPPitch P (mm): 6.35 | Roller Dia. Dr (mm): 3.30 | Roller Link Width W (mm): 3.18 | Pin Dia. d (mm): 2.31 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Pin Length L1+L2 (mm): 8.45 | Plate Thickness T (mm): 0.80 | Plate Height H (mm): 6.0 | Plate Height h (mm): 5.2 | Min. Tensile Strength kN (kgf): 3.7 (380) | Max. Allowable Tension kN (kgf): 0.64 (65) | Approx. Weight (kg/m): 0.14
HC35NPPitch P (mm): 9.525 | Roller Dia. Dr (mm): 5.09 | Roller Link Width W (mm): 4.78 | Pin Dia. d (mm): 3.59 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Pin Length L1+L2 (mm): 13.10 | Plate Thickness T (mm): 1.30 | Plate Height H (mm): 9.0 | Plate Height h (mm): 7.8 | Min. Tensile Strength kN (kgf): 8.8 (900) | Max. Allowable Tension kN (kgf): 1.86 (190) | Approx. Weight (kg/m): 0.33
HC40NPPitch P (mm): 12.70 | Roller Dia. Dr (mm): 7.94 | Roller Link Width W (mm): 7.95 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.25 | Pin Length L1+L2 (mm): 17.45 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Min. Tensile Strength kN (kgf): 15.7 (1,600) | Max. Allowable Tension kN (kgf): 3.04 (310) | Approx. Weight (kg/m): 0.66
HC50NPPitch P (mm): 15.875 | Roller Dia. Dr (mm): 10.16 | Roller Link Width W (mm): 9.53 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.85 | Pin Length L1+L2 (mm): 22.15 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Min. Tensile Strength kN (kgf): 24.5 (2,500) | Max. Allowable Tension kN (kgf): 5.39 (550) | Approx. Weight (kg/m): 1.20
HC60NPPitch P (mm): 19.05 | Roller Dia. Dr (mm): 11.91 | Roller Link Width W (mm): 12.70 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Pin Length L1+L2 (mm): 27.30 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Min. Tensile Strength kN (kgf): 34.3 (3,500) | Max. Allowable Tension kN (kgf): 7.26 (740) | Approx. Weight (kg/m): 1.65
HC80NPPitch P (mm): 25.40 | Roller Dia. Dr (mm): 15.88 | Roller Link Width W (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 16.25 | Pin L2 (mm): 19.90 | Pin Length L1+L2 (mm): 36.15 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Min. Tensile Strength kN (kgf): 61.3 (6,250) | Max. Allowable Tension kN (kgf): 12.7 (1,300) | Approx. Weight (kg/m): 2.80
HC100NPPitch P (mm): 31.75 | Roller Dia. Dr (mm): 19.05 | Roller Link Width W (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 19.80 | Pin L2 (mm): 23.70 | Pin Length L1+L2 (mm): 43.50 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.1 | Plate Height h (mm): 26.0 | Min. Tensile Strength kN (kgf): 95.6 (9,750) | Max. Allowable Tension kN (kgf): 19.1 (1,950) | Approx. Weight (kg/m): 4.30
HC120NPPitch P (mm): 38.10 | Roller Dia. Dr (mm): 22.23 | Roller Link Width W (mm): 25.40 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 25.15 | Pin L2 (mm): 29.10 | Pin Length L1+L2 (mm): 54.25 | Plate Thickness T (mm): 4.80 | Plate Height H (mm): 36.2 | Plate Height h (mm): 31.2 | Min. Tensile Strength kN (kgf): 137.3 (14,000) | Max. Allowable Tension kN (kgf): 25.5 (2,600) | Approx. Weight (kg/m): 6.00
HC2040NPPitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. S Roller (mm): 7.94 | Roller Dia. R Roller (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Max. Allowable Tension kN (kgf): 2.2525 (230) | Weight S Roller (kg/m): 0.51 | Weight R Roller (kg/m): 0.87
HC2050NPPitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. S Roller (mm): 10.16 | Roller Dia. R Roller (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Max. Allowable Tension kN (kgf): 3.6635 (370) | Weight S Roller (kg/m): 0.84 | Weight R Roller (kg/m): 1.30
HC2060NPPitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. S Roller (mm): 11.91 | Roller Dia. R Roller (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 30.65 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 18.1 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Max. Allowable Tension kN (kgf): 5.338 (540) | Weight S Roller (kg/m): 1.51 | Weight R Roller (kg/m): 2.19
HC2080NPPitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. S Roller (mm): 15.88 | Roller Dia. R Roller (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 40.20 | Plate Thickness T (mm): 4.0 | Plate Height H (mm): 24.1 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 9.095 (920) | Weight S Roller (kg/m): 2.66 | Weight R Roller (kg/m): 3.68
HC2100NPPitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. S Roller (mm): 19.05 | Roller Dia. R Roller (mm): 39.69 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.40 | Plate Thickness T (mm): 4.8 | Plate Height H (mm): 30.1 | Avg. Tensile Strength kN (kgf): 108 (11,000) | Max. Allowable Tension kN (kgf): 14.535 (1,470) | Weight S Roller (kg/m): 3.99 | Weight R Roller (kg/m): 6.30
HC2120NPPitch P (mm): 76.20 | Roller Link Width W (mm): 25.40 | Roller Dia. S Roller (mm): 22.23 | Roller Dia. R Roller (mm): 44.45 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 58.20 | Plate Thickness T (mm): 5.6 | Plate Height H (mm): 36.2 | Avg. Tensile Strength kN (kgf): 151 (15,400) | Max. Allowable Tension kN (kgf): 20.315 (2,070) | Weight S Roller (kg/m): 5.35 | Weight R Roller (kg/m): 8.60
HC2160NPPitch P (mm): 101.60 | Roller Link Width W (mm): 31.75 | Roller Dia. S Roller (mm): 28.58 | Roller Dia. R Roller (mm): 57.15 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 72.50 | Plate Thickness T (mm): 7.2 | Plate Height H (mm): 42.2 | Avg. Tensile Strength kN (kgf): 258 (26,300) | Max. Allowable Tension kN (kgf): 34.765 (3,540) | Weight S Roller (kg/m): 9.42 | Weight R Roller (kg/m): 11.79
