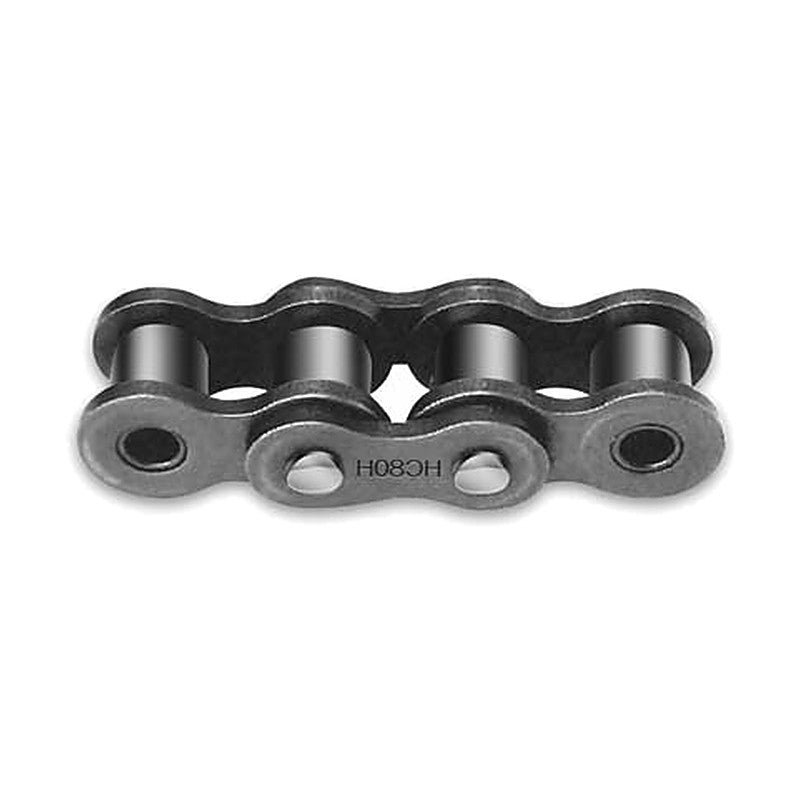

Hankuk Chain O-Ring Chain

Hankuk Chain O-Ring Chain

Sealed roller chain with O-rings between the link plates to retain lubricant.

Key features

  • O-ring sealed
  • Retains internal lubrication
HC40OR Pitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L (mm): 20.0 | Pin Length max (mm): 20.0 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Approx. Weight (kg/m): 0.67
HC50OR Pitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L (mm): 23.4 | Pin Length max (mm): 23.7 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Approx. Weight (kg/m): 1.08
HC60OR Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L (mm): 28.8 | Pin Length max (mm): 29.8 | Plate Thickness T (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 1.62
HC80OR Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L (mm): 36.6 | Pin Length max (mm): 38.9 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Approx. Weight (kg/m): 2.83
Drive ChainsHankuk Chain
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain O-Ring Chain

Brand Hankuk Chain·Drive Chains

Available part numbers (4)

HC40OR, HC50OR, HC60OR, HC80OR

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC40ORPitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.94 | Pin Dia. d (mm): 3.97 | Pin Length L (mm): 20.0 | Pin Length max (mm): 20.0 | Plate Thickness T (mm): 1.5 | Plate Height H (mm): 12.0 | Plate Height h (mm): 10.4 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Approx. Weight (kg/m): 0.67
HC50ORPitch P (mm): 15.875 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L (mm): 23.4 | Pin Length max (mm): 23.7 | Plate Thickness T (mm): 2.0 | Plate Height H (mm): 15.0 | Plate Height h (mm): 13.0 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Approx. Weight (kg/m): 1.08
HC60ORPitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L (mm): 28.8 | Pin Length max (mm): 29.8 | Plate Thickness T (mm): 2.4 | Plate Height H (mm): 18.1 | Plate Height h (mm): 15.6 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 1.62
HC80ORPitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L (mm): 36.6 | Pin Length max (mm): 38.9 | Plate Thickness T (mm): 3.2 | Plate Height H (mm): 24.1 | Plate Height h (mm): 20.8 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Approx. Weight (kg/m): 2.83
