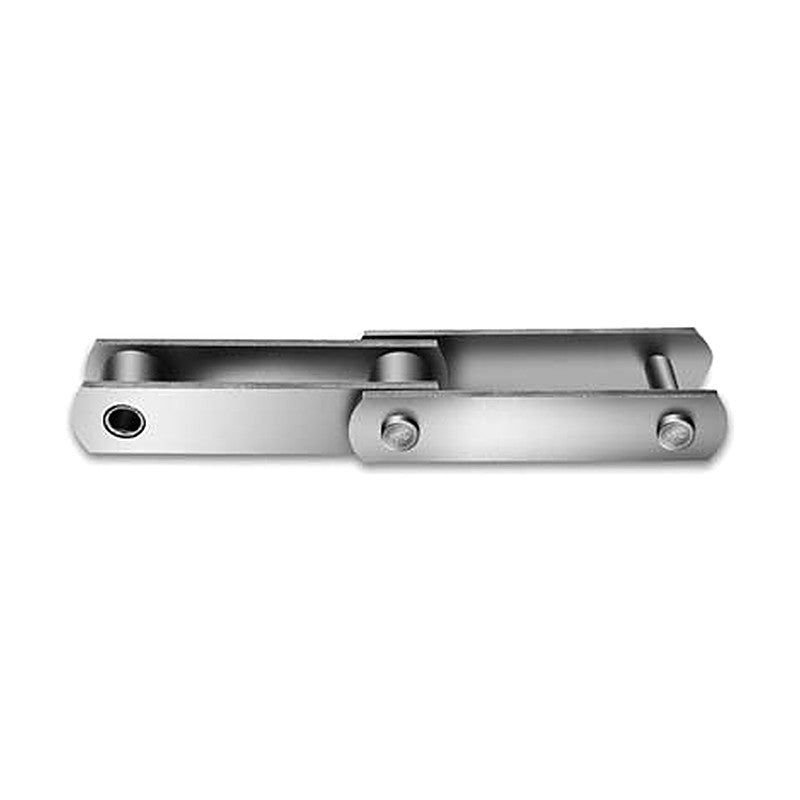

Hankuk Chain RF Conveyor Chain (S, M, R, F Roller)

Hankuk Chain RF Conveyor Chain (S, M, R, F Roller)

RF series engineering conveyor chain with T-pin construction, available with S (small), M (medium), R (large) and F (flanged) rollers in general, semi-strong and strong grades.

Key features

  • S, M, R and F roller types
  • T-pin construction for easy disassembly
  • General, semi-strong and strong strength grades
  • Wide range of pitches per chain size
RF03075-S Roller Type: S (small roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 15.9 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 1.8
RF03075-R Roller Type: R (large roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Roller Width E1 (mm): 15.5 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.8
RF03075-F Roller Type: F (flanged roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Flange Dia. F (mm): 42.0 | Roller Width E2 (mm): 12.0 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.9
RF03100-S Roller Type: S (small roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 15.9 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 1.6
RF03100-R Roller Type: R (large roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Roller Width E1 (mm): 15.5 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.4
RF03100-F Roller Type: F (flanged roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Flange Dia. F (mm): 42.0 | Roller Width E2 (mm): 12.0 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.5
RF05075-S Roller Type: S (small roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.3
RF05100-S Roller Type: S (small roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 3.8
RF05100-R Roller Type: R (large roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.2
RF05100-F Roller Type: F (flanged roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Flange Dia. F (mm): 50.0 | Roller Width E2 (mm): 14.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.4
RF05125-S Roller Type: S (small roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 3.4
RF05125-R Roller Type: R (large roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.5
RF05125-F Roller Type: F (flanged roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Flange Dia. F (mm): 50.0 | Roller Width E2 (mm): 14.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.6
RF05150-S Roller Type: S (small roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 3.3
RF05150-R Roller Type: R (large roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.2
RF05150-F Roller Type: F (flanged roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Flange Dia. F (mm): 50.0 | Roller Width E2 (mm): 14.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.4
RF08125-S Roller Type: S (small roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.0
RF08125-M Roller Type: M (medium roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 25.4 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.2
RF08125-R Roller Type: R (large roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 23.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.6
RF08125-F Roller Type: F (flanged roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Flange Dia. F (mm): 55.0 | Roller Width E2 (mm): 18.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.8
RF08150-S Roller Type: S (small roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.2
RF08150-M Roller Type: M (medium roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 25.4 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.4
RF08150-R Roller Type: R (large roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 23.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.9
RF08150-F Roller Type: F (flanged roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Flange Dia. F (mm): 55.0 | Roller Width E2 (mm): 18.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.2
RF10100-S Roller Type: S (small roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 29.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 7.0
RF10100-M Roller Type: M (medium roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 7.3
RF10100-R Roller Type: R (large roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 10.0
RF10125-S Roller Type: S (small roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 29.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 6.3
RF10125-M Roller Type: M (medium roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 6.5
RF10125-R Roller Type: R (large roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 8.7
RF10125-F Roller Type: F (flanged roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Flange Dia. F (mm): 65.0 | Roller Width E2 (mm): 20.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 9.0
RF10150-S Roller Type: S (small roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 29.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 5.9
RF10150-M Roller Type: M (medium roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 6.1
RF10150-R Roller Type: R (large roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 8.0
RF10150-F Roller Type: F (flanged roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Flange Dia. F (mm): 65.0 | Roller Width E2 (mm): 20.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 8.3
RF12200-S Roller Type: S (small roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 8.3
RF12200-M Roller Type: M (medium roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 38.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 8.6
RF12200-R Roller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Roller Width E1 (mm): 32.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 11.6
RF12200-F Roller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Flange Dia. F (mm): 80.0 | Roller Width E2 (mm): 24.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 12.1
RF12250-S Roller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 7.8
RF12250-M Roller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 38.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 8.0
RF12250-R Roller Type: R (large roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Roller Width E1 (mm): 32.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 10.4
RF12250-F Roller Type: F (flanged roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Flange Dia. F (mm): 80.0 | Roller Width E2 (mm): 24.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 10.8
RF17200-S Roller Type: S (small roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 12.0
RF17200-M Roller Type: M (medium roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 12.6
RF17200-R Roller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 19.8
RF17200-F Roller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Flange Dia. F (mm): 100.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 20.6
RF17250-S Roller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 11.1
RF17250-M Roller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 11.6
RF17250-R Roller Type: R (large roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 16.5
RF17250-F Roller Type: F (flanged roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Flange Dia. F (mm): 100.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 17.7
RF17300-S Roller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 10.5
RF17300-M Roller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 10.9
RF17300-R Roller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 15.6
RF17300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Flange Dia. F (mm): 100.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 15.9
RF20200-R Roller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Roller Width E1 (mm): 40.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 16.4
RF20200-F Roller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Flange Dia. F (mm): 95.0 | Roller Width E2 (mm): 30.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 17.4
RF20300-R Roller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Roller Width E1 (mm): 40.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 13.5
RF20300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Flange Dia. F (mm): 95.0 | Roller Width E2 (mm): 30.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 14.2
RF25200-R Roller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 22.9
RF25200-F Roller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Flange Dia. F (mm): 110.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 23.9
RF25300-R Roller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 18.5
RF25300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Flange Dia. F (mm): 110.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 19.1
RF26200-S Roller Type: S (small roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 15.7
RF26200-M Roller Type: M (medium roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 16.8
RF26250-S Roller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 14.7
RF26250-M Roller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 15.5
RF26250-R Roller Type: R (large roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Roller Width E1 (mm): 50.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 25.8
RF26250-F Roller Type: F (flanged roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 38.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 26.6
RF26300-S Roller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 13.8
RF26300-M Roller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 14.5
RF26300-R Roller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Roller Width E1 (mm): 50.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 22.6
RF26300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 38.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 23.8
RF26450-S Roller Type: S (small roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 12.5
RF26450-M Roller Type: M (medium roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 12.9
RF26450-R Roller Type: R (large roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Roller Width E1 (mm): 50.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 18.5
RF26450-F Roller Type: F (flanged roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 38.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 18.9
RF35300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 59.0 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 40.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 27.2
RF36250-S Roller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 24.5
RF36250-M Roller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 25.5
RF36300-S Roller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 22.9
RF36300-M Roller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 23.8
RF36300-R Roller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Roller Width E1 (mm): 56.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 40.1
RF36300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Flange Dia. F (mm): 150.0 | Roller Width E2 (mm): 42.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 41.2
RF36450-S Roller Type: S (small roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 20.5
RF36450-M Roller Type: M (medium roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 21.3
RF36450-R Roller Type: R (large roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Roller Width E1 (mm): 56.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 31.6
RF36450-F Roller Type: F (flanged roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Flange Dia. F (mm): 150.0 | Roller Width E2 (mm): 42.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 33.2
RF36600-S Roller Type: S (small roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 19.0
RF36600-M Roller Type: M (medium roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 19.8
RF36600-R Roller Type: R (large roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Roller Width E1 (mm): 56.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 27.6
RF36600-F Roller Type: F (flanged roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Flange Dia. F (mm): 150.0 | Roller Width E2 (mm): 42.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 29.3
RF52300-S Roller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 29.7
RF52300-R Roller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 54.5
RF52300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 58.3
RF52450-S Roller Type: S (small roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 26.2
RF52450-R Roller Type: R (large roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 42.8
RF52450-F Roller Type: F (flanged roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 45.2
RF52600-S Roller Type: S (small roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 24.9
RF52600-R Roller Type: R (large roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 37.4
RF52600-F Roller Type: F (flanged roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 38.4
RF60300-M Roller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 70.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 32.2
RF60300-R Roller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 53.9
RF60300-F Roller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 57.4
RF60350-M Roller Type: M (medium roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 70.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 30.4
RF60350-R Roller Type: R (large roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 49.4
RF60350-F Roller Type: F (flanged roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 51.2
RF60400-M Roller Type: M (medium roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 70.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 27.7
RF60400-R Roller Type: R (large roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 45.4
RF60400-F Roller Type: F (flanged roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 47.3
RF90350-M Roller Type: M (medium roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 85.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 49.2
RF90400-M Roller Type: M (medium roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 85.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 46.3
RF90400-R Roller Type: R (large roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Roller Width E1 (mm): 76.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 74.2
RF90400-F Roller Type: F (flanged roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Flange Dia. F (mm): 205.0 | Roller Width E2 (mm): 56.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 77.9
RF90500-M Roller Type: M (medium roller) | Pitch P (mm): 500 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 85.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 42.2
RF90500-R Roller Type: R (large roller) | Pitch P (mm): 500 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Roller Width E1 (mm): 76.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 65.1
RF90500-F Roller Type: F (flanged roller) | Pitch P (mm): 500 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Flange Dia. F (mm): 205.0 | Roller Width E2 (mm): 56.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 68.3
RF120400-M Roller Type: M (medium roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 100.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 69.1
RF120400-R Roller Type: R (large roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 200.0 | Roller Width E1 (mm): 87.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 113.4
RF120600-M Roller Type: M (medium roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 100.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 58.7
RF120600-R Roller Type: R (large roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 200.0 | Roller Width E1 (mm): 87.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 87.6
RF120600-F Roller Type: F (flanged roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 200.0 | Flange Dia. F (mm): 240.0 | Roller Width E2 (mm): 64.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 92.3
RF204-S Roller Type: S (small roller) | Pitch P (mm): 66.27 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.6
RF205-S Roller Type: S (small roller) | Pitch P (mm): 78.11 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 10.4
RF212-S Roller Type: S (small roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.10 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 12.6
RF212-M Roller Type: M (medium roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 44.4 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.10 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 13.1
RF212-R Roller Type: R (large roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 69.9 | Roller Width E1 (mm): 32.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.10 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 17.1
RF214-S Roller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.6 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 8.7
RF214-M Roller Type: M (medium roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.6 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 9.1
RF214-R Roller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.6 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 10.4
RF430-S Roller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 22.6 | Roller Dia. (mm): 20.1 | Plate Height H (mm): 25.4 | Plate Thickness T (mm): 4.8 | Pin Dia. D (mm): 9.73 | Avg. Tensile Strength General (kgf): 5,500 | Avg. Tensile Strength Semi-strong (kgf): 7,000 | Avg. Tensile Strength Strong (kgf): 10,000 | Approx. Weight (kg/m): 3.0
RF430-R Roller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 22.6 | Roller Dia. (mm): 38.1 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 25.4 | Plate Thickness T (mm): 4.8 | Pin Dia. D (mm): 9.73 | Avg. Tensile Strength General (kgf): 5,500 | Avg. Tensile Strength Semi-strong (kgf): 7,000 | Avg. Tensile Strength Strong (kgf): 10,000 | Approx. Weight (kg/m): 4.3
RF450-S Roller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.6
RF450-M Roller Type: M (medium roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 25.4 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.8
RF450-R Roller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 23.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.8
RF450-F Roller Type: F (flanged roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Flange Dia. F (mm): 55.0 | Roller Width E2 (mm): 18.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 7.5
RF650-S Roller Type: S (small roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 25.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.0
RF650-M Roller Type: M (medium roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.4
RF650-R Roller Type: R (large roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 26.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 7.7
RF650-F Roller Type: F (flanged roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 50.8 | Flange Dia. F (mm): 65.0 | Roller Width E2 (mm): 20.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 8.0
RF6205-S Roller Type: S (small roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 9.3
RF6205-M Roller Type: M (medium roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 38.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 9.6
RF6205-R Roller Type: R (large roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 57.2 | Roller Width E1 (mm): 32.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 12.1
RF6205-F Roller Type: F (flanged roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 57.2 | Flange Dia. F (mm): 70.0 | Roller Width E2 (mm): 25.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 12.4
Conveyor ChainsHankuk Chain
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain RF Conveyor Chain (S, M, R, F Roller)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (144)

RF03075-S, RF03075-R, RF03075-F, RF03100-S, RF03100-R, RF03100-F, RF05075-S, RF05100-S, RF05100-R, RF05100-F + 134 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF03075-SRoller Type: S (small roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 15.9 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 1.8
RF03075-RRoller Type: R (large roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Roller Width E1 (mm): 15.5 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.8
RF03075-FRoller Type: F (flanged roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Flange Dia. F (mm): 42.0 | Roller Width E2 (mm): 12.0 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.9
RF03100-SRoller Type: S (small roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 15.9 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 1.6
RF03100-RRoller Type: R (large roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Roller Width E1 (mm): 15.5 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.4
RF03100-FRoller Type: F (flanged roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 16.1 | Roller Dia. (mm): 31.8 | Flange Dia. F (mm): 42.0 | Roller Width E2 (mm): 12.0 | Plate Height H (mm): 22.0 | Plate Thickness T (mm): 3.2 | Pin Dia. D (mm): 7.95 | Avg. Tensile Strength General (kgf): 3,000 | Avg. Tensile Strength Semi-strong (kgf): 5,000 | Avg. Tensile Strength Strong (kgf): 71,000 | Approx. Weight (kg/m): 2.5
RF05075-SRoller Type: S (small roller) | Pitch P (mm): 75 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.3
RF05100-SRoller Type: S (small roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 3.8
RF05100-RRoller Type: R (large roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.2
RF05100-FRoller Type: F (flanged roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Flange Dia. F (mm): 50.0 | Roller Width E2 (mm): 14.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.4
RF05125-SRoller Type: S (small roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 3.4
RF05125-RRoller Type: R (large roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.5
RF05125-FRoller Type: F (flanged roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Flange Dia. F (mm): 50.0 | Roller Width E2 (mm): 14.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.6
RF05150-SRoller Type: S (small roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 3.3
RF05150-RRoller Type: R (large roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.2
RF05150-FRoller Type: F (flanged roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 22.0 | Roller Dia. (mm): 40.0 | Flange Dia. F (mm): 50.0 | Roller Width E2 (mm): 14.0 | Plate Height H (mm): 32.0 | Plate Thickness T (mm): 4.5 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 7,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.4
RF08125-SRoller Type: S (small roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.0
RF08125-MRoller Type: M (medium roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 25.4 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.2
RF08125-RRoller Type: R (large roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 23.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.6
RF08125-FRoller Type: F (flanged roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Flange Dia. F (mm): 55.0 | Roller Width E2 (mm): 18.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.8
RF08150-SRoller Type: S (small roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.2
RF08150-MRoller Type: M (medium roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 25.4 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.4
RF08150-RRoller Type: R (large roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 23.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.9
RF08150-FRoller Type: F (flanged roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Flange Dia. F (mm): 55.0 | Roller Width E2 (mm): 18.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.2
RF10100-SRoller Type: S (small roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 29.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 7.0
RF10100-MRoller Type: M (medium roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 7.3
RF10100-RRoller Type: R (large roller) | Pitch P (mm): 100 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 10.0
RF10125-SRoller Type: S (small roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 29.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 6.3
RF10125-MRoller Type: M (medium roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 6.5
RF10125-RRoller Type: R (large roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 8.7
RF10125-FRoller Type: F (flanged roller) | Pitch P (mm): 125 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Flange Dia. F (mm): 65.0 | Roller Width E2 (mm): 20.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 9.0
RF10150-SRoller Type: S (small roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 29.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 5.9
RF10150-MRoller Type: M (medium roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 6.1
RF10150-RRoller Type: R (large roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 8.0
RF10150-FRoller Type: F (flanged roller) | Pitch P (mm): 150 | Roller Link Width W (mm): 30.0 | Roller Dia. (mm): 50.8 | Flange Dia. F (mm): 65.0 | Roller Width E2 (mm): 20.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 14.50 | Avg. Tensile Strength General (kgf): 11,500 | Avg. Tensile Strength Semi-strong (kgf): 17,000 | Avg. Tensile Strength Strong (kgf): 23,500 | Approx. Weight (kg/m): 8.3
RF12200-SRoller Type: S (small roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 8.3
RF12200-MRoller Type: M (medium roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 38.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 8.6
RF12200-RRoller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Roller Width E1 (mm): 32.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 11.6
RF12200-FRoller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Flange Dia. F (mm): 80.0 | Roller Width E2 (mm): 24.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 12.1
RF12250-SRoller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 7.8
RF12250-MRoller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 38.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 8.0
RF12250-RRoller Type: R (large roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Roller Width E1 (mm): 32.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 10.4
RF12250-FRoller Type: F (flanged roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 65.0 | Flange Dia. F (mm): 80.0 | Roller Width E2 (mm): 24.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 10.8
RF17200-SRoller Type: S (small roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 12.0
RF17200-MRoller Type: M (medium roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 12.6
RF17200-RRoller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 19.8
RF17200-FRoller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Flange Dia. F (mm): 100.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 20.6
RF17250-SRoller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 11.1
RF17250-MRoller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 11.6
RF17250-RRoller Type: R (large roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 16.5
RF17250-FRoller Type: F (flanged roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Flange Dia. F (mm): 100.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 17.7
RF17300-SRoller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 10.5
RF17300-MRoller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 10.9
RF17300-RRoller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 15.6
RF17300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 51.4 | Roller Dia. (mm): 80.0 | Flange Dia. F (mm): 100.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 15.9
RF20200-RRoller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Roller Width E1 (mm): 40.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 16.4
RF20200-FRoller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Flange Dia. F (mm): 95.0 | Roller Width E2 (mm): 30.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 17.4
RF20300-RRoller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Roller Width E1 (mm): 40.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 13.5
RF20300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 44.0 | Roller Dia. (mm): 75.0 | Flange Dia. F (mm): 95.0 | Roller Width E2 (mm): 30.0 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.05 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 14.2
RF25200-RRoller Type: R (large roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 22.9
RF25200-FRoller Type: F (flanged roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Flange Dia. F (mm): 110.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 23.9
RF25300-RRoller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Roller Width E1 (mm): 44.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 18.5
RF25300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 49.0 | Roller Dia. (mm): 85.0 | Flange Dia. F (mm): 110.0 | Roller Width E2 (mm): 34.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 19.1
RF26200-SRoller Type: S (small roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 15.7
RF26200-MRoller Type: M (medium roller) | Pitch P (mm): 200 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 16.8
RF26250-SRoller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 14.7
RF26250-MRoller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 15.5
RF26250-RRoller Type: R (large roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Roller Width E1 (mm): 50.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 25.8
RF26250-FRoller Type: F (flanged roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 38.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 26.6
RF26300-SRoller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 13.8
RF26300-MRoller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 14.5
RF26300-RRoller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Roller Width E1 (mm): 50.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 22.6
RF26300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 38.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 23.8
RF26450-SRoller Type: S (small roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 44.5 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 12.5
RF26450-MRoller Type: M (medium roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 12.9
RF26450-RRoller Type: R (large roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Roller Width E1 (mm): 50.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 18.5
RF26450-FRoller Type: F (flanged roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 57.2 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 38.0 | Plate Height H (mm): 63.5 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 22.23 | Avg. Tensile Strength General (kgf): 32,000 | Avg. Tensile Strength Semi-strong (kgf): 42,000 | Avg. Tensile Strength Strong (kgf): 53,000 | Approx. Weight (kg/m): 18.9
RF35300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 59.0 | Roller Dia. (mm): 100.0 | Flange Dia. F (mm): 125.0 | Roller Width E2 (mm): 40.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 27.2
RF36250-SRoller Type: S (small roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 24.5
RF36250-MRoller Type: M (medium roller) | Pitch P (mm): 250 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 25.5
RF36300-SRoller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 22.9
RF36300-MRoller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 23.8
RF36300-RRoller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Roller Width E1 (mm): 56.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 40.1
RF36300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Flange Dia. F (mm): 150.0 | Roller Width E2 (mm): 42.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 41.2
RF36450-SRoller Type: S (small roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 20.5
RF36450-MRoller Type: M (medium roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 21.3
RF36450-RRoller Type: R (large roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Roller Width E1 (mm): 56.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 31.6
RF36450-FRoller Type: F (flanged roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Flange Dia. F (mm): 150.0 | Roller Width E2 (mm): 42.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 33.2
RF36600-SRoller Type: S (small roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 50.8 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 19.0
RF36600-MRoller Type: M (medium roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 19.8
RF36600-RRoller Type: R (large roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Roller Width E1 (mm): 56.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 27.6
RF36600-FRoller Type: F (flanged roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 66.7 | Roller Dia. (mm): 125.0 | Flange Dia. F (mm): 150.0 | Roller Width E2 (mm): 42.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 25.40 | Avg. Tensile Strength General (kgf): 48,500 | Avg. Tensile Strength Semi-strong (kgf): 59,000 | Avg. Tensile Strength Strong (kgf): 69,500 | Approx. Weight (kg/m): 29.3
RF52300-SRoller Type: S (small roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 29.7
RF52300-RRoller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 54.5
RF52300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 58.3
RF52450-SRoller Type: S (small roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 26.2
RF52450-RRoller Type: R (large roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 42.8
RF52450-FRoller Type: F (flanged roller) | Pitch P (mm): 450 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 45.2
RF52600-SRoller Type: S (small roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 57.2 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 24.9
RF52600-RRoller Type: R (large roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 37.4
RF52600-FRoller Type: F (flanged roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 76.2 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 31.80 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 100,000 | Approx. Weight (kg/m): 38.4
RF60300-MRoller Type: M (medium roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 70.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 32.2
RF60300-RRoller Type: R (large roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 53.9
RF60300-FRoller Type: F (flanged roller) | Pitch P (mm): 300 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 57.4
RF60350-MRoller Type: M (medium roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 70.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 30.4
RF60350-RRoller Type: R (large roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 49.4
RF60350-FRoller Type: F (flanged roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 51.2
RF60400-MRoller Type: M (medium roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 70.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 27.7
RF60400-RRoller Type: R (large roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Roller Width E1 (mm): 65.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 45.4
RF60400-FRoller Type: F (flanged roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 77.0 | Roller Dia. (mm): 140.0 | Flange Dia. F (mm): 170.0 | Roller Width E2 (mm): 49.0 | Plate Height H (mm): 90.0 | Plate Thickness T (mm): 12.7 | Pin Dia. D (mm): 35.00 | Avg. Tensile Strength General (kgf): 51,000 | Avg. Tensile Strength Semi-strong (kgf): 75,000 | Avg. Tensile Strength Strong (kgf): 106,000 | Approx. Weight (kg/m): 47.3
RF90350-MRoller Type: M (medium roller) | Pitch P (mm): 350 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 85.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 49.2
RF90400-MRoller Type: M (medium roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 85.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 46.3
RF90400-RRoller Type: R (large roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Roller Width E1 (mm): 76.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 74.2
RF90400-FRoller Type: F (flanged roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Flange Dia. F (mm): 205.0 | Roller Width E2 (mm): 56.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 77.9
RF90500-MRoller Type: M (medium roller) | Pitch P (mm): 500 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 85.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 42.2
RF90500-RRoller Type: R (large roller) | Pitch P (mm): 500 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Roller Width E1 (mm): 76.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 65.1
RF90500-FRoller Type: F (flanged roller) | Pitch P (mm): 500 | Roller Link Width W (mm): 88.0 | Roller Dia. (mm): 170.0 | Flange Dia. F (mm): 205.0 | Roller Width E2 (mm): 56.0 | Plate Height H (mm): 110.0 | Plate Thickness T (mm): 16.0 | Pin Dia. D (mm): 42.00 | Avg. Tensile Strength General (kgf): 80,500 | Avg. Tensile Strength Semi-strong (kgf): 115,000 | Avg. Tensile Strength Strong (kgf): 166,000 | Approx. Weight (kg/m): 68.3
RF120400-MRoller Type: M (medium roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 100.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 69.1
RF120400-RRoller Type: R (large roller) | Pitch P (mm): 400 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 200.0 | Roller Width E1 (mm): 87.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 113.4
RF120600-MRoller Type: M (medium roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 100.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 58.7
RF120600-RRoller Type: R (large roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 200.0 | Roller Width E1 (mm): 87.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 87.6
RF120600-FRoller Type: F (flanged roller) | Pitch P (mm): 600 | Roller Link Width W (mm): 100.0 | Roller Dia. (mm): 200.0 | Flange Dia. F (mm): 240.0 | Roller Width E2 (mm): 64.0 | Plate Height H (mm): 130.0 | Plate Thickness T (mm): 19.0 | Pin Dia. D (mm): 50.00 | Avg. Tensile Strength General (kgf): 113,000 | Avg. Tensile Strength Semi-strong (kgf): 160,000 | Avg. Tensile Strength Strong (kgf): 225,000 | Approx. Weight (kg/m): 92.3
RF204-SRoller Type: S (small roller) | Pitch P (mm): 66.27 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 5.6
RF205-SRoller Type: S (small roller) | Pitch P (mm): 78.11 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 10.4
RF212-SRoller Type: S (small roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 40.1 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.10 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 12.6
RF212-MRoller Type: M (medium roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 44.4 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.10 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 13.1
RF212-RRoller Type: R (large roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 69.9 | Roller Width E1 (mm): 32.5 | Plate Height H (mm): 50.8 | Plate Thickness T (mm): 9.5 | Pin Dia. D (mm): 19.10 | Avg. Tensile Strength General (kgf): 25,000 | Avg. Tensile Strength Semi-strong (kgf): 32,000 | Avg. Tensile Strength Strong (kgf): 39,500 | Approx. Weight (kg/m): 17.1
RF214-SRoller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.6 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 8.7
RF214-MRoller Type: M (medium roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.6 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 9.1
RF214-RRoller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 31.6 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 27.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 13,000 | Avg. Tensile Strength Semi-strong (kgf): 18,500 | Avg. Tensile Strength Strong (kgf): 24,500 | Approx. Weight (kg/m): 10.4
RF430-SRoller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 22.6 | Roller Dia. (mm): 20.1 | Plate Height H (mm): 25.4 | Plate Thickness T (mm): 4.8 | Pin Dia. D (mm): 9.73 | Avg. Tensile Strength General (kgf): 5,500 | Avg. Tensile Strength Semi-strong (kgf): 7,000 | Avg. Tensile Strength Strong (kgf): 10,000 | Approx. Weight (kg/m): 3.0
RF430-RRoller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 22.6 | Roller Dia. (mm): 38.1 | Roller Width E1 (mm): 19.0 | Plate Height H (mm): 25.4 | Plate Thickness T (mm): 4.8 | Pin Dia. D (mm): 9.73 | Avg. Tensile Strength General (kgf): 5,500 | Avg. Tensile Strength Semi-strong (kgf): 7,000 | Avg. Tensile Strength Strong (kgf): 10,000 | Approx. Weight (kg/m): 4.3
RF450-SRoller Type: S (small roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 22.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.6
RF450-MRoller Type: M (medium roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 25.4 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 4.8
RF450-RRoller Type: R (large roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Roller Width E1 (mm): 23.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.8
RF450-FRoller Type: F (flanged roller) | Pitch P (mm): 101.6 | Roller Link Width W (mm): 27.0 | Roller Dia. (mm): 44.5 | Flange Dia. F (mm): 55.0 | Roller Width E2 (mm): 18.0 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 7.5
RF650-SRoller Type: S (small roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 25.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.0
RF650-MRoller Type: M (medium roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 31.8 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 6.4
RF650-RRoller Type: R (large roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 50.8 | Roller Width E1 (mm): 26.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 7.7
RF650-FRoller Type: F (flanged roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 30.2 | Roller Dia. (mm): 50.8 | Flange Dia. F (mm): 65.0 | Roller Width E2 (mm): 20.0 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.3 | Pin Dia. D (mm): 11.30 | Avg. Tensile Strength General (kgf): 8,000 | Avg. Tensile Strength Semi-strong (kgf): 11,000 | Avg. Tensile Strength Strong (kgf): 14,500 | Approx. Weight (kg/m): 8.0
RF6205-SRoller Type: S (small roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 34.9 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 9.3
RF6205-MRoller Type: M (medium roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 38.1 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 9.6
RF6205-RRoller Type: R (large roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 57.2 | Roller Width E1 (mm): 32.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 12.1
RF6205-FRoller Type: F (flanged roller) | Pitch P (mm): 152.4 | Roller Link Width W (mm): 37.1 | Roller Dia. (mm): 57.2 | Flange Dia. F (mm): 70.0 | Roller Width E2 (mm): 25.0 | Plate Height H (mm): 44.5 | Plate Thickness T (mm): 7.9 | Pin Dia. D (mm): 15.90 | Avg. Tensile Strength General (kgf): 19,000 | Avg. Tensile Strength Semi-strong (kgf): 23,000 | Avg. Tensile Strength Strong (kgf): 28,500 | Approx. Weight (kg/m): 12.4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Power Transmission →
