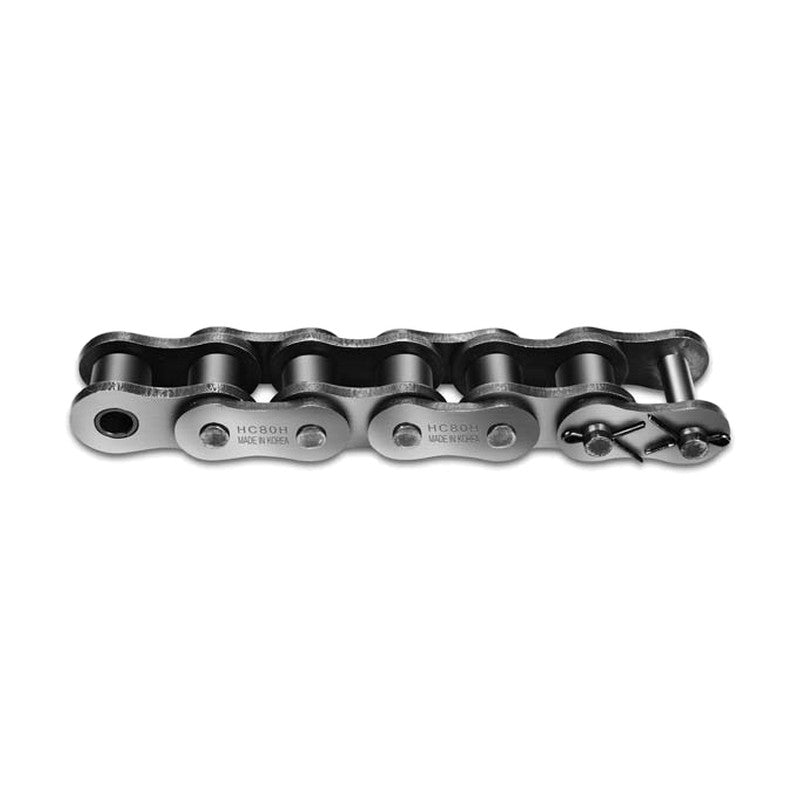

Hankuk Chain Roller Chain for Heavy Duty

Hankuk Chain Roller Chain for Heavy Duty

Heavy duty drive roller chain with thicker link plates than standard roller chain, giving greater maximum allowable tension and tensile strength.

Key features

  • Thicker link plates than standard chain
  • Higher maximum allowable tension
  • Single to 4-strand; HT types available
  • Single strand uses standard sprockets; check lateral pitch for multiple strand
60H Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 30.00 | Offset Pin L (mm): 32.70 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Transverse Pitch C (mm): 26.10 | Min. Tensile Strength kN (kgf): 49.5 (5,050) | Max. Allowable Tension kN (kgf): 9.8 (1,000) | Approx. Weight (kg/m): 1.77
60H-2 Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 56.10 | Offset Pin L (mm): 58.80 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Transverse Pitch C (mm): 26.10 | Min. Tensile Strength kN (kgf): 99 (10,100) | Max. Allowable Tension kN (kgf): 16.7 (1,700) | Approx. Weight (kg/m): 3.53
60H-3 Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 82.20 | Offset Pin L (mm): 84.90 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Transverse Pitch C (mm): 26.10 | Min. Tensile Strength kN (kgf): 148.5 (15,150) | Max. Allowable Tension kN (kgf): 245.1 (2,500) | Approx. Weight (kg/m): 5.27
60H-4 Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 108.30 | Offset Pin L (mm): 111.00 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 18.10 | Transverse Pitch C (mm): 26.10 | Min. Tensile Strength kN (kgf): 198 (20,200) | Max. Allowable Tension kN (kgf): 32.3 (3,300) | Approx. Weight (kg/m): 7.01
80H Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 39.30 | Offset Pin L (mm): 40.20 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Transverse Pitch C (mm): 32.60 | Min. Tensile Strength kN (kgf): 80.4 (8,200) | Max. Allowable Tension kN (kgf): 16.2 (1,650) | Approx. Weight (kg/m): 2.96
80H-2 Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 72.00 | Offset Pin L (mm): 72.80 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Transverse Pitch C (mm): 32.60 | Min. Tensile Strength kN (kgf): 160.8 (16,400) | Max. Allowable Tension kN (kgf): 27.8 (2,840) | Approx. Weight (kg/m): 5.84
80H-3 Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 104.50 | Offset Pin L (mm): 105.40 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Transverse Pitch C (mm): 32.60 | Min. Tensile Strength kN (kgf): 24.12 (24,600) | Max. Allowable Tension kN (kgf): 40.2 (4,100) | Approx. Weight (kg/m): 8.73
80H-4 Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 137.10 | Offset Pin L (mm): 138.00 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Transverse Pitch C (mm): 32.60 | Min. Tensile Strength kN (kgf): 321.6 (32,800) | Max. Allowable Tension kN (kgf): 52.9 (5,400) | Approx. Weight (kg/m): 11.32
100H Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.30 | Offset Pin L (mm): 47.60 | Plate Thickness T (mm): 4.80 | Plate Height H (mm): 30.10 | Transverse Pitch C (mm): 39.10 | Min. Tensile Strength kN (kgf): 121.6 (12,400) | Max. Allowable Tension kN (kgf): 24.7 (2,520) | Approx. Weight (kg/m): 4.17
100H-2 Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 86.40 | Offset Pin L (mm): 86.70 | Plate Thickness T (mm): 4.80 | Plate Height H (mm): 30.10 | Transverse Pitch C (mm): 39.10 | Min. Tensile Strength kN (kgf): 243.2 (24,800) | Max. Allowable Tension kN (kgf): 42.1 (4,300) | Approx. Weight (kg/m): 8.23
100H-3 Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 125.50 | Offset Pin L (mm): 125.80 | Plate Thickness T (mm): 4.80 | Plate Height H (mm): 30.10 | Transverse Pitch C (mm): 39.10 | Min. Tensile Strength kN (kgf): 364.8 (37,200) | Max. Allowable Tension kN (kgf): 61.8 (6,300) | Approx. Weight (kg/m): 12.30
100H-4 Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 164.60 | Offset Pin L (mm): 165.00 | Plate Thickness T (mm): 4.80 | Plate Height H (mm): 30.10 | Transverse Pitch C (mm): 39.10 | Min. Tensile Strength kN (kgf): 486.4 (49,600) | Max. Allowable Tension kN (kgf): 80.4 (8,200) | Approx. Weight (kg/m): 16.38
120H Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 57.10 | Offset Pin L (mm): 58.90 | Plate Thickness T (mm): 5.60 | Plate Height H (mm): 36.20 | Transverse Pitch C (mm): 48.90 | Min. Tensile Strength kN (kgf): 165.7 (16,900) | Max. Allowable Tension kN (kgf): 32.8 (3,350) | Approx. Weight (kg/m): 6.28
120H-2 Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 106.00 | Offset Pin L (mm): 107.80 | Plate Thickness T (mm): 5.60 | Plate Height H (mm): 36.20 | Transverse Pitch C (mm): 48.90 | Min. Tensile Strength kN (kgf): 331.4 (33,800) | Max. Allowable Tension kN (kgf): 54.9 (5,600) | Approx. Weight (kg/m): 12.45
120H-3 Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 154.90 | Offset Pin L (mm): 156.70 | Plate Thickness T (mm): 5.60 | Plate Height H (mm): 36.20 | Transverse Pitch C (mm): 48.90 | Min. Tensile Strength kN (kgf): 497.2 (50,700) | Max. Allowable Tension kN (kgf): 81.4 (8,300) | Approx. Weight (kg/m): 18.61
120H-4 Pitch P (mm): 38.10 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin Length L1+L2 (mm): 203.80 | Offset Pin L (mm): 206.00 | Plate Thickness T (mm): 5.60 | Plate Height H (mm): 36.20 | Transverse Pitch C (mm): 48.90 | Min. Tensile Strength kN (kgf): 663 (67,600) | Max. Allowable Tension kN (kgf): 106.9 (10,900) | Approx. Weight (kg/m): 24.78
140H Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 61.90 | Offset Pin L (mm): 63.80 | Plate Thickness T (mm): 6.30 | Plate Height H (mm): 42.20 | Transverse Pitch C (mm): 52.20 | Min. Tensile Strength kN (kgf): 213.7 (21,800) | Max. Allowable Tension kN (kgf): 43.1 (4,400) | Approx. Weight (kg/m): 7.83
140H-2 Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 114.10 | Offset Pin L (mm): 116.00 | Plate Thickness T (mm): 6.30 | Plate Height H (mm): 42.20 | Transverse Pitch C (mm): 52.20 | Min. Tensile Strength kN (kgf): 427.5 (43,600) | Max. Allowable Tension kN (kgf): 73.3 (7,480) | Approx. Weight (kg/m): 15.50
140H-3 Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 166.30 | Offset Pin L (mm): 168.20 | Plate Thickness T (mm): 6.30 | Plate Height H (mm): 42.20 | Transverse Pitch C (mm): 52.20 | Min. Tensile Strength kN (kgf): 641.3 (65,400) | Max. Allowable Tension kN (kgf): 107.8 (11,000) | Approx. Weight (kg/m): 23.17
140H-4 Pitch P (mm): 44.45 | Roller Link Width W (mm): 25.40 | Roller Dia. Dr (mm): 25.40 | Pin Dia. d (mm): 12.71 | Pin Length L1+L2 (mm): 218.50 | Offset Pin L (mm): 220.50 | Plate Thickness T (mm): 6.30 | Plate Height H (mm): 42.20 | Transverse Pitch C (mm): 52.20 | Min. Tensile Strength kN (kgf): 855.1 (87,200) | Max. Allowable Tension kN (kgf): 142.2 (14,500) | Approx. Weight (kg/m): 30.84
160H Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 73.10 | Offset Pin L (mm): 75.60 | Plate Thickness T (mm): 7.20 | Plate Height H (mm): 48.20 | Transverse Pitch C (mm): 61.90 | Min. Tensile Strength kN (kgf): 280.4 (28,600) | Max. Allowable Tension kN (kgf): 56.2 (5,730) | Approx. Weight (kg/m): 10.90
160H-2 Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 135.00 | Offset Pin L (mm): 137.50 | Plate Thickness T (mm): 7.20 | Plate Height H (mm): 48.20 | Transverse Pitch C (mm): 61.90 | Min. Tensile Strength kN (kgf): 560.9 (57,200) | Max. Allowable Tension kN (kgf): 95.8 (9,770) | Approx. Weight (kg/m): 21.70
160H-3 Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 196.90 | Offset Pin L (mm): 199.40 | Plate Thickness T (mm): 7.20 | Plate Height H (mm): 48.20 | Transverse Pitch C (mm): 61.90 | Min. Tensile Strength kN (kgf): 841.4 (85,800) | Max. Allowable Tension kN (kgf): 141.2 (14,400) | Approx. Weight (kg/m): 32.40
160H-4 Pitch P (mm): 50.80 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin Length L1+L2 (mm): 258.80 | Offset Pin L (mm): 261.30 | Plate Thickness T (mm): 7.20 | Plate Height H (mm): 48.20 | Transverse Pitch C (mm): 61.90 | Min. Tensile Strength kN (kgf): 1121.9 (114,400) | Max. Allowable Tension kN (kgf): 184.3 (18,800) | Approx. Weight (kg/m): 43.10
200H Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.68 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 92.70 | Offset Pin L (mm): 95.50 | Plate Thickness T (mm): 9.50 | Plate Height H (mm): 60.30 | Transverse Pitch C (mm): 78.30 | Min. Tensile Strength kN (kgf): 451.1 (46,000) | Max. Allowable Tension kN (kgf): 79.1 (8,070) | Approx. Weight (kg/m): 19.20
200H-2 Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.68 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 171.00 | Offset Pin L (mm): 173.80 | Plate Thickness T (mm): 9.50 | Plate Height H (mm): 60.30 | Transverse Pitch C (mm): 78.30 | Min. Tensile Strength kN (kgf): 902.2 (92,000) | Max. Allowable Tension kN (kgf): 134.3 (13,700) | Approx. Weight (kg/m): 38.00
200H-3 Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.68 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 249.30 | Offset Pin L (mm): 252.10 | Plate Thickness T (mm): 9.50 | Plate Height H (mm): 60.30 | Transverse Pitch C (mm): 78.30 | Min. Tensile Strength kN (kgf): 1353.3 (138,000) | Max. Allowable Tension kN (kgf): 197.1 (20,100) | Approx. Weight (kg/m): 56.80
200H-4 Pitch P (mm): 63.50 | Roller Link Width W (mm): 38.10 | Roller Dia. Dr (mm): 39.68 | Pin Dia. d (mm): 19.85 | Pin Length L1+L2 (mm): 327.60 | Offset Pin L (mm): 330.40 | Plate Thickness T (mm): 9.50 | Plate Height H (mm): 60.30 | Transverse Pitch C (mm): 78.30 | Min. Tensile Strength kN (kgf): 1804.4 (184,000) | Max. Allowable Tension kN (kgf): 258.9 (26,400) | Approx. Weight (kg/m): 75.60
80HT Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 39.30 | Offset Pin L (mm): 40.20 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 24.10 | Transverse Pitch C (mm): 32.60 | Min. Tensile Strength kN (kgf): 93.1 (9,500) | Max. Allowable Tension kN (kgf): 23.3 (2,380) | Approx. Weight (kg/m): 2.96
100HT Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 47.30 | Offset Pin L (mm): 47.60 | Plate Thickness T (mm): 4.80 | Plate Height H (mm): 30.10 | Transverse Pitch C (mm): 39.10 | Min. Tensile Strength kN (kgf): 142.2 (14,500) | Max. Allowable Tension kN (kgf): 30.0 (3,060) | Approx. Weight (kg/m): 4.17
