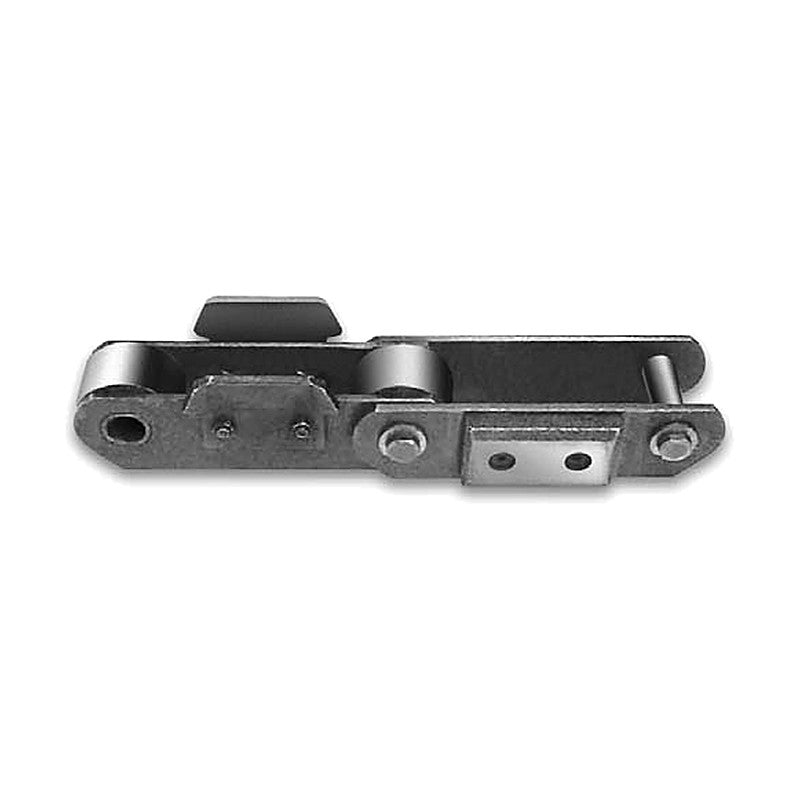

Hankuk Chain Skid Chain (Conveyor Chain for Automobile Assembly Line)

Hankuk Chain Skid Chain (Conveyor Chain for Automobile Assembly Line)

Skid chain with chain plates for conveying objects on the plate, used in automobile and container assembly lines, steel plate and bar conveying and log conveying.

Key features

  • Conveys objects directly on the chain plates
  • Automobile and container assembly lines
  • Steel plate, steel bar and timber conveying
  • Self-lubricating chains available on demand
SKD03075-R Pitch P (mm): 75 | Roller Dia. R (mm): 31.8 | Roller Width E (mm): 15.5 | Roller Link Width W (mm): 16.1 | Plate Height H (mm): 36.9 | Height H1 (mm): 21 | Height H2 (mm): 4.9 | Plate Thickness T (mm): 3.2 | Approx. Weight (kg/m): 3.2 | Avg. Tensile Strength kN (kgf): 29 (3,000)
SKD03100-R Pitch P (mm): 100 | Roller Dia. R (mm): 31.8 | Roller Width E (mm): 15.5 | Roller Link Width W (mm): 16.1 | Plate Height H (mm): 36.9 | Height H1 (mm): 21 | Height H2 (mm): 4.9 | Plate Thickness T (mm): 3.2 | Approx. Weight (kg/m): 2.8 | Avg. Tensile Strength kN (kgf): 29 (3,000)
SKD05100-R Pitch P (mm): 100 | Roller Dia. R (mm): 40 | Roller Width E (mm): 19 | Roller Link Width W (mm): 22 | Plate Height H (mm): 44 | Height H1 (mm): 24 | Height H2 (mm): 4 | Plate Thickness T (mm): 4.5 | Approx. Weight (kg/m): 5.9 | Avg. Tensile Strength kN (kgf): 69 (7,000)
SKD05150-R Pitch P (mm): 150 | Roller Dia. R (mm): 40 | Roller Width E (mm): 19 | Roller Link Width W (mm): 22 | Plate Height H (mm): 44 | Height H1 (mm): 24 | Height H2 (mm): 4 | Plate Thickness T (mm): 4.5 | Approx. Weight (kg/m): 4.9 | Avg. Tensile Strength kN (kgf): 69 (7,000)
SKD08150-R Pitch P (mm): 150 | Roller Dia. R (mm): 44.5 | Roller Width E (mm): 23 | Roller Link Width W (mm): 27 | Plate Height H (mm): 50.3 | Height H1 (mm): 28 | Height H2 (mm): 8 | Plate Thickness T (mm): 6.3 | Approx. Weight (kg/m): 7.0 | Avg. Tensile Strength kN (kgf): 78 (8,000)
SKD10150-R Pitch P (mm): 150 | Roller Dia. R (mm): 50.8 | Roller Width E (mm): 27 | Roller Link Width W (mm): 30 | Plate Height H (mm): 57.4 | Height H1 (mm): 32 | Height H2 (mm): 6.4 | Plate Thickness T (mm): 6.3 | Approx. Weight (kg/m): 9.7 | Avg. Tensile Strength kN (kgf): 113 (11,500)
SKD10200-R Pitch P (mm): 200 | Roller Dia. R (mm): 50.8 | Roller Width E (mm): 27 | Roller Link Width W (mm): 30 | Plate Height H (mm): 57.4 | Height H1 (mm): 32 | Height H2 (mm): 6.4 | Plate Thickness T (mm): 6.3 | Approx. Weight (kg/m): 8.5 | Avg. Tensile Strength kN (kgf): 113 (11,500)
SKD6205-R Pitch P (mm): 152.4 | Roller Dia. R (mm): 57.2 | Roller Width E (mm): 32 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 63.5 | Height H1 (mm): 35 | Height H2 (mm): 6 | Plate Thickness T (mm): 7.9 | Approx. Weight (kg/m): 14.0 | Avg. Tensile Strength kN (kgf): 186 (19,000)
SKD12200-R Pitch P (mm): 200 | Roller Dia. R (mm): 65 | Roller Width E (mm): 32 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 63.5 | Height H1 (mm): 41 | Height H2 (mm): 10 | Plate Thickness T (mm): 7.9 | Approx. Weight (kg/m): 14.9 | Avg. Tensile Strength kN (kgf): 186 (19,000)
SKD12250-R Pitch P (mm): 250 | Roller Dia. R (mm): 65 | Roller Width E (mm): 32 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 63.5 | Height H1 (mm): 41 | Height H2 (mm): 10 | Plate Thickness T (mm): 7.9 | Approx. Weight (kg/m): 13.5 | Avg. Tensile Strength kN (kgf): 186 (19,000)
SKD17250-R Pitch P (mm): 250 | Roller Dia. R (mm): 80 | Roller Width E (mm): 44 | Roller Link Width W (mm): 51.4 | Plate Height H (mm): 90 | Height H1 (mm): 50 | Height H2 (mm): 13.8 | Plate Thickness T (mm): 9.5 | Approx. Weight (kg/m): 22.5 | Avg. Tensile Strength kN (kgf): 245 (25,000)
SKD17300-R Pitch P (mm): 300 | Roller Dia. R (mm): 80 | Roller Width E (mm): 44 | Roller Link Width W (mm): 51.4 | Plate Height H (mm): 90 | Height H1 (mm): 50 | Height H2 (mm): 13.8 | Plate Thickness T (mm): 9.5 | Approx. Weight (kg/m): 21.5 | Avg. Tensile Strength kN (kgf): 245 (25,000)
SKD20160-R Pitch P (mm): 160 | Roller Dia. R (mm): 60 | Roller Width E (mm): 35 | Roller Link Width W (mm): 38 | Plate Height H (mm): 65 | Height H1 (mm): 35 | Height H2 (mm): 5 | Plate Thickness T (mm): 6.0 | Approx. Weight (kg/m): 12.9 | Avg. Tensile Strength kN (kgf): 196 (20,000)
SKD26300-R Pitch P (mm): 300 | Roller Dia. R (mm): 85 | Roller Width E (mm): 50 | Roller Link Width W (mm): 57.2 | Plate Height H (mm): 95.5 | Height H1 (mm): 53 | Height H2 (mm): 10.5 | Plate Thickness T (mm): 9.5 | Approx. Weight (kg/m): 24.3 | Avg. Tensile Strength kN (kgf): 314 (32,000)
SKD36300-R Pitch P (mm): 300 | Roller Dia. R (mm): 100 | Roller Width E (mm): 56 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 112 | Height H1 (mm): 62 | Height H2 (mm): 12 | Plate Thickness T (mm): 12.7 | Approx. Weight (kg/m): 39.0 | Avg. Tensile Strength kN (kgf): 476 (48,500)
SKD36400-R Pitch P (mm): 400 | Roller Dia. R (mm): 100 | Roller Width E (mm): 56 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 112 | Height H1 (mm): 62 | Height H2 (mm): 12 | Plate Thickness T (mm): 12.7 | Approx. Weight (kg/m): 34.2 | Avg. Tensile Strength kN (kgf): 476 (48,500)
SKD52450-R Pitch P (mm): 450 | Roller Dia. R (mm): 110 | Roller Width E (mm): 56 | Roller Link Width W (mm): 77 | Plate Height H (mm): 125 | Height H1 (mm): 70 | Height H2 (mm): 17 | Plate Thickness T (mm): 16 | Approx. Weight (kg/m): 46.0 | Avg. Tensile Strength kN (kgf): 500 (51,000)
Conveyor ChainsHankuk Chain
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Skid Chain (Conveyor Chain for Automobile Assembly Line)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (17)

SKD03075-R, SKD03100-R, SKD05100-R, SKD05150-R, SKD08150-R, SKD10150-R, SKD10200-R, SKD6205-R, SKD12200-R, SKD12250-R + 7 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SKD03075-RPitch P (mm): 75 | Roller Dia. R (mm): 31.8 | Roller Width E (mm): 15.5 | Roller Link Width W (mm): 16.1 | Plate Height H (mm): 36.9 | Height H1 (mm): 21 | Height H2 (mm): 4.9 | Plate Thickness T (mm): 3.2 | Approx. Weight (kg/m): 3.2 | Avg. Tensile Strength kN (kgf): 29 (3,000)
SKD03100-RPitch P (mm): 100 | Roller Dia. R (mm): 31.8 | Roller Width E (mm): 15.5 | Roller Link Width W (mm): 16.1 | Plate Height H (mm): 36.9 | Height H1 (mm): 21 | Height H2 (mm): 4.9 | Plate Thickness T (mm): 3.2 | Approx. Weight (kg/m): 2.8 | Avg. Tensile Strength kN (kgf): 29 (3,000)
SKD05100-RPitch P (mm): 100 | Roller Dia. R (mm): 40 | Roller Width E (mm): 19 | Roller Link Width W (mm): 22 | Plate Height H (mm): 44 | Height H1 (mm): 24 | Height H2 (mm): 4 | Plate Thickness T (mm): 4.5 | Approx. Weight (kg/m): 5.9 | Avg. Tensile Strength kN (kgf): 69 (7,000)
SKD05150-RPitch P (mm): 150 | Roller Dia. R (mm): 40 | Roller Width E (mm): 19 | Roller Link Width W (mm): 22 | Plate Height H (mm): 44 | Height H1 (mm): 24 | Height H2 (mm): 4 | Plate Thickness T (mm): 4.5 | Approx. Weight (kg/m): 4.9 | Avg. Tensile Strength kN (kgf): 69 (7,000)
SKD08150-RPitch P (mm): 150 | Roller Dia. R (mm): 44.5 | Roller Width E (mm): 23 | Roller Link Width W (mm): 27 | Plate Height H (mm): 50.3 | Height H1 (mm): 28 | Height H2 (mm): 8 | Plate Thickness T (mm): 6.3 | Approx. Weight (kg/m): 7.0 | Avg. Tensile Strength kN (kgf): 78 (8,000)
SKD10150-RPitch P (mm): 150 | Roller Dia. R (mm): 50.8 | Roller Width E (mm): 27 | Roller Link Width W (mm): 30 | Plate Height H (mm): 57.4 | Height H1 (mm): 32 | Height H2 (mm): 6.4 | Plate Thickness T (mm): 6.3 | Approx. Weight (kg/m): 9.7 | Avg. Tensile Strength kN (kgf): 113 (11,500)
SKD10200-RPitch P (mm): 200 | Roller Dia. R (mm): 50.8 | Roller Width E (mm): 27 | Roller Link Width W (mm): 30 | Plate Height H (mm): 57.4 | Height H1 (mm): 32 | Height H2 (mm): 6.4 | Plate Thickness T (mm): 6.3 | Approx. Weight (kg/m): 8.5 | Avg. Tensile Strength kN (kgf): 113 (11,500)
SKD6205-RPitch P (mm): 152.4 | Roller Dia. R (mm): 57.2 | Roller Width E (mm): 32 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 63.5 | Height H1 (mm): 35 | Height H2 (mm): 6 | Plate Thickness T (mm): 7.9 | Approx. Weight (kg/m): 14.0 | Avg. Tensile Strength kN (kgf): 186 (19,000)
SKD12200-RPitch P (mm): 200 | Roller Dia. R (mm): 65 | Roller Width E (mm): 32 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 63.5 | Height H1 (mm): 41 | Height H2 (mm): 10 | Plate Thickness T (mm): 7.9 | Approx. Weight (kg/m): 14.9 | Avg. Tensile Strength kN (kgf): 186 (19,000)
SKD12250-RPitch P (mm): 250 | Roller Dia. R (mm): 65 | Roller Width E (mm): 32 | Roller Link Width W (mm): 37.1 | Plate Height H (mm): 63.5 | Height H1 (mm): 41 | Height H2 (mm): 10 | Plate Thickness T (mm): 7.9 | Approx. Weight (kg/m): 13.5 | Avg. Tensile Strength kN (kgf): 186 (19,000)
SKD17250-RPitch P (mm): 250 | Roller Dia. R (mm): 80 | Roller Width E (mm): 44 | Roller Link Width W (mm): 51.4 | Plate Height H (mm): 90 | Height H1 (mm): 50 | Height H2 (mm): 13.8 | Plate Thickness T (mm): 9.5 | Approx. Weight (kg/m): 22.5 | Avg. Tensile Strength kN (kgf): 245 (25,000)
SKD17300-RPitch P (mm): 300 | Roller Dia. R (mm): 80 | Roller Width E (mm): 44 | Roller Link Width W (mm): 51.4 | Plate Height H (mm): 90 | Height H1 (mm): 50 | Height H2 (mm): 13.8 | Plate Thickness T (mm): 9.5 | Approx. Weight (kg/m): 21.5 | Avg. Tensile Strength kN (kgf): 245 (25,000)
SKD20160-RPitch P (mm): 160 | Roller Dia. R (mm): 60 | Roller Width E (mm): 35 | Roller Link Width W (mm): 38 | Plate Height H (mm): 65 | Height H1 (mm): 35 | Height H2 (mm): 5 | Plate Thickness T (mm): 6.0 | Approx. Weight (kg/m): 12.9 | Avg. Tensile Strength kN (kgf): 196 (20,000)
SKD26300-RPitch P (mm): 300 | Roller Dia. R (mm): 85 | Roller Width E (mm): 50 | Roller Link Width W (mm): 57.2 | Plate Height H (mm): 95.5 | Height H1 (mm): 53 | Height H2 (mm): 10.5 | Plate Thickness T (mm): 9.5 | Approx. Weight (kg/m): 24.3 | Avg. Tensile Strength kN (kgf): 314 (32,000)
SKD36300-RPitch P (mm): 300 | Roller Dia. R (mm): 100 | Roller Width E (mm): 56 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 112 | Height H1 (mm): 62 | Height H2 (mm): 12 | Plate Thickness T (mm): 12.7 | Approx. Weight (kg/m): 39.0 | Avg. Tensile Strength kN (kgf): 476 (48,500)
SKD36400-RPitch P (mm): 400 | Roller Dia. R (mm): 100 | Roller Width E (mm): 56 | Roller Link Width W (mm): 66.7 | Plate Height H (mm): 112 | Height H1 (mm): 62 | Height H2 (mm): 12 | Plate Thickness T (mm): 12.7 | Approx. Weight (kg/m): 34.2 | Avg. Tensile Strength kN (kgf): 476 (48,500)
SKD52450-RPitch P (mm): 450 | Roller Dia. R (mm): 110 | Roller Width E (mm): 56 | Roller Link Width W (mm): 77 | Plate Height H (mm): 125 | Height H1 (mm): 70 | Height H2 (mm): 17 | Plate Thickness T (mm): 16 | Approx. Weight (kg/m): 46.0 | Avg. Tensile Strength kN (kgf): 500 (51,000)
