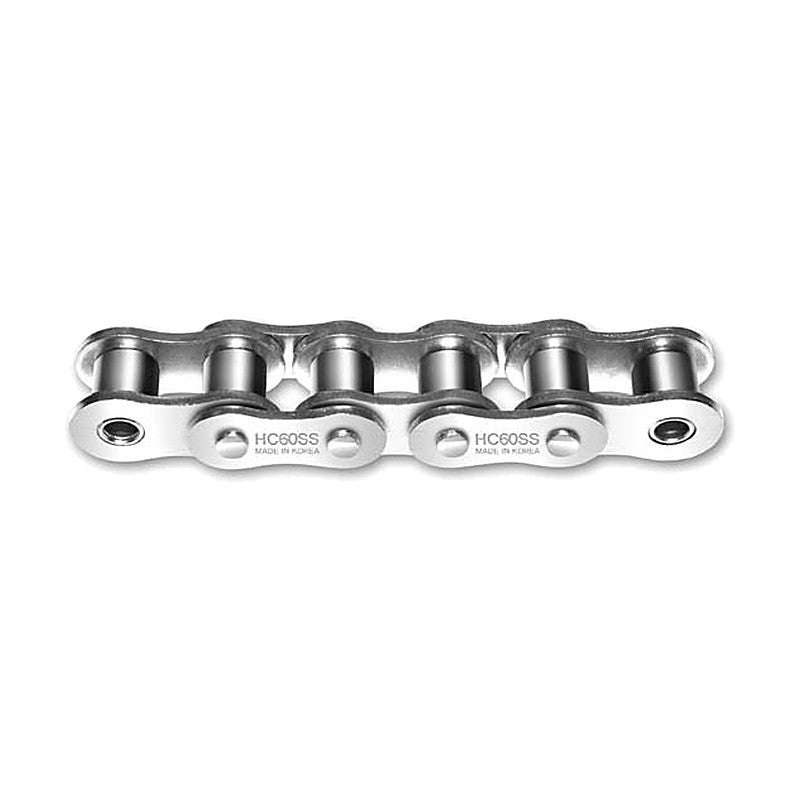

Hankuk Chain Stainless Roller Chain

Hankuk Chain Stainless Roller Chain

Stainless steel (300 series, 18-8 nickel-chrome) roller chain with KS standard dimensions for alkali, mild acid, low and high temperature environments.

Key features

  • 300 series (18-8) stainless steel
  • Corrosion resistant
  • Heat resistant from -20 C to 300 C
  • Almost non-magnetic
  • Standard and double pitch types
HC25SS Pitch P (mm): 6.35 | Roller Link Width W (mm): 3.18 | Roller Dia. Dr (mm): 3.30 | Pin Dia. d (mm): 2.31 | Pin Length L1+L2 (mm): 8.45 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Plate Thickness T (mm): 0.80 | Plate Height H (mm): 6.00 | Plate Height h (mm): 5.20 | Max. Allowable Tension kN (kgf): 0.12 (12) | Approx. Weight (kg/m): 0.14
HC35SS Pitch P (mm): 9.525 | Roller Link Width W (mm): 4.78 | Roller Dia. Dr (mm): 5.09 | Pin Dia. d (mm): 3.59 | Pin Length L1+L2 (mm): 13.10 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Plate Thickness T (mm): 1.30 | Plate Height H (mm): 9.00 | Plate Height h (mm): 7.80 | Max. Allowable Tension kN (kgf): 0.26 (27) | Approx. Weight (kg/m): 0.33
HC40SS Pitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.92 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 17.80 | Pin L1 (mm): 8.25 | Pin L2 (mm): 9.55 | Offset Pin L (mm): 19.10 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 11.80 | Plate Height h (mm): 10.40 | Max. Allowable Tension kN (kgf): 0.44 (45) | Approx. Weight (kg/m): 0.65
HC50SS Pitch P (mm): 15.88 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.10 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.80 | Offset Pin L (mm): 23.10 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Plate Height h (mm): 13.00 | Max. Allowable Tension kN (kgf): 0.69 (70) | Approx. Weight (kg/m): 1.06
HC60SS Pitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.30 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Offset Pin L (mm): 27.00 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Max. Allowable Tension kN (kgf): 1.03 (105) | Approx. Weight (kg/m): 1.56
HC80SS Pitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.10 | Pin L1 (mm): 16.30 | Pin L2 (mm): 19.80 | Offset Pin L (mm): 36.70 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 24.10 | Plate Height h (mm): 20.80 | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 2.78
HC100SS Pitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.60 | Pin L1 (mm): 19.85 | Pin L2 (mm): 23.75 | Offset Pin L (mm): 43.60 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.10 | Plate Height h (mm): 26.10 | Max. Allowable Tension kN (kgf): 2.55 (260) | Approx. Weight (kg/m): 4.18
HC2040SS Roller Type: S (small roller) | Pitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.92 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.25 | Pin L2 (mm): 9.85 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Max. Allowable Tension kN (kgf): 0.44 (45) | Approx. Weight (kg/m): 0.41
HC2042SS Roller Type: R (large roller) | Pitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.25 | Pin L2 (mm): 9.85 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Max. Allowable Tension kN (kgf): 0.44 (45) | Approx. Weight (kg/m): 0.70
HC2050SS Roller Type: S (small roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Max. Allowable Tension kN (kgf): 0.69 (70) | Approx. Weight (kg/m): 0.84
HC2052SS Roller Type: R (large roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Max. Allowable Tension kN (kgf): 0.69 (70) | Approx. Weight (kg/m): 1.31
HC2060SS Roller Type: S (small roller) | Pitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.10 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.35 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Max. Allowable Tension kN (kgf): 1.03 (105) | Approx. Weight (kg/m): 1.48
HC2062SS Roller Type: R (large roller) | Pitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.10 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.35 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Max. Allowable Tension kN (kgf): 1.03 (105) | Approx. Weight (kg/m): 2.33
HC2080SS Roller Type: S (small roller) | Pitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.10 | Pin L1 (mm): 16.30 | Pin L2 (mm): 19.80 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 22.70 | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 3.27
HC2082SS Roller Type: R (large roller) | Pitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.10 | Pin L1 (mm): 16.30 | Pin L2 (mm): 19.80 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 22.70 | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 5.00
HC2100SS Roller Type: S (small roller) | Pitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.60 | Pin L1 (mm): 19.85 | Pin L2 (mm): 23.75 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.10 | Max. Allowable Tension kN (kgf): 2.55 (260) | Approx. Weight (kg/m): 6.57
HC2102SS Roller Type: R (large roller) | Pitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.60 | Pin L1 (mm): 19.85 | Pin L2 (mm): 23.75 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.10 | Max. Allowable Tension kN (kgf): 2.55 (260) | Approx. Weight (kg/m): 8.22
Roller ChainsHankuk Chain
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Stainless Roller Chain

Brand Hankuk Chain·Roller Chains

Available part numbers (17)

HC25SS, HC35SS, HC40SS, HC50SS, HC60SS, HC80SS, HC100SS, HC2040SS, HC2042SS, HC2050SS + 7 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC25SSPitch P (mm): 6.35 | Roller Link Width W (mm): 3.18 | Roller Dia. Dr (mm): 3.30 | Pin Dia. d (mm): 2.31 | Pin Length L1+L2 (mm): 8.45 | Pin L1 (mm): 3.82 | Pin L2 (mm): 4.63 | Plate Thickness T (mm): 0.80 | Plate Height H (mm): 6.00 | Plate Height h (mm): 5.20 | Max. Allowable Tension kN (kgf): 0.12 (12) | Approx. Weight (kg/m): 0.14
HC35SSPitch P (mm): 9.525 | Roller Link Width W (mm): 4.78 | Roller Dia. Dr (mm): 5.09 | Pin Dia. d (mm): 3.59 | Pin Length L1+L2 (mm): 13.10 | Pin L1 (mm): 5.90 | Pin L2 (mm): 7.20 | Plate Thickness T (mm): 1.30 | Plate Height H (mm): 9.00 | Plate Height h (mm): 7.80 | Max. Allowable Tension kN (kgf): 0.26 (27) | Approx. Weight (kg/m): 0.33
HC40SSPitch P (mm): 12.70 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.92 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 17.80 | Pin L1 (mm): 8.25 | Pin L2 (mm): 9.55 | Offset Pin L (mm): 19.10 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 11.80 | Plate Height h (mm): 10.40 | Max. Allowable Tension kN (kgf): 0.44 (45) | Approx. Weight (kg/m): 0.65
HC50SSPitch P (mm): 15.88 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.10 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.80 | Offset Pin L (mm): 23.10 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Plate Height h (mm): 13.00 | Max. Allowable Tension kN (kgf): 0.69 (70) | Approx. Weight (kg/m): 1.06
HC60SSPitch P (mm): 19.05 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.30 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.55 | Offset Pin L (mm): 27.00 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Plate Height h (mm): 15.60 | Max. Allowable Tension kN (kgf): 1.03 (105) | Approx. Weight (kg/m): 1.56
HC80SSPitch P (mm): 25.40 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.10 | Pin L1 (mm): 16.30 | Pin L2 (mm): 19.80 | Offset Pin L (mm): 36.70 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 24.10 | Plate Height h (mm): 20.80 | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 2.78
HC100SSPitch P (mm): 31.75 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.60 | Pin L1 (mm): 19.85 | Pin L2 (mm): 23.75 | Offset Pin L (mm): 43.60 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.10 | Plate Height h (mm): 26.10 | Max. Allowable Tension kN (kgf): 2.55 (260) | Approx. Weight (kg/m): 4.18
HC2040SSRoller Type: S (small roller) | Pitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 7.92 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.25 | Pin L2 (mm): 9.85 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Max. Allowable Tension kN (kgf): 0.44 (45) | Approx. Weight (kg/m): 0.41
HC2042SSRoller Type: R (large roller) | Pitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin Length L1+L2 (mm): 18.10 | Pin L1 (mm): 8.25 | Pin L2 (mm): 9.85 | Plate Thickness T (mm): 1.50 | Plate Height H (mm): 12.00 | Max. Allowable Tension kN (kgf): 0.44 (45) | Approx. Weight (kg/m): 0.70
HC2050SSRoller Type: S (small roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 10.16 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Max. Allowable Tension kN (kgf): 0.69 (70) | Approx. Weight (kg/m): 0.84
HC2052SSRoller Type: R (large roller) | Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin Length L1+L2 (mm): 22.20 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Thickness T (mm): 2.00 | Plate Height H (mm): 15.00 | Max. Allowable Tension kN (kgf): 0.69 (70) | Approx. Weight (kg/m): 1.31
HC2060SSRoller Type: S (small roller) | Pitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 11.91 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.10 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.35 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Max. Allowable Tension kN (kgf): 1.03 (105) | Approx. Weight (kg/m): 1.48
HC2062SSRoller Type: R (large roller) | Pitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin Length L1+L2 (mm): 27.10 | Pin L1 (mm): 12.75 | Pin L2 (mm): 14.35 | Plate Thickness T (mm): 2.40 | Plate Height H (mm): 18.10 | Max. Allowable Tension kN (kgf): 1.03 (105) | Approx. Weight (kg/m): 2.33
HC2080SSRoller Type: S (small roller) | Pitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 15.88 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.10 | Pin L1 (mm): 16.30 | Pin L2 (mm): 19.80 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 22.70 | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 3.27
HC2082SSRoller Type: R (large roller) | Pitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin Length L1+L2 (mm): 36.10 | Pin L1 (mm): 16.30 | Pin L2 (mm): 19.80 | Plate Thickness T (mm): 3.20 | Plate Height H (mm): 22.70 | Max. Allowable Tension kN (kgf): 1.77 (180) | Approx. Weight (kg/m): 5.00
HC2100SSRoller Type: S (small roller) | Pitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 19.05 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.60 | Pin L1 (mm): 19.85 | Pin L2 (mm): 23.75 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.10 | Max. Allowable Tension kN (kgf): 2.55 (260) | Approx. Weight (kg/m): 6.57
HC2102SSRoller Type: R (large roller) | Pitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 9.54 | Pin Length L1+L2 (mm): 43.60 | Pin L1 (mm): 19.85 | Pin L2 (mm): 23.75 | Plate Thickness T (mm): 4.00 | Plate Height H (mm): 30.10 | Max. Allowable Tension kN (kgf): 2.55 (260) | Approx. Weight (kg/m): 8.22
