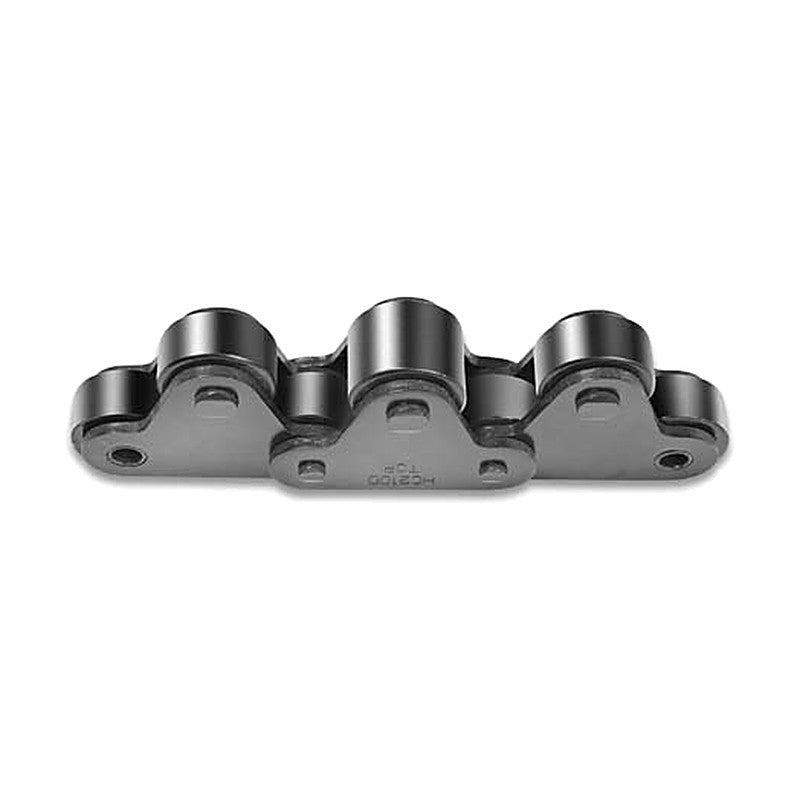

Hankuk Chain Top Roller Chain, Double Pitch Type

Hankuk Chain Top Roller Chain, Double Pitch Type

Double pitch roller chain with top rollers in single and double strand, for S roller and R roller types.

Key features

  • Single and double strand
  • S roller and R roller types
  • Special and irregular dimensions available on demand
HC2040 TR Pitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. S Roller (mm): 7.94 | Roller Dia. R Roller (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 8.20 | Pin L2 (mm): 9.90 | Plate Height H (mm): 12.00 | Plate Thickness T (mm): 1.50 | Avg. Tensile Strength kN (kgf): 16.7 (1,700) | Max. Allowable Tension kN (kgf): 2.65 (270) | Top Roller Dia. Dr (mm): 15.88 | Top Roller Pin Dia. D2 (mm): 5.09
HC2050 TR Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. S Roller (mm): 10.16 | Roller Dia. R Roller (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 10.30 | Pin L2 (mm): 11.90 | Plate Height H (mm): 15.00 | Plate Thickness T (mm): 2.00 | Avg. Tensile Strength kN (kgf): 27.5 (2,800) | Max. Allowable Tension kN (kgf): 4.31 (440) | Top Roller Dia. Dr (mm): 19.05 | Top Roller Pin Dia. D2 (mm): 5.96
HC2060 TR Pitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. S Roller (mm): 11.91 | Roller Dia. R Roller (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 14.55 | Pin L2 (mm): 16.10 | Plate Height H (mm): 18.10 | Plate Thickness T (mm): 3.20 | Avg. Tensile Strength kN (kgf): 40.2 (4,100) | Max. Allowable Tension kN (kgf): 6.28 (640) | Top Roller Dia. Dr (mm): 22.23 | Top Roller Pin Dia. D2 (mm): 7.94
HC2080 TR Pitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. S Roller (mm): 15.88 | Roller Dia. R Roller (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 18.30 | Pin L2 (mm): 21.90 | Plate Height H (mm): 23.00 | Plate Thickness T (mm): 4.00 | Avg. Tensile Strength kN (kgf): 68.6 (7,000) | Max. Allowable Tension kN (kgf): 10.7 (1,090) | Top Roller Dia. Dr (mm): 28.58 | Top Roller Pin Dia. D2 (mm): 11.11
HC2100 TR Pitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. S Roller (mm): 19.05 | Roller Dia. R Roller (mm): 39.69 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 21.80 | Pin L2 (mm): 25.60 | Plate Height H (mm): 30.10 | Plate Thickness T (mm): 4.80 | Avg. Tensile Strength kN (kgf): 108 (1,100) | Max. Allowable Tension kN (kgf): 17.1 (1,740) | Top Roller Dia. Dr (mm): 39.69 | Top Roller Pin Dia. D2 (mm): 14.29
HC2040-2 TR Pitch P (mm): 25.40 | Roller Link Width W (mm): 7.95 | Roller Dia. S Roller (mm): 7.94 | Roller Dia. R Roller (mm): 15.88 | Pin Dia. d (mm): 3.97 | Pin L1 (mm): 15.53 | Pin L2 (mm): 17.07 | Plate Height H (mm): 12.00 | Plate Thickness T (mm): 1.50 | Avg. Tensile Strength kN (kgf): 33.4 (3,400) | Max. Allowable Tension kN (kgf): 4.5 (460) | Transverse Pitch C (mm): 14.40 | Top Roller Dia. Dr (mm): 15.88
HC2050-2 TR Pitch P (mm): 31.75 | Roller Link Width W (mm): 9.53 | Roller Dia. S Roller (mm): 10.16 | Roller Dia. R Roller (mm): 19.05 | Pin Dia. d (mm): 5.09 | Pin L1 (mm): 19.48 | Pin L2 (mm): 20.92 | Plate Height H (mm): 15.00 | Plate Thickness T (mm): 2.00 | Avg. Tensile Strength kN (kgf): 55 (5,600) | Max. Allowable Tension kN (kgf): 7.35 (750) | Transverse Pitch C (mm): 18.10 | Top Roller Dia. Dr (mm): 19.05
HC2060-2 TR Pitch P (mm): 38.10 | Roller Link Width W (mm): 12.70 | Roller Dia. S Roller (mm): 11.91 | Roller Dia. R Roller (mm): 22.23 | Pin Dia. d (mm): 5.96 | Pin L1 (mm): 27.60 | Pin L2 (mm): 29.15 | Plate Height H (mm): 17.20 | Plate Thickness T (mm): 3.20 | Avg. Tensile Strength kN (kgf): 80.4 (8,200) | Max. Allowable Tension kN (kgf): 10.7 (1,090) | Transverse Pitch C (mm): 26.20 | Top Roller Dia. Dr (mm): 22.23
HC2080-2 TR Pitch P (mm): 50.80 | Roller Link Width W (mm): 15.88 | Roller Dia. S Roller (mm): 15.88 | Roller Dia. R Roller (mm): 28.58 | Pin Dia. d (mm): 7.94 | Pin L1 (mm): 34.55 | Pin L2 (mm): 38.15 | Plate Height H (mm): 23.00 | Plate Thickness T (mm): 4.00 | Avg. Tensile Strength kN (kgf): 137.2 (14,000) | Max. Allowable Tension kN (kgf): 18.1 (1,850) | Transverse Pitch C (mm): 32.60 | Top Roller Dia. Dr (mm): 28.58
HC2100-2 TR Pitch P (mm): 63.50 | Roller Link Width W (mm): 19.05 | Roller Dia. S Roller (mm): 19.05 | Roller Dia. R Roller (mm): 39.69 | Pin Dia. d (mm): 9.54 | Pin L1 (mm): 41.30 | Pin L2 (mm): 45.10 | Plate Height H (mm): 28.60 | Plate Thickness T (mm): 4.80 | Avg. Tensile Strength kN (kgf): 216 (22,000) | Max. Allowable Tension kN (kgf): 29 (2,960) | Transverse Pitch C (mm): 39.10 | Top Roller Dia. Dr (mm): 39.69
Conveyor ChainsHankuk Chain
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Top Roller Chain, Double Pitch Type

Brand Hankuk Chain·Conveyor Chains

Available part numbers (10)

HC2040 TR, HC2050 TR, HC2060 TR, HC2080 TR, HC2100 TR, HC2040-2 TR, HC2050-2 TR, HC2060-2 TR, HC2080-2 TR, HC2100-2 TR

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
