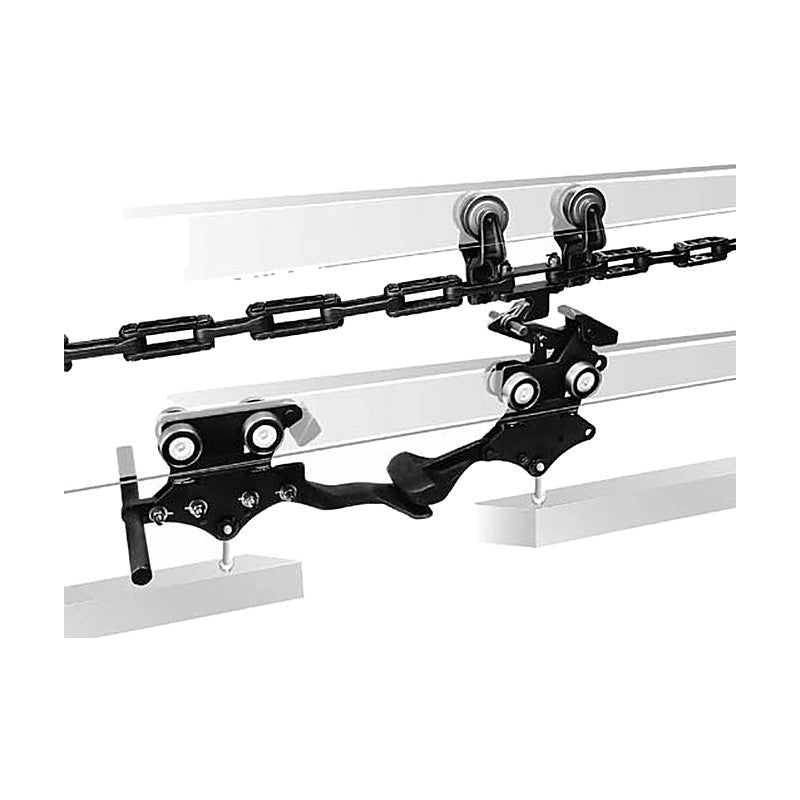

Hankuk Chain TR Trolley Conveyor Chain (Forged Type)

Hankuk Chain TR Trolley Conveyor Chain (Forged Type)

Forged overhead trolley conveyor chain with flexibility for three-dimensional routes, made of alloy steel for harsh conditions.

Key features

  • Free 3-dimensional layout
  • Alloy steel for harsh conditions
  • Easy maintenance
  • Silent driving
  • Economical with abundant standard units
TR348 Pitch P (mm): 76.2 | Allowable Load kN (kgf): 9.8 (1000) | Chain Weight (kg/m): 3.4 | Trolley Weight (kg/ea): 1.2 | Standard Horizontal Curve Radius (mm): 600 | Load, Pendant A (kg): 60 | Load, Pendant B / Clevis (kg): 125 | Load, Rodbar (kg): 250
TR458 Pitch P (mm): 101.6 | Allowable Load kN (kgf): 19.6 (2000) | Chain Weight (kg/m): 4.6 | Trolley Weight (kg/ea): 2.4 | Standard Horizontal Curve Radius (mm): 600 | Load, Pendant A (kg): 140 | Load, Pendant B / Clevis (kg): 250 | Load, Rodbar (kg): 500
TR678 Pitch P (mm): 152.4 | Allowable Load kN (kgf): 34.3 (3500) | Chain Weight (kg/m): 10.2 | Trolley Weight (kg/ea): 10 | Standard Horizontal Curve Radius (mm): 1000 | Load, Pendant A (kg): 300 | Load, Pendant B / Clevis (kg): 800 | Load, Rodbar (kg): 1600
Conveyor ChainsHankuk Chain
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain TR Trolley Conveyor Chain (Forged Type)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (3)

TR348, TR458, TR678

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TR348Pitch P (mm): 76.2 | Allowable Load kN (kgf): 9.8 (1000) | Chain Weight (kg/m): 3.4 | Trolley Weight (kg/ea): 1.2 | Standard Horizontal Curve Radius (mm): 600 | Load, Pendant A (kg): 60 | Load, Pendant B / Clevis (kg): 125 | Load, Rodbar (kg): 250
TR458Pitch P (mm): 101.6 | Allowable Load kN (kgf): 19.6 (2000) | Chain Weight (kg/m): 4.6 | Trolley Weight (kg/ea): 2.4 | Standard Horizontal Curve Radius (mm): 600 | Load, Pendant A (kg): 140 | Load, Pendant B / Clevis (kg): 250 | Load, Rodbar (kg): 500
TR678Pitch P (mm): 152.4 | Allowable Load kN (kgf): 34.3 (3500) | Chain Weight (kg/m): 10.2 | Trolley Weight (kg/ea): 10 | Standard Horizontal Curve Radius (mm): 1000 | Load, Pendant A (kg): 300 | Load, Pendant B / Clevis (kg): 800 | Load, Rodbar (kg): 1600
