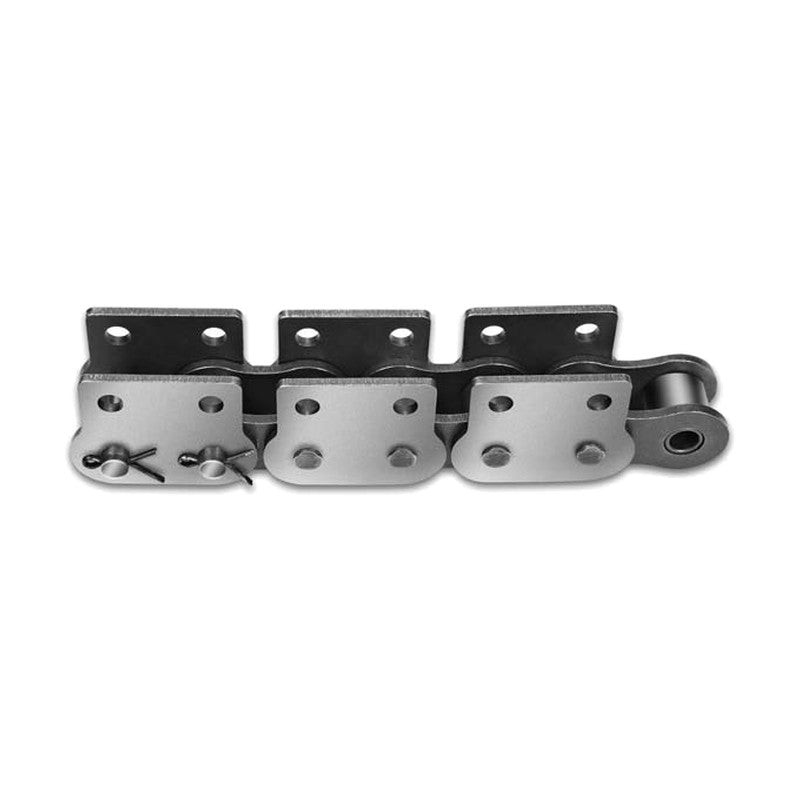

Hankuk Chain Trencher Chain

Hankuk Chain Trencher Chain

Trencher chain designed to endure shock and vibration in trench digging machines.

Key features

  • Endures shock and vibration
  • For trench digging machines
  • Supplied on customer demand
HCT432L Pitch P (mm): 42.01 | Roller Link Width W (mm): 25.4 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 27.7 | Pin L2 (mm): 30.2 | Plate Height H (mm): 27.0 | Plate Thickness T (mm): 4.8 | Avg. Tensile Strength kN (kgf): 98 (10,000) | Approx. Weight (kg/m): 6.1 | Att. S (mm): 28.0 | Att. S1 (mm): 38.5 | Att. M (mm): 74.0
HCT432 Pitch P (mm): 42.01 | Roller Link Width W (mm): 25.4 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 27.7 | Pin L2 (mm): 30.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 4.8 | Avg. Tensile Strength kN (kgf): 117.7 (12,000) | Approx. Weight (kg/m): 6.3 | Att. S (mm): 28.6 | Att. S1 (mm): 40.0 | Att. M (mm): 74.0
HCT432H Pitch P (mm): 42.01 | Roller Link Width W (mm): 25.4 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 30.7 | Pin L2 (mm): 33.3 | Plate Height H (mm): 31.8 | Plate Thickness T (mm): 6.4 | Avg. Tensile Strength kN (kgf): 147.1 (15,000) | Approx. Weight (kg/m): 7.9 | Att. S (mm): 33.15 | Att. S1 (mm): 44.7 | Att. M (mm): 69.85
HCT2000 Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.1 | Pin L1 (mm): 34.5 | Pin L2 (mm): 40.1 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.4 | Avg. Tensile Strength kN (kgf): 205.9 (21,000) | Approx. Weight (kg/m): 11.5 | Att. S (mm): 38.1 | Att. S1 (mm): 57.15 | Att. M (mm): 89.0
HCT2069 Pitch P (mm): 66.27 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.1 | Pin L1 (mm): 34.5 | Pin L2 (mm): 40.1 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.4 | Avg. Tensile Strength kN (kgf): 205.9 (21,000) | Approx. Weight (kg/m): 10.5 | Att. S (mm): 41.3 | Att. S1 (mm): 57.15 | Att. M (mm): 107.0
HCT3067 Pitch P (mm): 77.90 | Roller Link Width W (mm): 37.31 | Roller Dia. Dr (mm): 41.28 | Pin Dia. d (mm): 19.05 | Pin L1 (mm): 47.2 | Pin L2 (mm): 47.8 | Plate Height H (mm): 47.6 | Plate Thickness T (mm): 8.0 | Avg. Tensile Strength kN (kgf): 304 (31,000) | Approx. Weight (kg/m): 17.8 | Att. S (mm): 50.8 | Att. S1 (mm): 71.5 | Att. M (mm): 135.0
HCT3067H Pitch P (mm): 77.90 | Roller Link Width W (mm): 39.70 | Roller Dia. Dr (mm): 41.28 | Pin Dia. d (mm): 19.05 | Pin L1 (mm): 47.2 | Pin L2 (mm): 51.8 | Plate Height H (mm): 57.2 | Plate Thickness T (mm): 9.5 | Avg. Tensile Strength kN (kgf): 490.3 (50,000) | Approx. Weight (kg/m): 25.2 | Att. S (mm): 50.8 | Att. S1 (mm): 73.0 | Att. M (mm): 135.0
Drag ChainsHankuk Chain
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Trencher Chain

Brand Hankuk Chain·Drag Chains

Available part numbers (7)

HCT432L, HCT432, HCT432H, HCT2000, HCT2069, HCT3067, HCT3067H

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HCT432LPitch P (mm): 42.01 | Roller Link Width W (mm): 25.4 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 27.7 | Pin L2 (mm): 30.2 | Plate Height H (mm): 27.0 | Plate Thickness T (mm): 4.8 | Avg. Tensile Strength kN (kgf): 98 (10,000) | Approx. Weight (kg/m): 6.1 | Att. S (mm): 28.0 | Att. S1 (mm): 38.5 | Att. M (mm): 74.0
HCT432Pitch P (mm): 42.01 | Roller Link Width W (mm): 25.4 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 27.7 | Pin L2 (mm): 30.2 | Plate Height H (mm): 28.6 | Plate Thickness T (mm): 4.8 | Avg. Tensile Strength kN (kgf): 117.7 (12,000) | Approx. Weight (kg/m): 6.3 | Att. S (mm): 28.6 | Att. S1 (mm): 40.0 | Att. M (mm): 74.0
HCT432HPitch P (mm): 42.01 | Roller Link Width W (mm): 25.4 | Roller Dia. Dr (mm): 22.23 | Pin Dia. d (mm): 11.11 | Pin L1 (mm): 30.7 | Pin L2 (mm): 33.3 | Plate Height H (mm): 31.8 | Plate Thickness T (mm): 6.4 | Avg. Tensile Strength kN (kgf): 147.1 (15,000) | Approx. Weight (kg/m): 7.9 | Att. S (mm): 33.15 | Att. S1 (mm): 44.7 | Att. M (mm): 69.85
HCT2000Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.1 | Pin L1 (mm): 34.5 | Pin L2 (mm): 40.1 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.4 | Avg. Tensile Strength kN (kgf): 205.9 (21,000) | Approx. Weight (kg/m): 11.5 | Att. S (mm): 38.1 | Att. S1 (mm): 57.15 | Att. M (mm): 89.0
HCT2069Pitch P (mm): 66.27 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.1 | Pin L1 (mm): 34.5 | Pin L2 (mm): 40.1 | Plate Height H (mm): 38.1 | Plate Thickness T (mm): 6.4 | Avg. Tensile Strength kN (kgf): 205.9 (21,000) | Approx. Weight (kg/m): 10.5 | Att. S (mm): 41.3 | Att. S1 (mm): 57.15 | Att. M (mm): 107.0
HCT3067Pitch P (mm): 77.90 | Roller Link Width W (mm): 37.31 | Roller Dia. Dr (mm): 41.28 | Pin Dia. d (mm): 19.05 | Pin L1 (mm): 47.2 | Pin L2 (mm): 47.8 | Plate Height H (mm): 47.6 | Plate Thickness T (mm): 8.0 | Avg. Tensile Strength kN (kgf): 304 (31,000) | Approx. Weight (kg/m): 17.8 | Att. S (mm): 50.8 | Att. S1 (mm): 71.5 | Att. M (mm): 135.0
HCT3067HPitch P (mm): 77.90 | Roller Link Width W (mm): 39.70 | Roller Dia. Dr (mm): 41.28 | Pin Dia. d (mm): 19.05 | Pin L1 (mm): 47.2 | Pin L2 (mm): 51.8 | Plate Height H (mm): 57.2 | Plate Thickness T (mm): 9.5 | Avg. Tensile Strength kN (kgf): 490.3 (50,000) | Approx. Weight (kg/m): 25.2 | Att. S (mm): 50.8 | Att. S1 (mm): 73.0 | Att. M (mm): 135.0
