Hankuk Chain Wastewater Chain (HRT Type)

Hankuk Chain Wastewater Chain (HRT Type)

Wastewater chain for intake of wastewater, dust and sludge with strong corrosion and abrasion resistance, used in power plants and water purification plants.

Key features

  • Strong corrosion and abrasion resistance
  • For power plants and water purification plants

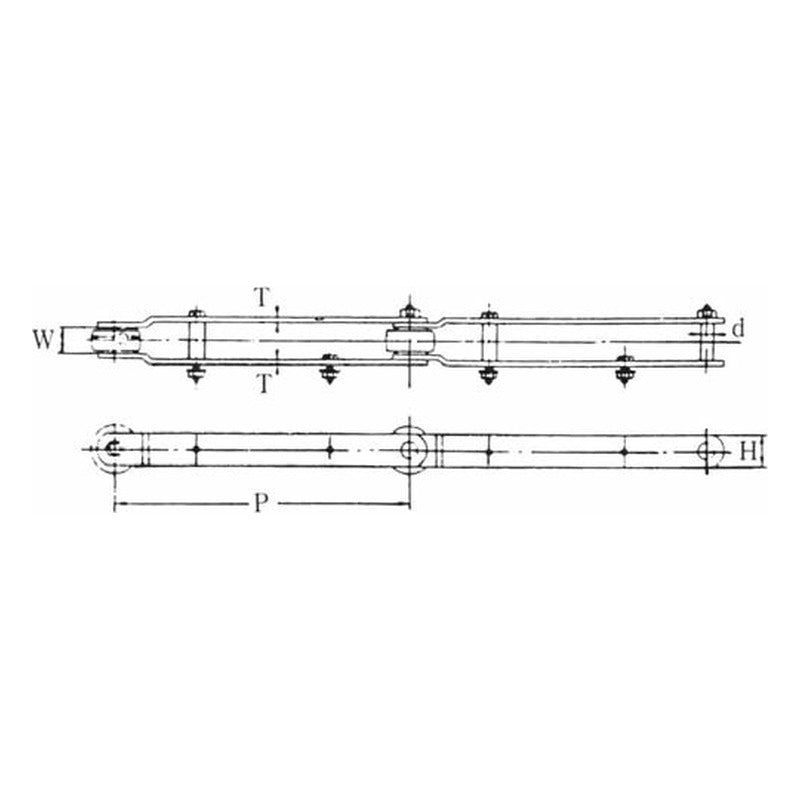

HRT4525 Avg. Tensile Strength kN (kgf): 245 (25,000) | Pitch P (mm): 450 | Roller Dia. D (mm): 90 | Roller Link Width W (mm): 40.3 | Pin Dia. d (mm): 20 | Plate Height H (mm): 65 | Plate Thickness T (mm): 9 | Approx. Weight (kg/m): 16.0
HRT6030 Avg. Tensile Strength kN (kgf): 294 (30,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 100 | Roller Link Width W (mm): 40.3 | Pin Dia. d (mm): 30 | Plate Height H (mm): 75 | Plate Thickness T (mm): 9 | Approx. Weight (kg/m): 17.0
HRT6040 Avg. Tensile Strength kN (kgf): 392 (40,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 100 | Roller Link Width W (mm): 55.2 | Pin Dia. d (mm): 32 | Plate Height H (mm): 80 | Plate Thickness T (mm): 12 | Approx. Weight (kg/m): 24.0
HRT6058 Avg. Tensile Strength kN (kgf): 568 (58,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 100 | Roller Link Width W (mm): 52.6 | Pin Dia. d (mm): 34 | Plate Height H (mm): 80 | Plate Thickness T (mm): 16 | Approx. Weight (kg/m): 30.0
HRT6068 Avg. Tensile Strength kN (kgf): 666 (68,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 125 | Roller Link Width W (mm): 64.6 | Pin Dia. d (mm): 36 | Plate Height H (mm): 90 | Plate Thickness T (mm): 16 | Approx. Weight (kg/m): 38.0
HRT6078 Avg. Tensile Strength kN (kgf): 765 (78,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 125 | Roller Link Width W (mm): 85.0 | Pin Dia. d (mm): 40 | Plate Height H (mm): 100 | Plate Thickness T (mm): 19 | Approx. Weight (kg/m): 54.0
Water Treatment ChainsHankuk Chain
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Wastewater Chain (HRT Type)

Brand Hankuk Chain·Water Treatment Chains

Available part numbers (6)

HRT4525, HRT6030, HRT6040, HRT6058, HRT6068, HRT6078

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRT4525Avg. Tensile Strength kN (kgf): 245 (25,000) | Pitch P (mm): 450 | Roller Dia. D (mm): 90 | Roller Link Width W (mm): 40.3 | Pin Dia. d (mm): 20 | Plate Height H (mm): 65 | Plate Thickness T (mm): 9 | Approx. Weight (kg/m): 16.0
HRT6030Avg. Tensile Strength kN (kgf): 294 (30,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 100 | Roller Link Width W (mm): 40.3 | Pin Dia. d (mm): 30 | Plate Height H (mm): 75 | Plate Thickness T (mm): 9 | Approx. Weight (kg/m): 17.0
HRT6040Avg. Tensile Strength kN (kgf): 392 (40,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 100 | Roller Link Width W (mm): 55.2 | Pin Dia. d (mm): 32 | Plate Height H (mm): 80 | Plate Thickness T (mm): 12 | Approx. Weight (kg/m): 24.0
HRT6058Avg. Tensile Strength kN (kgf): 568 (58,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 100 | Roller Link Width W (mm): 52.6 | Pin Dia. d (mm): 34 | Plate Height H (mm): 80 | Plate Thickness T (mm): 16 | Approx. Weight (kg/m): 30.0
HRT6068Avg. Tensile Strength kN (kgf): 666 (68,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 125 | Roller Link Width W (mm): 64.6 | Pin Dia. d (mm): 36 | Plate Height H (mm): 90 | Plate Thickness T (mm): 16 | Approx. Weight (kg/m): 38.0
HRT6078Avg. Tensile Strength kN (kgf): 765 (78,000) | Pitch P (mm): 600 | Roller Dia. D (mm): 125 | Roller Link Width W (mm): 85.0 | Pin Dia. d (mm): 40 | Plate Height H (mm): 100 | Plate Thickness T (mm): 19 | Approx. Weight (kg/m): 54.0
