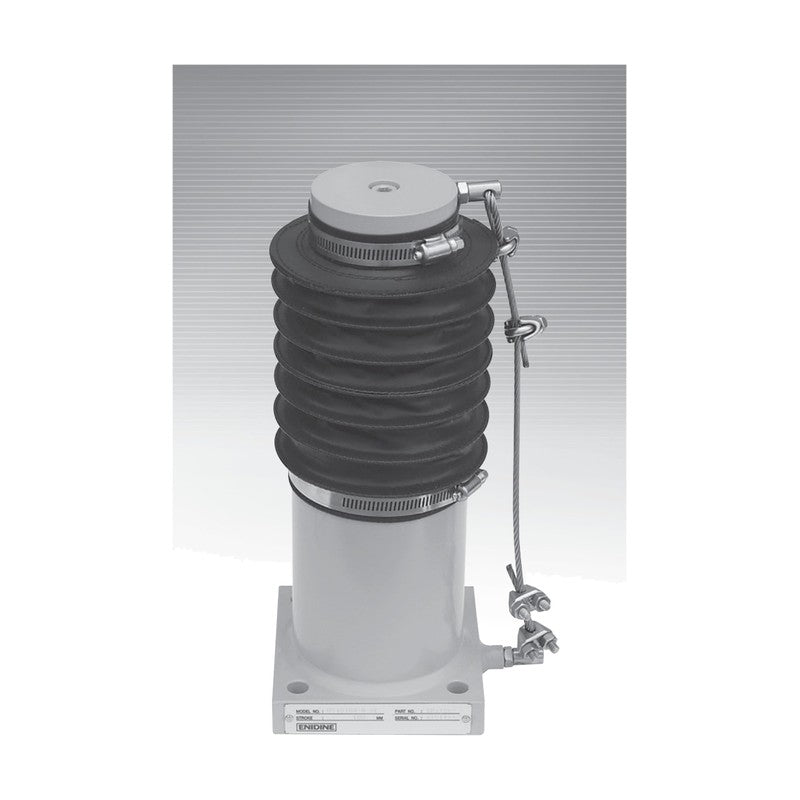

JPI HS10050 Non-Adjustable Hydraulic Buffer

JPI HS10050 Non-Adjustable Hydraulic Buffer

Fixed-damping high-efficiency hydraulic buffer for emergency stopping of cranes, carriages and elevators.

Key features

  • 85-90% shock energy absorption efficiency
  • Custom orifice designed to the user's specification
  • Hard chrome-plated rod, urethane seals and oversized bearing
  • Standard oil -10 to 80 C; special oil -30 to 100 C optional
  • Computer simulation of buffer performance available

Specifications

Type Non-adjustable, hydraulic
JPI HS10050 Non-Adjustable Hydraulic Buffer
HS10050-R Stroke: 50 mm | Energy per cycle: 4.4 kJ | Shock force: 110 kN | Return force ext./comp.: 115/250 kN | Mounting: rear flange, 4 x 14 mm holes on 100 mm square | Weight: 14 kg
Industrial BuffersJPI
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JPI HS10050 Non-Adjustable Hydraulic Buffer

Brand JPI·Industrial Buffers

Available part numbers (1)

HS10050-R

How to order

Send the JPI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
JPI HS10050 Non-Adjustable Hydraulic Buffer
0 selected
RFQ List (0)
Product codeSpec
HS10050-RStroke: 50 mm | Energy per cycle: 4.4 kJ | Shock force: 110 kN | Return force ext./comp.: 115/250 kN | Mounting: rear flange, 4 x 14 mm holes on 100 mm square | Weight: 14 kg
