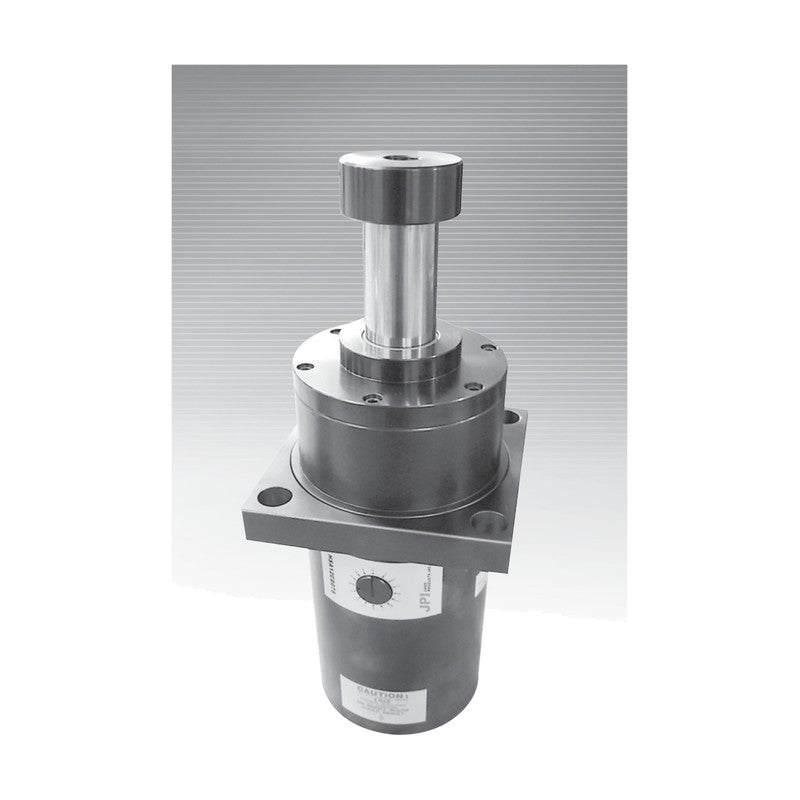

JPI HSA12CB075 Adjustable Hydraulic Buffer

JPI HSA12CB075 Adjustable Hydraulic Buffer

Large-capacity adjustable pneumatic-hydraulic buffer for repeated heavy impacts on automotive body and assembly lines.

Key features

  • Damping force adjusted by turning the adjustment knob to suit impact velocity
  • Pneumatic-hydraulic cushioning keeps performance stable as load varies
  • Long life under continuous repeated heavy impacts
  • Hard chrome-plated rod, urethane seals and oversized bearing
  • Standard oil -10 to 80 C; special oil -30 to 100 C optional

Specifications

Type Adjustable, pneumatic-hydraulic
JPI HSA12CB075 Adjustable Hydraulic Buffer
HSA12CB075 Stroke: 75 mm | Energy per cycle: 13.5 kJ | Shock force: 225 kN | Return force ext./comp.: 1.1/5.2 kN | Mounting: square flange, 4 x 22 mm holes on 135 mm | Weight: 30 kg
Industrial BuffersJPI
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

JPI HSA12CB075 Adjustable Hydraulic Buffer

Brand JPI·Industrial Buffers

Available part numbers (1)

HSA12CB075

How to order

Send the JPI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
JPI HSA12CB075 Adjustable Hydraulic Buffer
0 selected
RFQ List (0)
Product codeSpec
HSA12CB075Stroke: 75 mm | Energy per cycle: 13.5 kJ | Shock force: 225 kN | Return force ext./comp.: 1.1/5.2 kN | Mounting: square flange, 4 x 22 mm holes on 135 mm | Weight: 30 kg
