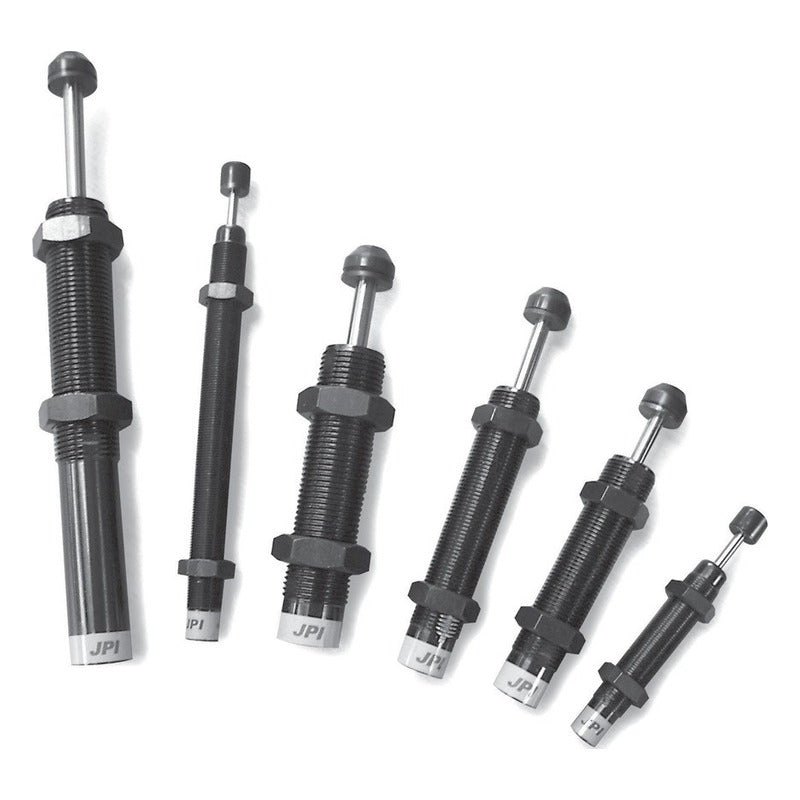

JPI MC Series Self-Compensating Shock Absorber, Fixed Damping
JPI MC Series Self-Compensating Shock Absorber, Fixed Damping
Non-adjustable self-compensating hydraulic shock absorbers with urethane cap, selected by damping constant (-1, -2, -3) according to impact velocity.
Key features
- Self-compensating orifice prevents a sharp force peak at the start of stroke for light, fast loads
- Minimises end-of-stroke shock for heavy, slow loads, giving stable absorption efficiency
- Suited where impact conditions vary or dial adjustment is impractical
- Selection: choose the model by energy, then the damping constant by impact velocity
Specifications
| Type | Non-adjustable, self-compensating, hydraulic |
|---|---|
| Cap | Urethane cap (UC) |
| Included | 2 lock nuts |
| MC1415-UC-1 | Stroke: 15 mm | Impact velocity range: 1.5-3.0 m/s | Energy per cycle: 10 Nm | Max. shock force: 840 N | Max. propelling force: 340 N | Spring return force: 5-11 N | Body thread: M14x1.0 | Weight: 0.08 kg | |
| MC1415-UC-2 | Stroke: 15 mm | Impact velocity range: 1.1-1.5 m/s | Energy per cycle: 10 Nm | Max. shock force: 840 N | Max. propelling force: 340 N | Spring return force: 5-11 N | Body thread: M14x1.0 | Weight: 0.08 kg | |
| MC1415-UC-3 | Stroke: 15 mm | Impact velocity range: 0.3-1.1 m/s | Energy per cycle: 10 Nm | Max. shock force: 840 N | Max. propelling force: 340 N | Spring return force: 5-11 N | Body thread: M14x1.0 | Weight: 0.08 kg | |
| MC2020-UC-1 | Stroke: 20 mm | Impact velocity range: 1.4-2.7 m/s | Energy per cycle: 30 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-30 N | Body thread: M20x1.5 | Weight: 0.17 kg | |
| MC2020-UC-2 | Stroke: 20 mm | Impact velocity range: 1.0-1.4 m/s | Energy per cycle: 30 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-30 N | Body thread: M20x1.5 | Weight: 0.17 kg | |
| MC2020-UC-3 | Stroke: 20 mm | Impact velocity range: 0.3-1.0 m/s | Energy per cycle: 30 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-30 N | Body thread: M20x1.5 | Weight: 0.17 kg | |
| MC2030-UC-1 | Stroke: 30 mm | Impact velocity range: 2.4-3.3 m/s | Energy per cycle: 45 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-43 N | Body thread: M20x1.5 | Weight: 0.18 kg | |
| MC2030-UC-2 | Stroke: 30 mm | Impact velocity range: 1.7-2.4 m/s | Energy per cycle: 45 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-43 N | Body thread: M20x1.5 | Weight: 0.18 kg | |
| MC2030-UC-3 | Stroke: 30 mm | Impact velocity range: 0.3-1.7 m/s | Energy per cycle: 45 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-43 N | Body thread: M20x1.5 | Weight: 0.18 kg | |
| MC2050-UC-1 | Stroke: 50 mm | Impact velocity range: 2.8-3.8 m/s | Energy per cycle: 75 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-21 N | Body thread: M20x1.5 | Weight: 0.23 kg | |
| MC2050-UC-2 | Stroke: 50 mm | Impact velocity range: 2.0-2.8 m/s | Energy per cycle: 75 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-21 N | Body thread: M20x1.5 | Weight: 0.23 kg | |
| MC2050-UC-3 | Stroke: 50 mm | Impact velocity range: 0.3-2.0 m/s | Energy per cycle: 75 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-21 N | Body thread: M20x1.5 | Weight: 0.23 kg | |
| MC2525-UC-1 | Stroke: 25 mm | Impact velocity range: 0.6-1.0 m/s | Energy per cycle: 80 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-38 N | Body thread: M25x2.0 | Weight: 0.31 kg | |
| MC2525-UC-2 | Stroke: 25 mm | Impact velocity range: 0.2-0.6 m/s | Energy per cycle: 80 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-38 N | Body thread: M25x2.0 | Weight: 0.31 kg | |
| MC2525-UC-3 | Stroke: 25 mm | Impact velocity range: 0.1-0.2 m/s | Energy per cycle: 80 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-38 N | Body thread: M25x2.0 | Weight: 0.31 kg | |
| MC2550-UC-1 | Stroke: 50 mm | Impact velocity range: 2.0-2.5 m/s | Energy per cycle: 160 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-52 N | Body thread: M25x2.0 | Weight: 0.38 kg | |
| MC2550-UC-2 | Stroke: 50 mm | Impact velocity range: 1.4-2.0 m/s | Energy per cycle: 160 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-52 N | Body thread: M25x2.0 | Weight: 0.38 kg | |
| MC2550-UC-3 | Stroke: 50 mm | Impact velocity range: 0.3-1.4 m/s | Energy per cycle: 160 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-52 N | Body thread: M25x2.0 | Weight: 0.38 kg | |
| MC2580-UC-1 | Stroke: 80 mm | Impact velocity range: 2.5-3.0 m/s | Energy per cycle: 256 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-48 N | Body thread: M25x2.0 | Weight: 0.5 kg | |
| MC2580-UC-2 | Stroke: 80 mm | Impact velocity range: 1.8-2.5 m/s | Energy per cycle: 256 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-48 N | Body thread: M25x2.0 | Weight: 0.5 kg | |
| MC2580-UC-3 | Stroke: 80 mm | Impact velocity range: 0.3-1.8 m/s | Energy per cycle: 256 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-48 N | Body thread: M25x2.0 | Weight: 0.5 kg |
Shock AbsorbersJPI
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
JPI MC Series Self-Compensating Shock Absorber, Fixed Damping
Available part numbers (21)
MC1415-UC-1, MC1415-UC-2, MC1415-UC-3, MC2020-UC-1, MC2020-UC-2, MC2020-UC-3, MC2030-UC-1, MC2030-UC-2, MC2030-UC-3, MC2050-UC-1 + 11 more — see full table ↓
How to order
Send the JPI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
JPI
Shock Absorbers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| MC1415-UC-1 | Stroke: 15 mm | Impact velocity range: 1.5-3.0 m/s | Energy per cycle: 10 Nm | Max. shock force: 840 N | Max. propelling force: 340 N | Spring return force: 5-11 N | Body thread: M14x1.0 | Weight: 0.08 kg | ||
| MC1415-UC-2 | Stroke: 15 mm | Impact velocity range: 1.1-1.5 m/s | Energy per cycle: 10 Nm | Max. shock force: 840 N | Max. propelling force: 340 N | Spring return force: 5-11 N | Body thread: M14x1.0 | Weight: 0.08 kg | ||
| MC1415-UC-3 | Stroke: 15 mm | Impact velocity range: 0.3-1.1 m/s | Energy per cycle: 10 Nm | Max. shock force: 840 N | Max. propelling force: 340 N | Spring return force: 5-11 N | Body thread: M14x1.0 | Weight: 0.08 kg | ||
| MC2020-UC-1 | Stroke: 20 mm | Impact velocity range: 1.4-2.7 m/s | Energy per cycle: 30 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-30 N | Body thread: M20x1.5 | Weight: 0.17 kg | ||
| MC2020-UC-2 | Stroke: 20 mm | Impact velocity range: 1.0-1.4 m/s | Energy per cycle: 30 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-30 N | Body thread: M20x1.5 | Weight: 0.17 kg | ||
| MC2020-UC-3 | Stroke: 20 mm | Impact velocity range: 0.3-1.0 m/s | Energy per cycle: 30 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-30 N | Body thread: M20x1.5 | Weight: 0.17 kg | ||
| MC2030-UC-1 | Stroke: 30 mm | Impact velocity range: 2.4-3.3 m/s | Energy per cycle: 45 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-43 N | Body thread: M20x1.5 | Weight: 0.18 kg | ||
| MC2030-UC-2 | Stroke: 30 mm | Impact velocity range: 1.7-2.4 m/s | Energy per cycle: 45 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-43 N | Body thread: M20x1.5 | Weight: 0.18 kg | ||
| MC2030-UC-3 | Stroke: 30 mm | Impact velocity range: 0.3-1.7 m/s | Energy per cycle: 45 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-43 N | Body thread: M20x1.5 | Weight: 0.18 kg | ||
| MC2050-UC-1 | Stroke: 50 mm | Impact velocity range: 2.8-3.8 m/s | Energy per cycle: 75 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-21 N | Body thread: M20x1.5 | Weight: 0.23 kg | ||
| MC2050-UC-2 | Stroke: 50 mm | Impact velocity range: 2.0-2.8 m/s | Energy per cycle: 75 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-21 N | Body thread: M20x1.5 | Weight: 0.23 kg | ||
| MC2050-UC-3 | Stroke: 50 mm | Impact velocity range: 0.3-2.0 m/s | Energy per cycle: 75 Nm | Max. shock force: 1,880 N | Max. propelling force: 890 N | Spring return force: 9-21 N | Body thread: M20x1.5 | Weight: 0.23 kg | ||
| MC2525-UC-1 | Stroke: 25 mm | Impact velocity range: 0.6-1.0 m/s | Energy per cycle: 80 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-38 N | Body thread: M25x2.0 | Weight: 0.31 kg | ||
| MC2525-UC-2 | Stroke: 25 mm | Impact velocity range: 0.2-0.6 m/s | Energy per cycle: 80 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-38 N | Body thread: M25x2.0 | Weight: 0.31 kg | ||
| MC2525-UC-3 | Stroke: 25 mm | Impact velocity range: 0.1-0.2 m/s | Energy per cycle: 80 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-38 N | Body thread: M25x2.0 | Weight: 0.31 kg | ||
| MC2550-UC-1 | Stroke: 50 mm | Impact velocity range: 2.0-2.5 m/s | Energy per cycle: 160 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-52 N | Body thread: M25x2.0 | Weight: 0.38 kg | ||
| MC2550-UC-2 | Stroke: 50 mm | Impact velocity range: 1.4-2.0 m/s | Energy per cycle: 160 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-52 N | Body thread: M25x2.0 | Weight: 0.38 kg | ||
| MC2550-UC-3 | Stroke: 50 mm | Impact velocity range: 0.3-1.4 m/s | Energy per cycle: 160 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-52 N | Body thread: M25x2.0 | Weight: 0.38 kg | ||
| MC2580-UC-1 | Stroke: 80 mm | Impact velocity range: 2.5-3.0 m/s | Energy per cycle: 256 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-48 N | Body thread: M25x2.0 | Weight: 0.5 kg | ||
| MC2580-UC-2 | Stroke: 80 mm | Impact velocity range: 1.8-2.5 m/s | Energy per cycle: 256 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-48 N | Body thread: M25x2.0 | Weight: 0.5 kg | ||
| MC2580-UC-3 | Stroke: 80 mm | Impact velocity range: 0.3-1.8 m/s | Energy per cycle: 256 Nm | Max. shock force: 4,000 N | Max. propelling force: 1550 N | Spring return force: 13-48 N | Body thread: M25x2.0 | Weight: 0.5 kg |
