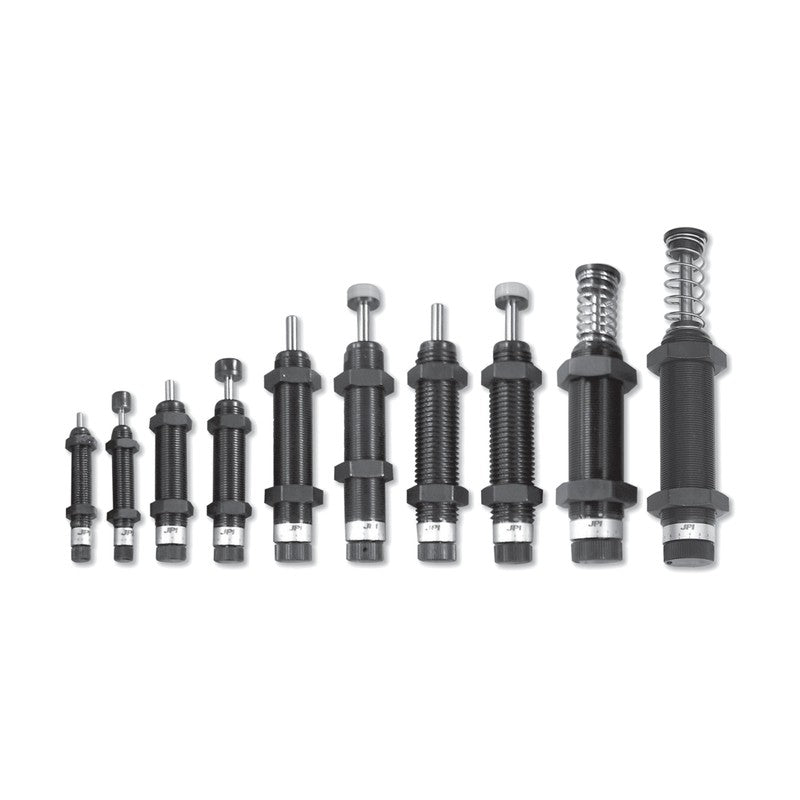

JPI SA Series Small Adjustable Shock Absorber
JPI SA Series Small Adjustable Shock Absorber
Compact adjustable hydraulic shock absorbers with a vernier damping dial for decelerating light moving loads in automation equipment.
Key features
- Damping adjustable over 0.3-3.3 m/s by turning the vernier dial through 180 degrees
- Hard chrome-plated rod, urethane seals and oversized bearing for long service life
- Fully threaded body improves heat dissipation and allows precise positioning when mounting
- Standard oil for -10 to 80 C; special oil for -30 to 100 C optional
- Custom orifice designs available to suit the application
- Urethane or nylon caps reduce impact noise
Specifications
| Type | Adjustable, hydraulic |
|---|---|
| Operating temperature | -10 to 80 C (standard oil); -30 to 100 C (optional oil) |
| Included | 2 jam nuts per unit (SA12-SA27) |
| Accessories | Stop collar, jam nut; SA36: rectangular flange (SA36-RF), stop collar (SA36-SC) |
| SA1214 | Stroke: 14 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.0 Nm | Energy per hour: 15000 Nm/h | Max. shock force: 650 N | Max. propelling force: 300 N | Body thread: M12x1.0 | Weight: 45 g | |
| SA1214-UC | Stroke: 14 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.0 Nm | Energy per hour: 15000 Nm/h | Max. shock force: 650 N | Max. propelling force: 300 N | Body thread: M12x1.0 | Weight: 45 g | Cap: urethane cap | |
| SA1410 | Stroke: 10 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.5 Nm | Energy per hour: 20000 Nm/h | Max. shock force: 890 N | Max. propelling force: 350 N | Body thread: M14x1.5 | Weight: 56 g | |
| SA1410-UC | Stroke: 10 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.5 Nm | Energy per hour: 20000 Nm/h | Max. shock force: 890 N | Max. propelling force: 350 N | Body thread: M14x1.5 | Weight: 56 g | Cap: urethane cap | |
| SA1612 | Stroke: 12 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 18.0 Nm | Energy per hour: 31000 Nm/h | Max. shock force: 1170 N | Max. propelling force: 380 N | Body thread: M16x1.5 | Weight: 97 g | |
| SA1612-UC | Stroke: 12 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 18.0 Nm | Energy per hour: 31000 Nm/h | Max. shock force: 1170 N | Max. propelling force: 380 N | Body thread: M16x1.5 | Weight: 97 g | Cap: urethane cap | |
| SA2015 | Stroke: 12 mm | Velocity: 0.3-4.5 m/s | Energy per cycle: 28.0 Nm | Energy per hour: 32000 Nm/h | Max. shock force: 3500 N | Max. propelling force: 670 N | Body thread: M20x1.5 | Weight: 141 g | |
| SA2015-UC | Stroke: 12 mm | Velocity: 0.3-4.5 m/s | Energy per cycle: 28.0 Nm | Energy per hour: 32000 Nm/h | Max. shock force: 3500 N | Max. propelling force: 670 N | Body thread: M20x1.5 | Weight: 141 g | Cap: urethane cap | |
| SA2525 | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M25x1.5 | Weight: 285 g | |
| SA2525-UC | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M25x1.5 | Weight: 285 g | Cap: urethane cap | |
| SA2725 | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M27x3.0 | Weight: 285 g | |
| SA2725-UC | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M27x3.0 | Weight: 285 g | Cap: urethane cap | |
| SA3625 | Stroke: 25 mm | Energy per cycle: 120 Nm | Energy per hour: 90000 Nm/h | Max. shock force: 6000 N | Max. propelling force: 2150 N | Spring return force: 36-58 N | Body thread: M36x1.5 | Weight: 0.88 kg | |
| SA3650 | Stroke: 50 mm | Energy per cycle: 240 Nm | Energy per hour: 105000 Nm/h | Max. shock force: 6000 N | Max. propelling force: 2150 N | Spring return force: 23-63 N | Body thread: M36x1.5 | Weight: 0.99 kg |
Shock AbsorbersJPI
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
JPI SA Series Small Adjustable Shock Absorber
Available part numbers (14)
SA1214, SA1214-UC, SA1410, SA1410-UC, SA1612, SA1612-UC, SA2015, SA2015-UC, SA2525, SA2525-UC + 4 more — see full table ↓
How to order
Send the JPI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
JPI
Shock Absorbers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| SA1214 | Stroke: 14 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.0 Nm | Energy per hour: 15000 Nm/h | Max. shock force: 650 N | Max. propelling force: 300 N | Body thread: M12x1.0 | Weight: 45 g | ||
| SA1214-UC | Stroke: 14 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.0 Nm | Energy per hour: 15000 Nm/h | Max. shock force: 650 N | Max. propelling force: 300 N | Body thread: M12x1.0 | Weight: 45 g | Cap: urethane cap | ||
| SA1410 | Stroke: 10 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.5 Nm | Energy per hour: 20000 Nm/h | Max. shock force: 890 N | Max. propelling force: 350 N | Body thread: M14x1.5 | Weight: 56 g | ||
| SA1410-UC | Stroke: 10 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 5.5 Nm | Energy per hour: 20000 Nm/h | Max. shock force: 890 N | Max. propelling force: 350 N | Body thread: M14x1.5 | Weight: 56 g | Cap: urethane cap | ||
| SA1612 | Stroke: 12 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 18.0 Nm | Energy per hour: 31000 Nm/h | Max. shock force: 1170 N | Max. propelling force: 380 N | Body thread: M16x1.5 | Weight: 97 g | ||
| SA1612-UC | Stroke: 12 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 18.0 Nm | Energy per hour: 31000 Nm/h | Max. shock force: 1170 N | Max. propelling force: 380 N | Body thread: M16x1.5 | Weight: 97 g | Cap: urethane cap | ||
| SA2015 | Stroke: 12 mm | Velocity: 0.3-4.5 m/s | Energy per cycle: 28.0 Nm | Energy per hour: 32000 Nm/h | Max. shock force: 3500 N | Max. propelling force: 670 N | Body thread: M20x1.5 | Weight: 141 g | ||
| SA2015-UC | Stroke: 12 mm | Velocity: 0.3-4.5 m/s | Energy per cycle: 28.0 Nm | Energy per hour: 32000 Nm/h | Max. shock force: 3500 N | Max. propelling force: 670 N | Body thread: M20x1.5 | Weight: 141 g | Cap: urethane cap | ||
| SA2525 | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M25x1.5 | Weight: 285 g | ||
| SA2525-UC | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M25x1.5 | Weight: 285 g | Cap: urethane cap | ||
| SA2725 | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M27x3.0 | Weight: 285 g | ||
| SA2725-UC | Stroke: 25 mm | Velocity: 0.3-3.3 m/s | Energy per cycle: 74.0 Nm | Energy per hour: 70000 Nm/h | Max. shock force: 4400 N | Max. propelling force: 1330 N | Body thread: M27x3.0 | Weight: 285 g | Cap: urethane cap | ||
| SA3625 | Stroke: 25 mm | Energy per cycle: 120 Nm | Energy per hour: 90000 Nm/h | Max. shock force: 6000 N | Max. propelling force: 2150 N | Spring return force: 36-58 N | Body thread: M36x1.5 | Weight: 0.88 kg | ||
| SA3650 | Stroke: 50 mm | Energy per cycle: 240 Nm | Energy per hour: 105000 Nm/h | Max. shock force: 6000 N | Max. propelling force: 2150 N | Spring return force: 23-63 N | Body thread: M36x1.5 | Weight: 0.99 kg |
