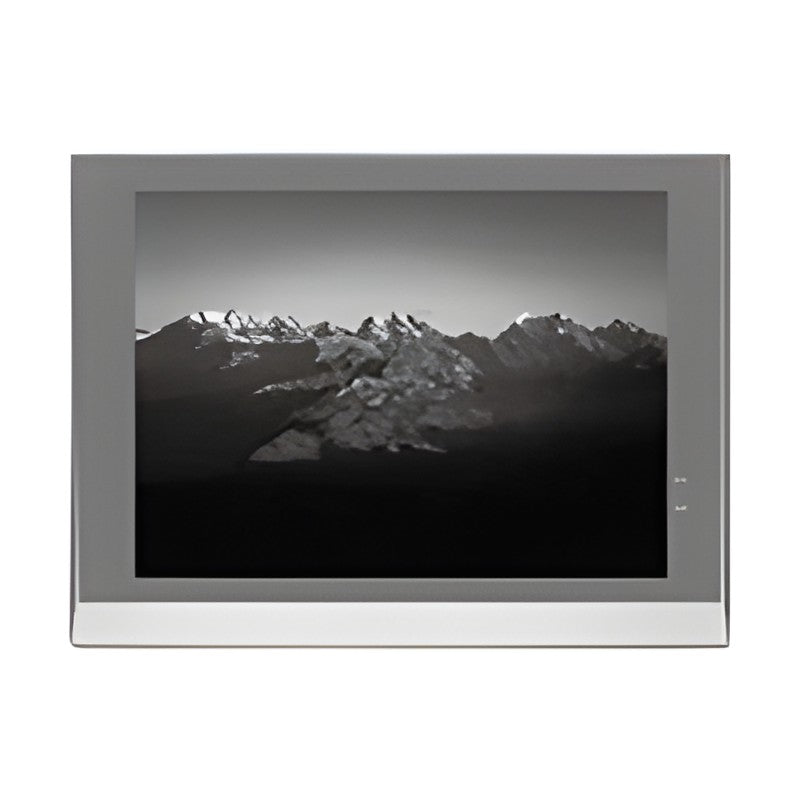

KACON FE Series Touch Screen HMI, 10.4 to 15 inch (on demand)

KACON FE Series Touch Screen HMI, 10.4 to 15 inch (on demand)

Large-format aluminium-front touch screen HMIs from 10.4 to 15 inch for wide-temperature industrial panels, supplied on demand.

Key features

  • Wide operating temperature range of -20 to 70°C
  • Aluminium alloy front cover with galvanized rear cover
  • Ethernet, SD card, USB host/slave and 4 COM ports
  • 600MHz ARM Cortex-A8 processor for fast booting
  • Drawing data, OS and recipe/log transfer via USB flash drive without a PC
  • Supports 1:1, 1:N serial and N:M Ethernet HMI-PLC configurations

Specifications

Backlight LED, 50,000 h life
Touch panel 4-wire resistive (surface hardness 4H)
CPU 600MHz ARM Cortex-A8
Memory 128MB Flash + 128MB DDR3
USB USB 2.0 slave x1, USB 2.0 host x1
Rated voltage 24VDC
Certification EN61000-6-2:2005, EN61000-6-4:2007, RoHS
Protection Front IP65, rear IP20
Ethernet 10/100M adaptive
SD card Available
COM ports COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232
Operating temperature -20 to 70°C
KACON FE Series Touch Screen HMI, 10.4 to 15 inch (on demand) - reference 2
FE4104S Display: 10.4" 4:3 TFT LCD | Resolution: 800 x 600 | Colors: 24-bit | Brightness: 500 cd/m² | Input range: 18-28VDC | Power: 15W or less | Panel cut-out: 260 x 202 mm | Size: 275 x 215 x 39.6 mm | Weight: approx. 2020g | Availability: on demand
FE4121X Display: 12.1" 4:3 TFT LCD | Resolution: 1024 x 768 | Colors: 24-bit | Brightness: 370 cd/m² | Input range: 9-28VDC | Power: 15W or less | Panel cut-out: 291 x 219 mm | Size: 310 x 240 x 48.5 mm | Weight: approx. 2820g | Availability: on demand
FE4150X Display: 15" 4:3 TFT LCD | Resolution: 1024 x 768 | Colors: 24-bit | Brightness: 400 cd/m² | Input range: 18-28VDC | Power: 15W or less | Panel cut-out: 360 x 272 mm | Size: 394 x 297 x 48.3 mm | Weight: approx. 4300g | Availability: on demand
HMIsKACON
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON FE Series Touch Screen HMI, 10.4 to 15 inch (on demand)

Brand KACON·HMIs

Available part numbers (3)

FE4104S, FE4121X, FE4150X

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON FE Series Touch Screen HMI, 10.4 to 15 inch (on demand) - reference 2
0 selected
RFQ List (0)
Product codeSpec
FE4104SDisplay: 10.4" 4:3 TFT LCD | Resolution: 800 x 600 | Colors: 24-bit | Brightness: 500 cd/m² | Input range: 18-28VDC | Power: 15W or less | Panel cut-out: 260 x 202 mm | Size: 275 x 215 x 39.6 mm | Weight: approx. 2020g | Availability: on demand
FE4121XDisplay: 12.1" 4:3 TFT LCD | Resolution: 1024 x 768 | Colors: 24-bit | Brightness: 370 cd/m² | Input range: 9-28VDC | Power: 15W or less | Panel cut-out: 291 x 219 mm | Size: 310 x 240 x 48.5 mm | Weight: approx. 2820g | Availability: on demand
FE4150XDisplay: 15" 4:3 TFT LCD | Resolution: 1024 x 768 | Colors: 24-bit | Brightness: 400 cd/m² | Input range: 18-28VDC | Power: 15W or less | Panel cut-out: 360 x 272 mm | Size: 394 x 297 x 48.3 mm | Weight: approx. 4300g | Availability: on demand
