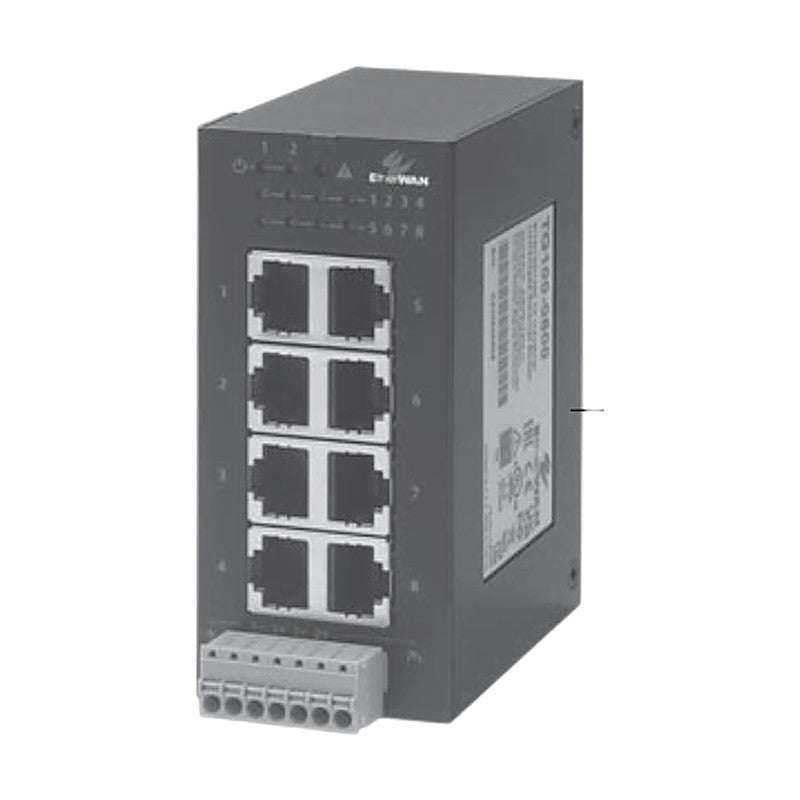

Samwon ACT TG100-0800 8-Port Gigabit Industrial Ethernet Switch, Metal

Unmanaged 8-port 10/100/1000BASE-T industrial Ethernet switch in a compact metal DIN-rail case with redundant power input and alarm relay. 8 x 10/100/1000BASE-T ports.

Key features

Redundant 9-55 V DC power inputs
Relay alarm output 0.5 A at 30 V DC. 1 kV surge protection
Rugged compact metal case, IP40

Specifications

Standards	IEEE 802.3, 802.3u, 802.3x, 802.3az, 802.1p QoS
Processing	Store-and-forward, auto MDI/MDIX, auto negotiation
Operating Temperature	-10 to 60 C
Storage Temperature	-40 to 85 C
Humidity	5-95% (non-condensing)
Mounting	DIN rail (35 mm)
Approvals	UL, CE, KC, FCC
EMC	EN 61000-6-2, EN 61000-6-4
Ports	8 x 10/100/1000BASE-T
Power Input	12-48 V DC (9-55 V DC), dual terminal block
Power Consumption	5.55 W max.
Alarm Contact	1 relay output, 0.5 A at 30 V DC

TG100-0800

Ports: 8 x 10/100/1000 Mbps

Industrial Ethernet SwitchesSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT TG100-0800 8-Port Gigabit Industrial Ethernet Switch, Metal

Brand Samwon ACT·Industrial Ethernet Switches

Available part numbers (1)

TG100-0800

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
