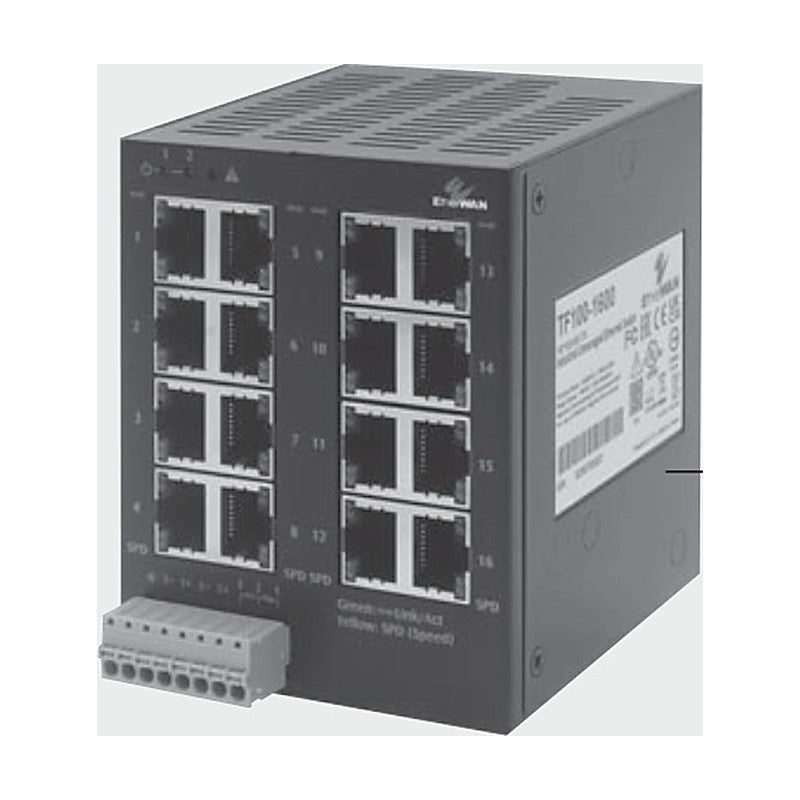

Samwon ACT TF100-1600 16-Port 10/100 Industrial Ethernet Switch, Metal

Unmanaged 16-port 10/100BASE-TX industrial Ethernet switch in a metal DIN-rail case with redundant power input, alarm relay and 2 kV surge protection. 16 x 10/100BASE-TX ports.

Key features

Redundant 9-55 V DC power inputs
Relay alarm output 0.5 A at 48 V DC. 2 kV surge protection
Metal case, IP30

Specifications

Standards	IEEE 802.3, 802.3u, 802.3x, 802.3az, 802.1p QoS
Processing	Store-and-forward, auto MDI/MDIX, auto negotiation
Operating Temperature	-10 to 60 C
Storage Temperature	-40 to 85 C
Humidity	5-95% (non-condensing)
Mounting	DIN rail (35 mm)
Approvals	UL, CE, KC, FCC
EMC	EN 61000-6-2, EN 61000-6-4
Ports	16 x 10/100BASE-TX
Power Input	9-55 V DC, dual terminal block
Power Consumption	3.72 W max.
Alarm Contact	1 relay output, 0.5 A at 48 V DC

TF100-1600

Ports: 16 x 10/100 Mbps

Industrial Ethernet SwitchesSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT TF100-1600 16-Port 10/100 Industrial Ethernet Switch, Metal

Brand Samwon ACT·Industrial Ethernet Switches

Available part numbers (1)

TF100-1600

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
