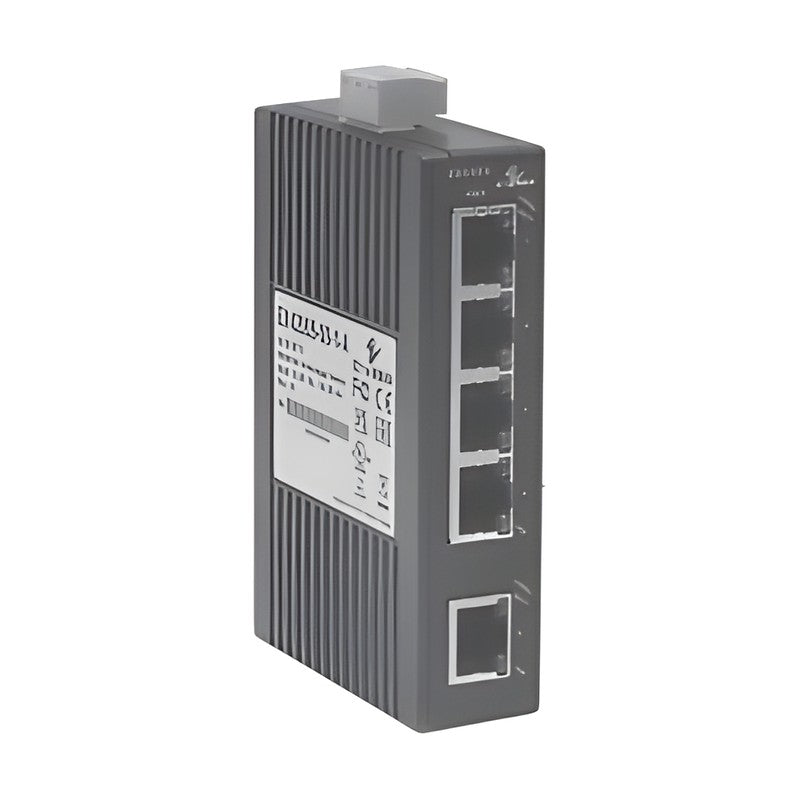

Samwon ACT EX42005-00-1-A 5-Port 10/100 Industrial Ethernet Switch

Compact unmanaged 5-port 10/100BASE-TX industrial Ethernet switch in a plastic DIN-rail case with 4 kV surge protection. 5 x 10/100BASE-TX ports with auto-negotiation and auto MDI/MDIX. 4 kV surge protection on signal ports. 1K MAC address table, 448 kbit buffer memory.

Key features

IEEE 802.1p QoS with two priority queues. 12-48 V DC terminal-block power input with reverse polarity protection
Compact plastic case for DIN rail

Specifications

Standards	IEEE 802.3, 802.3u, 802.3x, 802.3az, 802.1p QoS
Processing	Store-and-forward, auto MDI/MDIX, auto negotiation
Operating Temperature	-10 to 60 C
Storage Temperature	-40 to 85 C
Humidity	5-95% (non-condensing)
Mounting	DIN rail (35 mm)
Approvals	UL, CE, KC, FCC
EMC	EN 61000-6-2, EN 61000-6-4
Ports	5 x 10/100BASE-TX
Power Input	12-48 V DC (terminal block)
Power Consumption	1.82 W max.
Casing	Plastic, IP30

EX42005-00-1-A

Ports: 5 x 10/100 Mbps

Industrial Ethernet SwitchesSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT EX42005-00-1-A 5-Port 10/100 Industrial Ethernet Switch

Brand Samwon ACT·Industrial Ethernet Switches

Available part numbers (1)

EX42005-00-1-A

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
