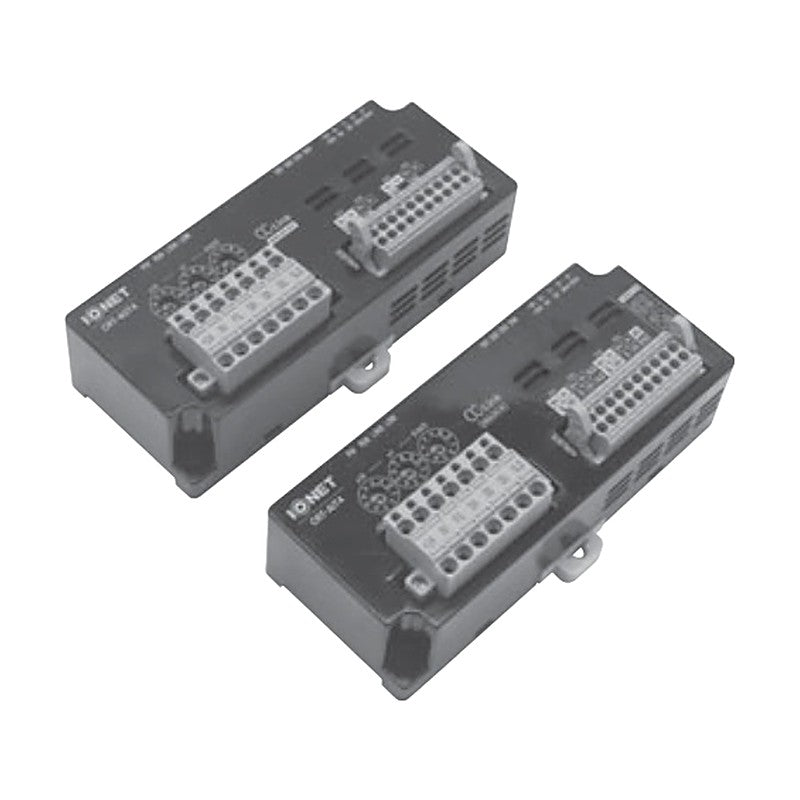

Samwon ACT CRT-AIT4 / CRT-AOT4 CC-Link Remote Analog I/O Terminals

4-channel CC-Link remote analog input and output terminals for voltage and current signals.

Key features

CC-Link Ver.1.1 remote terminal: up to 10 Mbps, 100 m, up to 64 stations
Range indicator LEDs show the analog I/O range at a glance
Averaging functions (count, time, moving average) on CRT-AIT4
Detachable load-side terminal block for maintenance without rewiring

Specifications

Channels	4
Voltage Range	-10 to 10 V, 0-5 V, 1-5 V
Current Range	0-20 mA, 4-20 mA
Conversion Speed	200 us/channel
CC-Link Station Type	Remote device station, 1 station occupied
Unit Power	20.4-26.4 V DC
Interface	Power: 5.08 mm pluggable push-in 7p dual; I/O: 3.5 mm pluggable push-in 20p
Dimensions (W x D)	120.0 x 50.0 mm
Mounting	Screw / DIN rail (channel)
Approvals	CE, cULus

CRT-AIT4		Function: Analog input (A/D) \| Accuracy: +/-0.2% (0-55 C)
CRT-AOT4		Function: Analog output (D/A) \| Accuracy: +/-0.2% (25 C), +/-0.3% (0-55 C)

Remote I/O TerminalsSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT CRT-AIT4 / CRT-AOT4 CC-Link Remote Analog I/O Terminals

Brand Samwon ACT·Remote I/O Terminals

Available part numbers (2)

CRT-AIT4, CRT-AOT4

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
